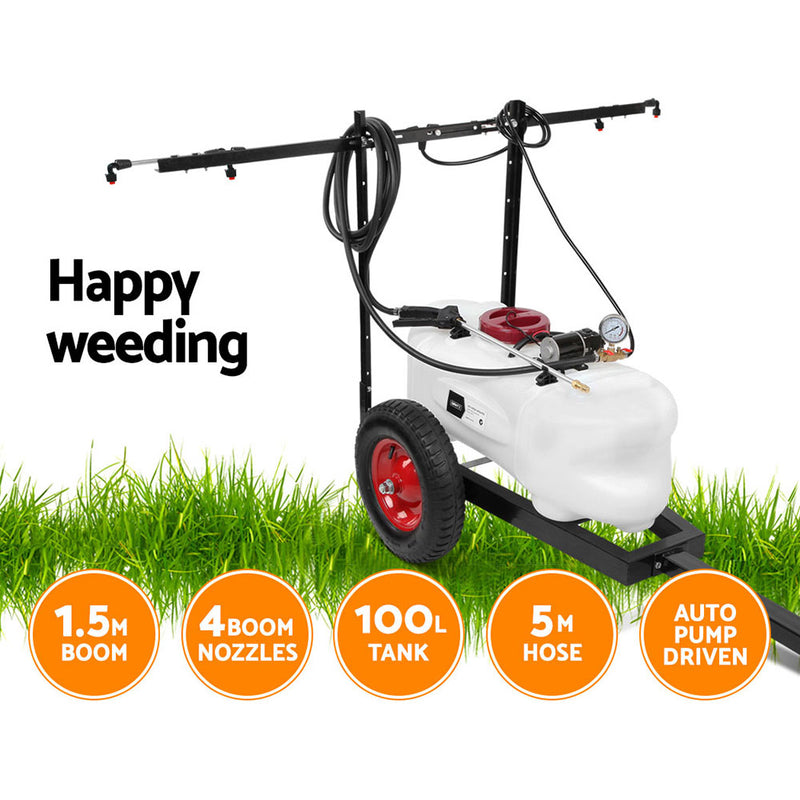

100L ATV Spot Spray Tank
The 150kg trailer comes with a boom rack that can be adjusted to meet any spraying needs. The weed sprayer can be mounted to any ATV, quadbike or mower. To prevent corrosion, the pump has a built-in run dry protection and brass fittings. To withstand heavy handling, all components have been designed to last.
Features
* Trailer with 150kg capacity and pneumatic tyres
* Adjustable boom rack
* Mountable on ATVs, Quad bikes and Mowers
* 100L durable and leak-proof tank
* UV-stable, impact-resistant, and rust-proof design
* Rust-resistant stainless Steel Spray Tube and Boom
* Large 8m spraying area
* Self-priming pump at 108psi
* There are two spraying modes: Jet/Stream
* 5m high-pressure chemical-grade hose
* Built-in protection against run-dry
* Filling inlet using ultra-fine filter
* Brass fittings that resist corrosion are superior
* For optimal stability, use a low tank profile
* Includes ratchet fasten straps
* Rear spray boom equipped with nozzles
* Includes a hand-held sprayer nozzle
* 1 year warranty

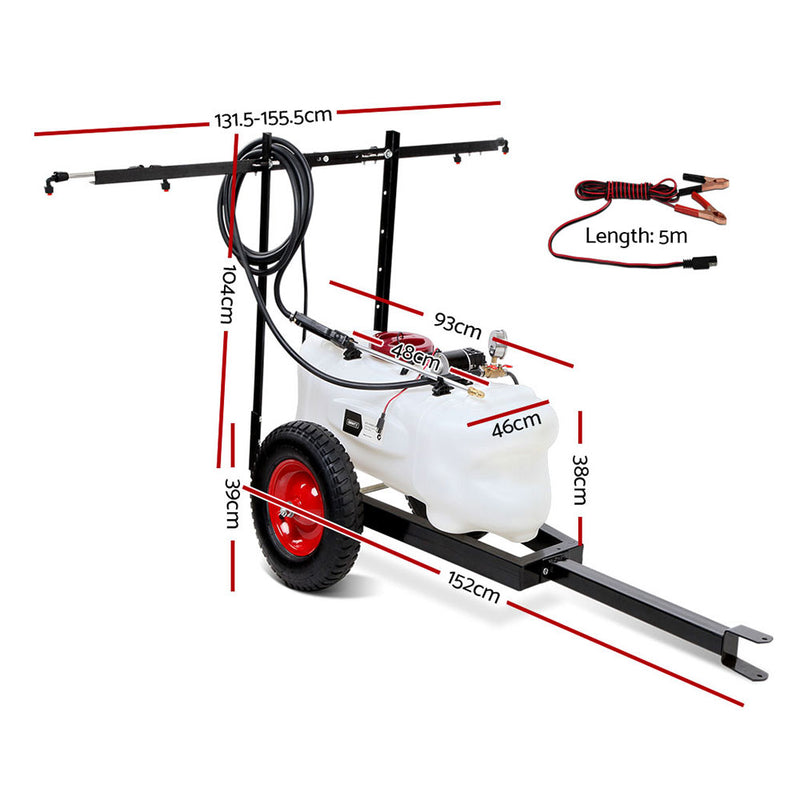

Specifications
* Volts: 12V
* Power: 65W
* Trailer Capacity: 150KG
* Spray boom length 1.5M
* Spray boom Hose: 1.5M
* Maximum boom spray width is 1.5-2.5m
* Tank capacity 100L
* Diaphragm Pump: 108PSI/7.5BAR Self Priming
* 5M high pressure hand held sprayer hose
* Spray gun range for hand held: 8m
* Spray lance length is 68cm
* Maximum pressure: 130 PSI/9 BAR
* Spray lance pressure and flow rate: 4.5 bar at 2.6L/min
* Spray gun pressure and flow rate: 3.5Bar at 3.0L/min (MAX 5.55BAR, variable)
* Spray nozzles: 4 on each boom
* Adjustable spraynozzle (on lance: Stream/Jet
* Fasten strap 5m
* Lance nozzle: Brass
* DC cable with clamp 5M
* Capacity of the pressure gauge: 150psi
The package content:
1 x Giantz 100L sprayer
1 x Heavy duty trailer
1 x DC self-priming pump
1 x 1.5m boom Hose
1 x 5m sprayhose
1 x 1.5m boom with 4 nozzles
1 x Spray lance
1 x DC cable 5M
1 x Fasten strap
1 x 150 PSI pressure gauge
1 x Manual
