Motion detection in up to 192 locations Night vision infrared within 20 m. Huge 1TB HDD that can store up to 2 years worth of recordings. The 1080P HD camera resolution is superior to the 720P used in DIY home security systems. The UL Tech CCTV 1080P 8 channel CCTV Security Camera is one of the most advanced home surveillance systems on the market.
Our weatherproof CCTV system uses the most recent security monitoring technology. It is suitable for indoor and outdoor use. High resolution allows you to easily identify facial features, license plates, and clothing patterns in case of a home invasion or break-in. The System's large hard drive storage allows you to view your recordings even years ago. It will also ensure that your data is protected in the event of a power outage.
The CCTV System supports Wi-Fi and P2P technology, while the 5-in-1 DVR can output video via VGA or HDMI. You can also access the System remotely via your smartphone or mobile device using the XMEye app. If any unauthorized motion is detected, an email will be sent instantly to your account. You can set the motion detection to activate the camera only when motion is detected.
You can rest assured that your property is protected by the UL Tech 1080P CCTV Security camera, whether you are on vacation or not.
Features
1080P HD
8 Channel 1080N 5-in-1 Digital Video Recorder
Supports AHD and TVI, CVI/CVBS, IP camera, and AHD.
Help P2P technology
High resolution cameras with built-in IR-cut
Remote access
Log in to XMEye app to view the data on your phone or computer
Motion detection that can be customized
Instant email alarm
HDMI and VGA outputs
All-weather IP66 design
Outdoor and indoor use
Support USB backup and storage
Data protection during power outages
Live viewing of 8 channels via smart phone
Your smart phone can support capture and recording
Support Cloud System for Remote Access/Support HDMI output
Easy to installBonus
RRP $195 1TB hard drive, USB mouse
Specifications
Video:
H.264 Codec
VGA, HDMI HD Monitor Quality
Preview of 8*1080N
Encode capability: 8*1080N@12fps
Decodeability: 8*1080N@12fps
Multi-mode input analog: 8*1080N
Hybrid: 4*1080N, analog + 4*960P, network
Only network: 16*1080P, 16*960P, 9*1080P
Motion detection: Each screen can have a maximum of 192 (16*12), detection areas. Multi-level security sensitivity can also be adjusted (limited local channel).
Record and playback
Mode: Manual > Alarm > Motion detection
Local playback: 8ch (local input mod)
Seatrch mode: Search for time, calenders, events, and channels

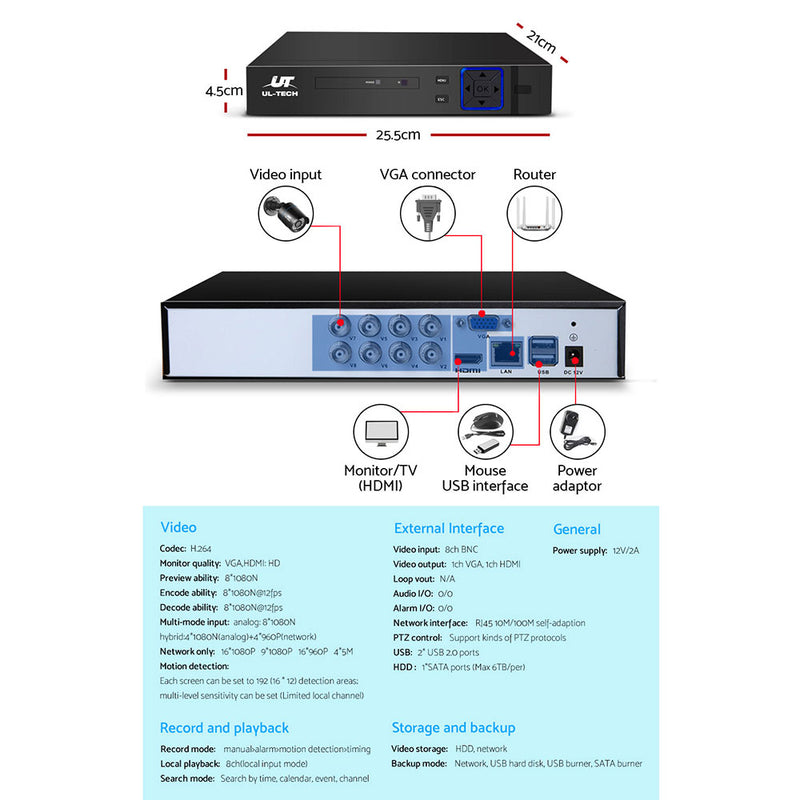

External inferface
Video input: 8ch BNC
Video output: 1ch VHA and 1ch HDMI
Loop vout N/A
Audio I/O: 0/0
Alarm I/O: 0/0
RJ45 10M/100M network interface for self-adaptation
PTZ Control: 1*RS485, Support types of PTZ Protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Maximum 6TB/per).
Backup and storage
Video storage: HDD and network
Backup mode: Network.
General:
12V/2A power supply

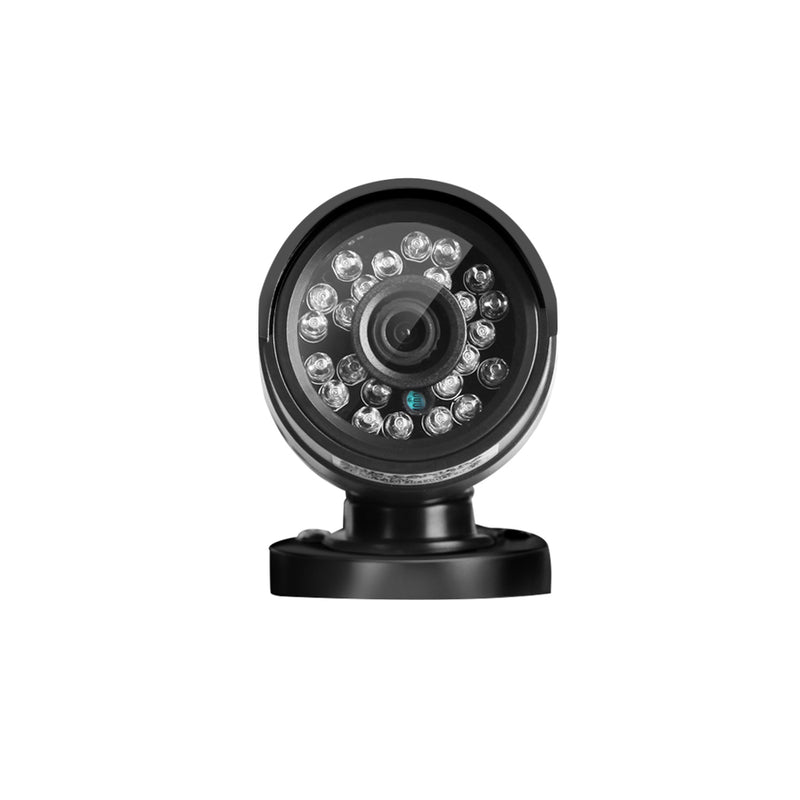

Camera
Image sensor: 1/2.8inch V20 +SC1135 Sensor (V20+FH8532).
Video resolution: 1080P (1920*1080).
Signal system PAL/NTSC
Minimum illumination: Olux (when IR is on).
Video output: 1.0vp-p75
Lens: 3.6mm
Number of infrared leds: 24
Night and day function: Built in IR-CUT
Night vision distances up to 66ft/ 20m
Ratio of noise-signal: 41db
DC12V 10% Operating power
Consumption: 5W

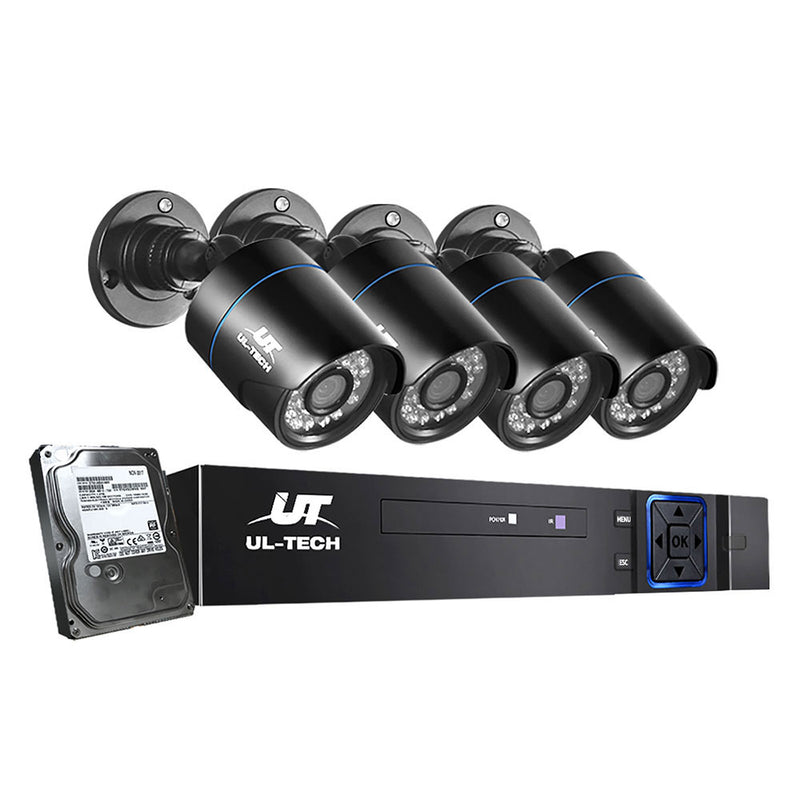

Products:
4x AHD Camera
1 x 1080 8CH DVR
1 x 1TB Hard Disk
4-in-1 2-in-1 BNC & Power Cable, 18.3m (60ft).
1 x 1-4 Splitter cable
2 x 12V/2A Power
1 x USB Mouse
1 x User Manual
