This 500N Max Automatic Garage Roller Door Opener Motor (with Auto Reverse / Stop) will easily convert your existing garage door to an automatic one.
This product is water resistant and especially designed for Australian style garage rolling doors.
Features:
- Quiet in operation,secure with rolling
- Slim design requires a minimum side space of 40mm
- Supports door sizes up to 4.5m high with a max door area of 16m² - (up to 80kg Spring Balanced)

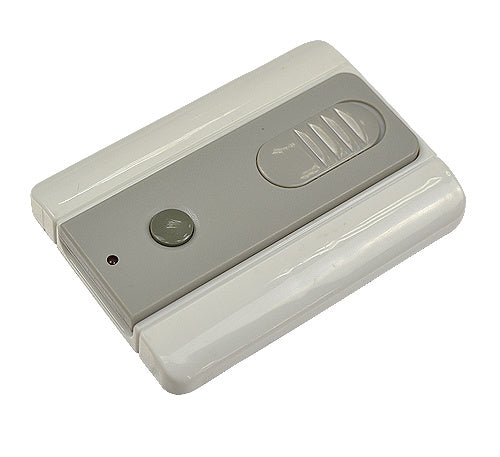

- Includes wireless door button + 2 x remote controls (as seen in the pictures)
- Soft Start and Soft Stop
- SMT PCB control system
- Over current protection
- Auto-Reverse / Stop Safety function in case of obstruction
- Built in adjustable auto-close (1-99 seconds)
- Built in Max. Motor running time for multiple safety protection (45 seconds)
- Double disengage device for easy manual and auto operation
- Removable drum fork
- Rolling code remote control

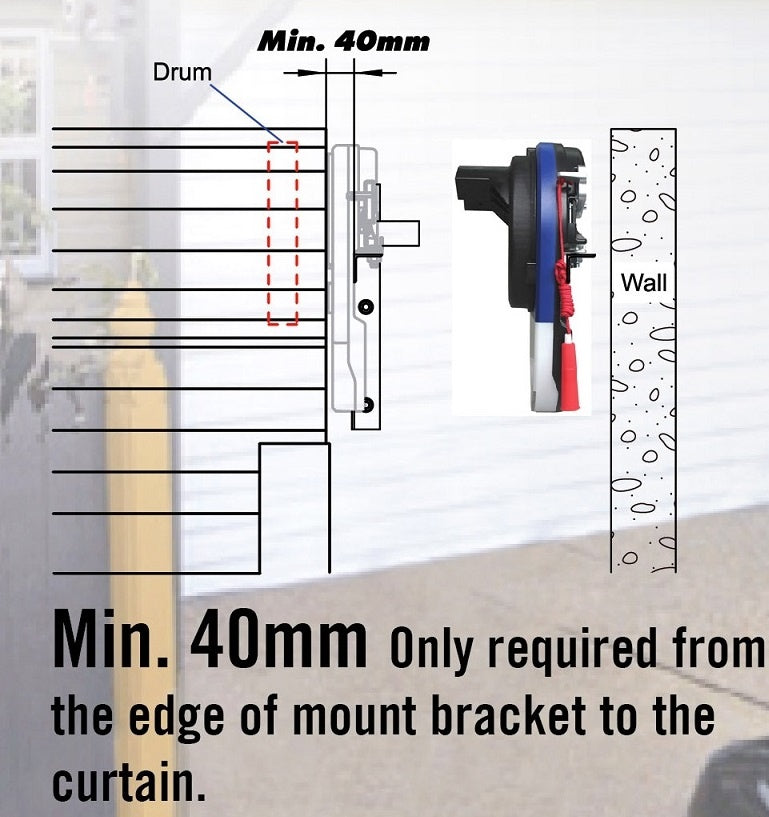

- Distance between curtain and bracket: Min 40mm
Specifications:
- 230V, 50Hz
- Power: 120V A
- Lift Force Max: 500N
- Protection Grade: IP53
- Max Door Height: 4.5m
- Max Door Area: 16m
- Built-in Max Running Time: 45 seconds
- Max Travel: 5 turns of drum
- Auto close time: adjustable from 1-99 seconds
- Weight: 5kg
Model Code: HUH-AP
PLEASE NOTE:
- Only the roller door mechanism and associated remotes & wireless door button included. Actual garage door is NOT included.
- Assembly must be done by a licensed Electrician.
