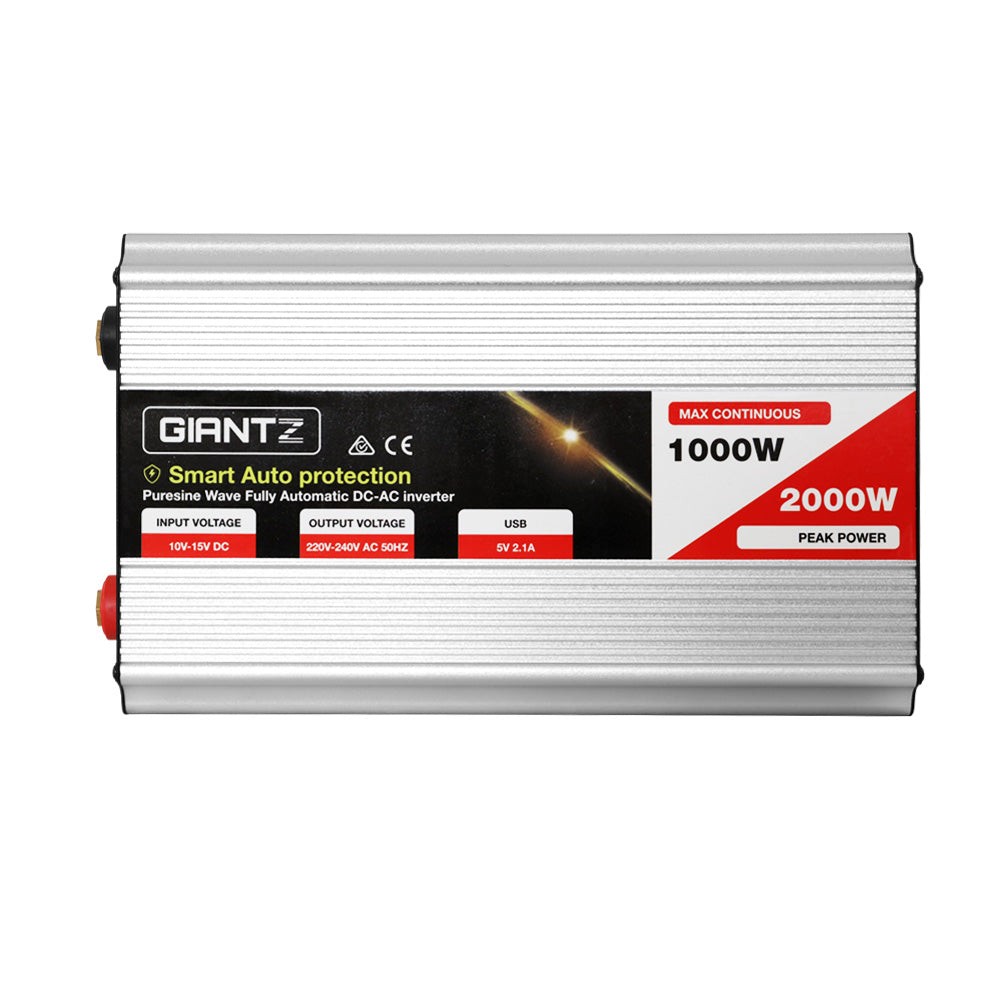

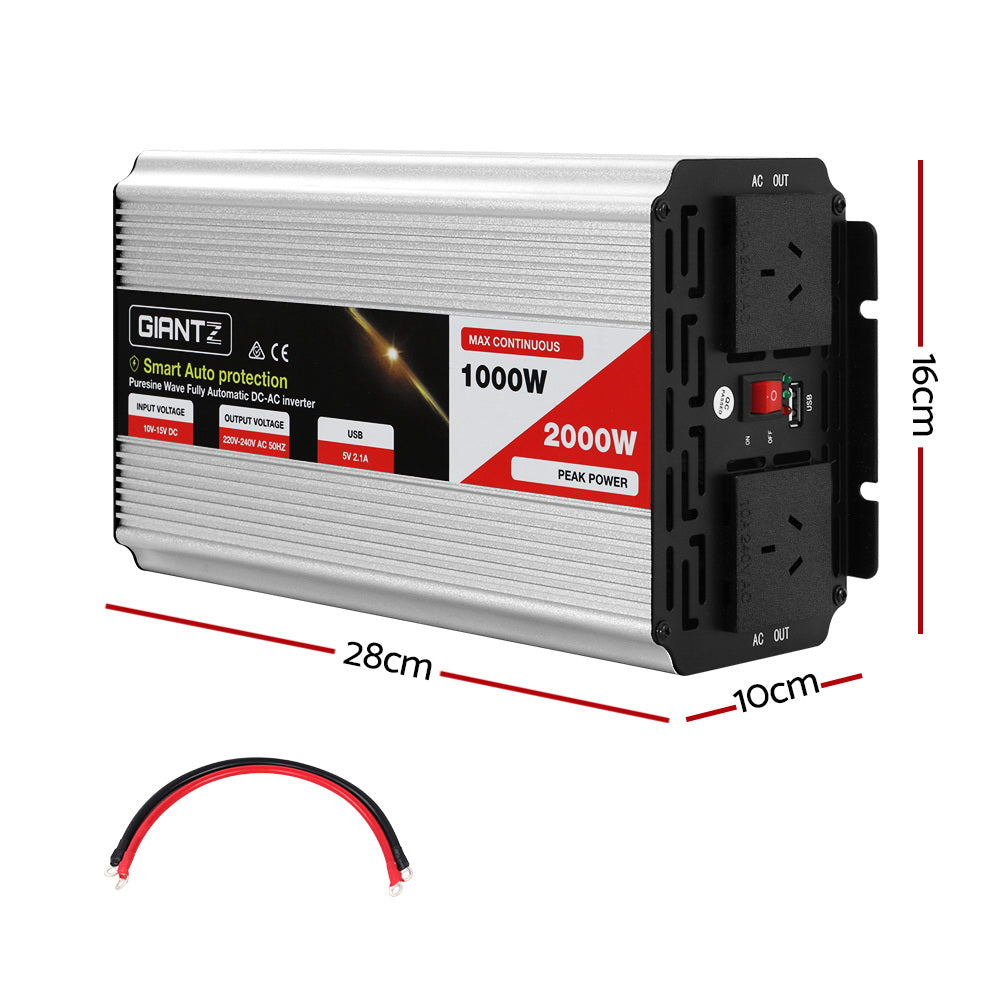

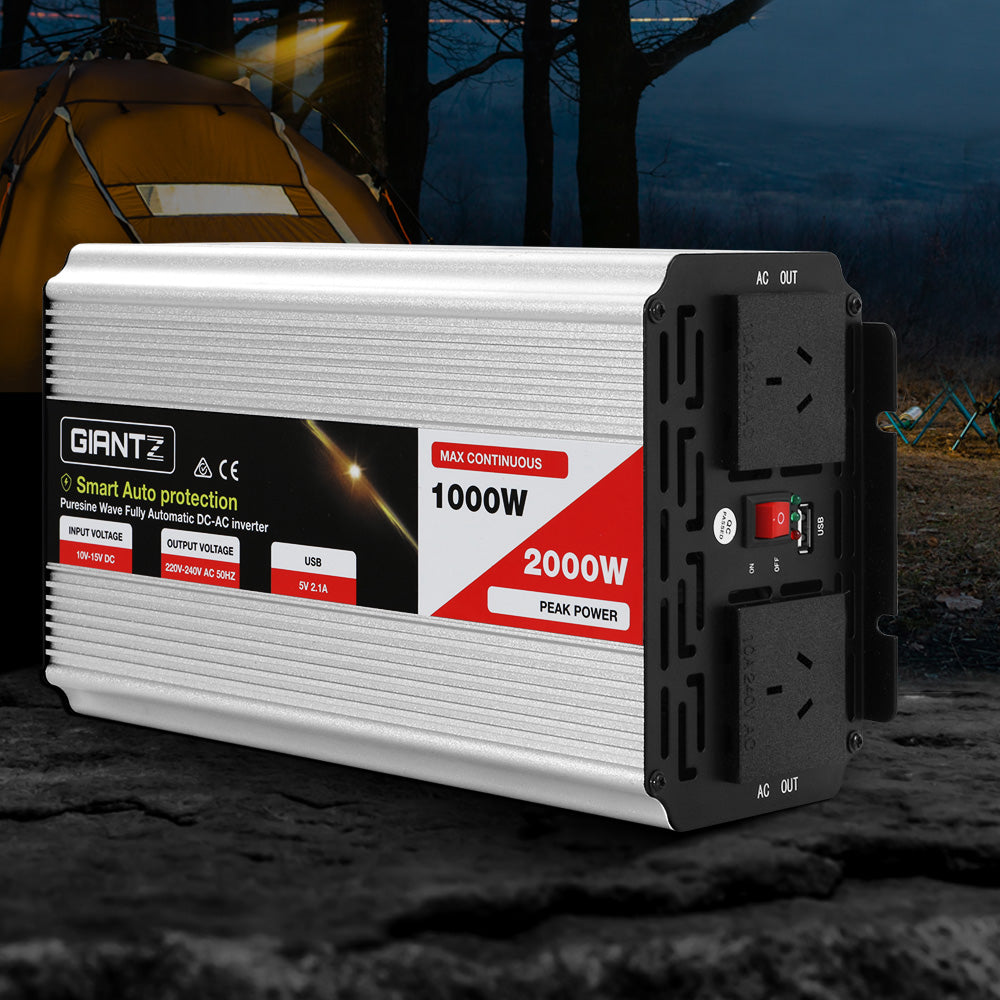

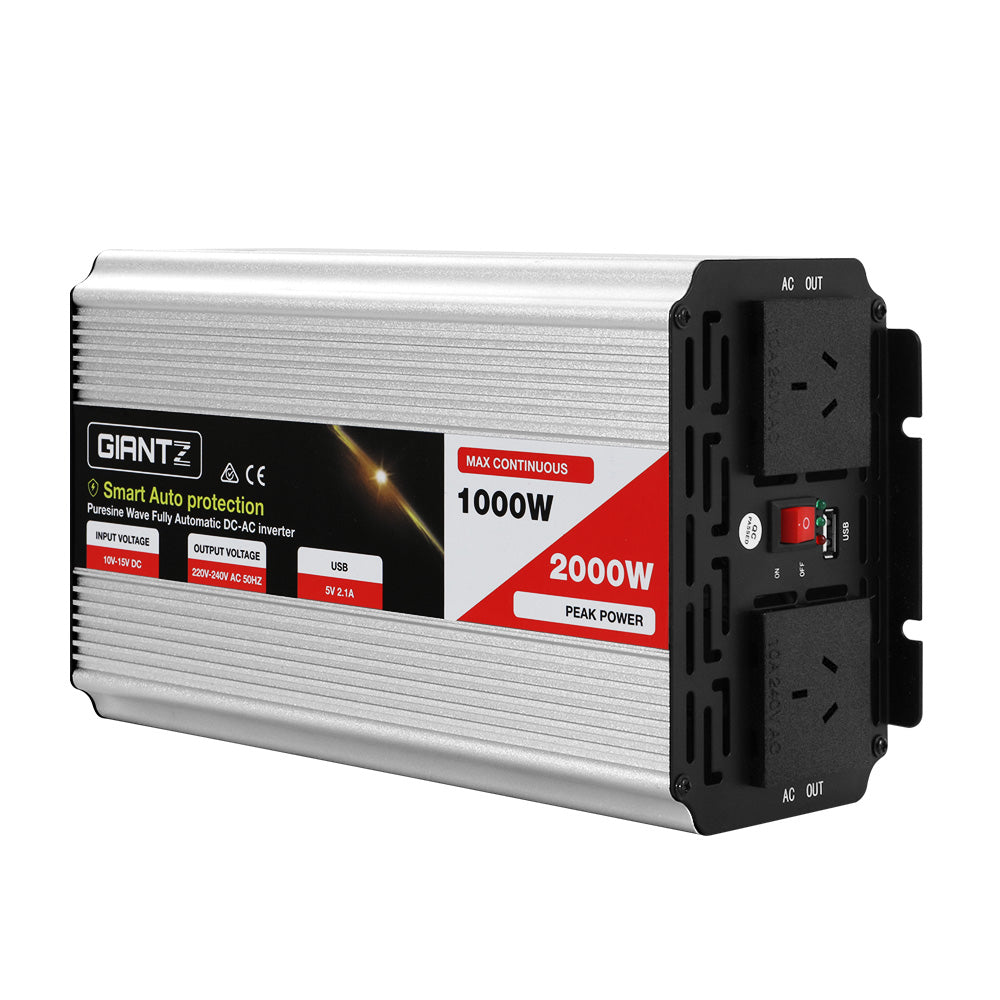

The Giantz Pure Sine Wave Power Inverter runs 240V appliances from a 12V source such as a car, 4WD, caravan or boat battery. It produces a clean pure sine wave output, suited to sensitive electronics like computers, phones and TVs.
It has a continuous output of 1000W with a peak of 2000W, two 240V sockets and a USB output. It also includes overload, over-voltage, overheat and short-circuit protection. It is not suitable for inductive products with motors or transformers, such as air conditioners, power transformers and compressors, as these can be damaged.
Important note:
The power inverter is not compatible for use with inductive products that contain motors or transformers (such as air conditioners, power transformers and compressors). If power is supplied by the power inverter, it will cause damage to the motor and electronic board.

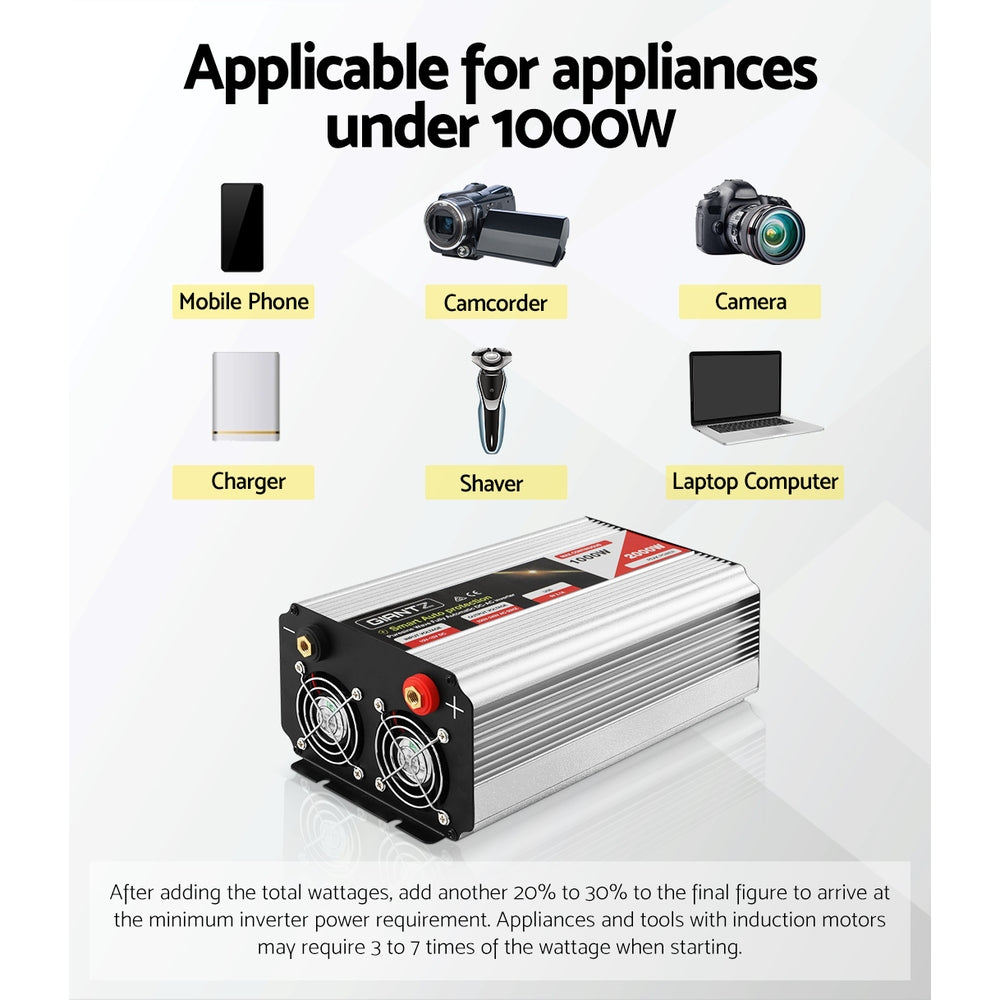

Compatible with:
Equipment: Computer, Printer, Monitors, Fax Devices, Scanner
Entertainment Electronics: TV, DVD-Player, Play Consoles, Hi-Fi Systems, Music
Instruments, Satellite Decoder
Household Appliances: Vacuum Cleaner, Fans, Electric Shaver, etc.
Kitchen Devices: Mixer, Ice Machines, kettle, Toaster etc.
- Reinforced thermal dissipating construction
- Reliable Japanese engineering capacitance
- Copper magnetic core
- Latest IGBT inverter technology
- Ideal for sensitive electronics
- Convenient USB output

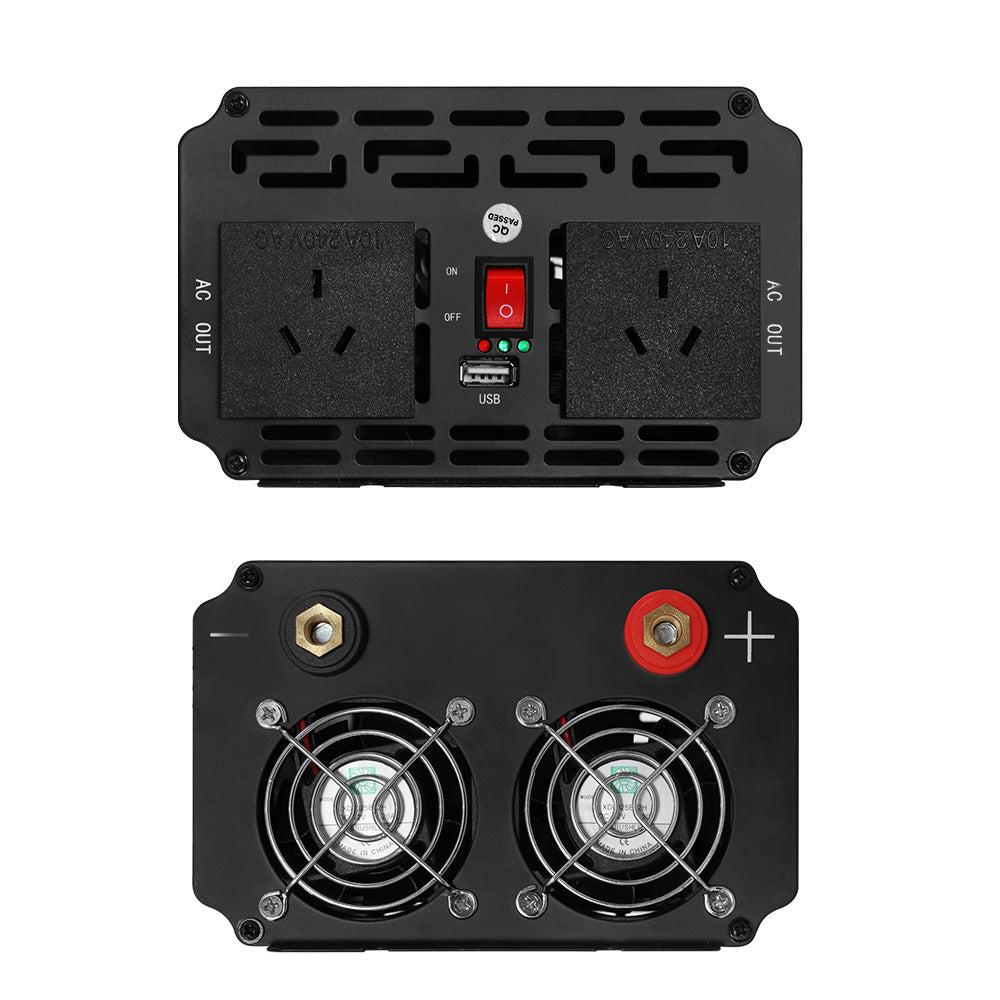

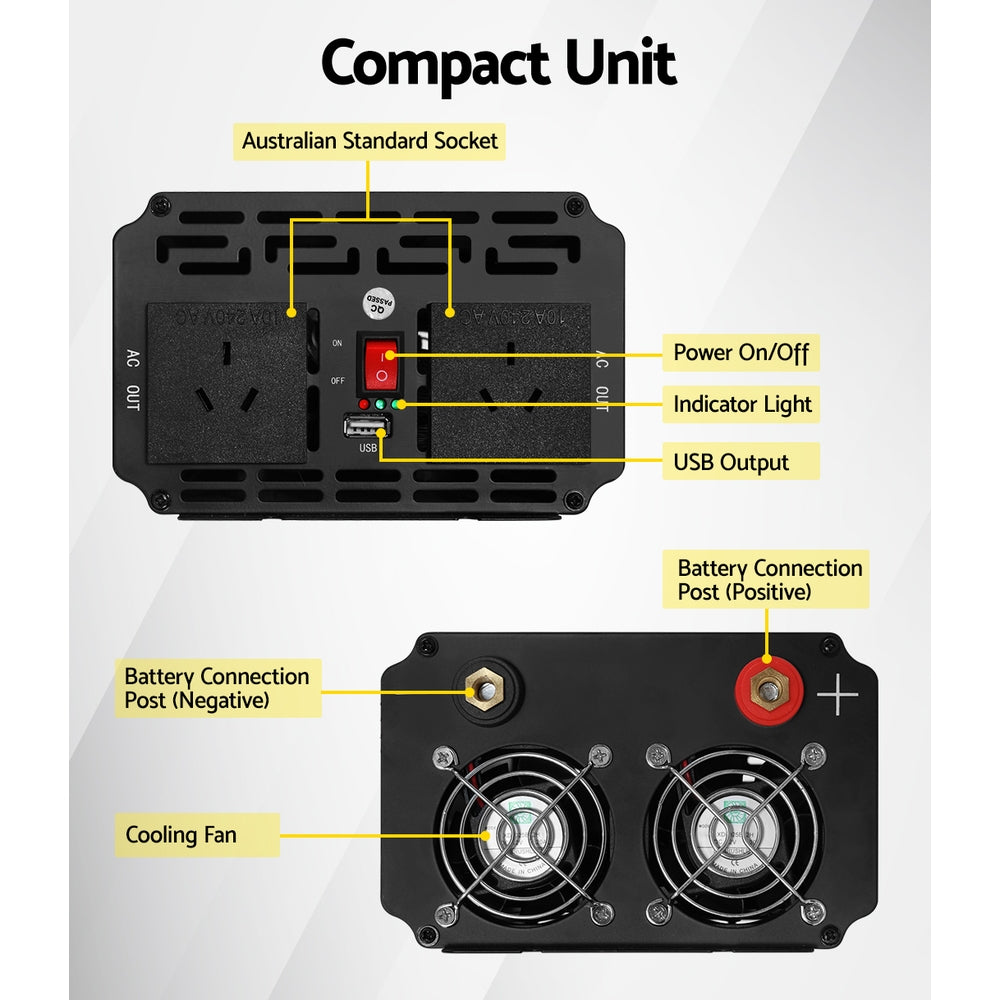

- Dual 240V sockets
- Soft start and low interference technologies
- 90% remarkable high efficiency
- Powers 220/240V devices from 12V sources
- Continuous output of 1000W
- 2000W peak output
- Australian-standard power point

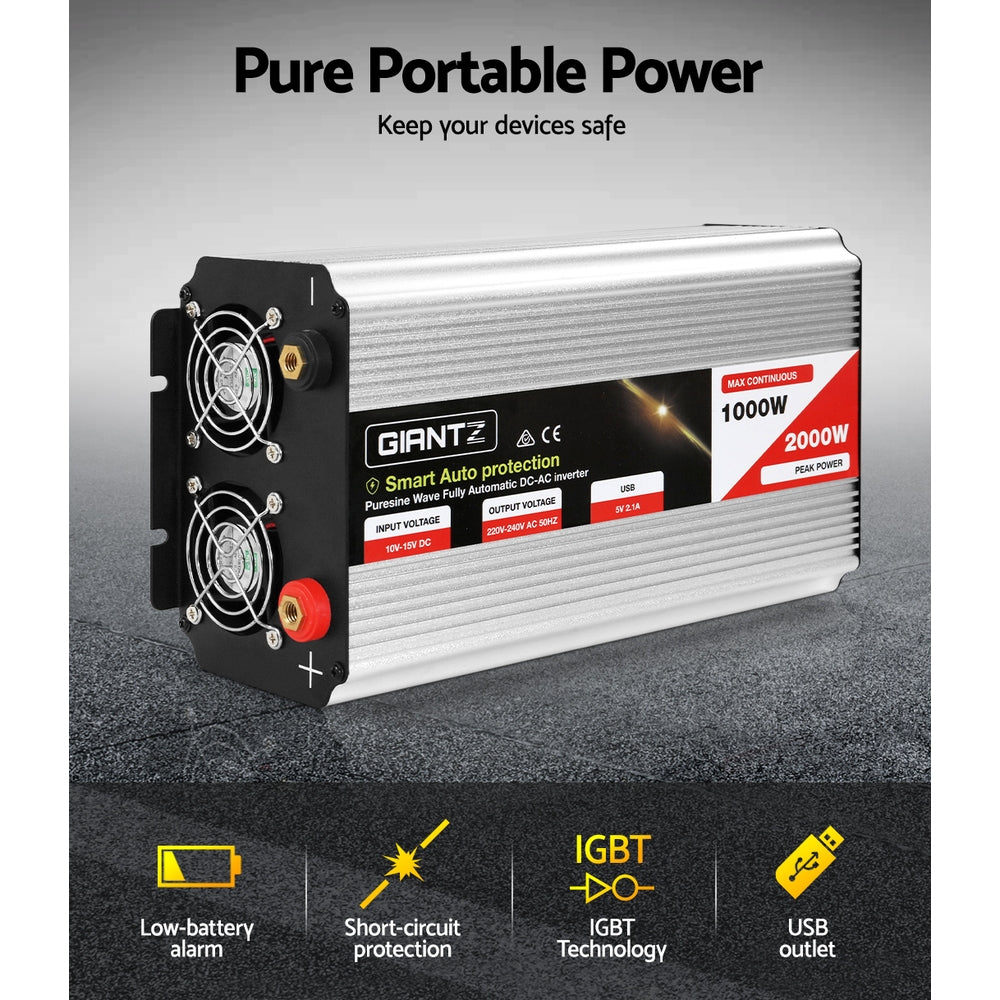

- Low-battery alarm and safety shutdown
- Short-circuit protection
- Overload, over-voltage and overheat protection
Specifications:
-
- Continuous power: 1000W
- Peak power: 2000W
- Thd: <3%
- Output voltage and frequency: 220 - 240V, 50Hz
- Output wave: Pure sine wave
- Input voltage: 12V (DC 10V - 15V)
- Static current: 0.5-1A
- USB current: 5V, 2.1A
- Battery low alarm protection: 10VDC±0.5V
- Battery low shutdown protection: 9.5VDC±0.5V
- Overload protection: Shuts down output and reset
- Output short circuit protection: Auto shut-off
- Over voltage protection: 15V±1V
- Over temperature protection: >65°C±1°C
- Maximum efficiency: 90% approx.
- 240V output socket: 2
- USB socket: 1
Product Contents:
- GIANTZ Pure Sine Wave Inverter x 1
- Battery Clamp x 1 Pair
- Manual x 1
