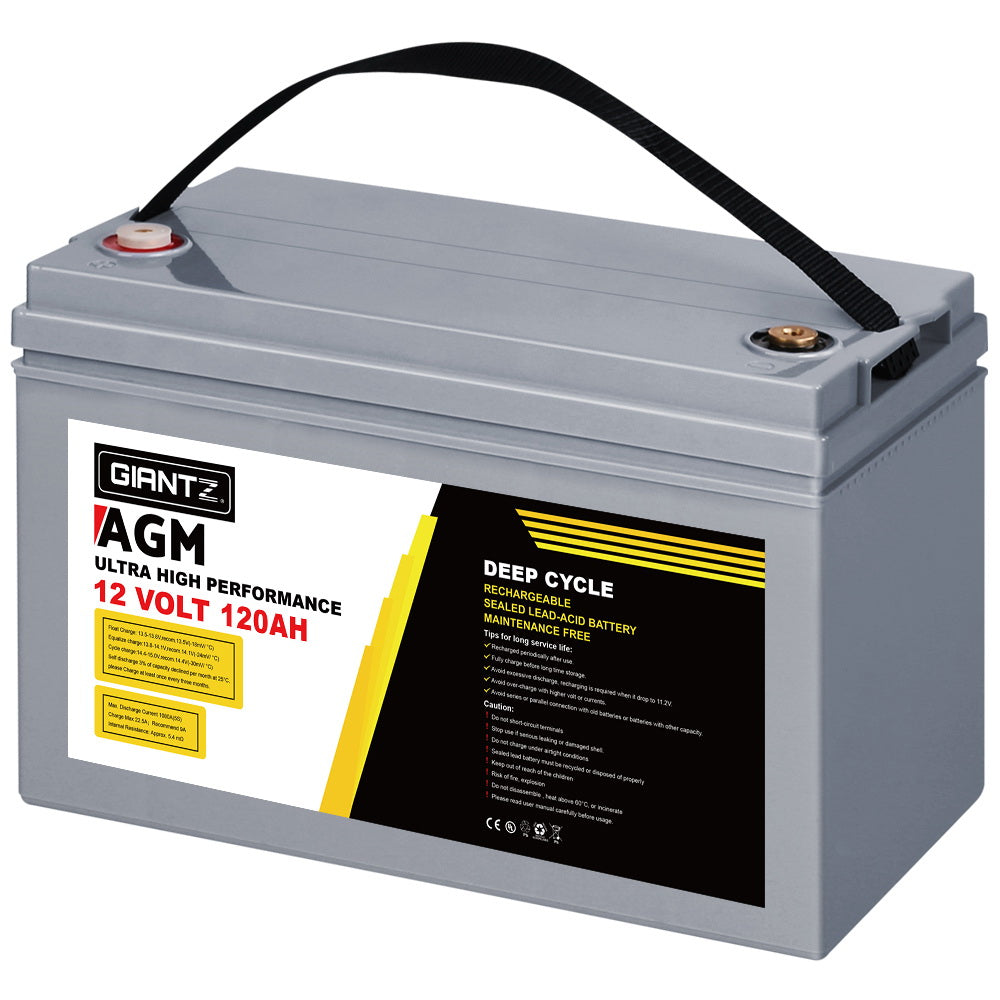

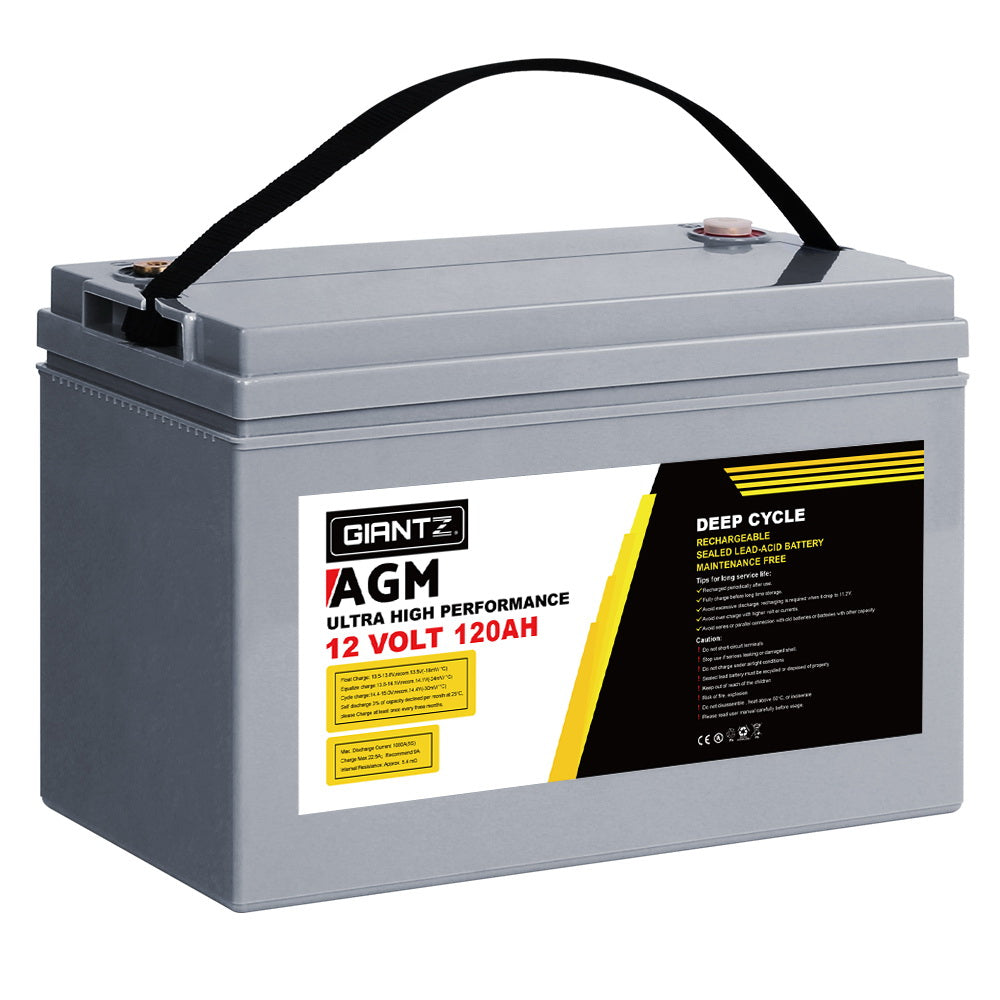

This 12V 120Ah AGM deep cycle battery supplies power for 4WD vehicles, caravans, campers, trailers, motorhomes, marine applications and other 12V appliances such as portable fridges. It is rated for up to 1400 cycles and uses advanced AGM technology, so it handles frequent charging and deep discharge well. The maintenance-free, sealed design is spill-proof and does not leak gas, and bolt-down terminals help keep connections secure.
Note:
1.Please charge the battery on receiving it even if the battery will not be used in the near future.
2. Maintenance-free means the terminals need not be refilled. However, the battery must be recharged periodically after use.
3. It is advised to charge the battery every 3 months if not in use for long periods. This is to prevent over-discharging of the battery which will cause irreparable damage to it.
4. AGM deep cycle batteries have a much longer cycle life if they are exhausted to a small degree and then recharged, rather than draining all their power and recharging all the away.
Features
- Deep cycle battery for off-grid power
- Rated for up to 1400 cycles
- Long cycle life
- Long build life
- Good sulfation resistance
- Longer storage life
- Maintenance-free sealed design
- Strong recovery after deep discharge
- Performs in low temperatures
- Efficient oxygen recombination

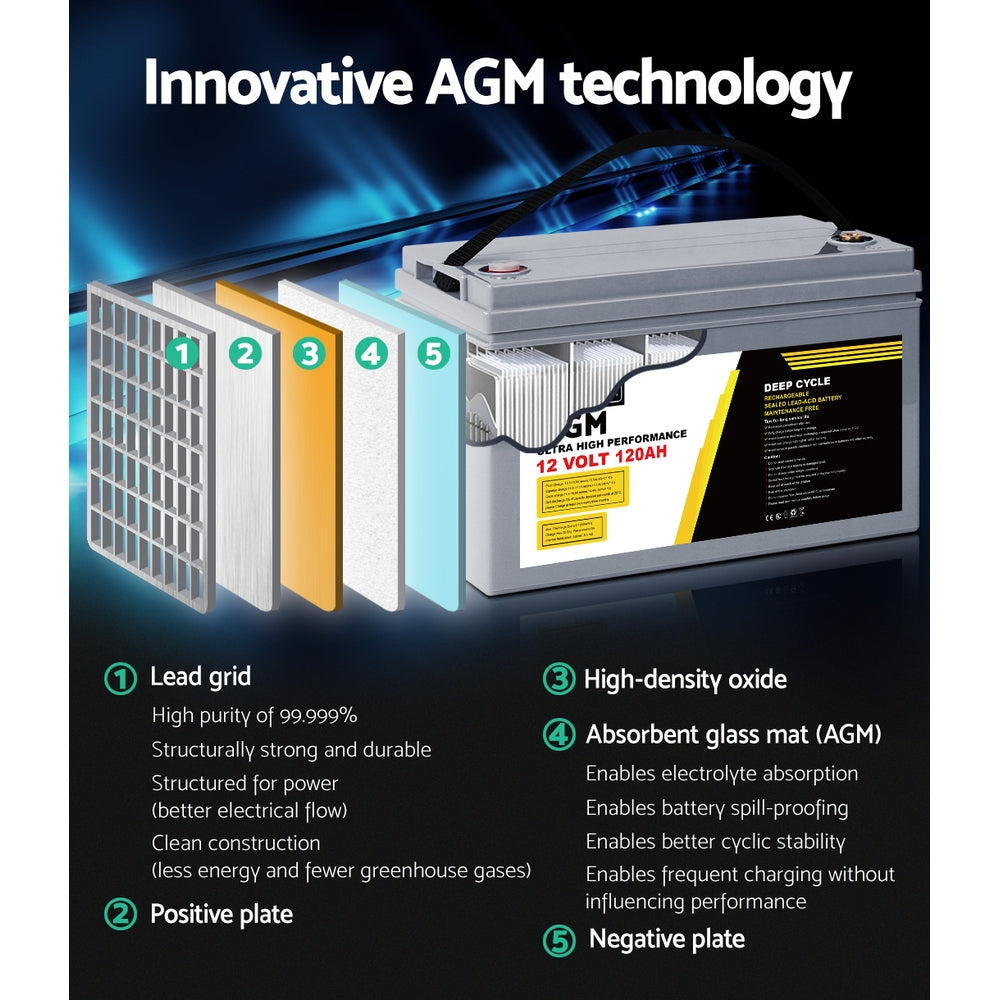

- Advanced AGM technology
- Spill-proof, leak-proof and non-gassing
- Bolt-down terminals for reliable connection
- Convenient carry handle
Specifications

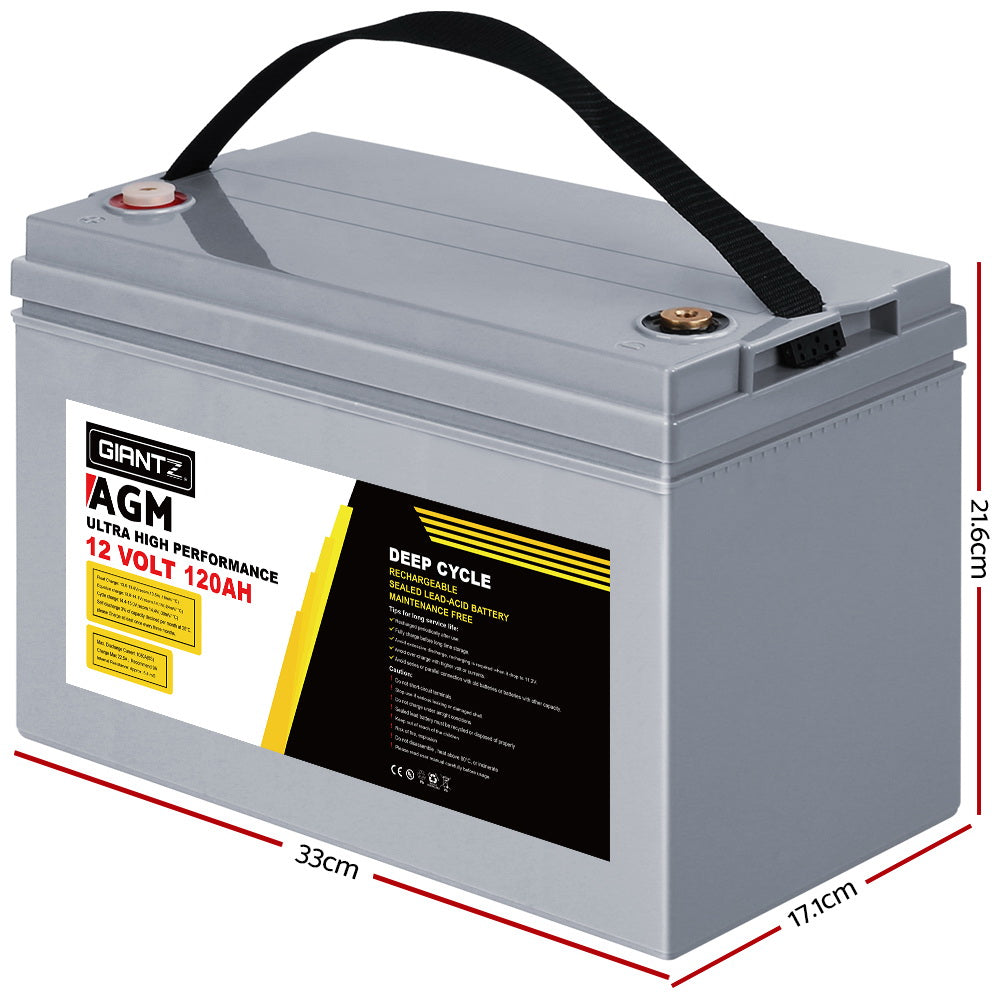

Overall dimensions: 33cm x 17.1cm x 21.6cm
Approx. weight: 25kg
Container material: ABS
Terminals: bolt-down
Nominal voltage: 12V
Rated capacity (10-hour rate): 120Ah

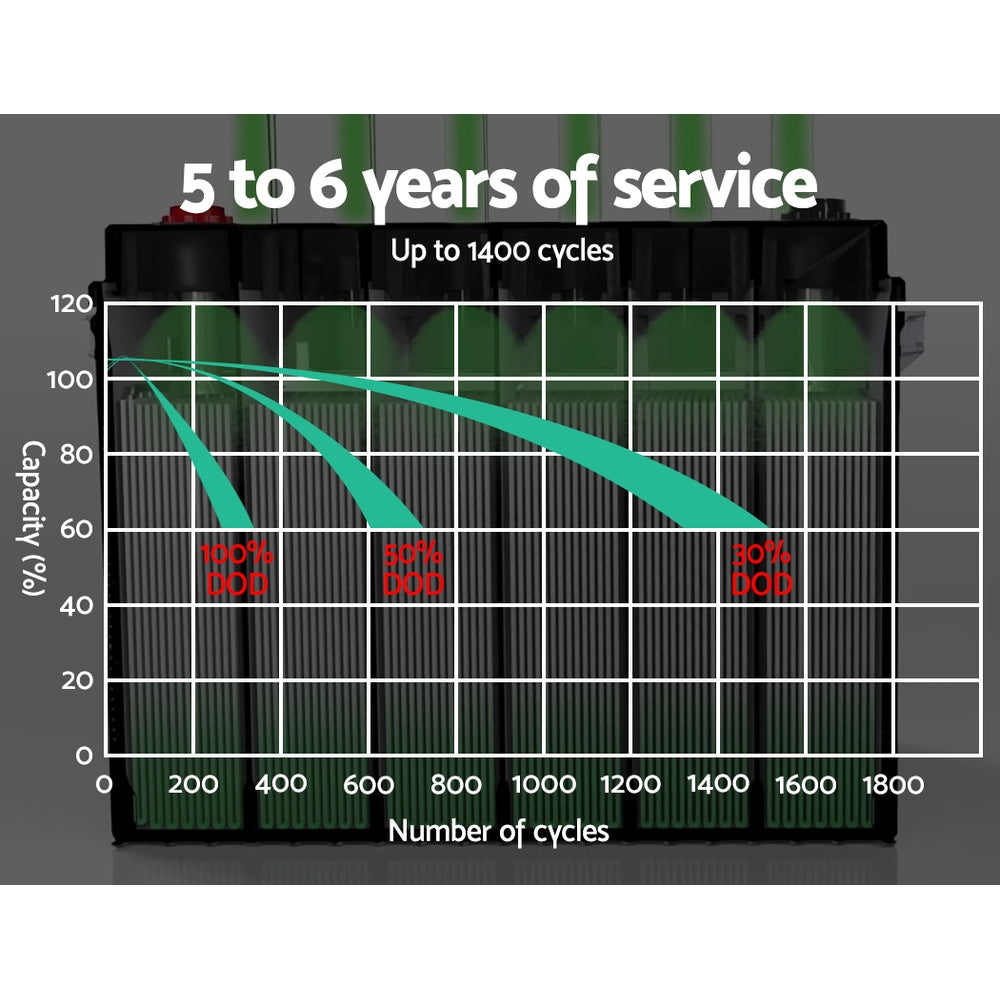

Maximum cycle lIfe: 1400 cycles (@30% DOD)
Minimum build life: 7 Years
Internal resistance: Approx. 5.4mΩ
Maximum discharge current: 1080A (5s)
Maximum charge current: 22.5A
Operating temperature ranges:
Discharge: -15°C to 50°C
Charge: -20°C to 50°C
Storage: -20°C to 50°C
Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%
Float charge: 13.5 to 13.8V
Equalise charge: 13.8 to 14.1V
Cycle charge: 14.4 to 15.0V
Self-discharge 3% of capacity declined per month at 25°C
Package Content
1 x Giantz Deep Cycle Battery
1 x User instruction
