This 12V 100Ah AGM deep cycle battery supplies off-grid power for 4WD vehicles, caravans, campers, trailers and motorhomes, along with saltwater marine use and 12V appliances such as portable fridges and washers.
Its sealed, spill-proof design is maintenance-free, so the terminals never need refilling, though it should be charged on arrival and every 3 months if left unused for long periods. Rated for up to 1400 cycles at 30% depth of discharge, it uses bolt-down terminals.
Note:
1.Please charge the battery on receiving it even if the battery will not be used in the near future.
a.Maintenance-free means the terminals need not be refilled. However, the battery must be recharged periodically after use.
b.It is advised to charge the battery every 3 months if not in use for long periods. This is to prevent over-discharging of the battery which will cause irreparable damage to it.
c.AGM deep cycle batteries have a much longer cycle life if they are exhausted to a small degree and then recharged, rather than draining all their power and recharging all the away.
Features
- Built for deep cycle use
- Extended cycle life
- Rated for up to 1400 cycles
- Robust build for long service life
- Resists sulfation build-up
- Designed for longer storage life
- Maintenance-free, terminals need no refilling
- Recovers well after deep discharge
- Discharge range -15°C to 50°C
- High oxygen-recombination efficiency

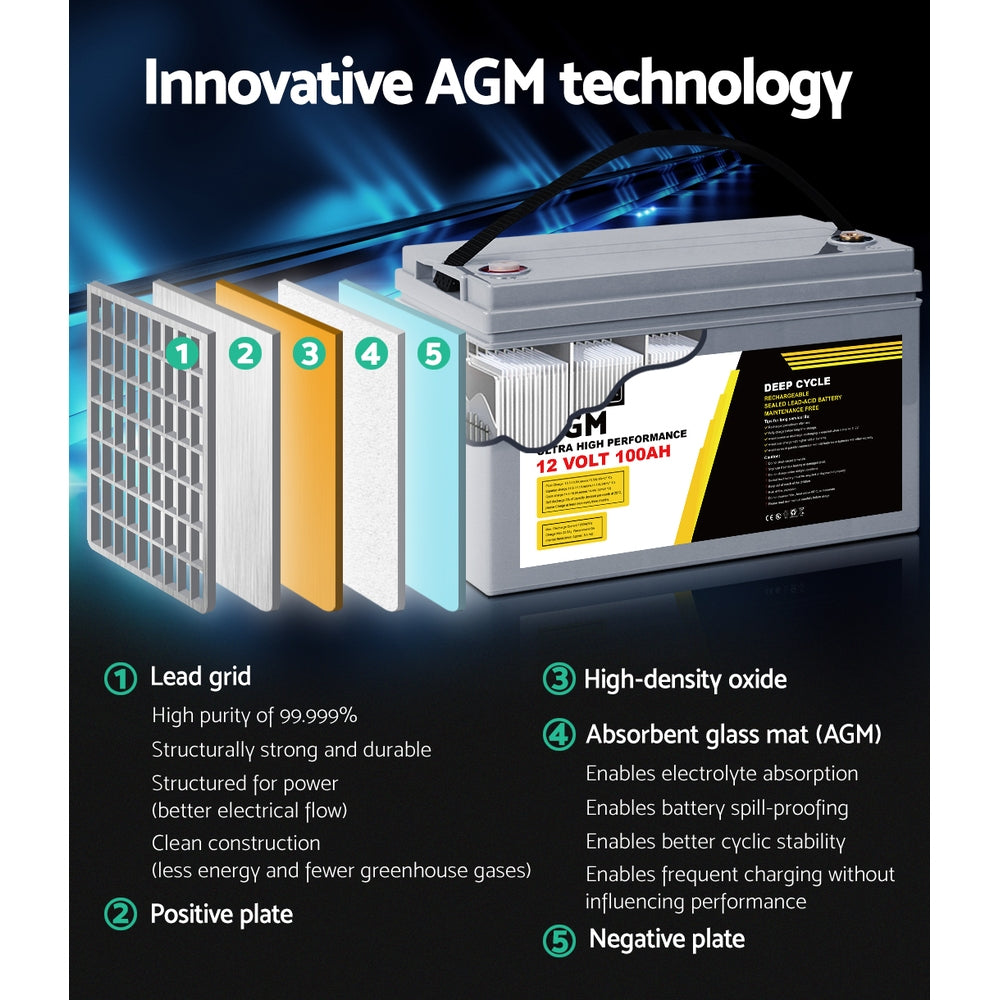

- Advanced AGM technology
- Sealed, spill-proof and non-gassing
- Bolt-down terminal connections
- Carry handle for easy transport
Specifications:

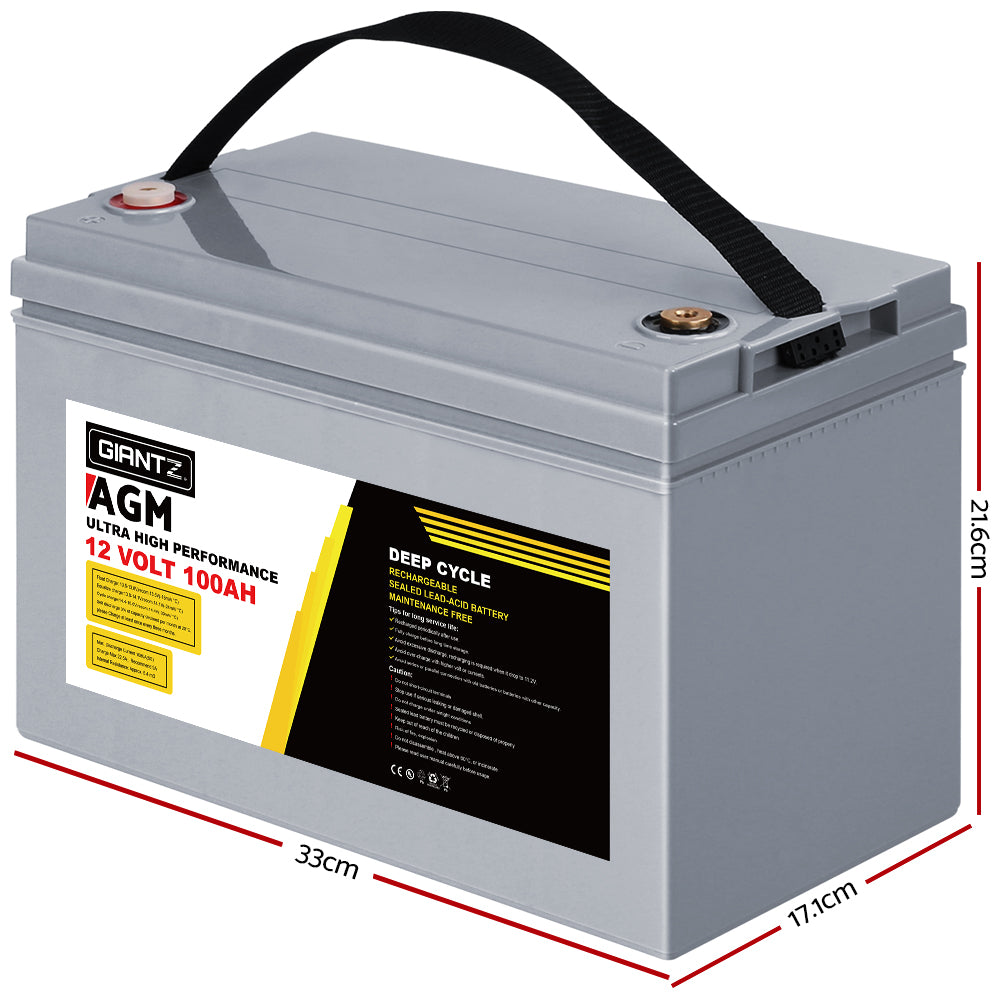

Overall dimensions: 33cm x 17.1cm x 21.6cm
Approx. weight: 25kg
Container material: ABS
Terminals: bolt-down
Nominal voltage: 12V
Rated capacity (10-hour rate): 100Ah

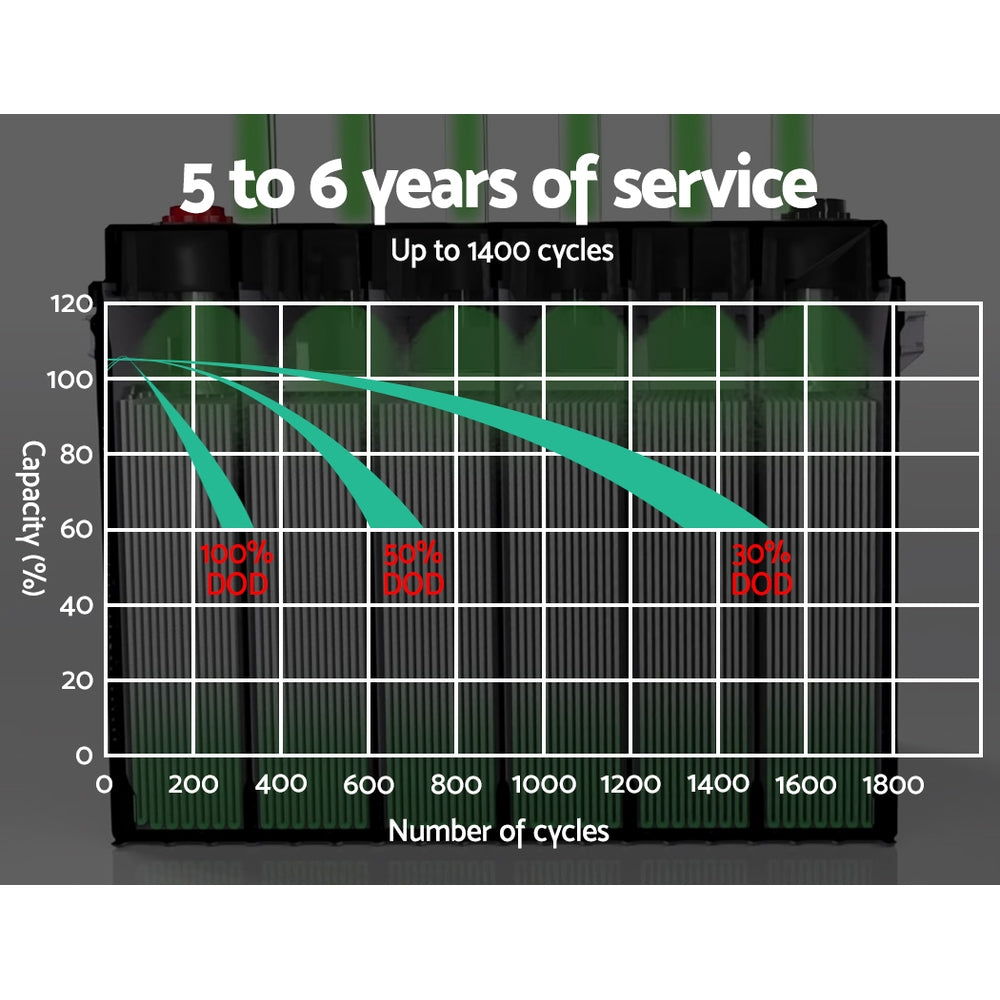

Maximum cycle lIfe: 1400 cycles (@30% DOD)
Internal resistance: Approx. 5.4mΩ
Maximum discharge current: 1080A (5s)
Maximum charge current: 22.5A
Operating temperature ranges:
Discharge: -15°C to 50°C
Charge: -20°C to 50°C
Storage: -20°C to 50°C
Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%
Float charge: 13.5 to 13.8V
Equalise charge: 13.8 to 14.1V
Package Contents:
1 x Giantz Deep Cycle Battery
1 x User manual
