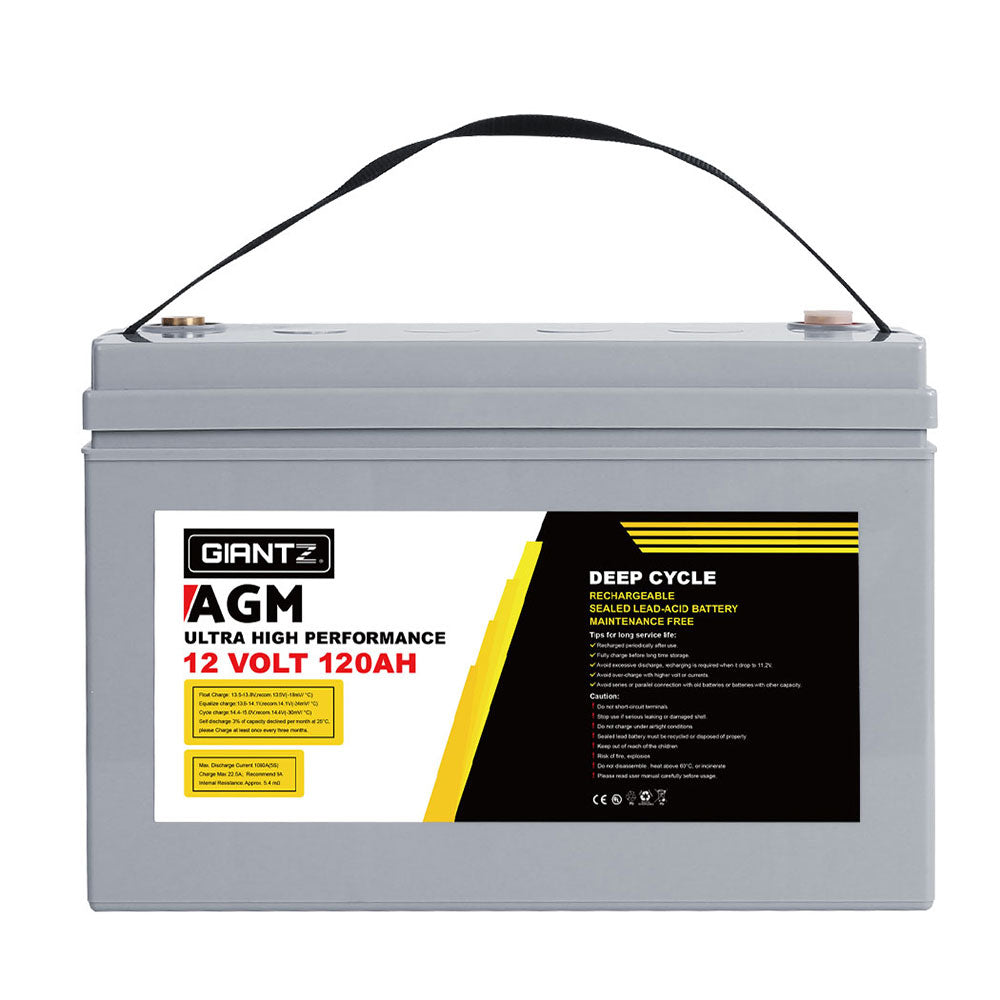

This 12V 120Ah AGM deep cycle battery supplies off-grid power for 4WD vehicles, caravans, campers, trailers, motorhomes, marine setups and 12V appliances such as portable fridges. Its sealed, maintenance-free design is spill-resistant and does not leak gas, and bolt-down terminals are designed for a more reliable connection.
The battery is rated for up to 1400 cycles at 30% depth of discharge and has a minimum build life of 7 years. Charge it on arrival, even if it will not be used soon, and recharge it every 3 months when it is stored for long periods to avoid over-discharge. Dimensions are 33cm x 17.1cm x 21.6cm and the weight is approx. 25kg.
Features
- Deep cycle battery for off-grid use
- Up to 1400 cycles at 30% depth of discharge
- Greater cycle life with higher sulfation resistance
- Minimum build life of 7 years
- Longer storage life

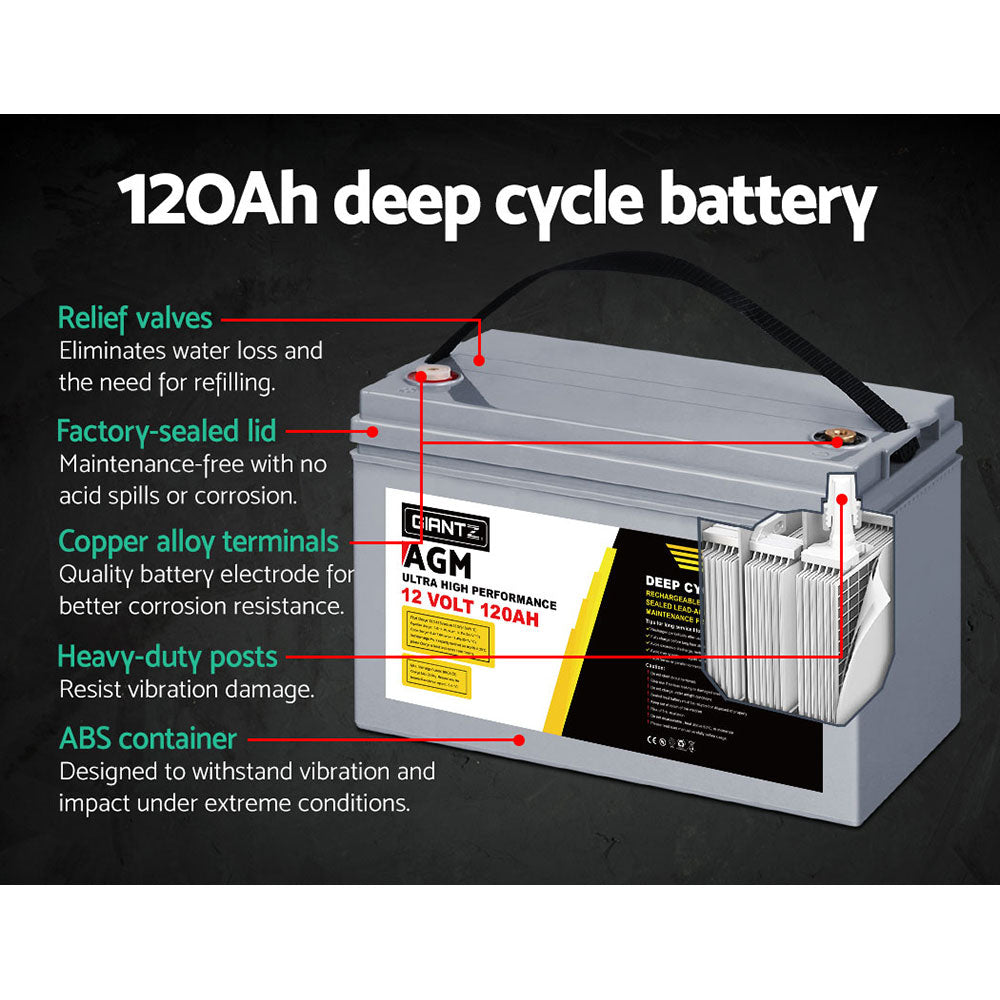

- Sealed, maintenance-free design
- Deep discharge recovery
- Discharge range -15°C to 50°C
- High oxygen-recombination efficiency

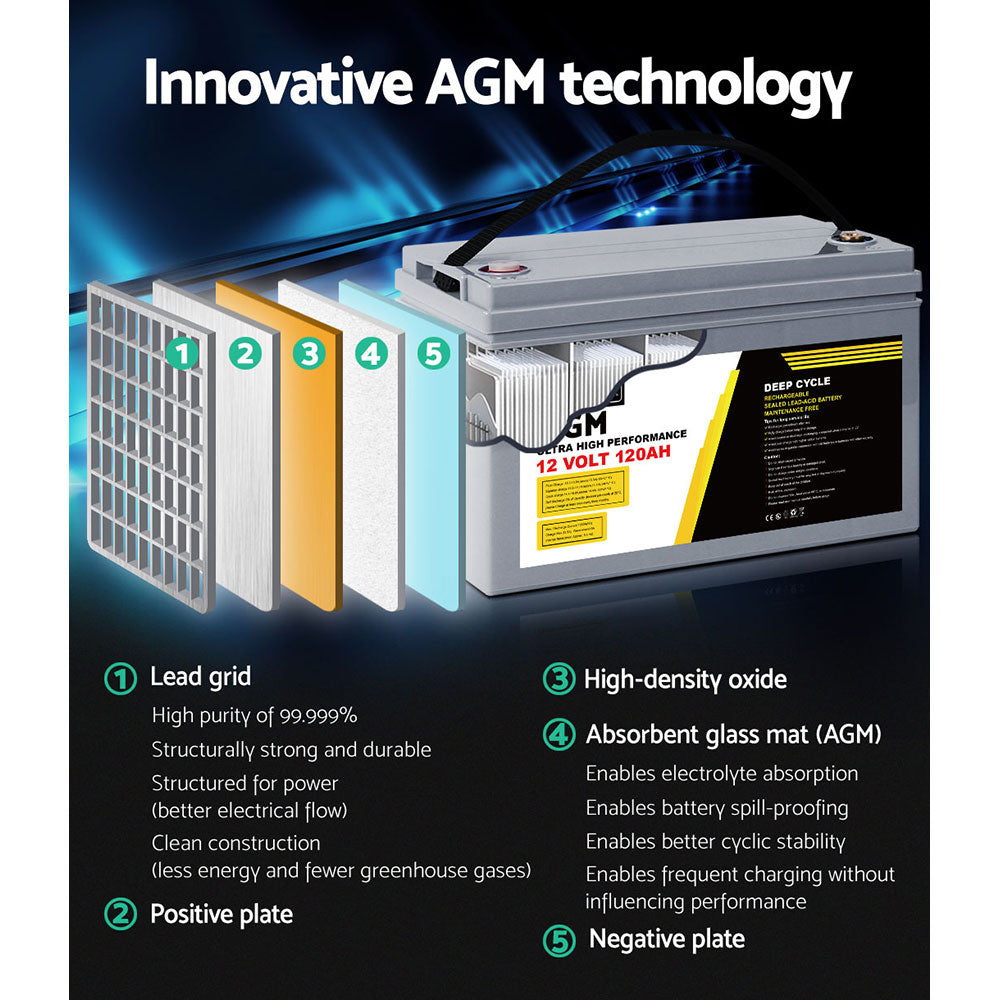

- Advanced AGM technology
- Spill-resistant and does not leak gas
- Bolt-down terminals
- Convenient carry handle
Specifications:

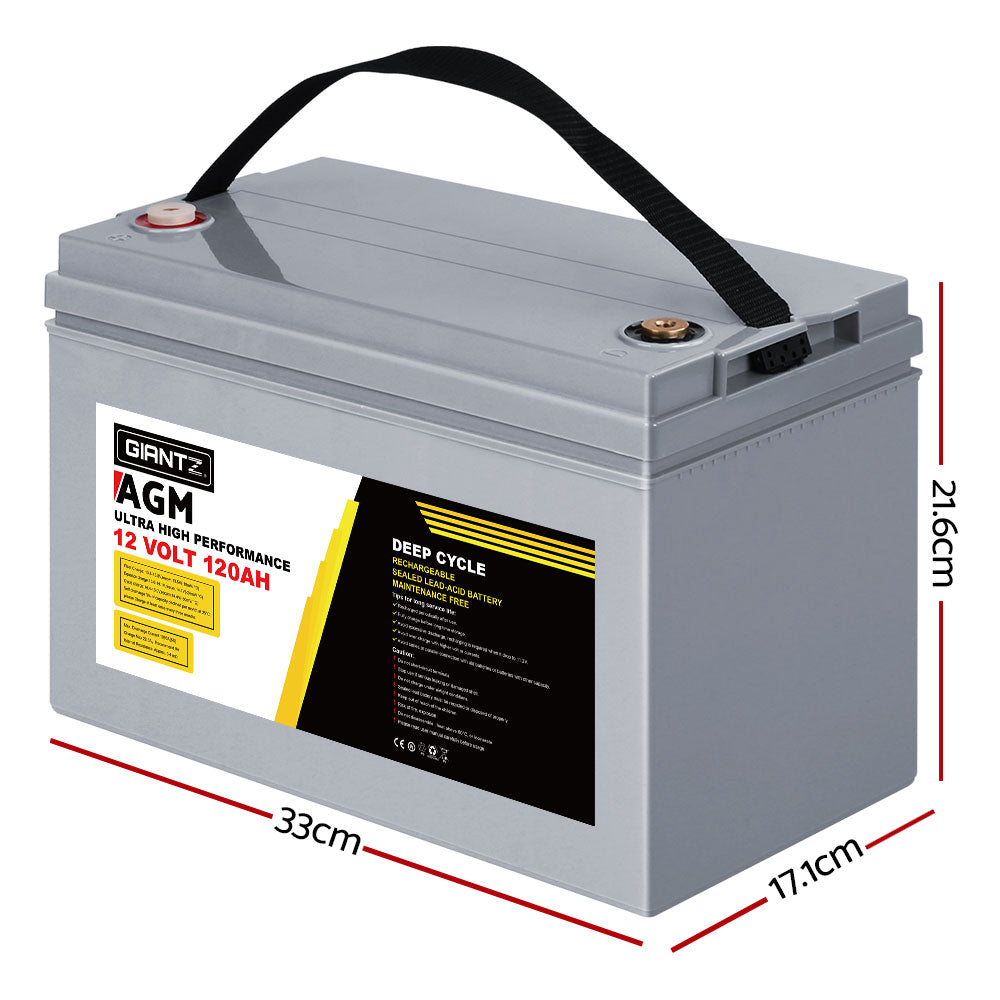

Overall dimensions: 33cm x 17.1cm x 21.6cm
Approx. weight: 25kg
Container material: ABS
Terminals: bolt-down
Nominal voltage: 12V
Rated capacity (10-hour rate): 120Ah
Maximum cycle lIfe: 1400 cycles (@30% DOD)
Minimum build life: 7 Years
Internal resistance: Approx. 5.4mΩ
Maximum discharge current: 1080A (5s)
Maximum charge current: 22.5A
Operating temperature ranges:
Discharge: -15°C to 50°C
Charge: -20°C to 50°C
Storage: -20°C to 50°C
Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%
Float charge: 13.5 to 13.8V
Equalise charge: 13.8 to 14.1V
Cycle charge: 14.4 to 15.0V
Self-discharge 3% of capacity declined per month at 25°C
Assembly Required: No
Number of Packages: 2
Package Content

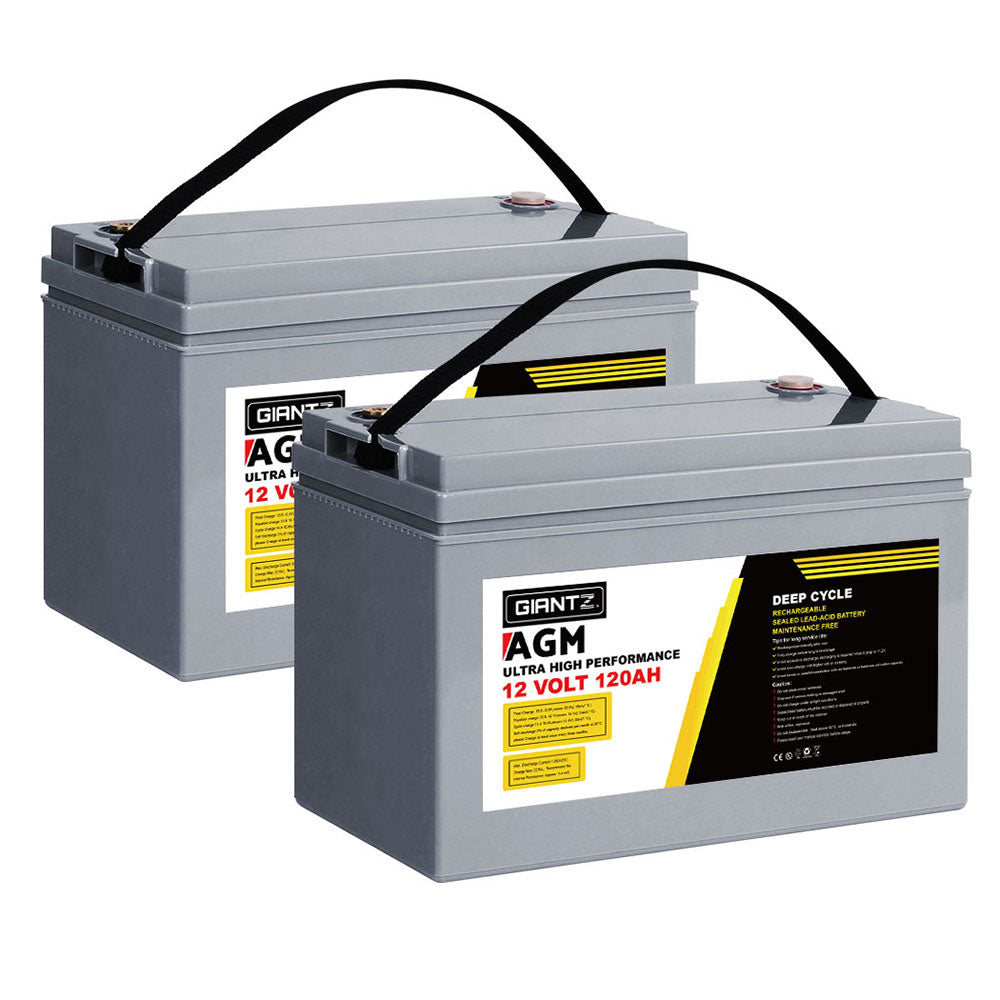

Giantz Deep Cycle Battery x 2
User instruction x 2
This product comes with 1 year warranty
