This Giantz 12V 135Ah AGM deep cycle battery supplies off-grid power for 4WD vehicles, caravans, campers, trailers, motor homes and marine setups. It suits 12V appliances such as portable fridges and washers, and its slim, compact body fits tight spaces.
The AGM design is sealed, spill-proof and maintenance-free, so the terminals never need topping up. Its bolt-down terminals and high oxygen-recombination efficiency support reliable use and recovery after deep discharge, and it is rated for up to 1400 cycles. Charge it on receipt, and recharge it periodically after use.
Note:
1. Please charge the battery on receiving it even though the battery will not be used in the near future.
2. Maintenance-free means the terminals need not be refilled. However, the battery must be recharged periodically after use.
3. It is advised to charge the battery every 3 months if not in use for long periods. This is to prevent over-discharging of the battery which will cause irreparable damage to it.
4. AGM deep cycle batteries have a much longer cycle life if they are exhausted to a small degree and then recharged, rather than draining all their power and recharge all the away.
Features
- Slim, compact design
- Deep cycle battery for off-grid power
- Greater cycle life

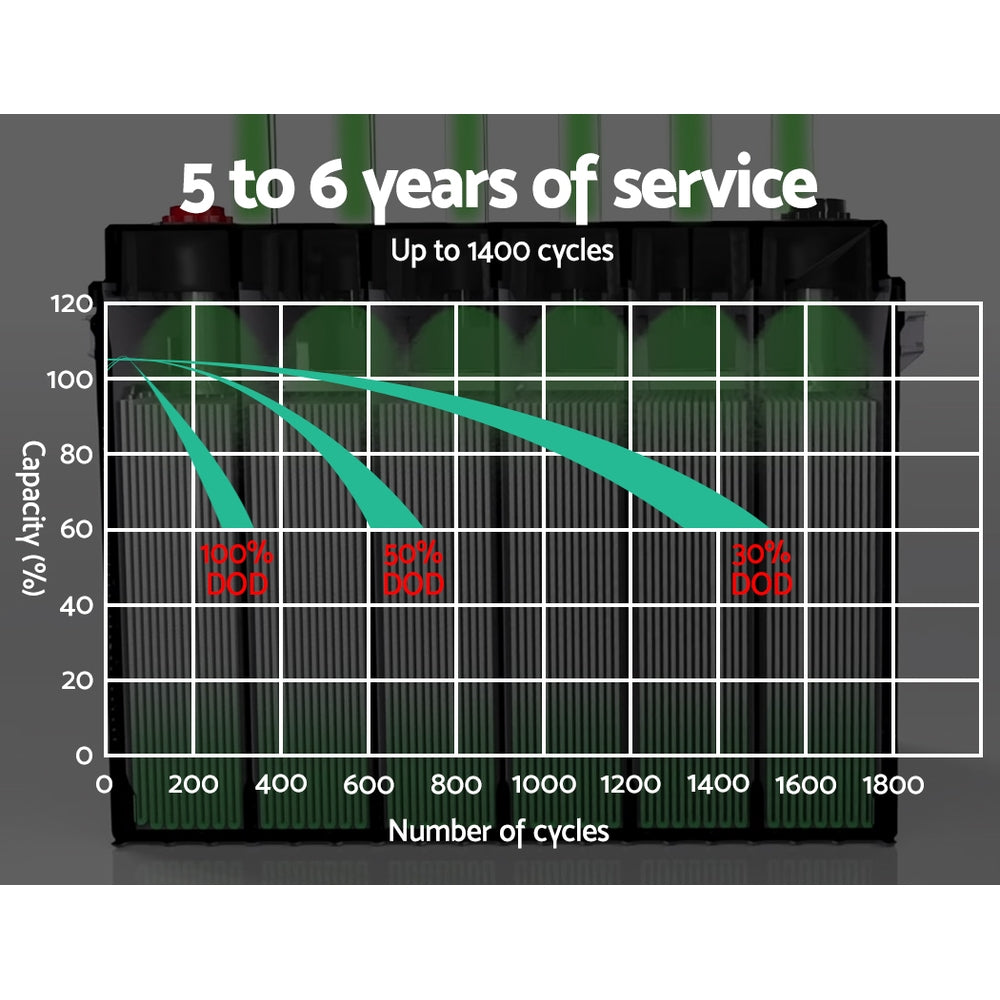

- Maximum cycle life of 1400 cycles
- Higher sulfation resistance
- Longer storage life
- Maintenance-free, sealed design
- Deep discharge recovery
- Better low temperature performance
- High oxygen-recombination efficiency

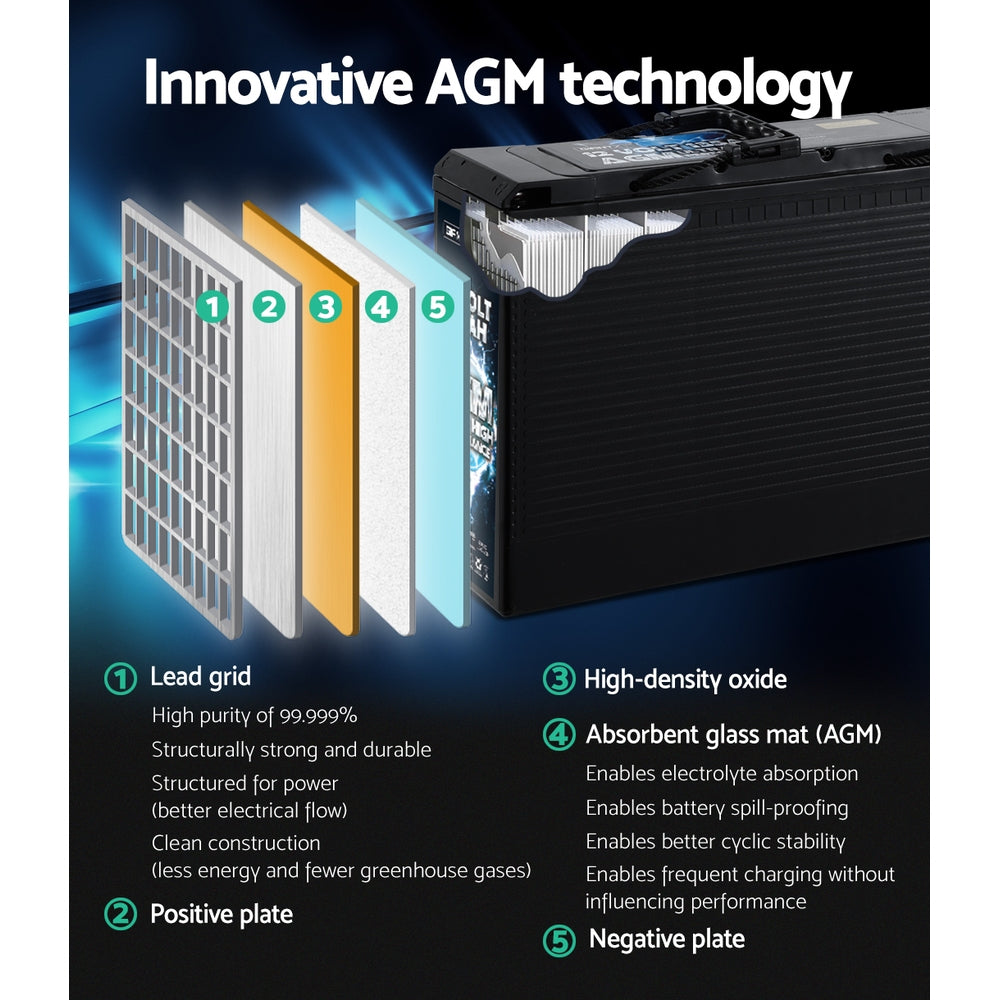

- Advanced AGM technology
- Non-spillable, leak-proof and non-gassing
- Bolt-down terminals and carry handle
Specifications:
Brand: Giantz

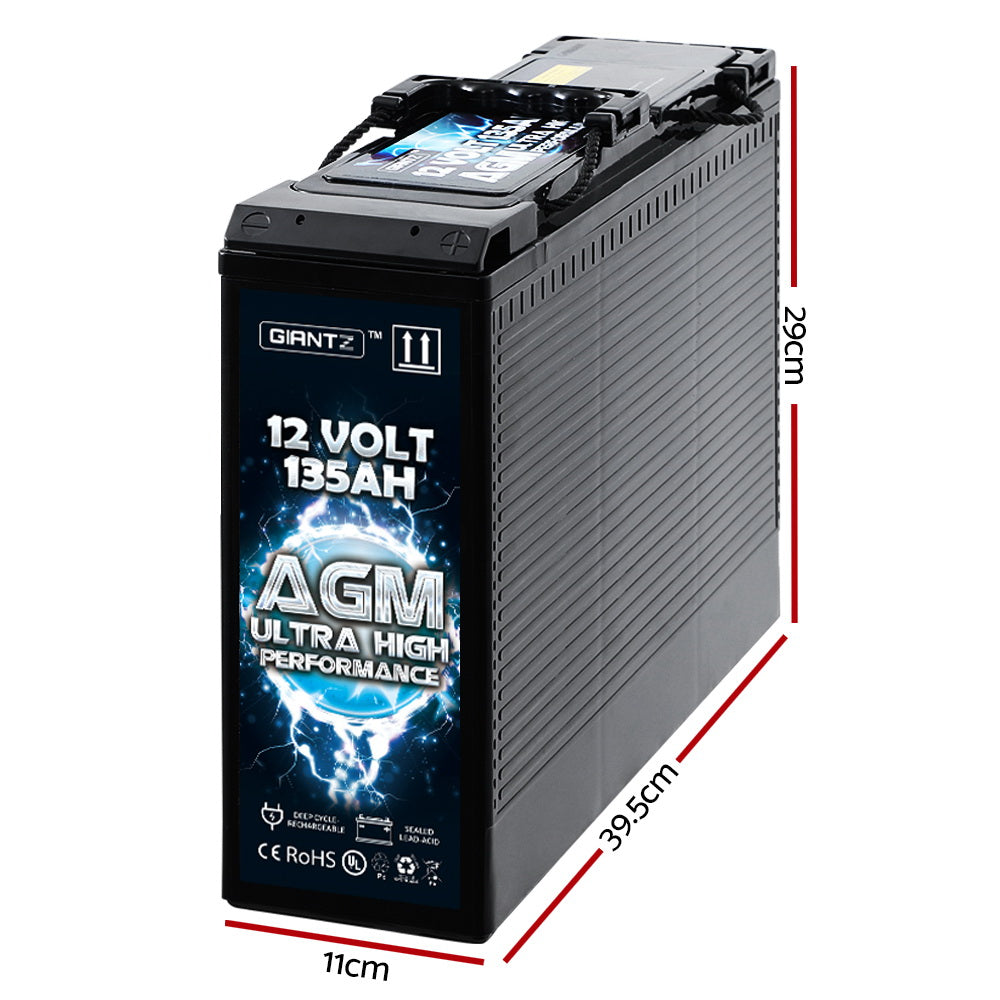

Overall dimensions: 39.4cm x 11cm x 28.6cm
Screw: M8 screw, 8mm diameter, 16mm length
Terminals: Bolt-down, F5
Approx weight: 32KG
Nominal voltage: 12V
Rated capacity (10 Hour Rate): 135Ah
Maximum cycle lIfe: 1600 Cycles
Internal resistance: Approx. 4.3mΩ
Maximum discharge current: 1100A (5s)
Operating temperature range:
Discharge: -15°C to 50°C
Charge: 0°C to 40°C
Storage: -15°C to 40°C
Capacity affected by temperature: 40°C = 103% | 25°C = 100% | 0°C = 85% | -15°C = 65%
Cycle use:
Initial charging current less than 35A
Voltage 14.4 - 15V @ 25°C
Standby use:
No limit on initial charging current
Voltage 13.5 - 13.8V @ 25°C
Package Content
1 x GIANTZ Deep cycle battery
