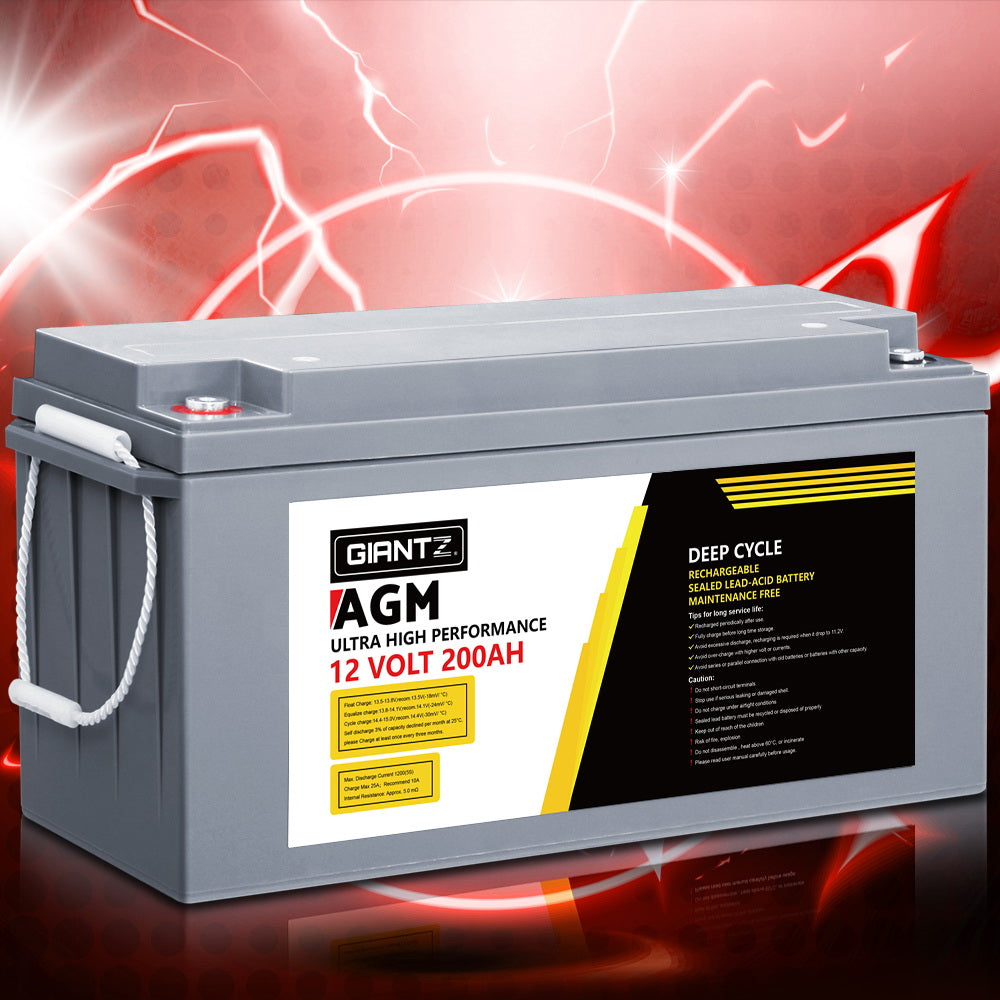

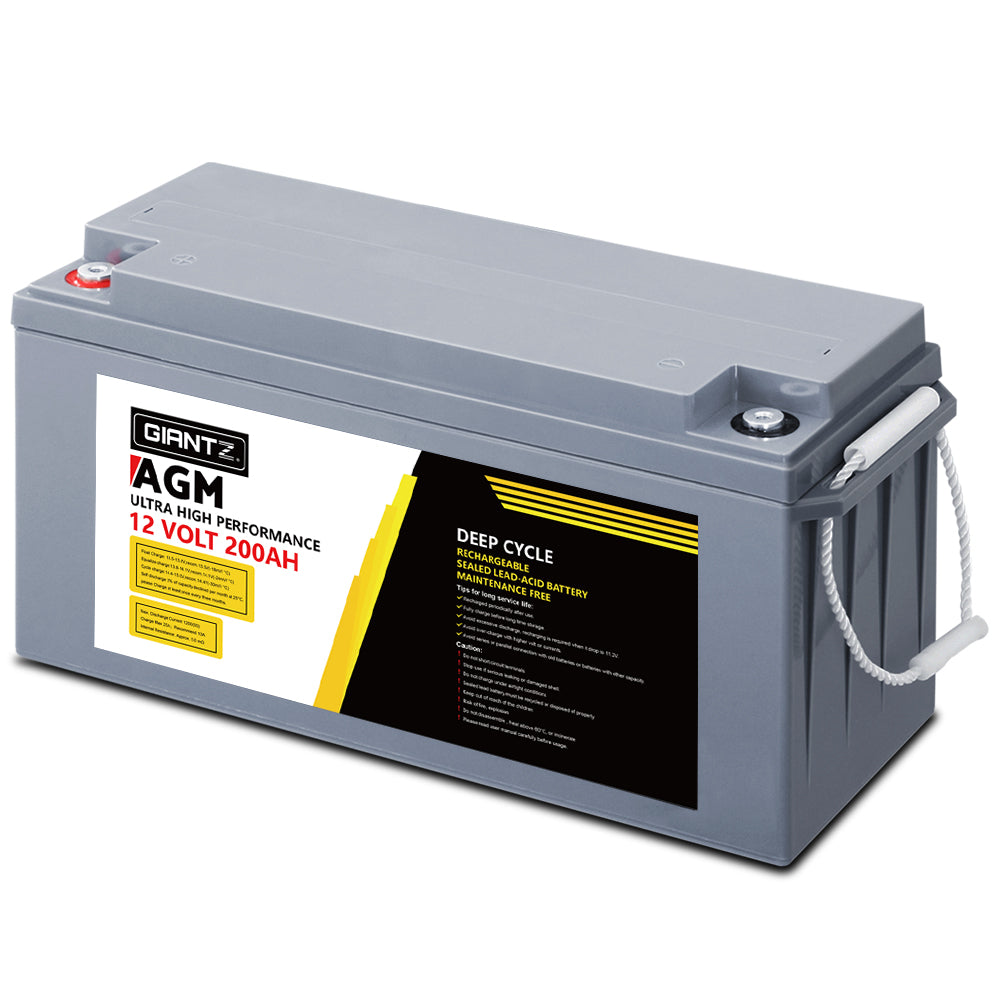

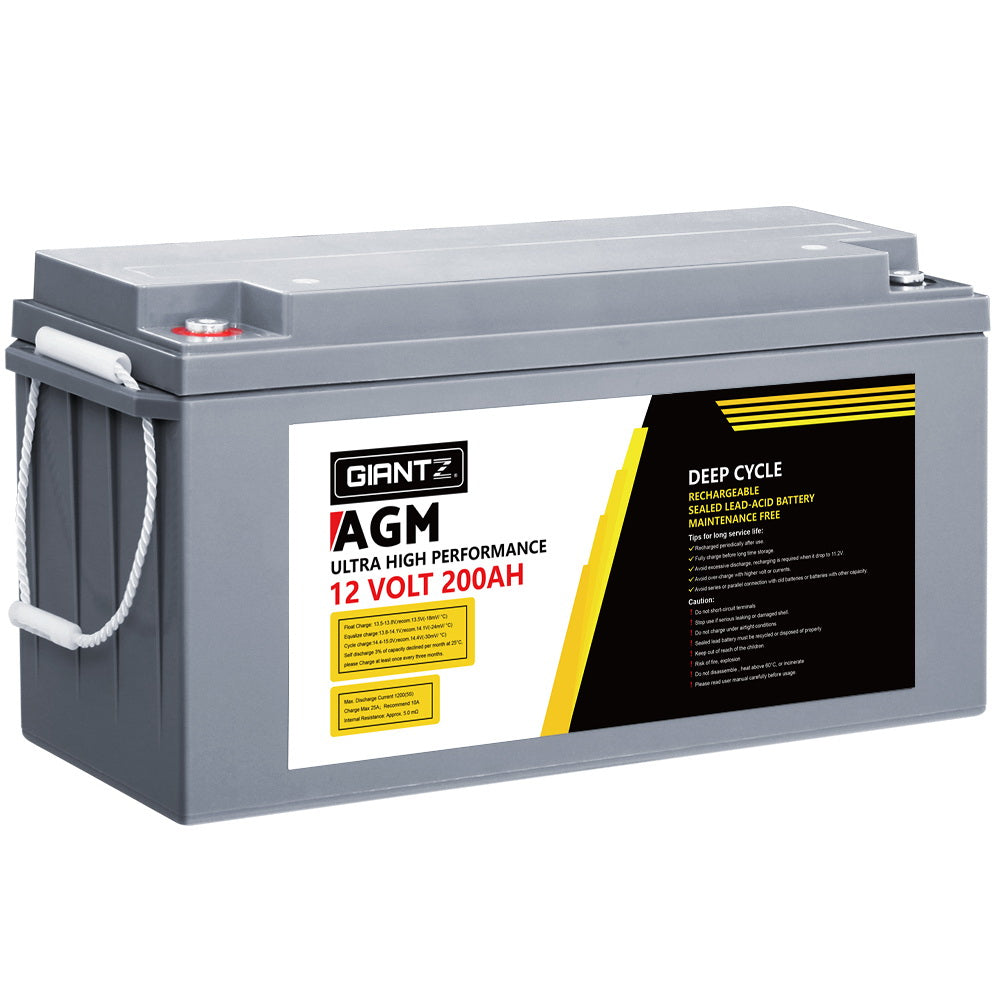

This 12V 200Ah AGM deep cycle battery supplies off-grid power for 4WD vehicles, caravans, campers, trailers, motorhomes and marine use, as well as 12V appliances such as portable fridges. Its sealed, maintenance-free design is rated for up to 1400 cycles, so it suits regular use over a long working life.
Advanced AGM construction handles frequent charging and recovers well from deep discharge. The bolt-down terminals and spill-proof, non-gassing case make it a practical choice for mobile setups. Charge it on arrival, and recharge it at least every 3 months if it sits unused.
Note:
1.Please charge the battery on receiving it even if the battery will not be used in the near future.
a.Maintenance-free means the terminals need not be refilled. However, the battery must be recharged periodically after use.
b.It is advised to charge the battery every 3 months if not in use for long periods. This is to prevent over-discharging of the battery which will cause irreparable damage to it.
c.AGM deep cycle batteries have a much longer cycle life if they are exhausted to a small degree and then recharged, rather than draining all their power and recharging all the away.
Features
- Deep cycle AGM battery
- Greater cycle life

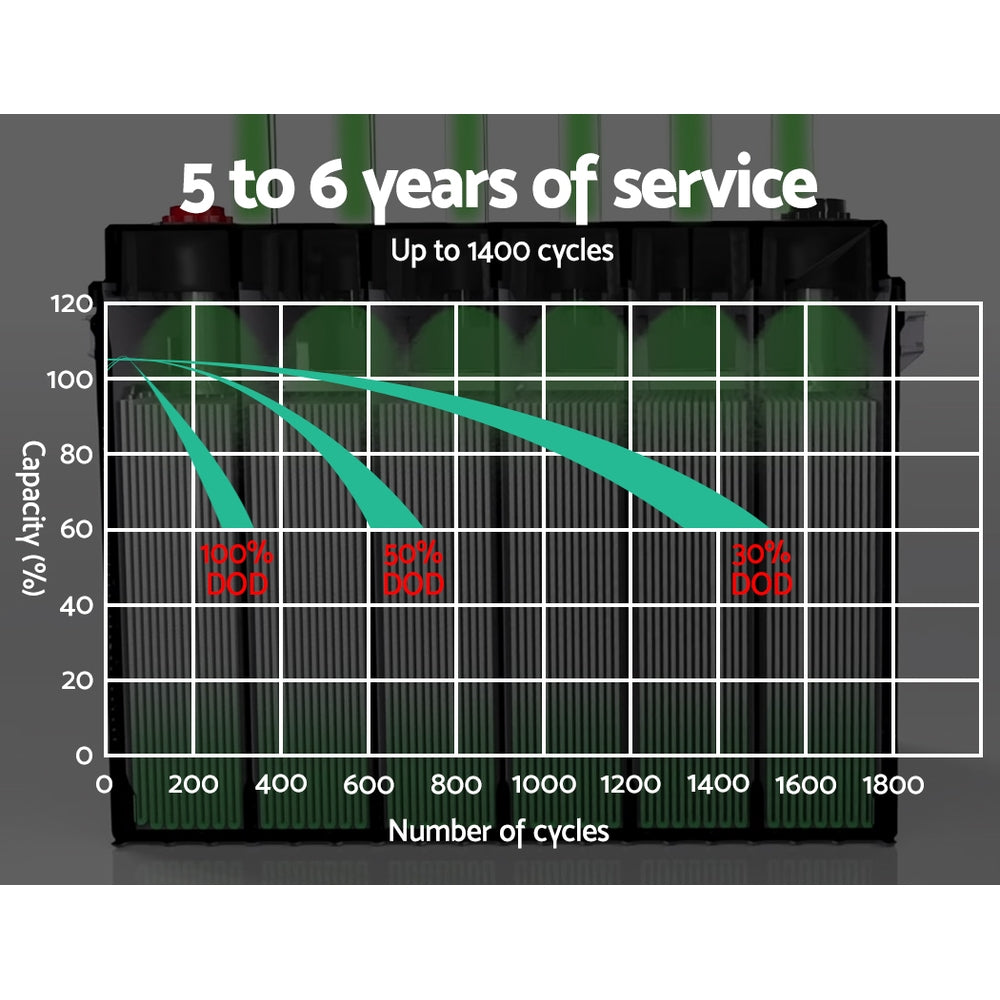

- Up to 1400 cycles (at 30% DOD)
- Maintenance-free, sealed construction
- Spill-proof, leak-proof and non-gassing
- Recovers well from deep discharge
- Higher sulfation resistance
- Longer storage life
- Bolt-down terminals
- Convenient carry handle
- Good performance in low temperatures
- High oxygen-recombination efficiency

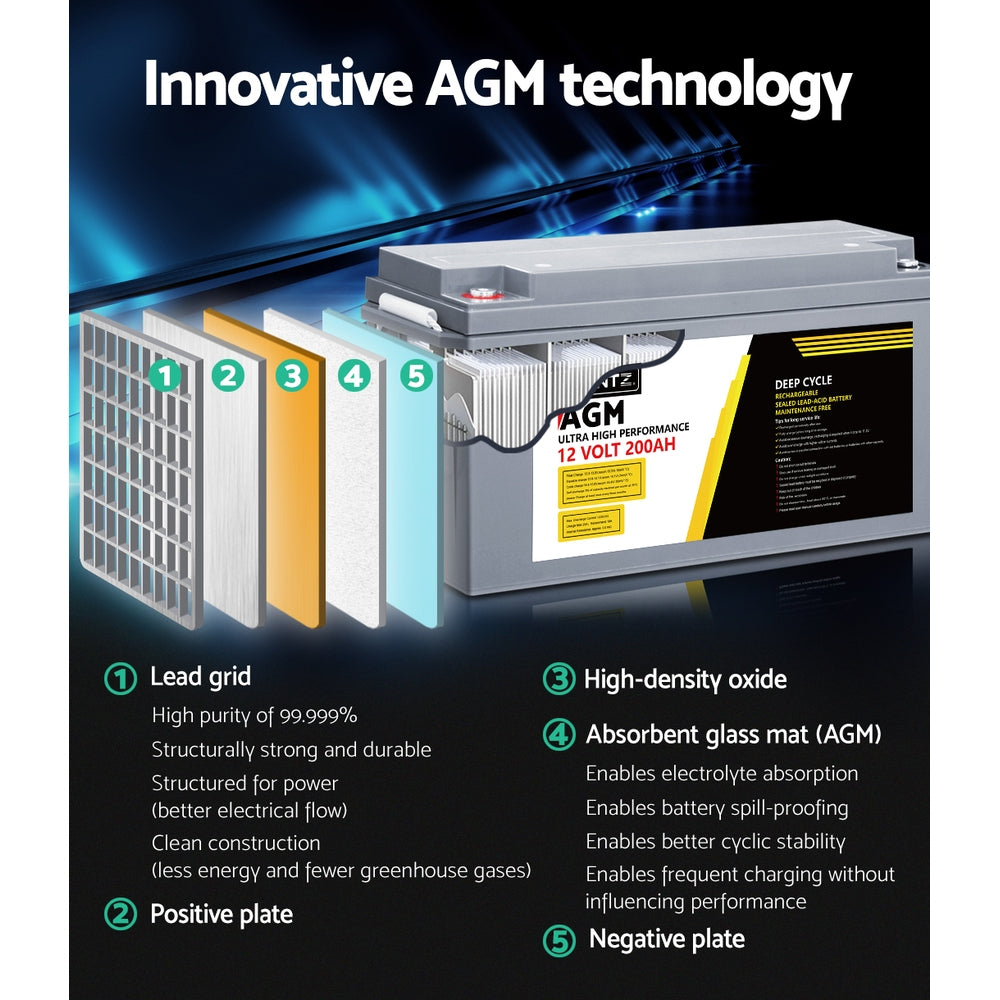

- Advanced AGM technology
Specifications:

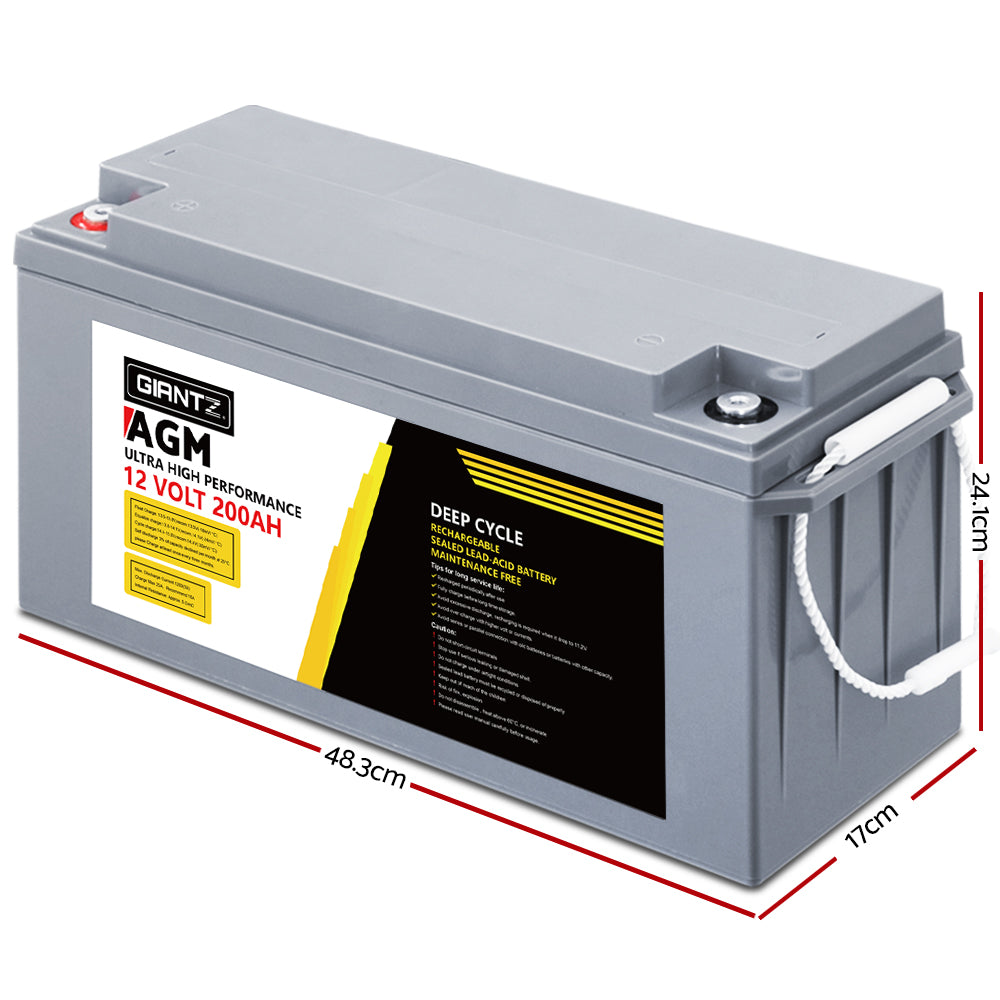

Overall dimensions: 48.3cm x 17.0cm x 24.1cm
Approx. weight: 42.5kg
Container material: ABS
Terminals: bolt-down
Nominal voltage: 12V
Rated capacity (10-hour rate): 200Ah
Maximum cycle lIfe: 1400 cycles (@30% DOD)
Internal resistance: Approx. 2.5mΩ
Maximum discharge current: 1800A (5s)
Maximum charge current: 37.5A
Operating temperature ranges:
Discharge: -15°C to 50°C
Charge: -20°C to 50°C
Storage: -20°C to 50°C
Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%
Float charge: 13.5 to 13.8V
Equalise charge: 13.8 to 14.1V
Cycle charge: 14.4 to 15.0V
Self-discharge 3% of capacity declined per month at 25°C
Package Contents:
1 x Giantz Deep Cycle Battery
1 x User manual
