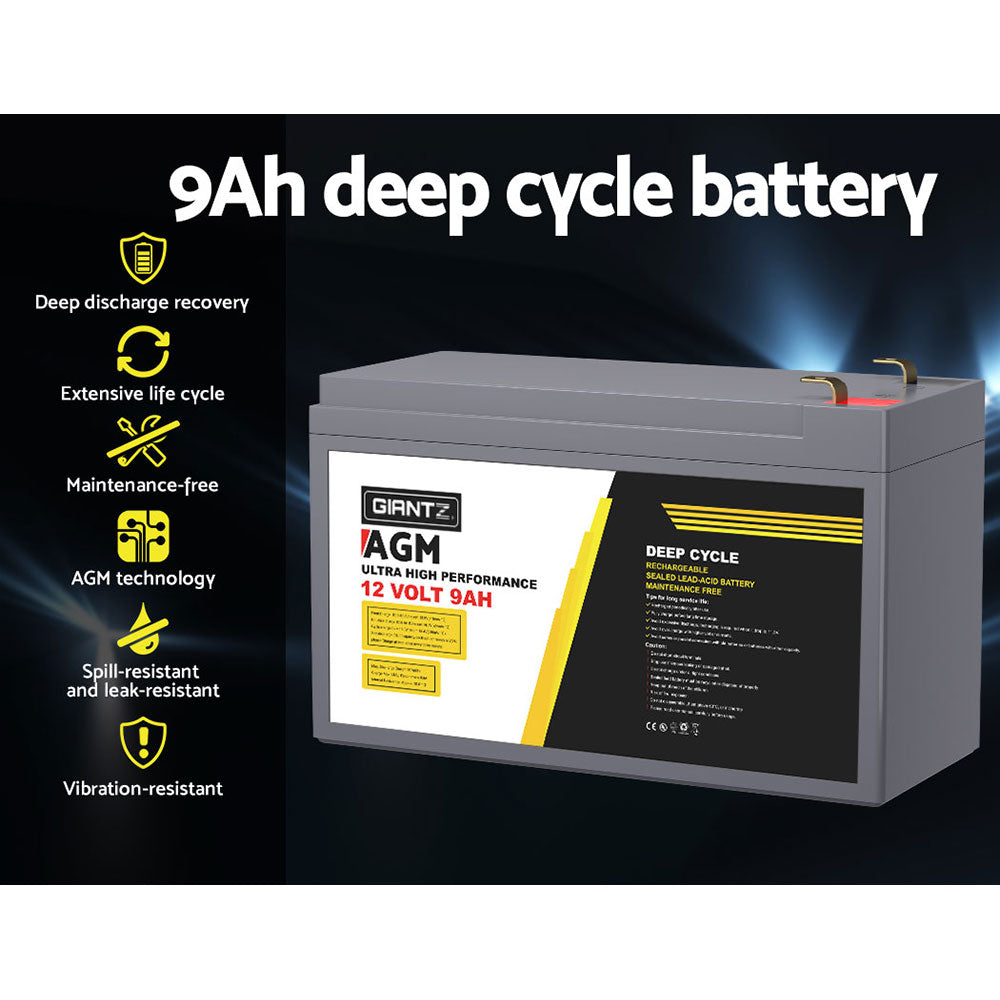

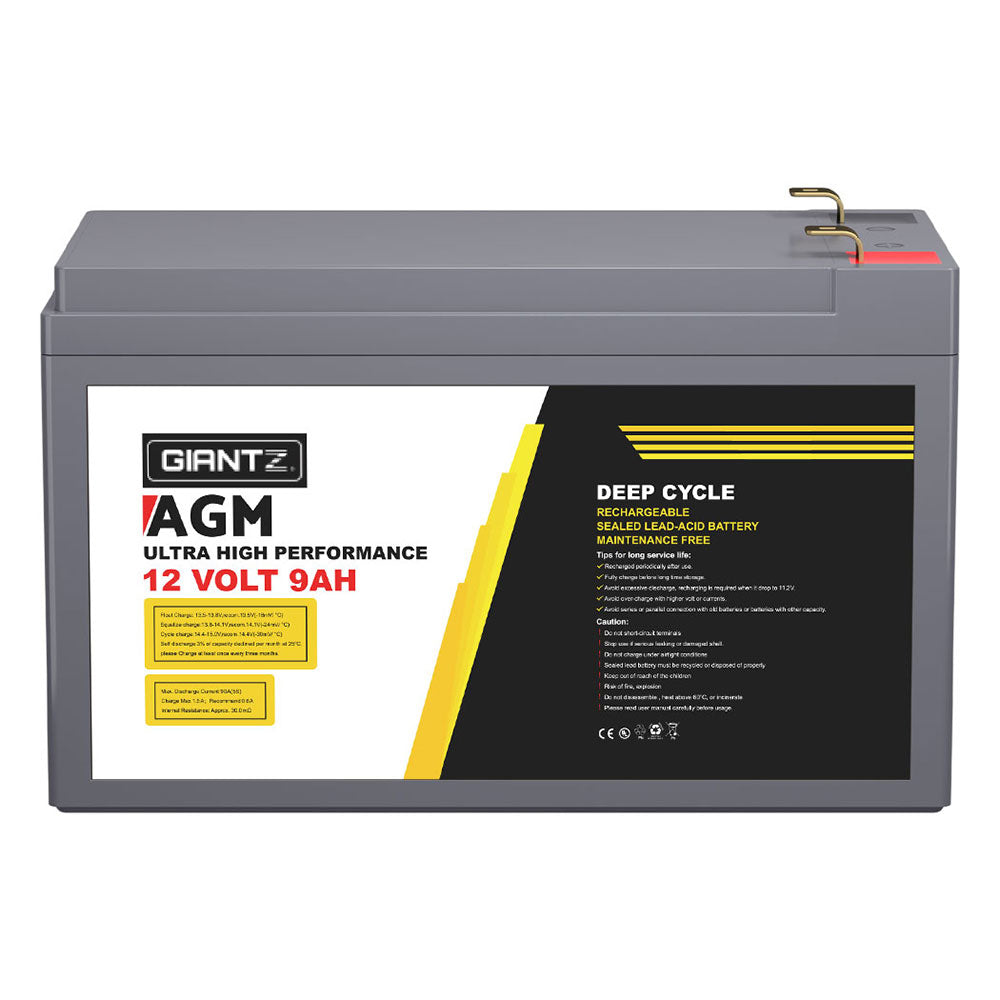

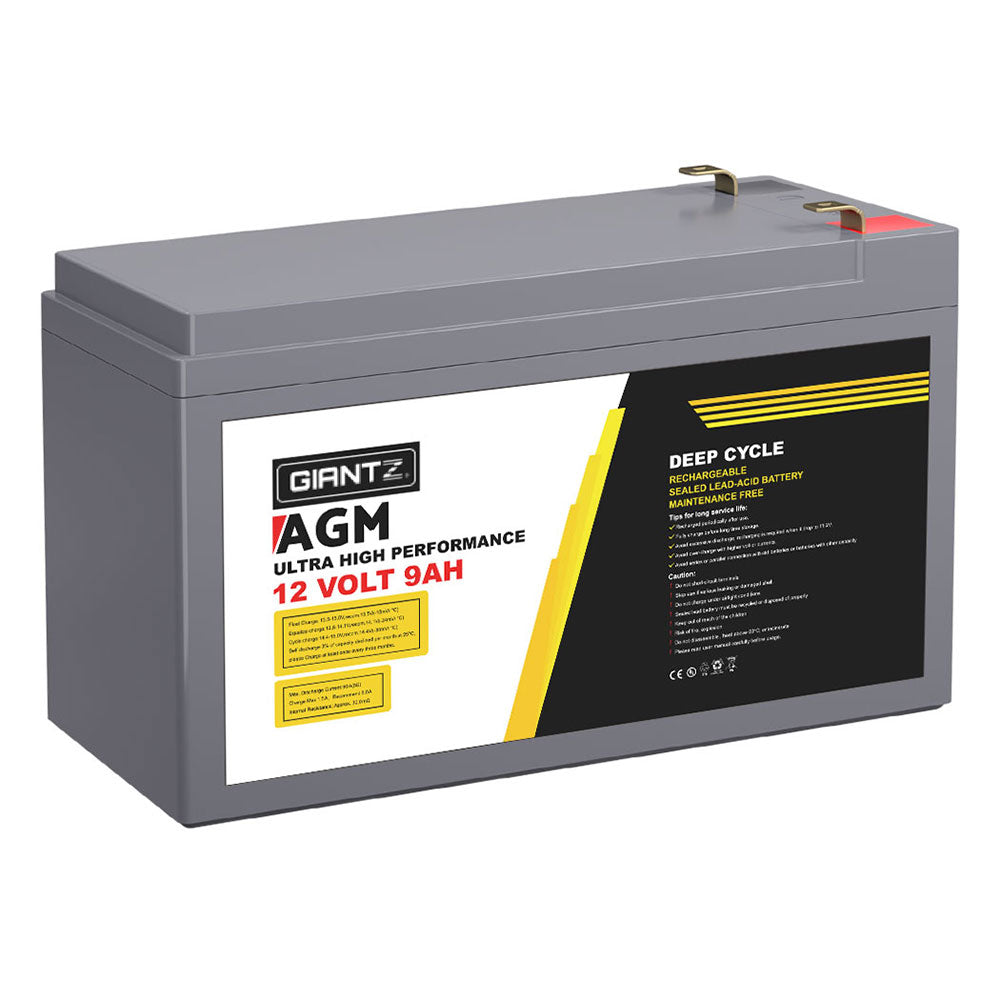

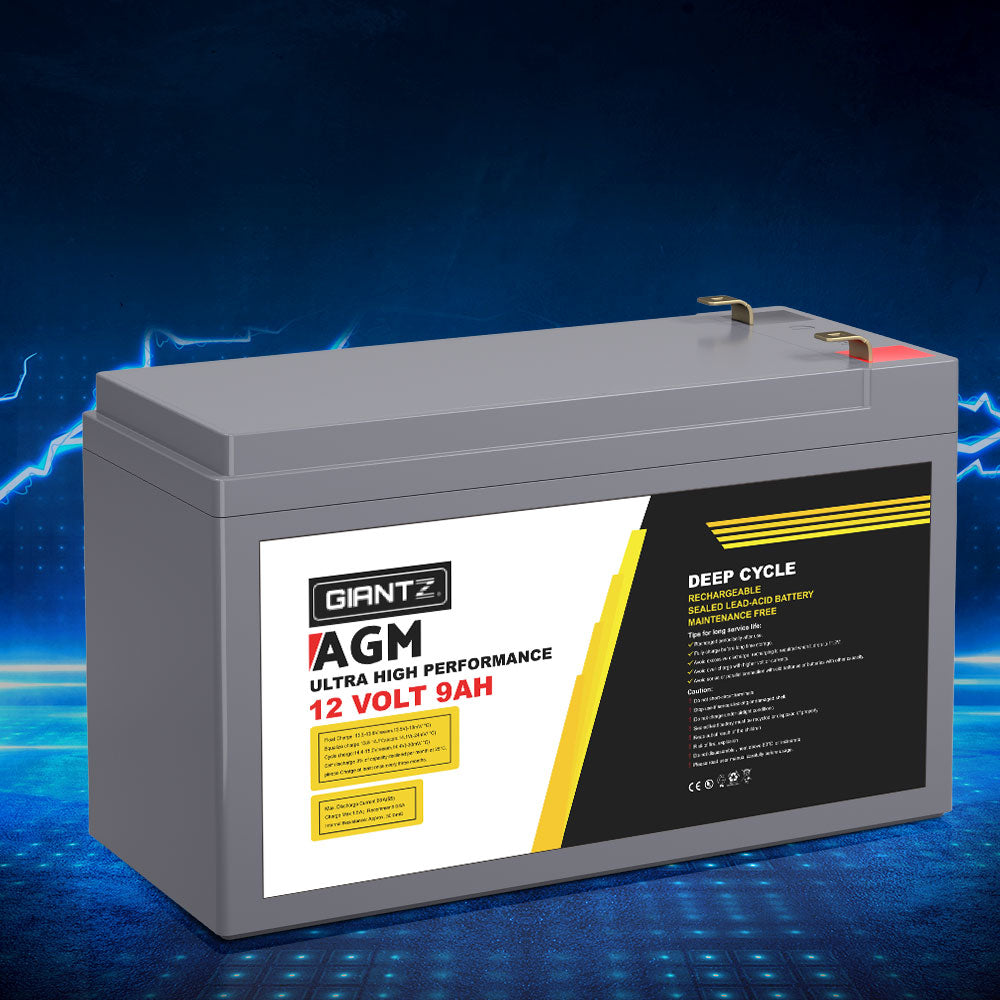

The Giantz 12V 9Ah AGM Deep Cycle Battery is a sealed, maintenance-free power source for off-grid use in 4WD vehicles, caravans, campers, trailers, motorhomes and marine applications. It can run 12V appliances such as portable fridges and washers.
The AGM design is spill-proof and does not leak gas. It is rated for up to 1400 cycles at 30% depth of discharge and has a minimum build life of 7 years. The bolt-down terminals and carry handle make it easier to fit and move, and it operates from -15°C to 50°C for discharge.
Features
- 12V deep cycle battery with 9Ah capacity
- Rated for up to 1400 cycles
- Minimum build life of 7 years
- Higher sulfation resistance
- Longer storage life
- Sealed, maintenance-free design
- Recovers well from deep discharge
- Low-temperature performance down to -15°C
- High oxygen-recombination efficiency

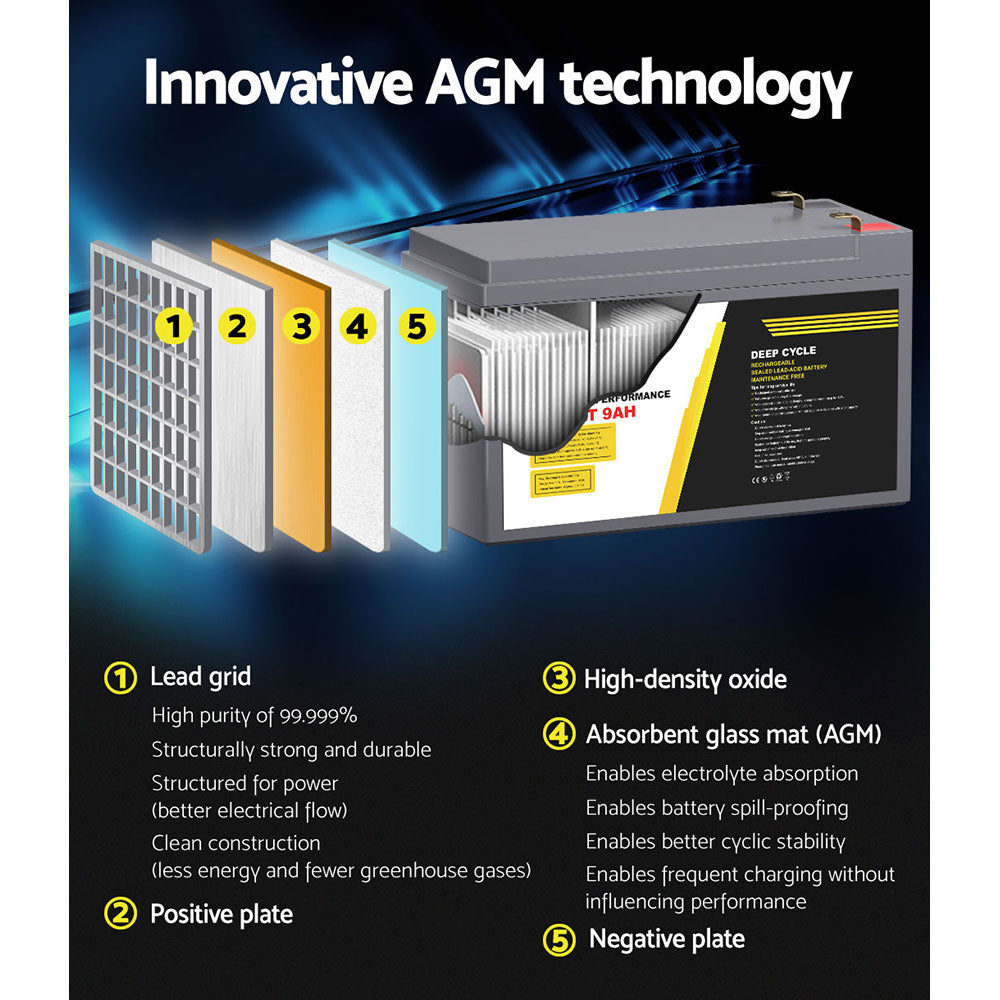

- Advanced AGM technology
- Spill-resistant, leak-resistant and non-gassing
- Bolt-down terminal connections
- Convenient carry handle
Specifications:

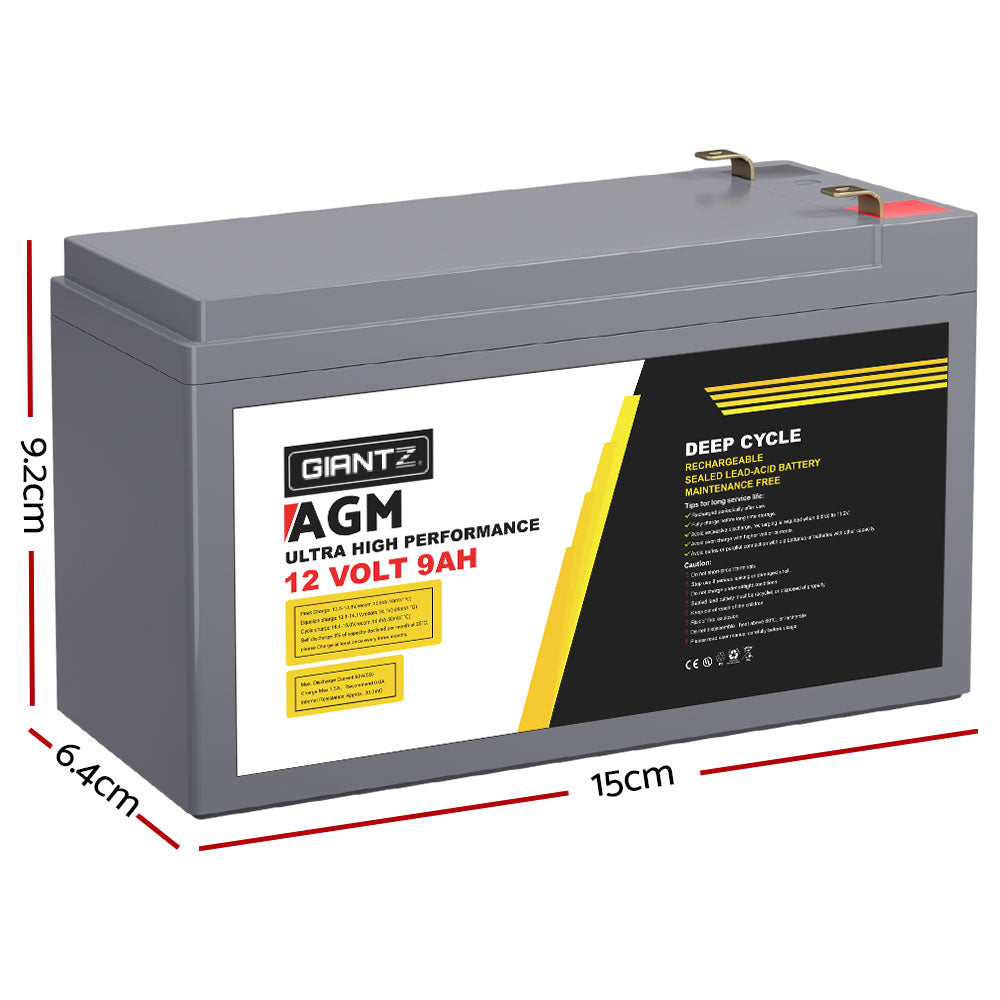

Overall dimensions: 15 x 6.4x 9. 2cm
Approx. weight: 1.86KG
Container material: ABS
Terminals: bolt-down
Nominal voltage: 12V
Rated capacity (10-hour rate): 9Ah

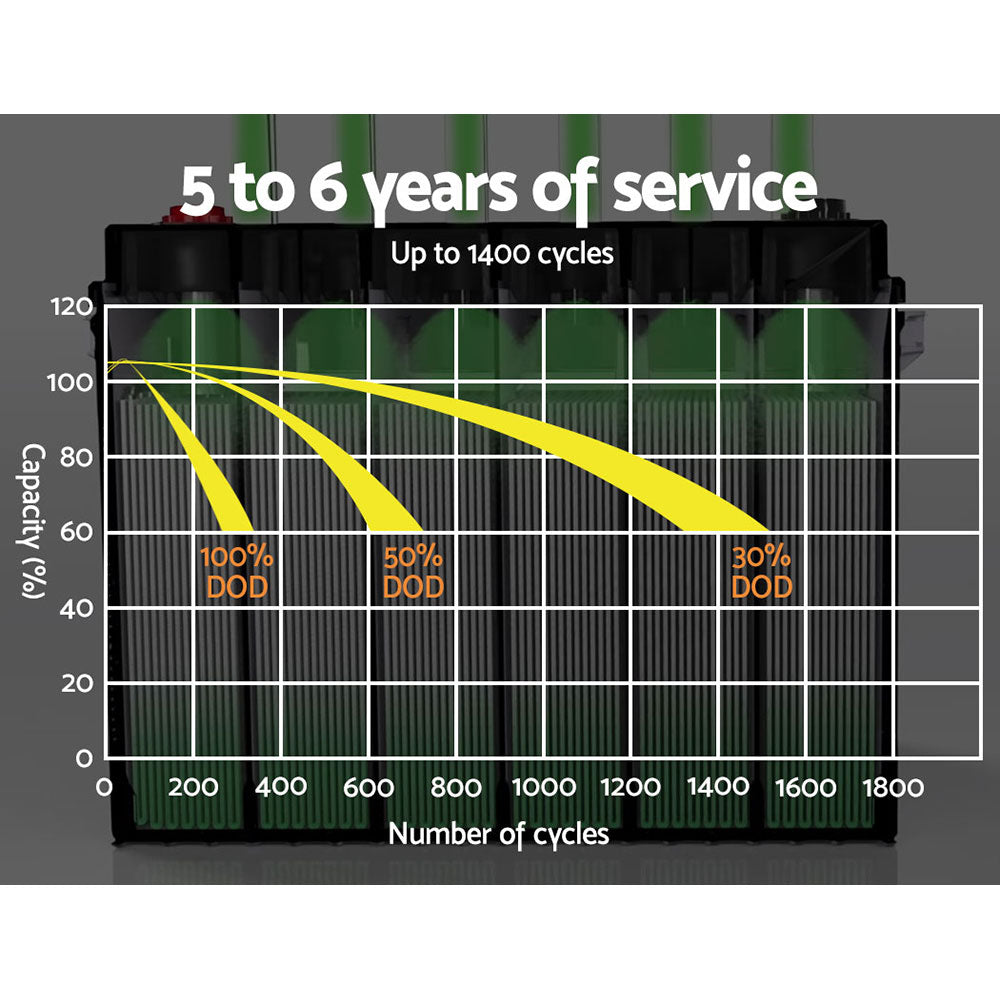

Maximum cycle lIfe: 1400 cycles (@30% DOD)
Minimum build life: 7 Years
Internal resistance: Approx. 7.6mΩ
Maximum discharge current: 660A (5s)
Maximum charge current: 13.8A
Operating temperature ranges:
Discharge: -15°C to 50°C
Charge: -20°C to 50°C
Storage: -20°C to 50°C
Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%
Float charge: 13.5 to 13.8V
Equalise charge: 13.8 to 14.1V
Cycle charge: 14.4 to 15.0V
Self-discharge 3% of capacity declined per month at 25℃
Assembly Required: No
Number of Packages: 1
Package Content
Giantz Deep Cycle Battery x 1
User instructions x 1
This product comes with 1 year warranty
