This 12V AGM deep cycle battery, rated at 135Ah, supplies off-grid power for 4WD vehicles, caravans, campers, trailers, motorhomes and marine setups, plus 12V appliances such as portable fridges and washers. It is designed for regular deep discharge use, with a maximum cycle life of 1400 cycles at 30% depth of discharge.
The sealed, maintenance-free design is spill-proof and does not leak gas, and it uses bolt-down terminals. Charge it on arrival even if it won't be used soon, and top it up about every 3 months during long periods of non-use to avoid over-discharge damage.
Note:
1.Please charge the battery on receiving it even if the battery will not be used in the near future.
a.Maintenance-free means the terminals need not be refilled. However, the battery must be recharged periodically after use.
b.It is advised to charge the battery every 3 months if not in use for long periods. This is to prevent over-discharging of the battery which will cause irreparable damage to it.
c.AGM deep cycle batteries have a much longer cycle life if they are exhausted to a small degree and then recharged, rather than draining all their power and recharging all the away.
Features
- Deep cycle battery for off-grid use
- Designed for a long cycle life
- Maximum cycle life of 1400 cycles
- Long build life
- Higher sulfation resistance
- Long storage life
- Maintenance-free sealed design
- Deep discharge recovery
- Improved low temperature performance
- High oxygen-recombination efficiency

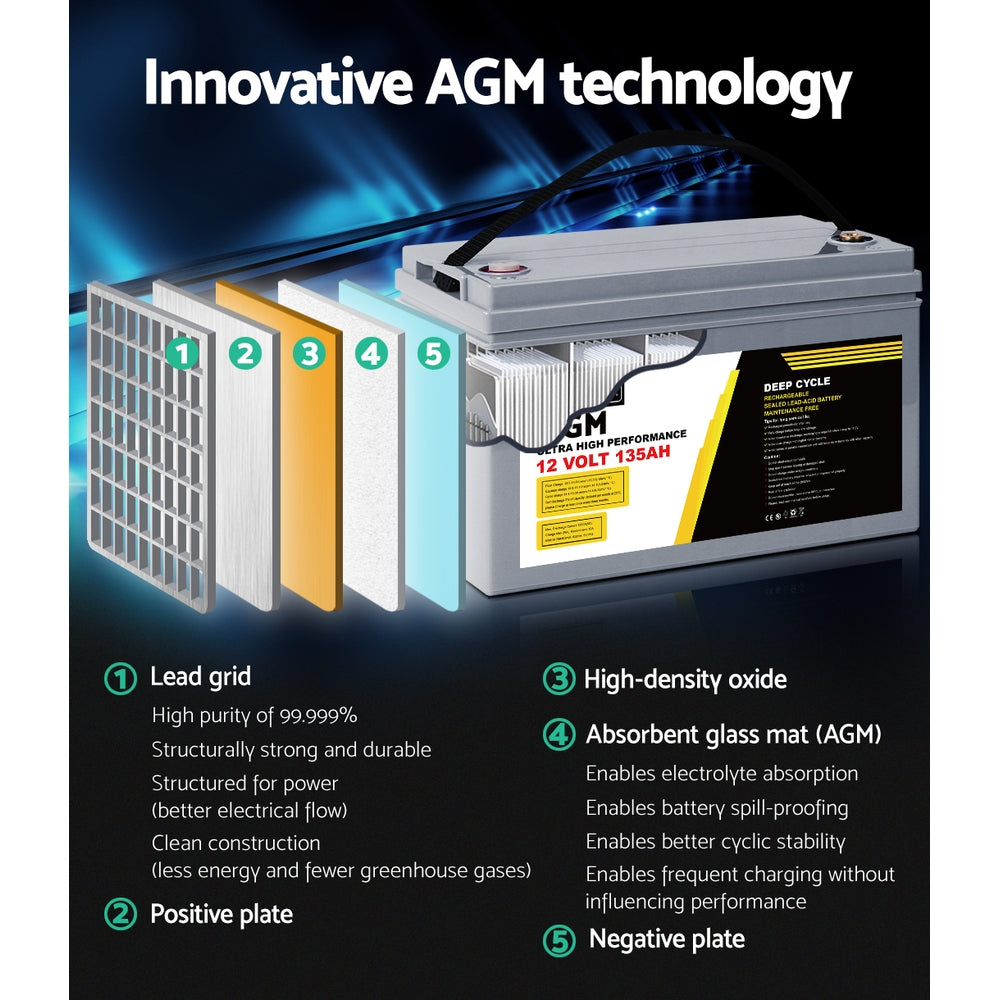

- Advanced AGM technology
- Spill-proof, leak-proof, non-gassing
- Bolt-down battery terminals
- Convenient carry handle
Specifications:

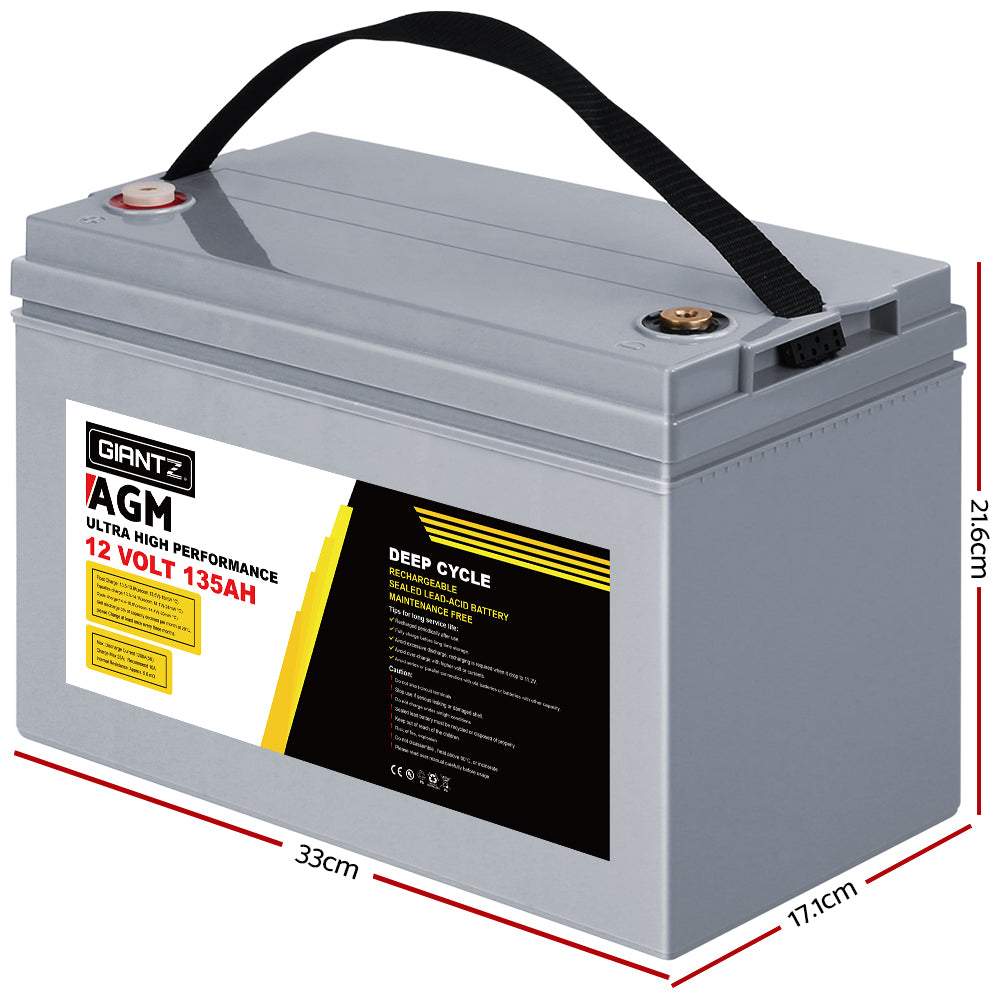

Overall dimensions: 33cm x 17.1cm x 21.6cm
Approx. weight: 29.5kg
Container material: ABS
Terminals: bolt-down
Nominal voltage: 12V
Rated capacity (10-hour rate): 135Ah

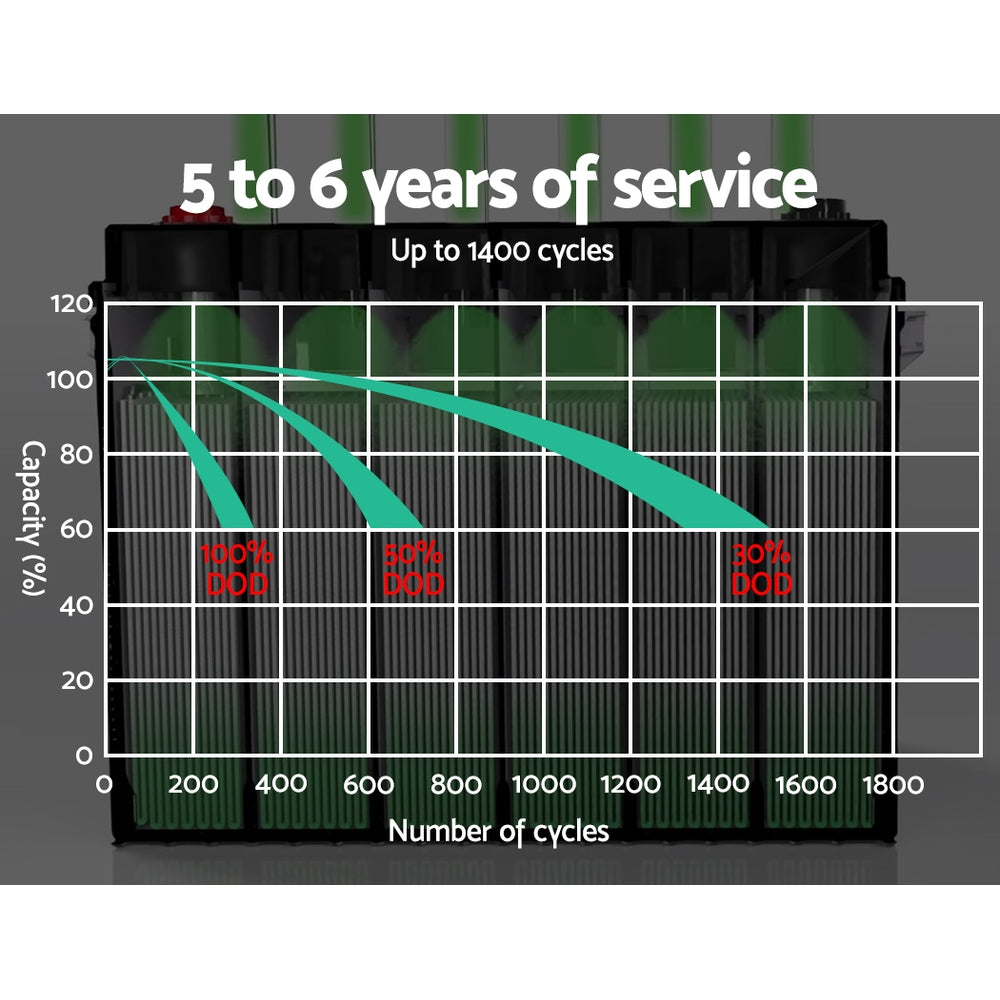

Maximum cycle lIfe: 1400 cycles (@30% DOD)
Internal resistance: Approx. 5.0mΩ
Maximum discharge current: 1200A (5s)
Maximum charge current: 25A
Operating temperature ranges:
Discharge: -15°C to 50°C
Charge: -20°C to 50°C
Storage: -20°C to 50°C
Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%
Float charge: 13.5 to 13.8V
Equalise charge: 13.8 to 14.1V
Cycle charge: 14.4 to 15.0V
Self-discharge 3% of capacity declined per month at 25°C
Package Contents:
1 x Giantz Deep Cycle Battery
1 x User manual
