The Giantz Pure Sine Wave Inverter lets you run 240V appliances from a 12V source, such as a car, 4WD, caravan or boat battery. It produces a clean pure sine wave output, which suits sensitive equipment like computers, phones and TVs. It can also run lights and refrigeration during a power outage at home.
It provides a continuous output of 1500W with peaks to 3000W, plus two 240V sockets and a USB output. It is not suited to inductive products with motors or transformers, such as air conditioners, power transformers and compressors, as these can damage the motor and electronics.
Important note:
The power inverter is not compatible for use with inductive products that contain motors or transformers (such as air conditioners, power transformers and compressors). If power is supplied by the power inverter, it will cause damage to the motor and electronic board.
Compatible with:
Equipment: Computer, Printer, Monitors, Fax Devices, Scanner
Entertainment Electronics: TV, DVD-Player, Play Consoles, Hi-Fi Systems, Music
Instruments, Satellite Decoder
Household Appliances: Vacuum Cleaner, Fans, Electric Shaver, etc.
Kitchen Devices: Mixer, Ice Machines, kettle, Toaster etc.
Features
- Reinforced heat-dissipating construction
- Capacitance built on Japanese engineering
- Copper magnetic core
- Uses IGBT inverter technology
- Ideal for sensitive electronics
- Convenient USB output
- Dual 240V sockets
- Soft start and low interference technologies
- 90% high efficiency rating
- Powers 220/240V devices from 12V sources
- Continuous output of 1500W
- Australian-standard power point
- Low-battery alarm and safety shutdown
- Short-circuit output protection
- Overload, over-voltage and overheat protection
Specifications:
Continuous power: 1500W
Peak power: 3000W
Thd: <3%
Output voltage and frequency: 220 - 240V, 50Hz
Output wave: Pure sine wave
Input voltage: 12V (DC 10V - 15V)
Static current: 0.5-1A
USB current: 5V, 2.1A
Battery low alarm protection: 10VDC±0.5V
Battery low shutdown protection: 9.5VDC±0.5V
Overload protection: Shuts down output and reset
Output short circuit protection: Auto shut-off
Over voltage protection: 15V±1V
Over temperature protection: >65°C±1°C
Maximum efficiency: 90% approx.

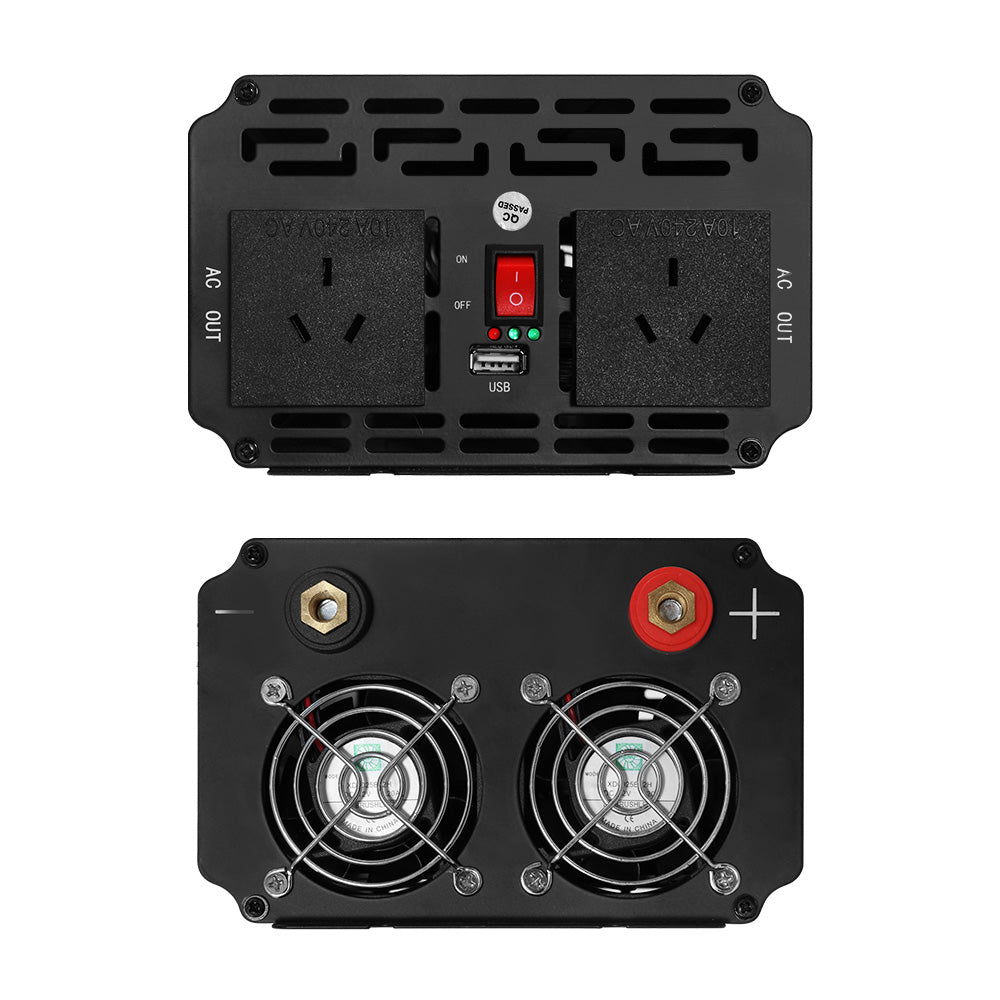

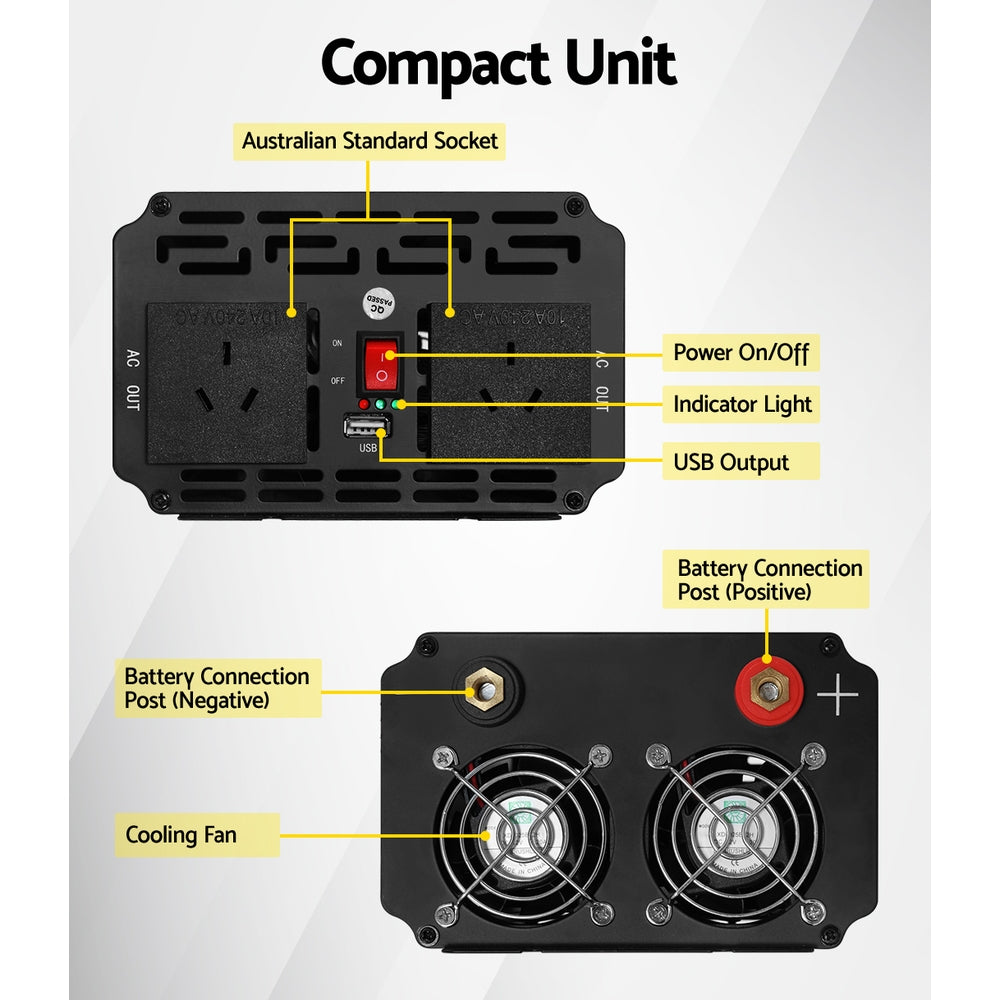

240V output socket: 2
USB socket: 1
Package Content
1 x GIANTZ Pure Sine Wave Inverter
2 x Power cable
1 x Manual
