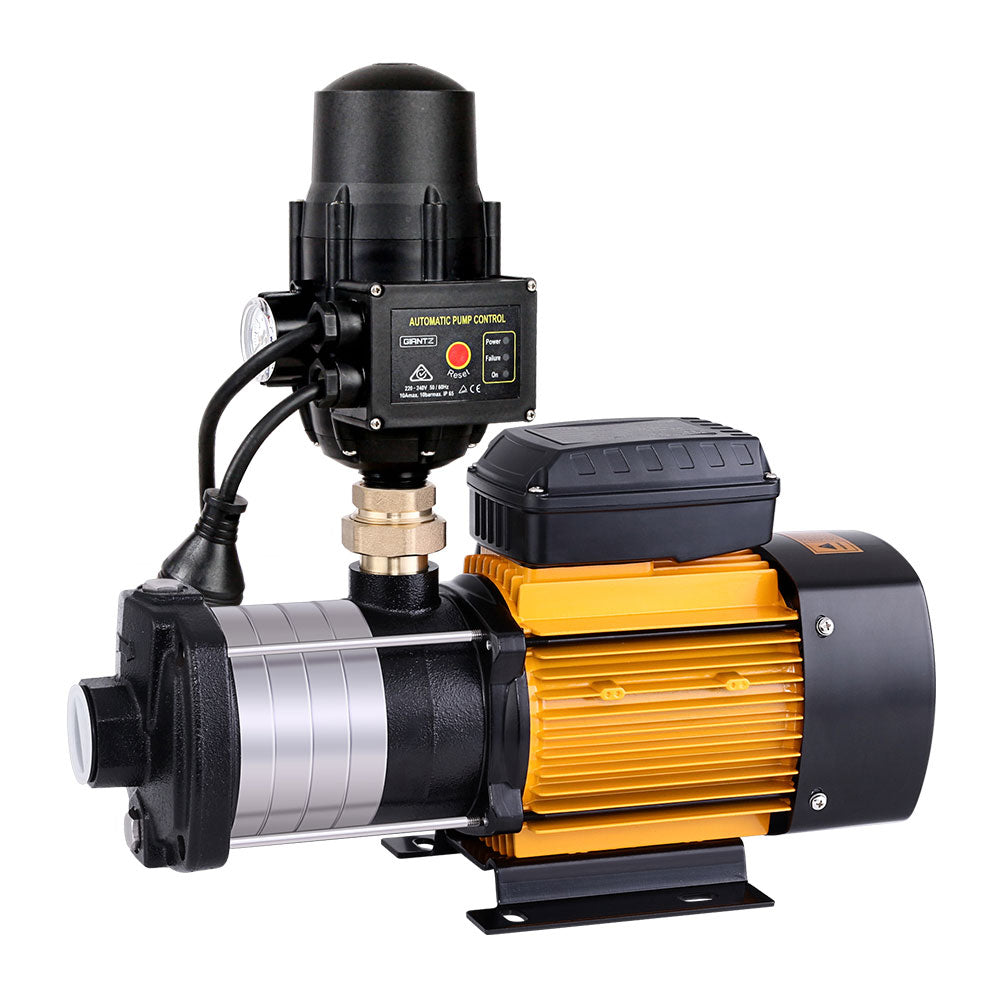

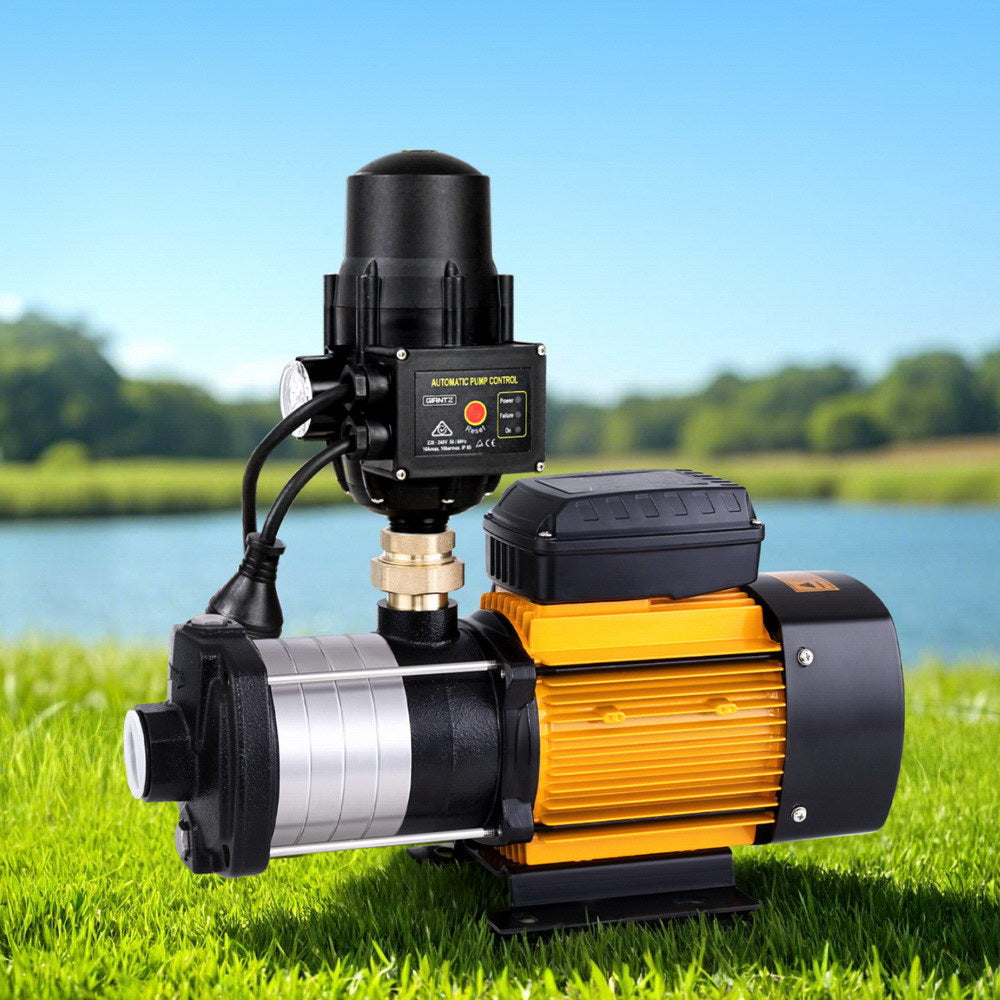

When low water pressure gets you down, power it up with our Giantz 5-stage Water Pump. It is the perfect solution where constant on-demand water pressure is needed at the open and close of any tap. You will find our water pump particularly useful for homes, household gardens, farms, or any situation where pressurised water is consistently required. The water pump features an IP-rated motor, full stainless steel pump body, cast iron ends, 1.25'' inlet and 1'' outlet ports, corrosion-resistant brass connectors, efficient cooling system and not least, built-in thermal protection. Pumping out at a rate of Max. 150L/min with a 60m head, the water pump can send water up to two stories high effortlessly. You can also accurately control the pressure to your precise requirements with the fully automatic controller and monitor it at a glance of the pressure gauge. Power to the pump is as simple as plugging it straight into any Australian standard socket. Whether you are using the pump as a permanent installation or on an ad hoc basis, you can be assured of dependable and reliable water supply in more ways than one.
Features
Powerful 1000W-2000W self-priming multi-stage pump
Garden irrigation, farm irrigation and home water supply
100% duty cycle - designed for continuous operation
Rust-resistant stainless steel pump body with cast iron ends

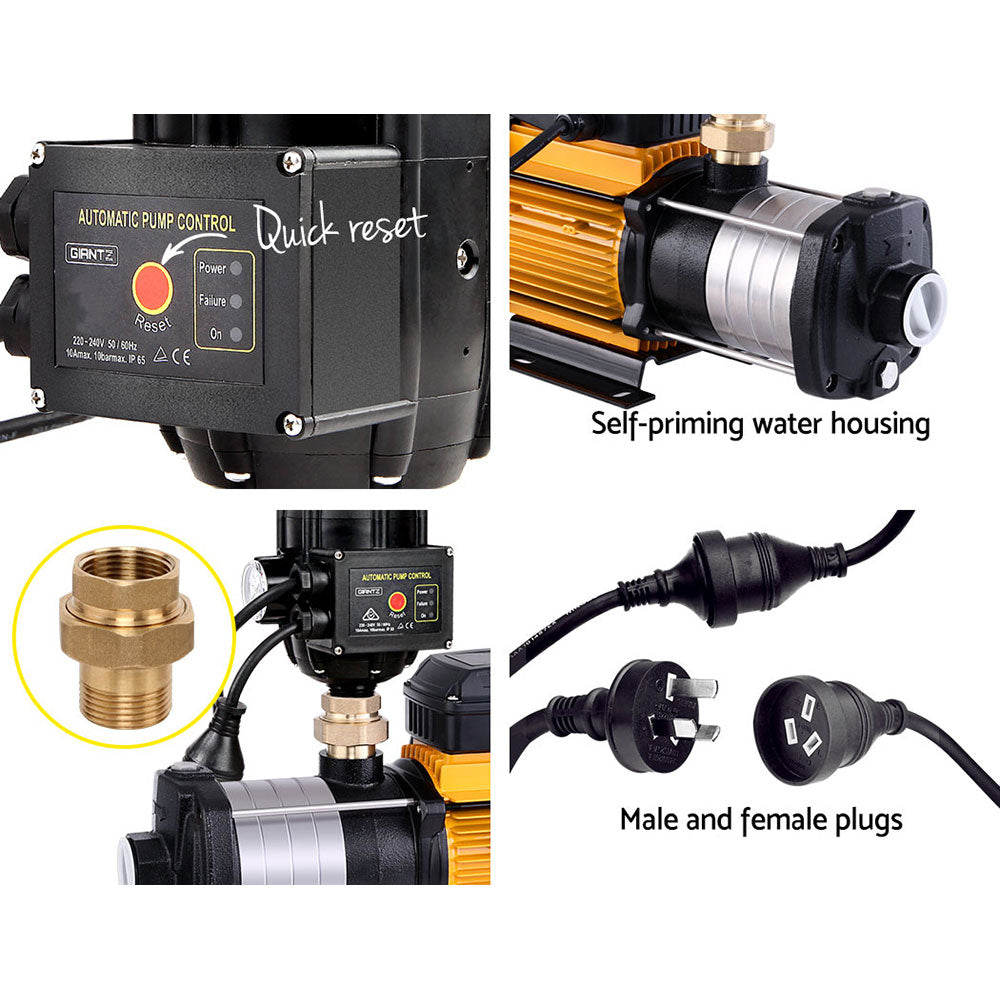

Fully automatic operation on/off controller
Max Huge 60m head
Anti-corrosive alloy motor housing, ceramic and carbon seals
Built-in thermal protection
Efficient cooling system

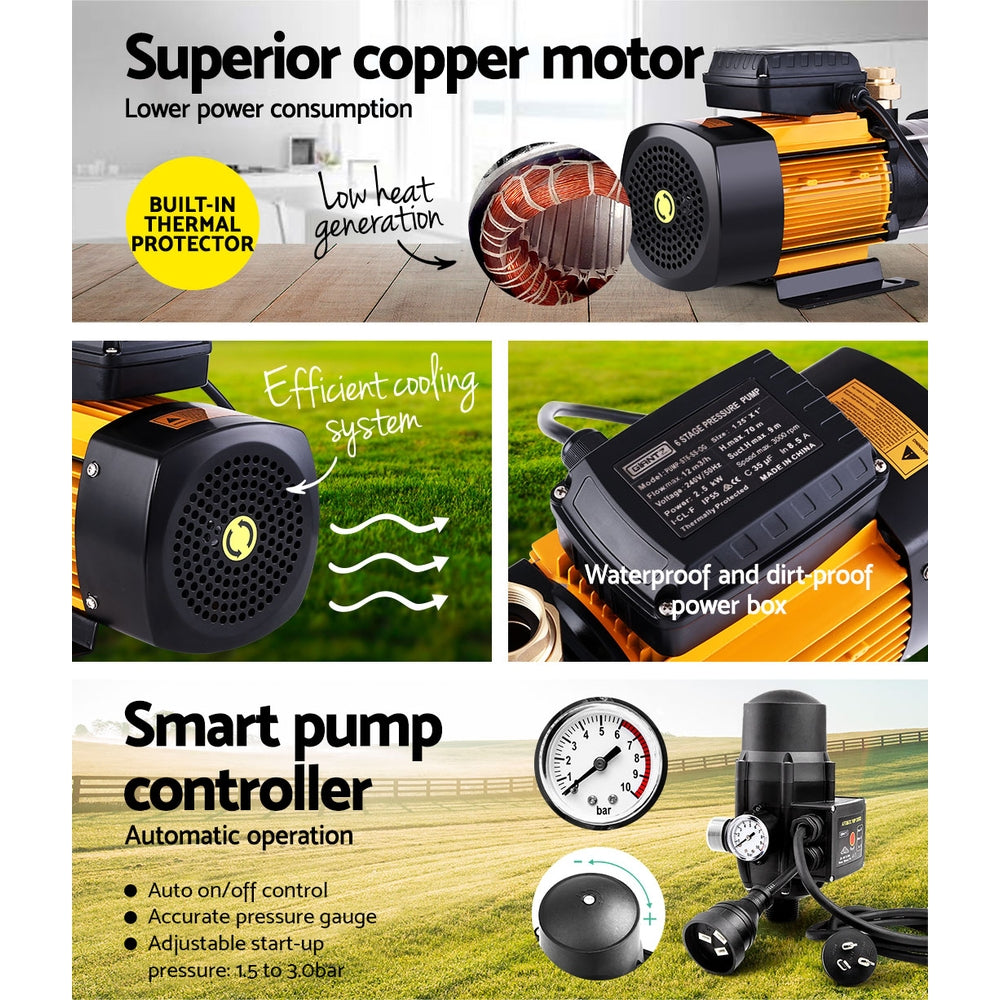

Highly conductive copper motor
Corrosion-resistant brass connector
Leak proof rubber ring
Easy connecting plug and cable
Fully automatic pressure controller
Adjustable start-up pressure
Australian standard cable and plug
Specifications:
I. IMPORTANT WARNING - PROHIBITED USES:
This pump is NOT designed for heavy-duty industrial, commercial, or hydraulic applications. STRICTLY PROHIBITED for use with elevator systems, industrial machinery, or as a power unit for any equipment beyond its capacity. Misuse will void the warranty and may cause product failure.
II. Operating Scope & Limitations
Home garden watering and irrigation
Transferring water from rainwater tanks or wells
Boosting water pressure in domestic pipelines
Circulating water in ponds or small fountains
Absolutely not suitable for powering hydraulic elevator systems, heavy machinery, or in any continuous high-load operation.
Ensure the electrical supply matches the pump's requirement.
III.Specification
Pump:
Rated Input Power 1000W
Max Input Power 2000W
Plug and cord: SAA 250V/10A *0.3m
Max pump flow: 9,000L/h (150L/min)

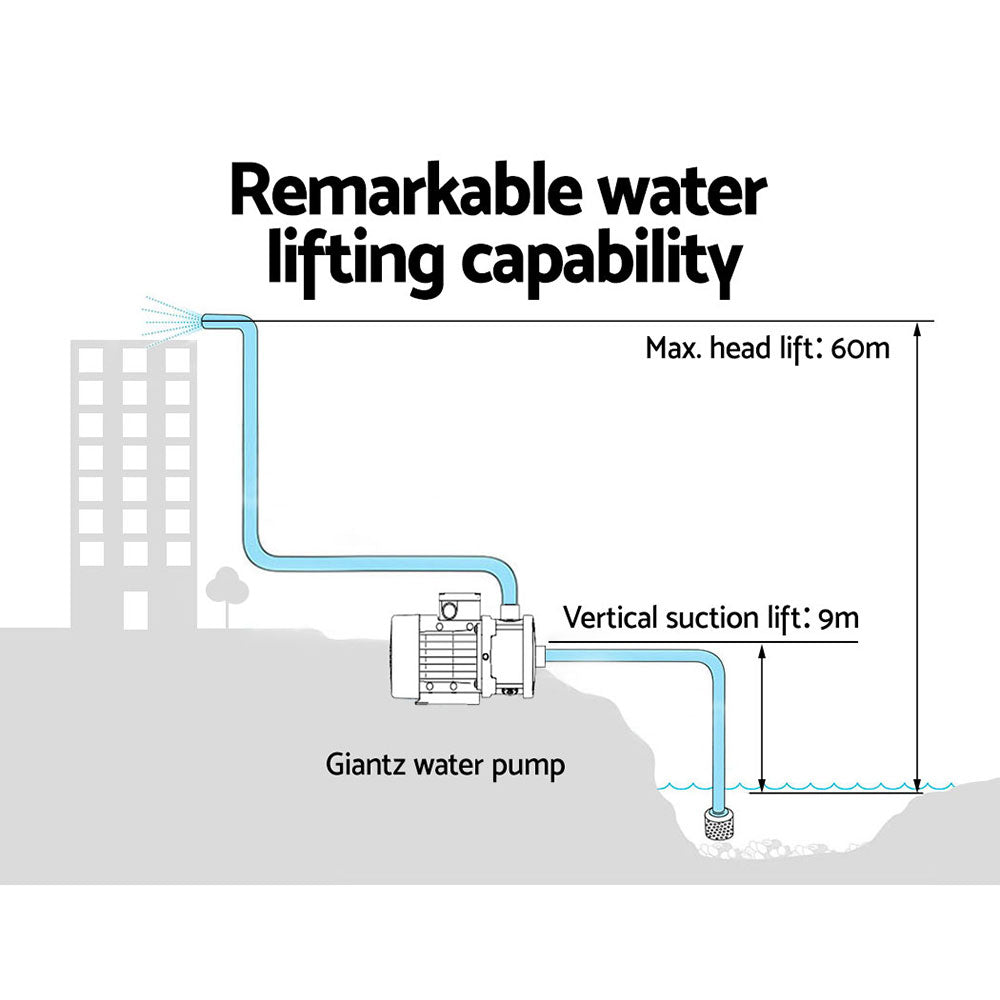

Max head: 60m
Duty cycle: Continuous

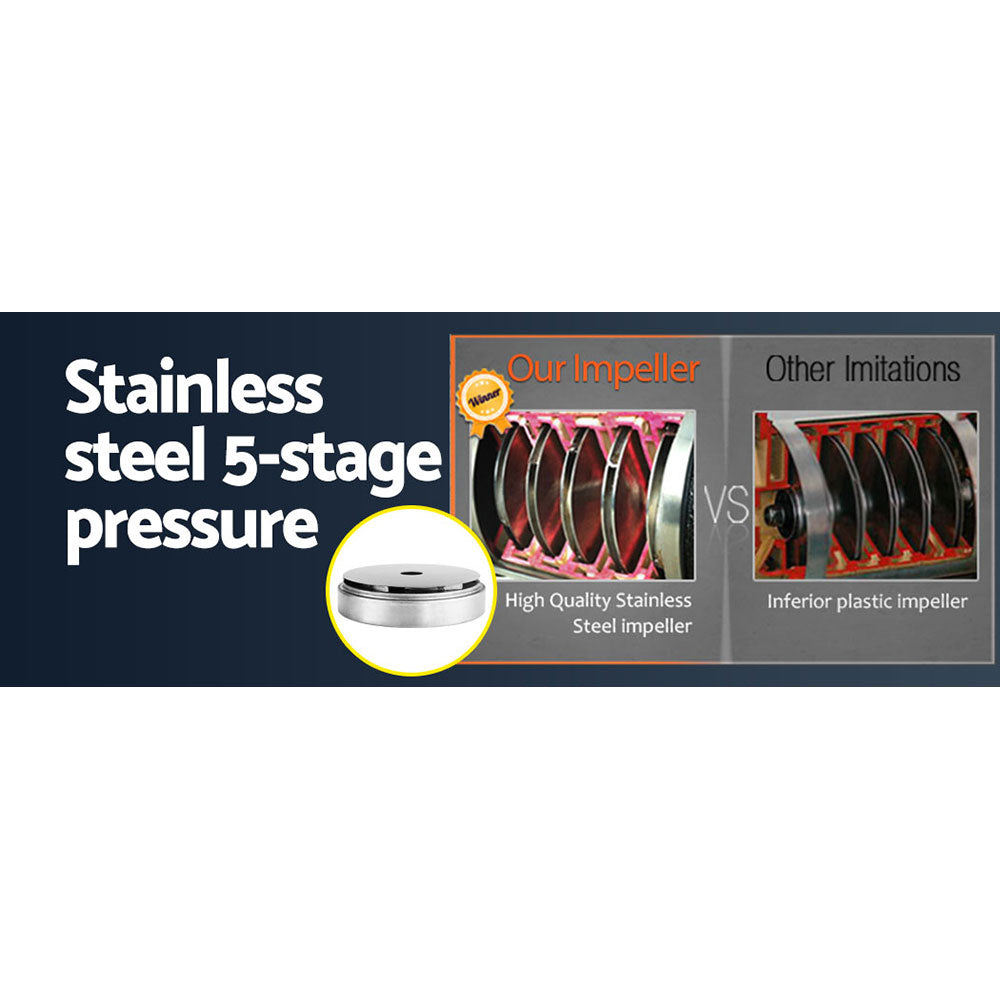

Impeller: Stainless steel
Pump body: Stainless steel
Motor shaft: Stainless steel

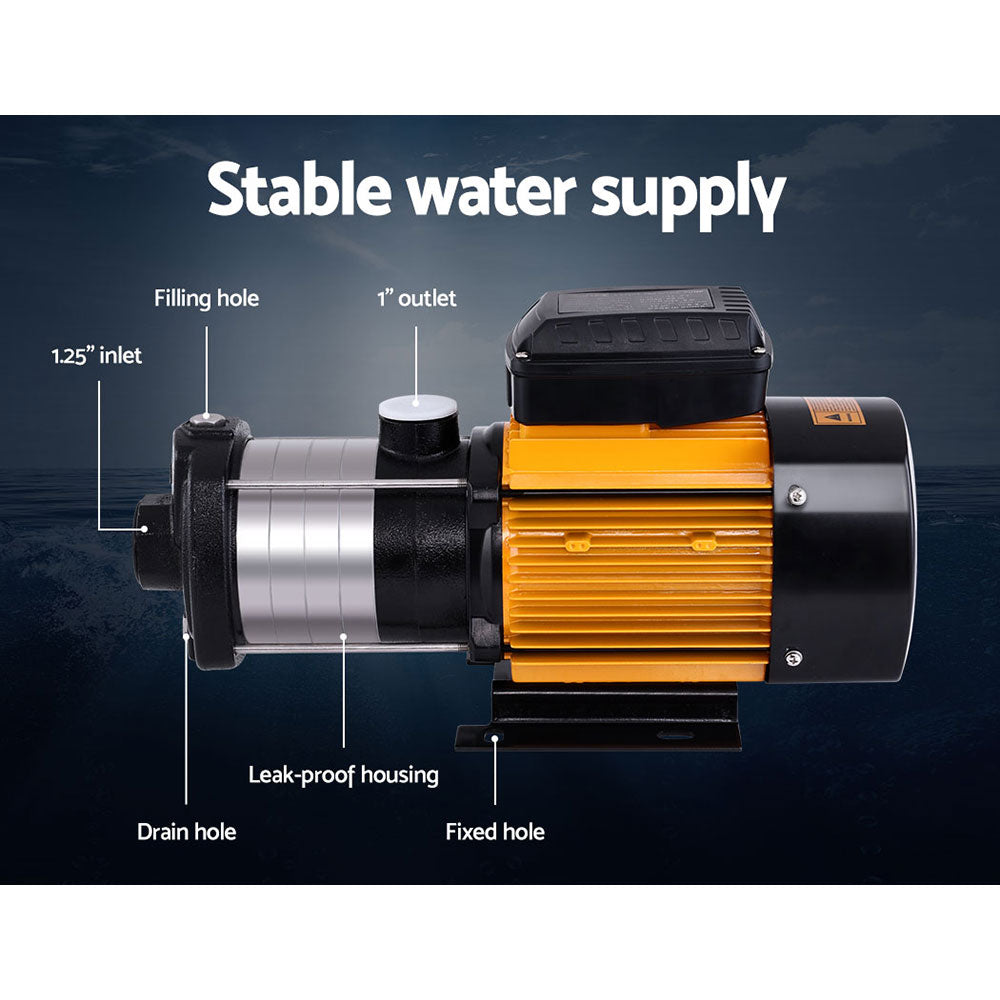

Inlet diameter: 1.25'' (30mm)
Outlet diameter: 1'' (25mm)
Brass connector: 1''
Protection class: IP44
Insulation class: B (130℃)
Max ambient temperature: 40℃
Max liquid temperature: 60℃
Controller:
Voltage: 220/240V
Frequency: 50/60Hz
Maximum current: 10A
Maximum water temperature: 60℃
Starting pressure: 1.5-3bar
Maximum pressure for use: 10bar
Protection grade: IP65
Inlet and outlet size: 1'' (25mm)
Dimensions: 22cm x 15cm x 15cm
Weight: 1.5kg
Package Content
Giantz 5-stage Water Pump x 1
Pump Controller x 1
User manual x1
This product comes with 1 year warranty
