The Giantz 280 Amp Inverter Welder is a portable MMA stick welder. Its IGBT DC inverter design is built for deep penetration and a smooth weld finish, with output adjustable from 20A to 280A. It suits mild steel, stainless steel, carbon steel and sheet metal, and works with a range of electrode and rod sizes.

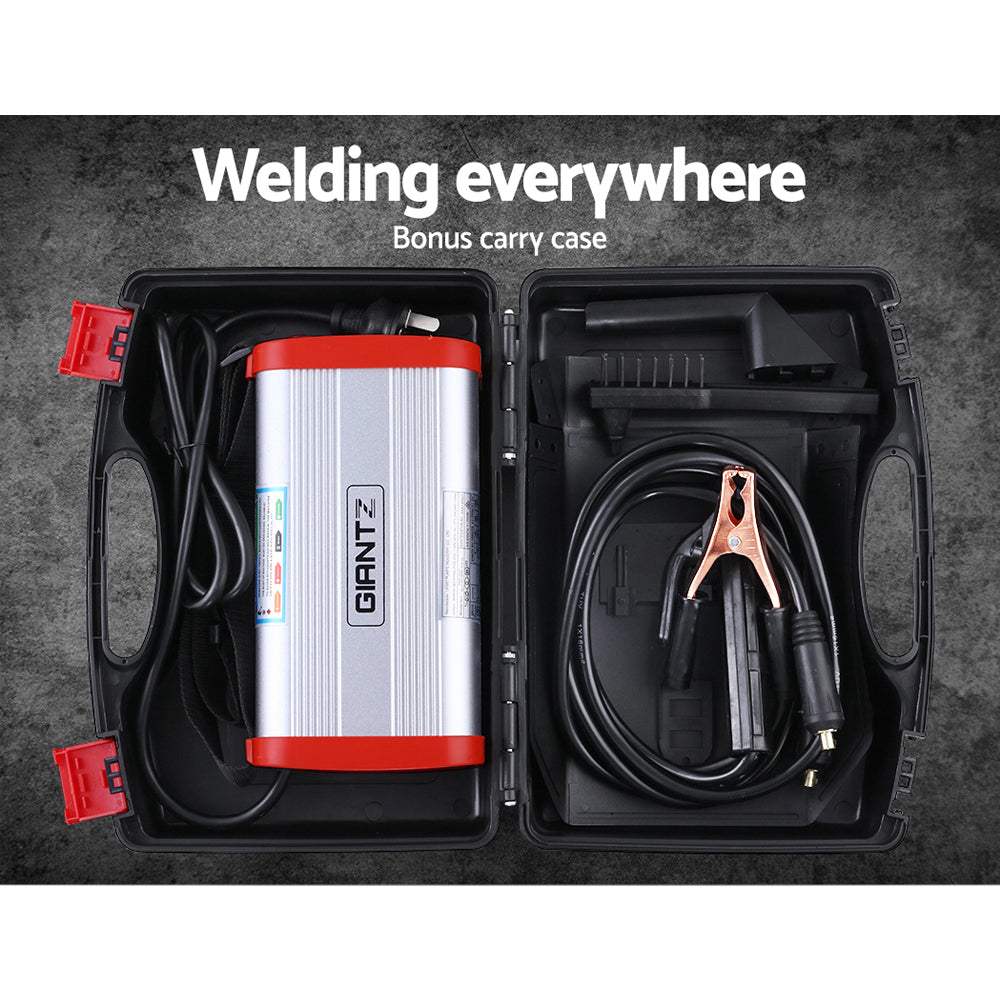

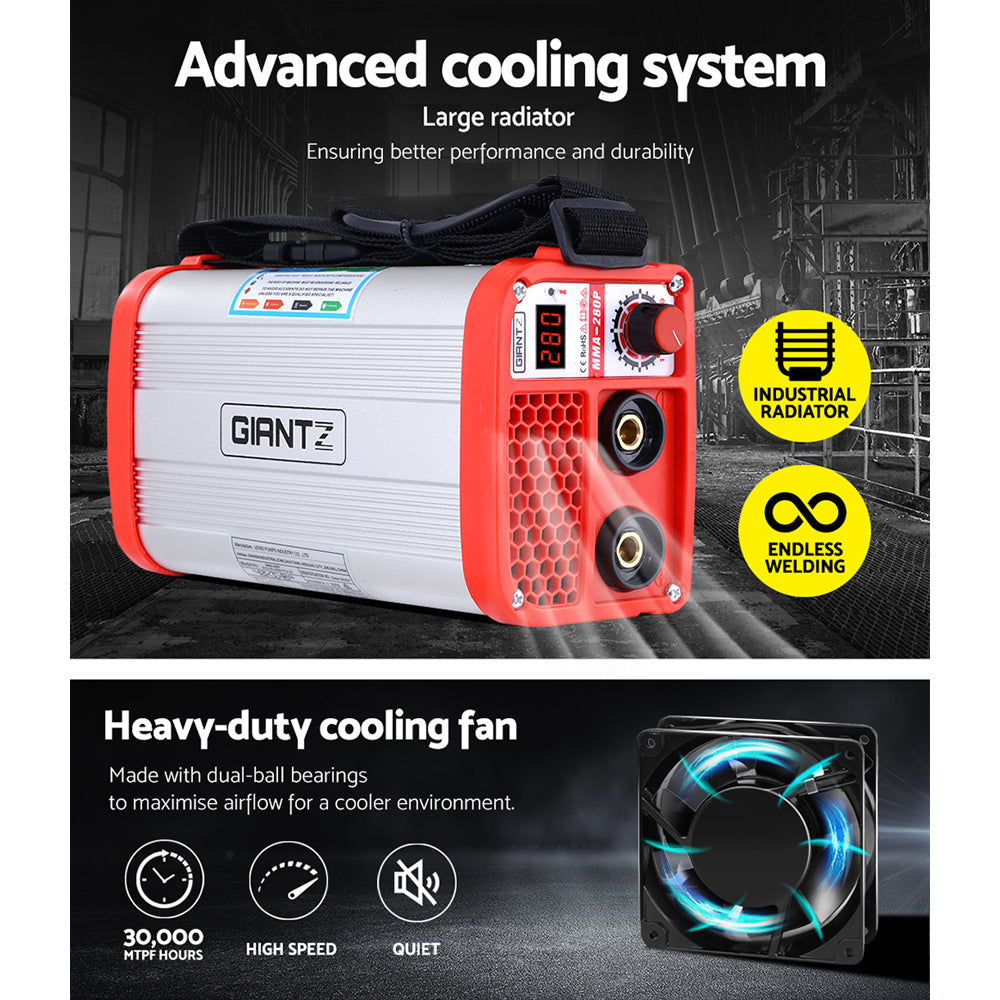

A large fan and radiator cooling system helps dissipate heat, and the LED display and user-friendly controls keep operation simple. It is protected against overload, overheating and voltage faults, and weighs 2.6KG with a welding mask, wire brush and bonus carry case included. Note: it has a 15A plug and needs a current converter adaptor for 10A sockets.
Features:
Compact and lightweight
Free bonus carry base
IGBT inverter technology
Super stable DC inverter technology
Current stablisation and auto increase

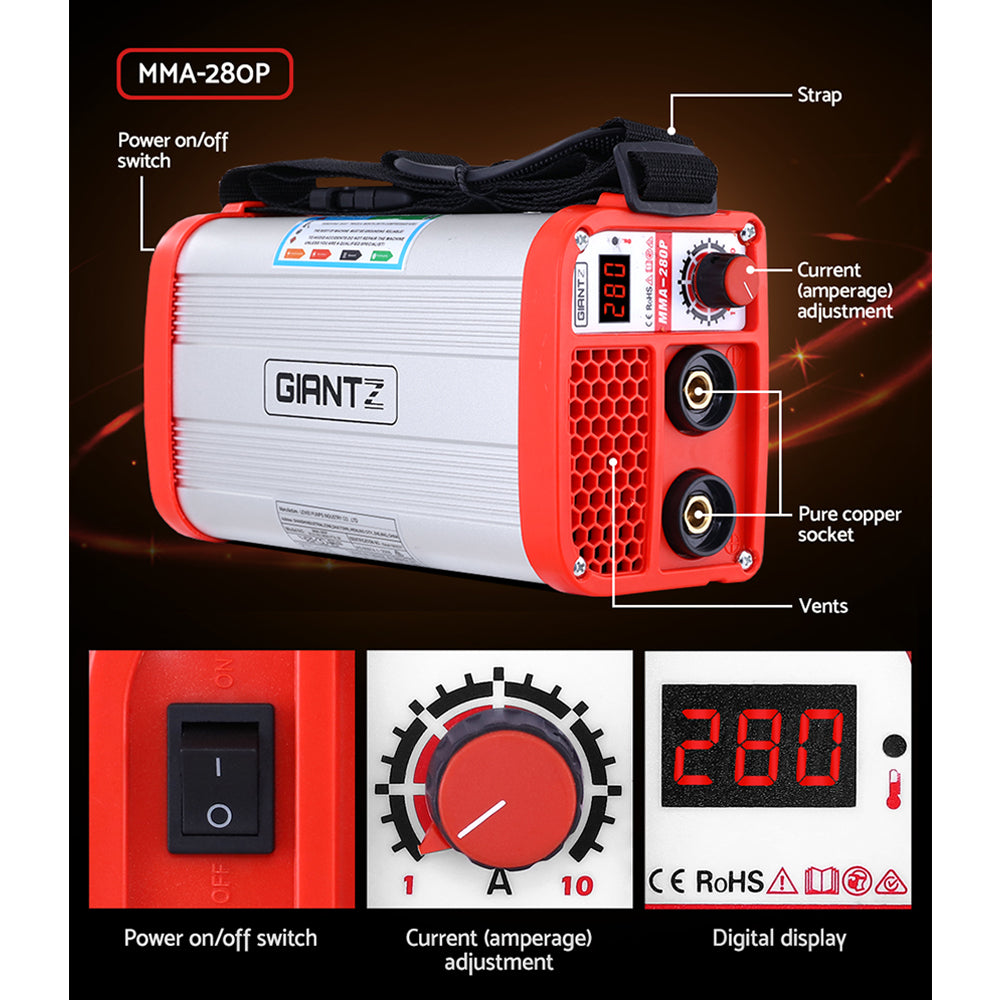

LED display
Industry-standard DIN sockets
Adjustable output current range 20A to 280A
Advanced cooling system
Overheating, over current, and over/under voltage protection
Stable arc
Works with a range of rod sizes
SAA, EMC, CE and C-Tick certified
Specifications:
Power Voltage: Single Phase 220V ±15%, 50Hz
Power Plug: 15A AU Standard
Output Current Range: 20A – 280A
Duty Cycle: 25% @ 280A, 100% @ 140A
Efficiency: 85%
Power Factor: COS 0.93
No-load Power: 62W
Rate Output Voltage: 20.8 - 30V
Shell Protection Grade: IP21
Power Cord Length: 1.5m
Electrode Cable Length: 1.8m
Earth Clamp Cable Length: 1.2m
Welding Metal Thickness: 1.5mm - 12mm
Welding Electrodes: 1.6mm – 4.0mm
Generator Recommended: 7.5kVA (real power)
Dimension (L*W*H): 26.5cm x 11cm x 14.5cm
Net Weight 2.6KG

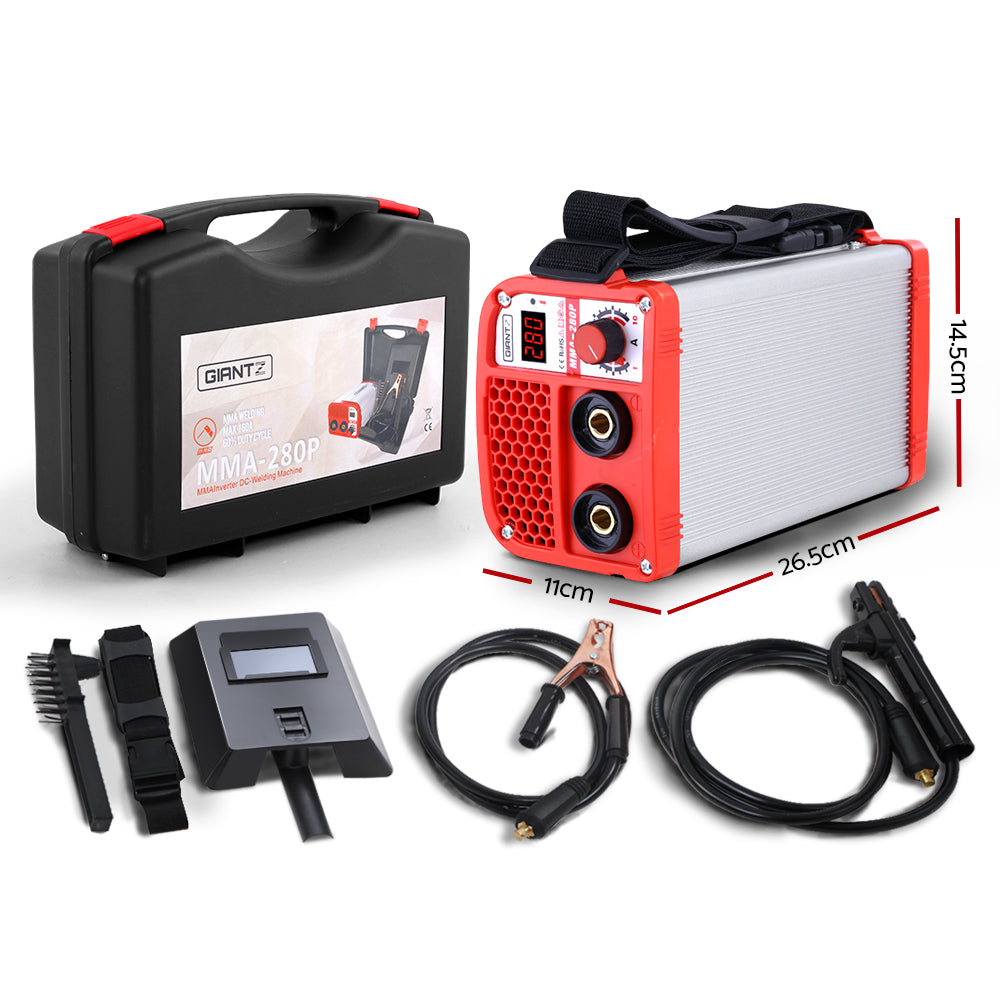

Product Contents:
GIANTZ Inverter Welder x 1
Electrode Holder Lead x 1
Earth Clamp Lead x 1
Welding Mask x 1
Shoulder Straps x 1
Wire Brush x 1
Bonus Carry Case x 1
User Manual x 1
