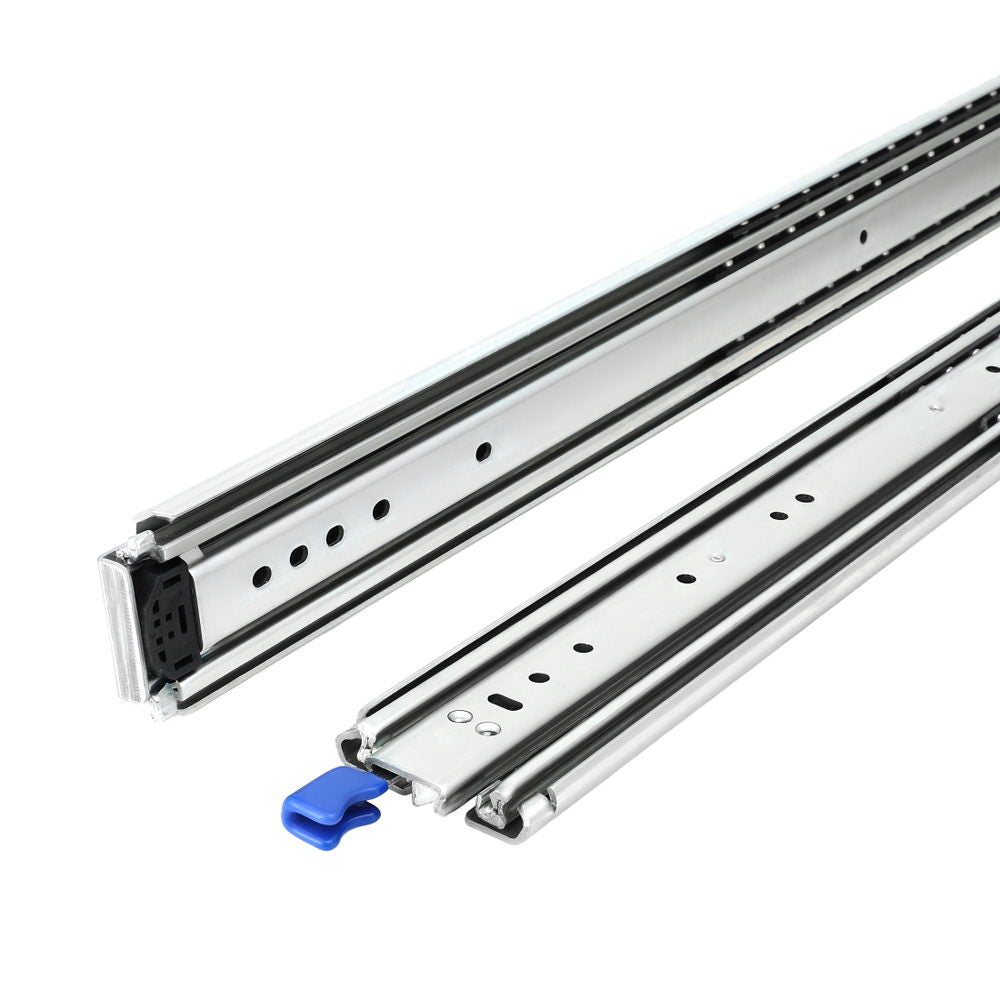

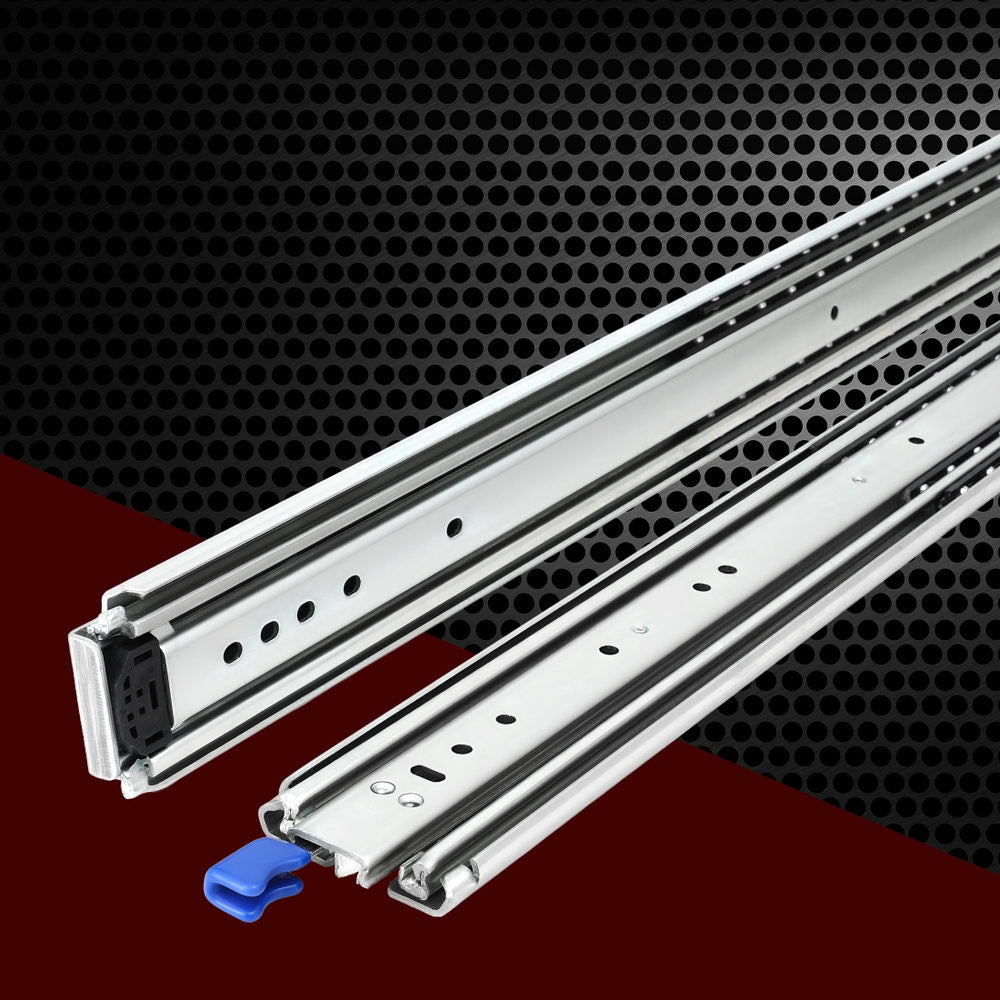

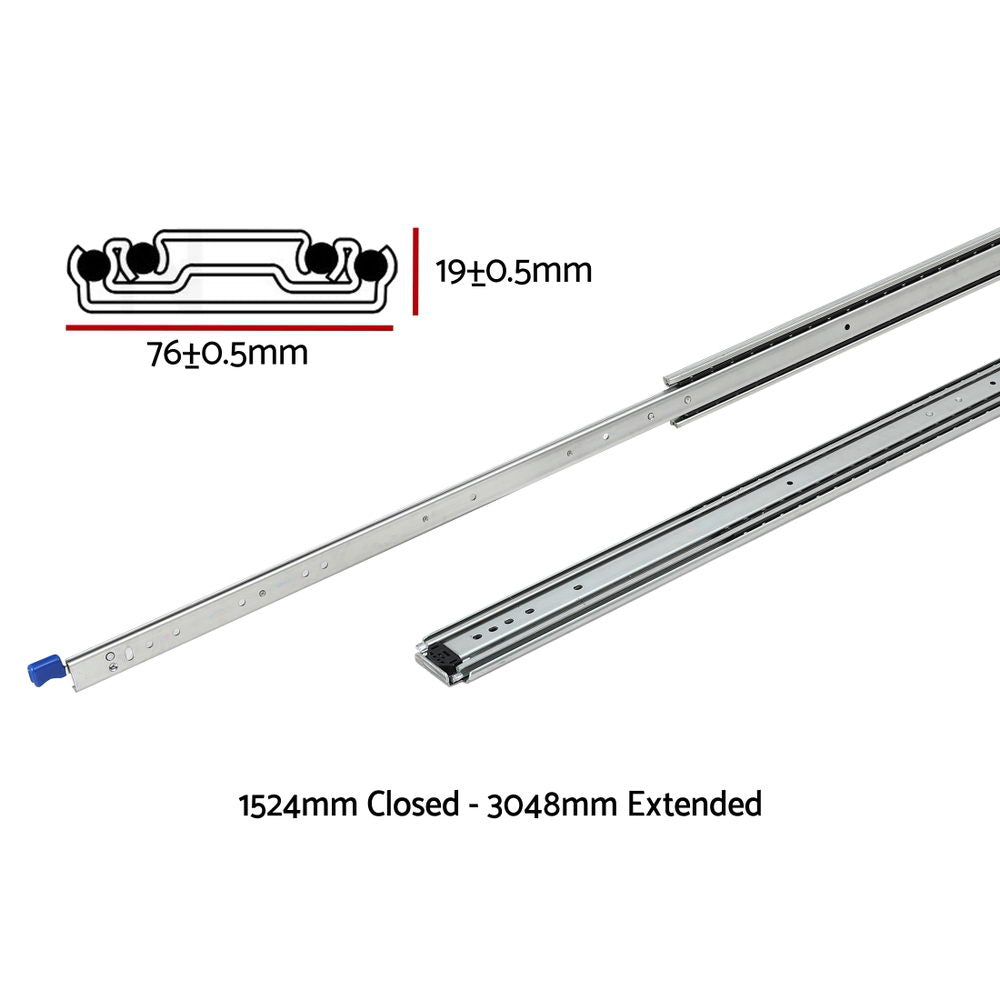

These Giantz heavy duty drawer slides come as a pair for large drawers, cabinets and industrial storage. The slides measure 76mm in width and 19.5mm in thickness, and extend fully from 1524mm to 3048mm. A three-section ball bearing design gives a smooth slide, while cold rolled steel with a zinc plated finish helps resist corrosion.

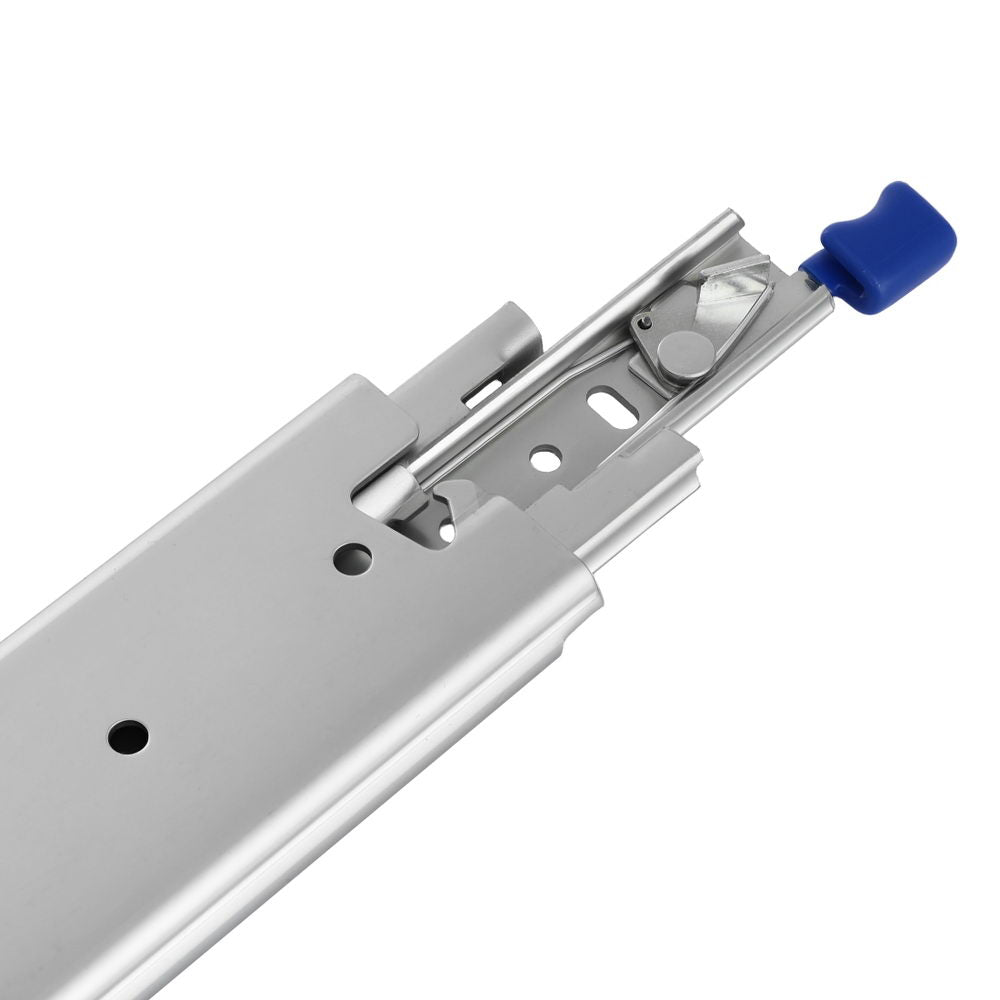

A lock-in and lock-out mechanism holds drawers fixed when fully closed or fully extended, helping to prevent accidental overextension. Rated to support up to 227kg, they suit vehicle fit-outs and multimedia equipment. Each set includes two slides, 12 M5 screws and 12 M5 screw nuts for installation.
Features
- Cold rolled steel build for durability
- Three-section drawer slide design
- Heavy duty 227kg load capacity

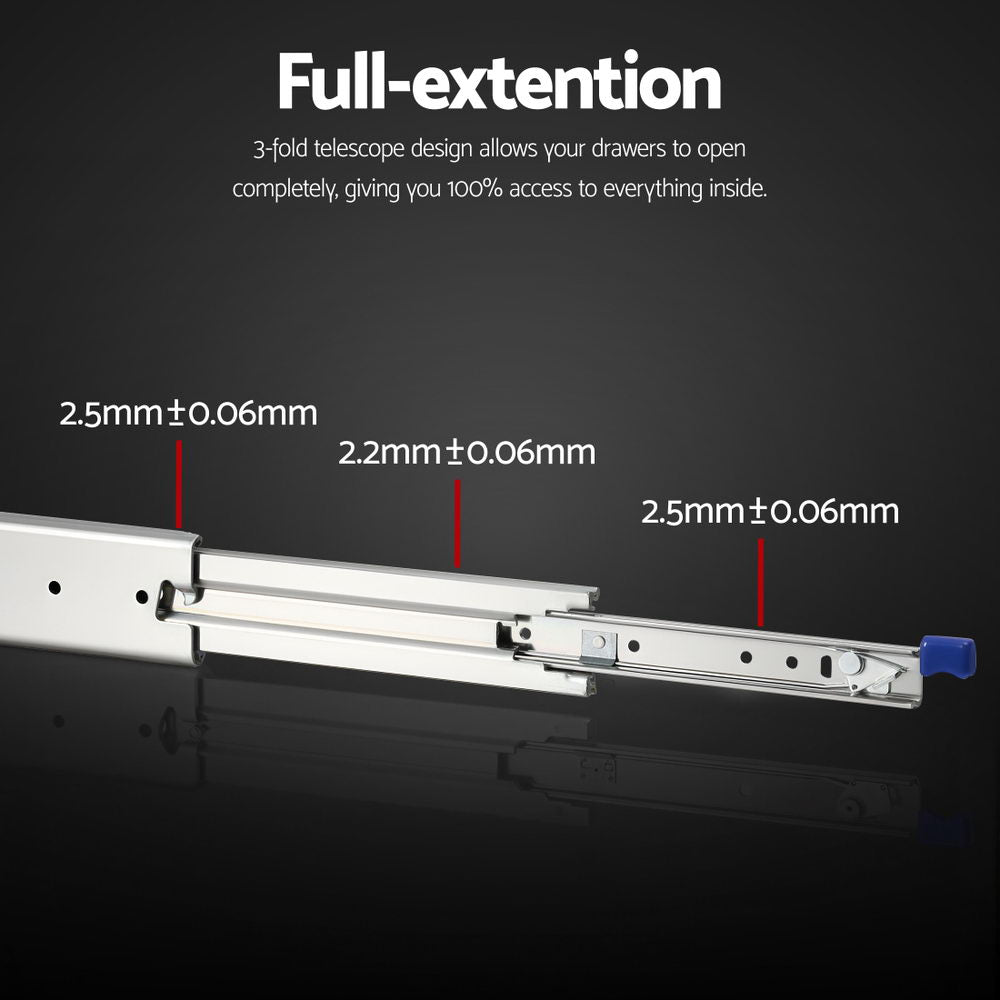

- Full extension from 1524mm to 3048mm

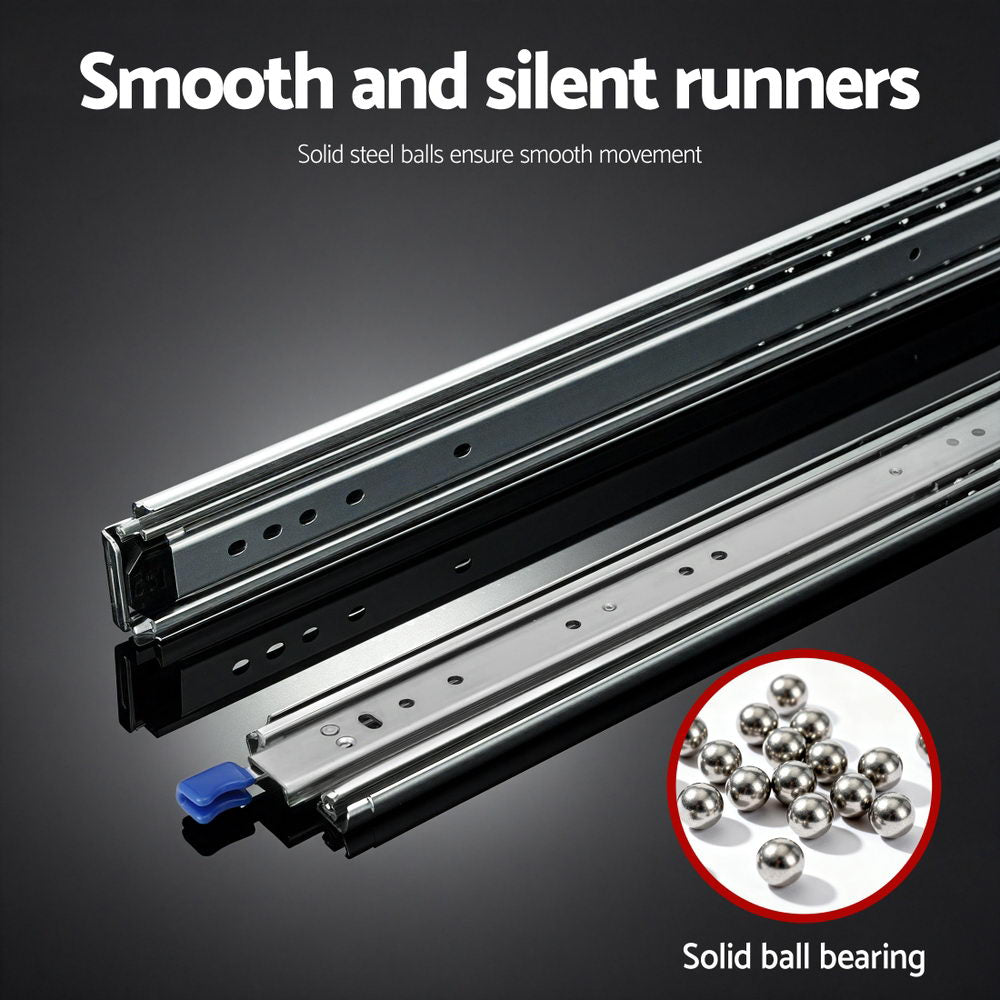

- Smooth, noise-free sliding action
- Extra wide 76mm steel rails
- Locking mechanism holds drawers secure
- Zinc plated, corrosion resistant finish
- 12 M5 screws and 12 M5 screw nuts included
- Suited to large cabinets, drawers, RV, trunk and multimedia installs
Specifications:
Color: Sliver
Material: Cold Rolled Steel
Finish: Zinc Plated
Load Capacity: 227KG
Fully Pull-Out Length: 3048mm
Fold Product Size: 152.4x 7.6x 1.95 cm
Slide Lock: Support
Assembly Required: No
No. Of package: One
Package Content
Giantz drawer slide X1 pair
M5 screw X12
M5 screw nut X12
User Manual X1
This product comes with 1 year warranty
