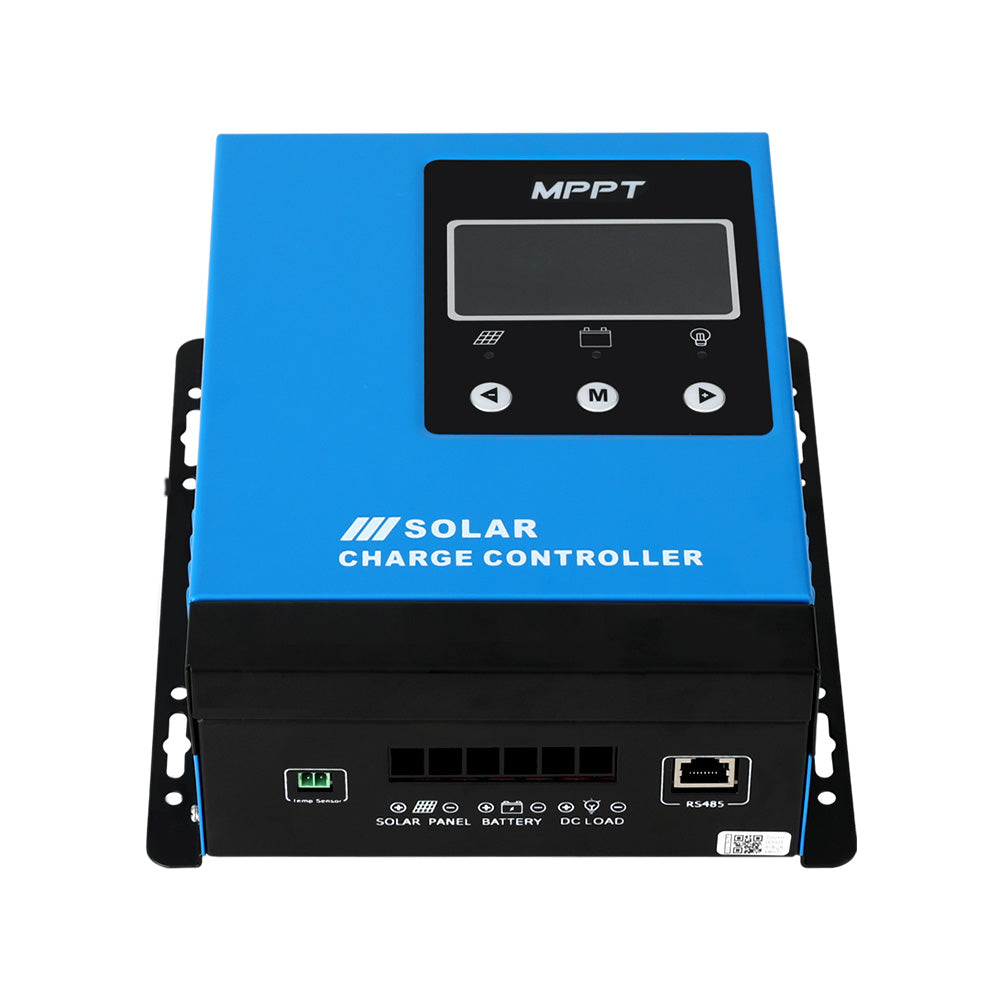

This 40A MPPT solar charge controller from Giantz helps prevent batteries from overcharging in solar power setups. It suits anyone charging batteries from solar panels, with up to 99 per cent tracking efficiency and up to 97 per cent maximum charging efficiency.
Multi-stage charging supports battery health, and protection guards against overcharge, reverse polarity, overloading and overheating. A backlit LCD display, iron case heat sink and cooling fan support easy use and heat management. It detects system voltage automatically across 12V, 24V, 36V and 48V systems and works with most popular battery types.
Features
- Creative MPPT technology
- Auto detects 12V, 24V, 36V and 48V systems
- MPPT tracking accuracy of 99%
- Multi-stage charging for battery health

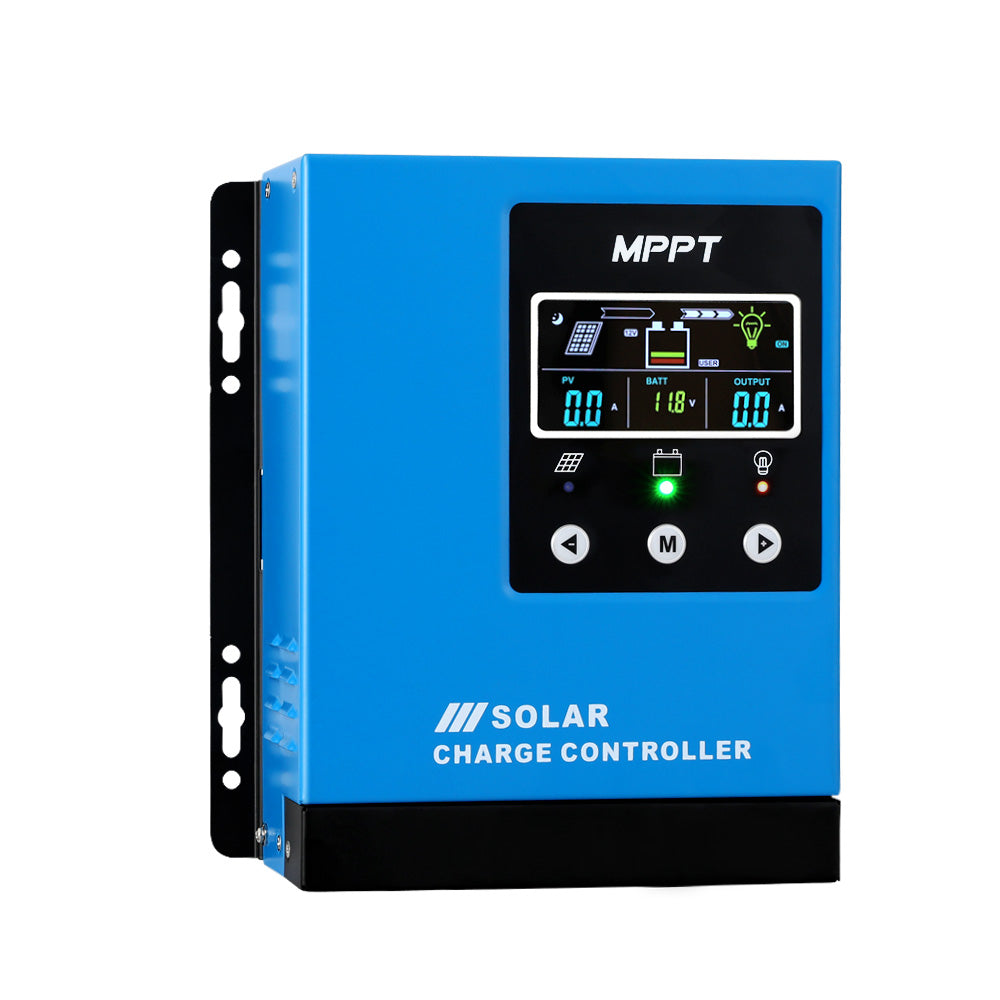

- Backlit LCD display
- Protection against overcharge, reverse polarity, overloading, overheating
- Cooling fan and iron case heat sink
- RS485 and RJ45 port communication modes
- Automatic voltage detection
- Diverse load control
- Compatible with GEL, SLD, FLD, USR and Li batteries
Specifications:
Rated Charge Current 40A
Voltage:12V/24V/36V/48V
Max. PV Input Power:12V/520W, 24V/1040W, 36V/1560W, 48V/2080W
Max. PV Input Voltage: 138 V (at 25�C)
Terminals: Up to 3 AWG
Operating Temperature: -20�C to +55�C
Storage Temperature: -20�C to +80�C
Humidity: 10%-90% No condensation
Weight: 2.45KG

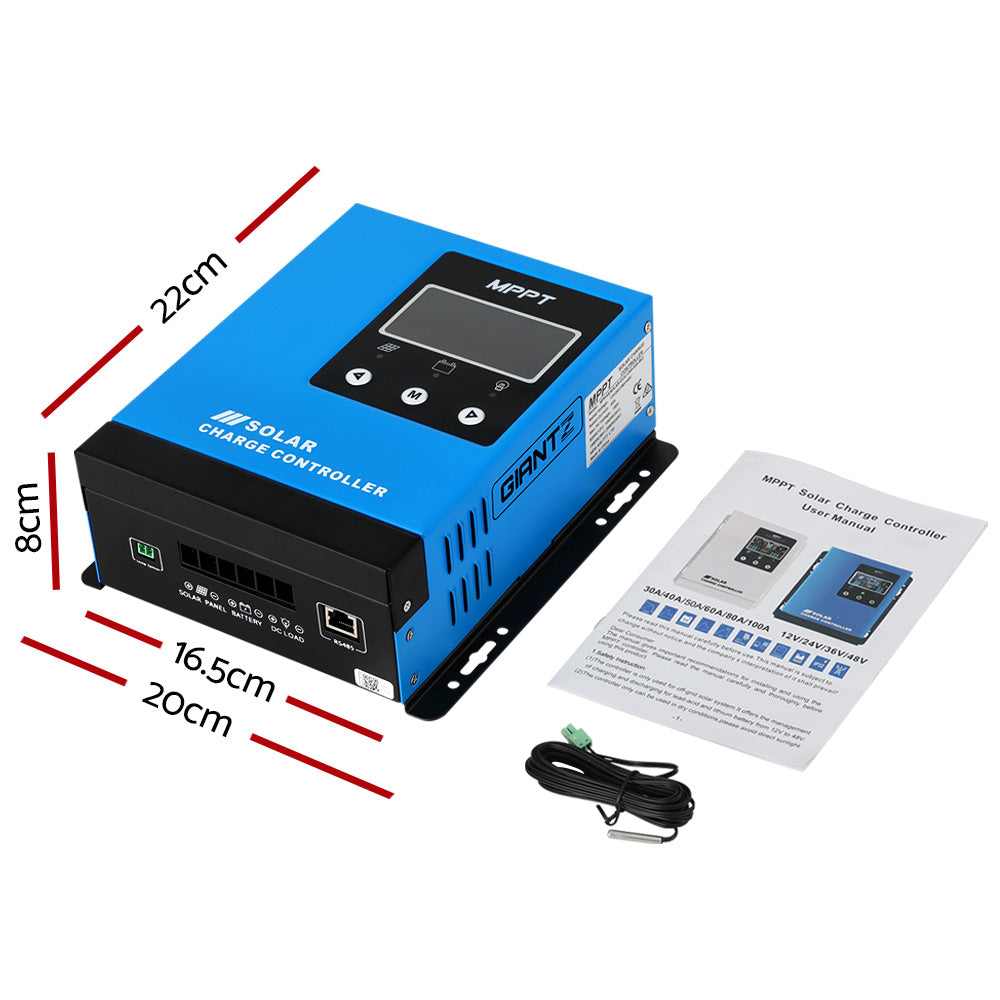

Dimension: 20cm x 8cm x 22cm (L x W x H)
Package Content
Giantz MPPT solar charge controller X1
Temperature sensor X1
Manual X1
This product comes with 1 year warranty
