The Giantz 60A MPPT Solar Charge Controller helps keep solar battery systems from overcharging. It automatically detects 12V, 24V, 36V and 48V systems and works with popular battery types, including GEL, SLD, FLD, USR and Li batteries.

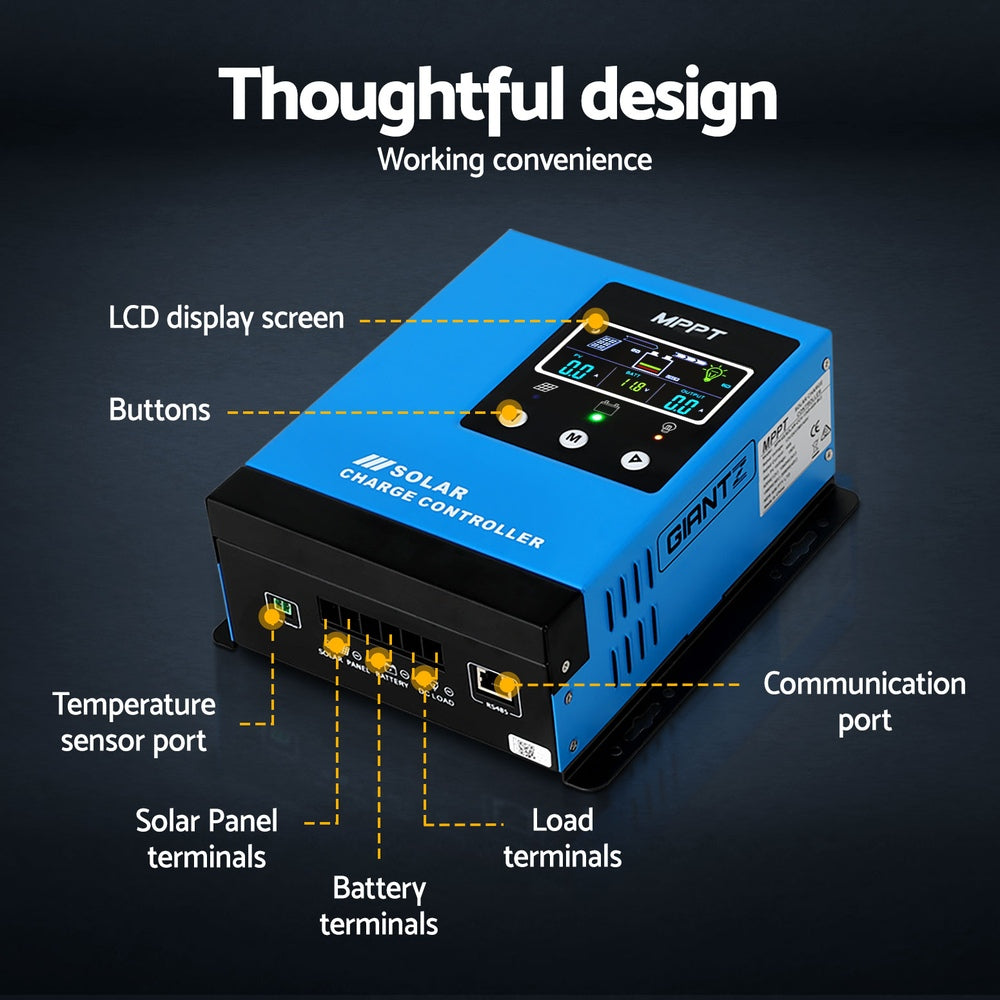

MPPT tracking reaches up to 99 per cent efficiency and up to 97 per cent maximum charging efficiency. Multi-stage charging supports battery health, charge and lifespan. Protection covers overcharge, reverse polarity, overloading and overheating. A backlit LCD display, RS485 and RJ45 communication ports, and an iron case with heat sink and cooling fan complete the design.
Features
- MPPT tracking accuracy up to 99%
- Automatically detects 12V, 24V, 36V and 48V systems
- Multi-stage charging for battery health
- Backlit LCD display
- Protection against overcharge, reverse polarity, overloading and overheating
- Iron case heat sink with cooling fan
- RS485 and RJ45 communication ports
- Controls diverse loads
- Compatible with GEL, SLD, FLD, USR and Li batteries
Specifications:
Rated Charge Current 60A
Voltage:12V/24V/36V/48V
Max. PV Input Power:12V/780W, 24V/1560W, 36V/2340W, 48V/3120W
Max. PV Input Voltage: 138 V (at 25C)
Terminals: Up to 3 AWG
Operating Temperature: -20C to +55C
Storage Temperature: -20C to +80C
Humidity: 10%-90% No condensation
Weight: 3.05KG

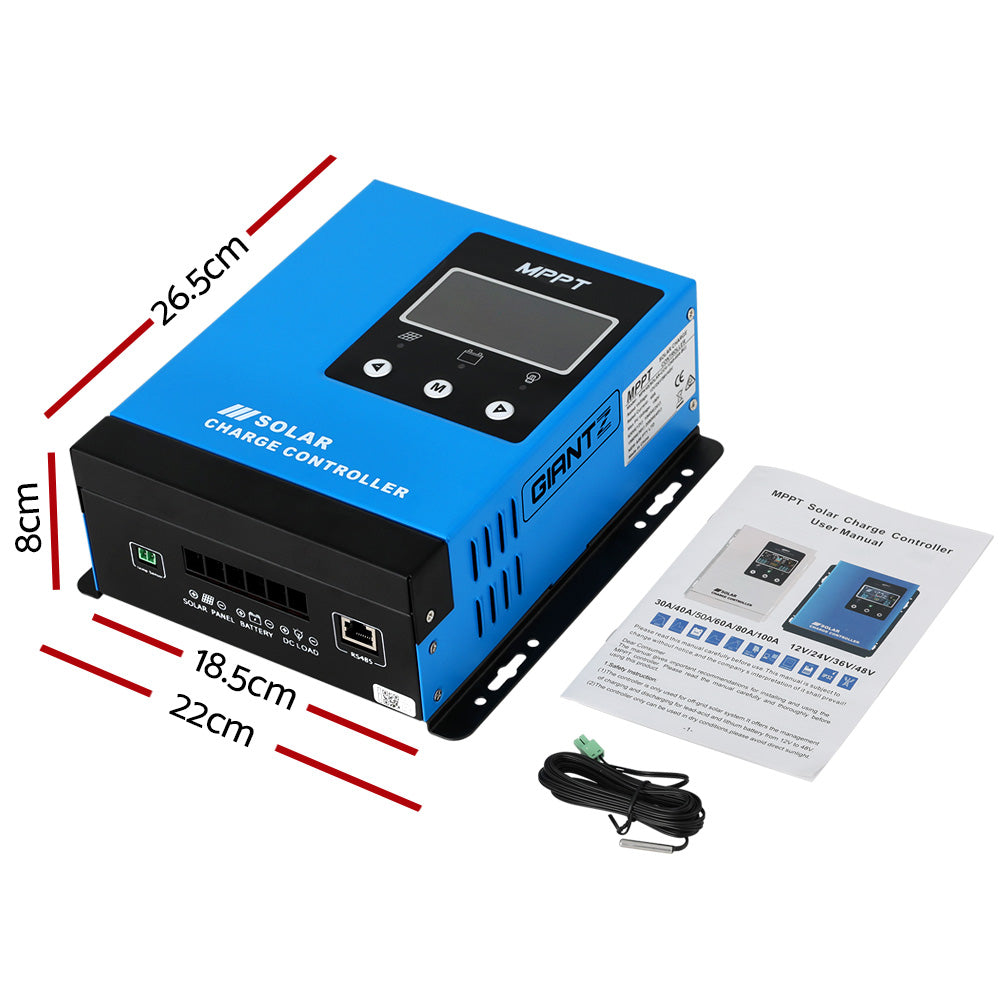

Dimension: 22cm x 8cm x 26.5cm (L x W x H)
Package Content
Giantz MPPT solar charge controllerX1
Temperature sensorX1
ManualX1
This product comes with 1 year warranty
