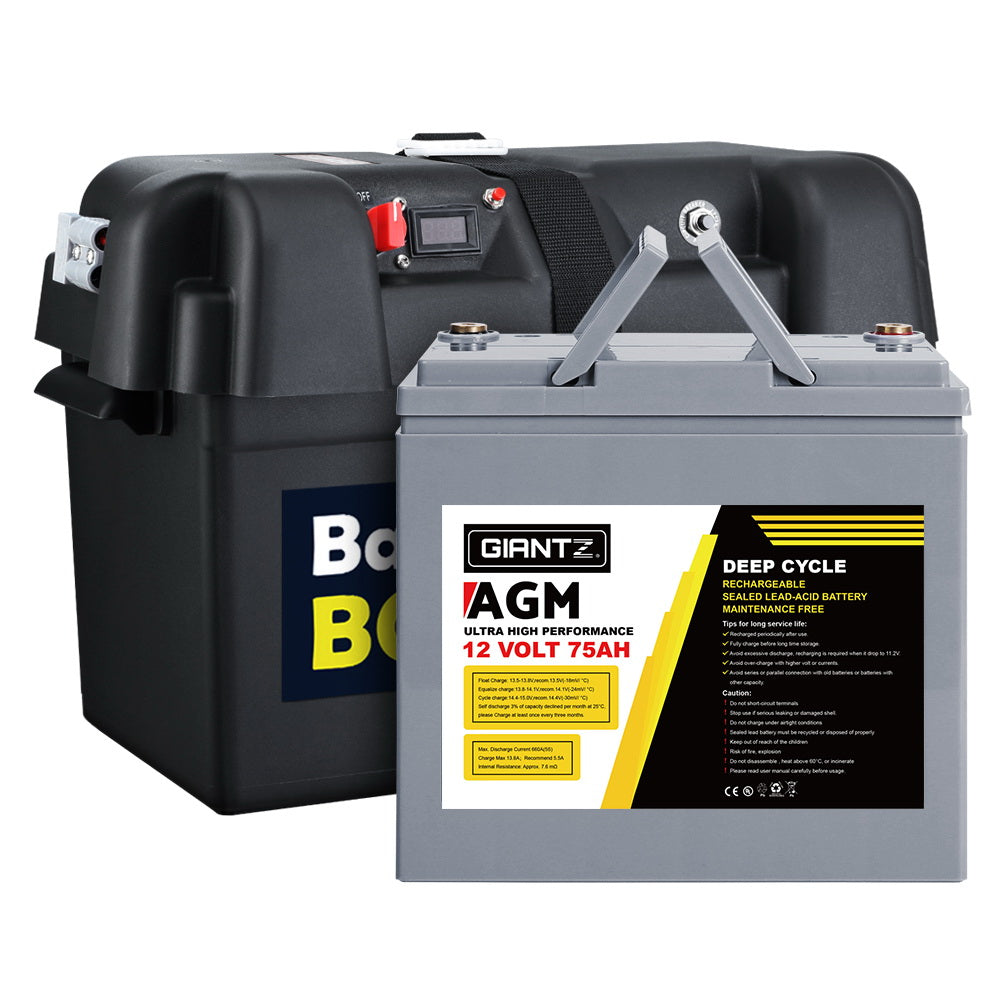

The Giantz 12V 75Ah AGM Deep Cycle Battery suits campers, caravan owners and anyone running 12V gear away from mains power. Its AGM design lasts up to 1400 cycles and is maintenance-free, so the terminals never need topping up.
Paired with the battery box, it becomes a portable power source with a digital voltage indicator, a 10A resettable circuit breaker, two USB ports and a cigarette lighter socket for 12V devices such as camping lights and portable fridges. The box comes pre-wired with Anderson plugs for charging from solar panels or another power source, and the battery uses bolt-down terminals.

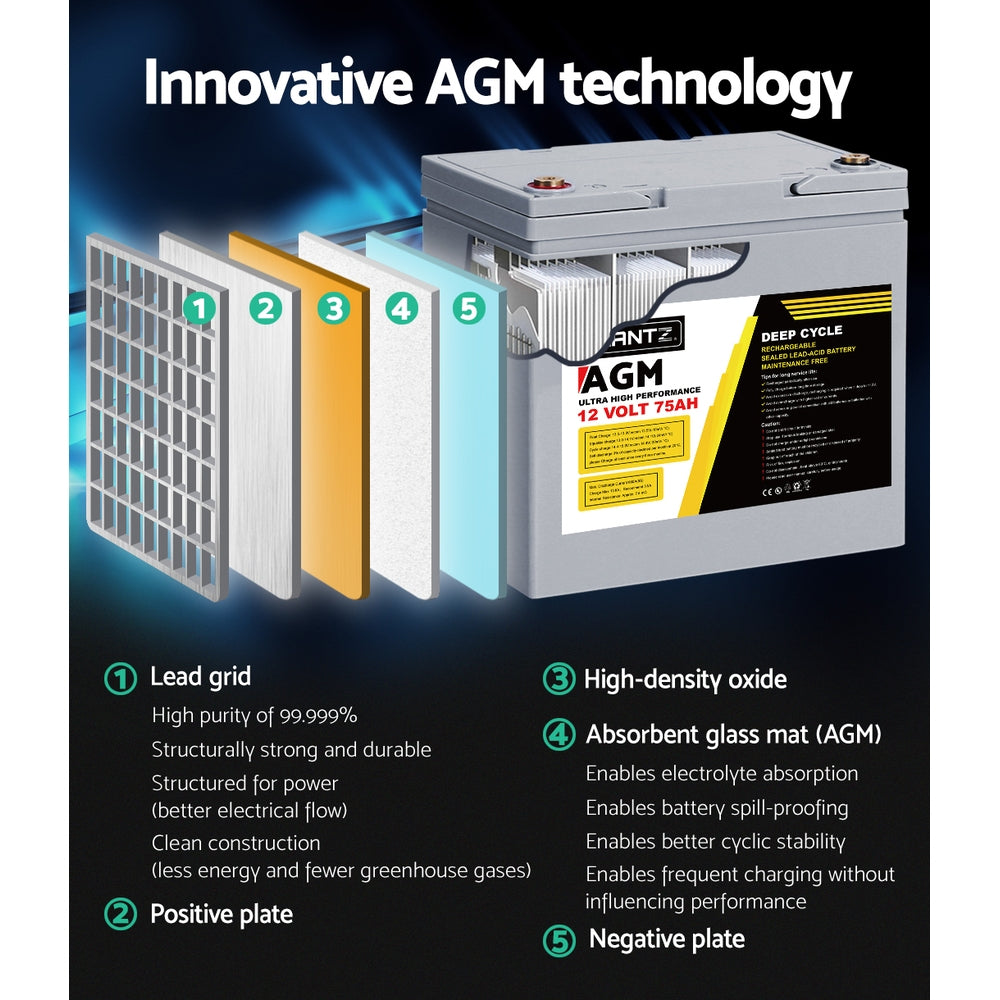

From a powerful battery to a formidable power station. That is what our GIANTZ Deep Cycle Battery and Battery Box combo can do. On its own, the 75Ah 12V battery features an incredible cycle life of up to 1400 cycles. What you get is a longer, consistent and more drawn out charge all the time. And with its advanced AGM technology, the battery enables better electrolyte absorption, cyclic stability and frequent charging without affecting performance. The bolt-down terminals also allow for a more reliable experience, and not least, the high oxygen-recombination efficiency results in superior deep discharge recovery. And not to be outdone, the battery box easily fits the battery and together, they can power up a host of 12V devices including camping lights and portable fridges with its cigarette lighter socket as well as mobile phones and tablets with the two USB ports. The box itself can be charged using solar panels or any power source with its quick-connect Anderson plugs. Better still, the box comes pre-wired, so all you need to do is connect to the deep cycle battery terminals and it is good to go. More power to you. That is definitely true with the GIANTZ deep cycle battery and battery box.
Note:
1.Please charge the battery on receiving it even if the battery will not be used in the near future.
a.Maintenance-free means the terminals need not be refilled. However, the battery must be recharged periodically after use.
b.It is advised to charge the battery every 3 months if not in use for long periods. This is to prevent over-discharging of the battery which will cause irreparable damage to it.
c.AGM deep cycle batteries have a much longer cycle life if they are exhausted to a small degree and then recharged, rather than draining all their power and recharging all the away.
Features

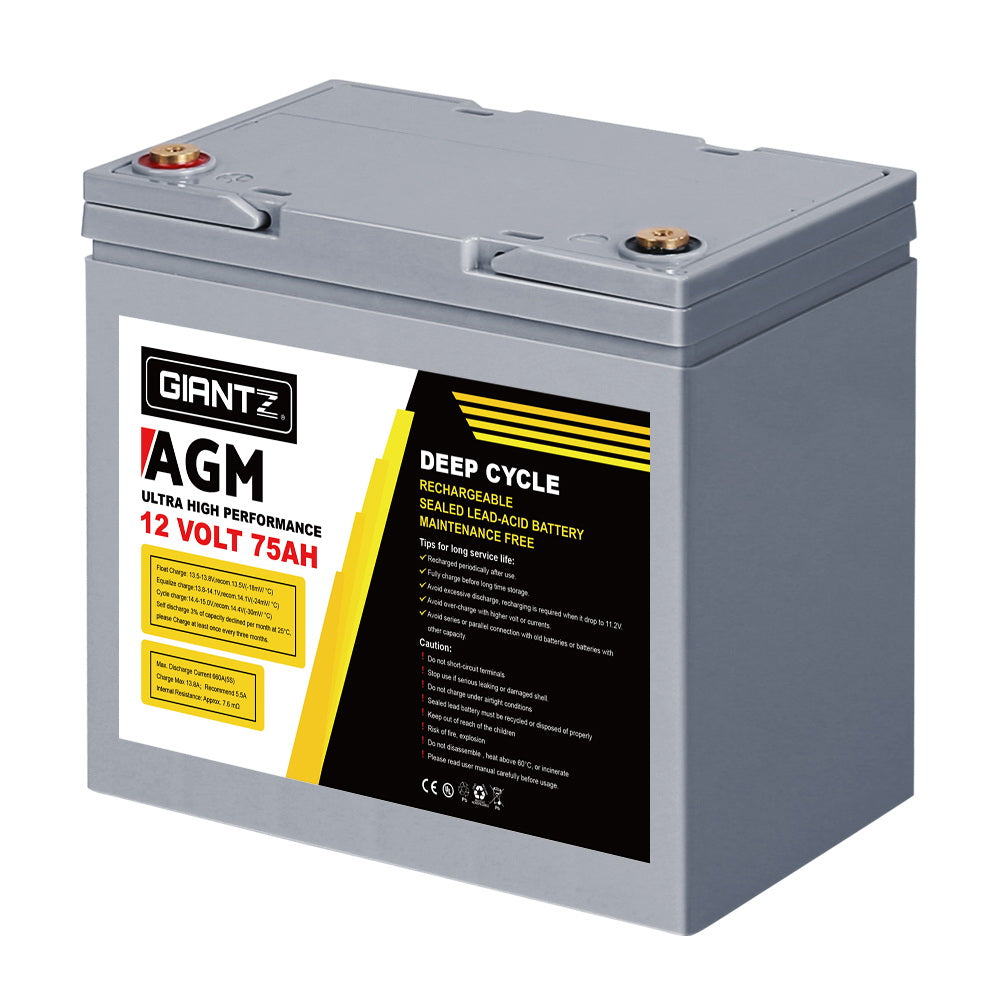

- 75Ah 12V battery section
- Greater cycle life
- Maximum of 1400 cycles
- Industry-leading build life
- Higher sulfation resistance
- Longer storage life
- Maintenance-free, terminals never need refilling
- Superior recovery from deep discharge
- Better performance in cold temperatures
- High oxygen-recombination efficiency
- Advanced AGM technology
- Spill-proof, leak-proof and non-gassing
- Bolt-down terminals for reliable connections
- Convenient carry handle

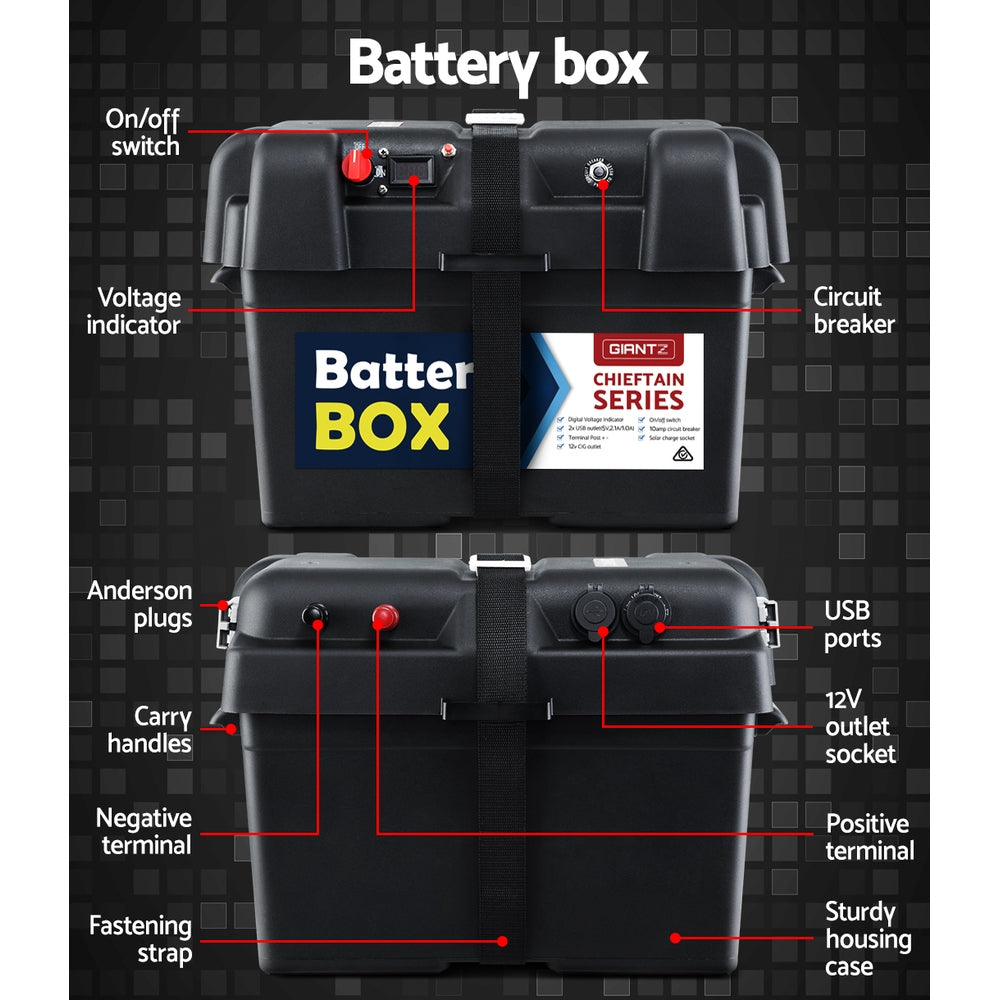

- Battery box section
- Protective and portable
- Designed to be user-friendly
- Digital voltage indicator
- 10A resettable circuit breaker
- Two USB ports
- Cigarette lighter socket
- Anderson plugs for charging
- Positive and negative terminals
- Sturdy housing construction
- Heavy-duty carry handles
- Tie-down strap for securing
- Product specifications overview
- 75Ah battery specifications

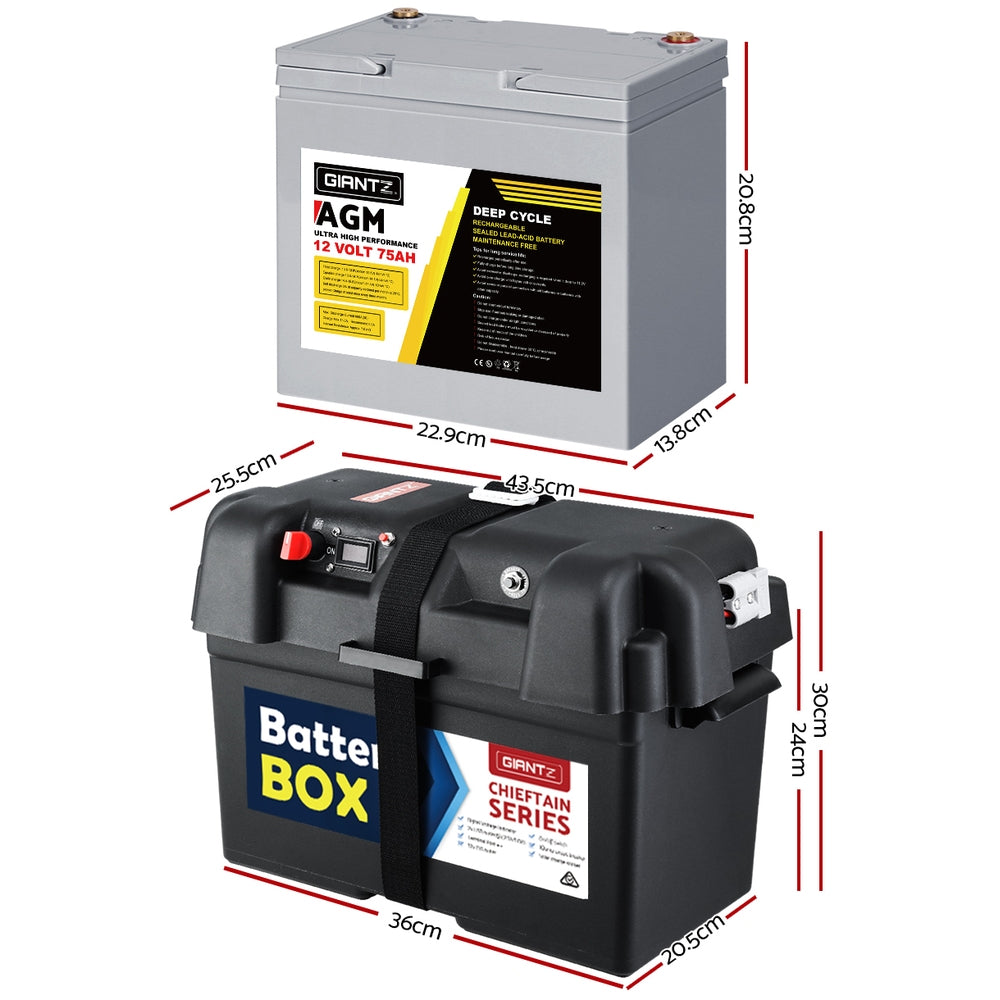

- Overall size 22.9cm x 13.8cm x 20.8cm
- Approximate weight 15.5kg
- Container made from ABS
- Bolt-down terminal type
- Nominal voltage 12V
- Rated capacity 75Ah at 10-hour rate

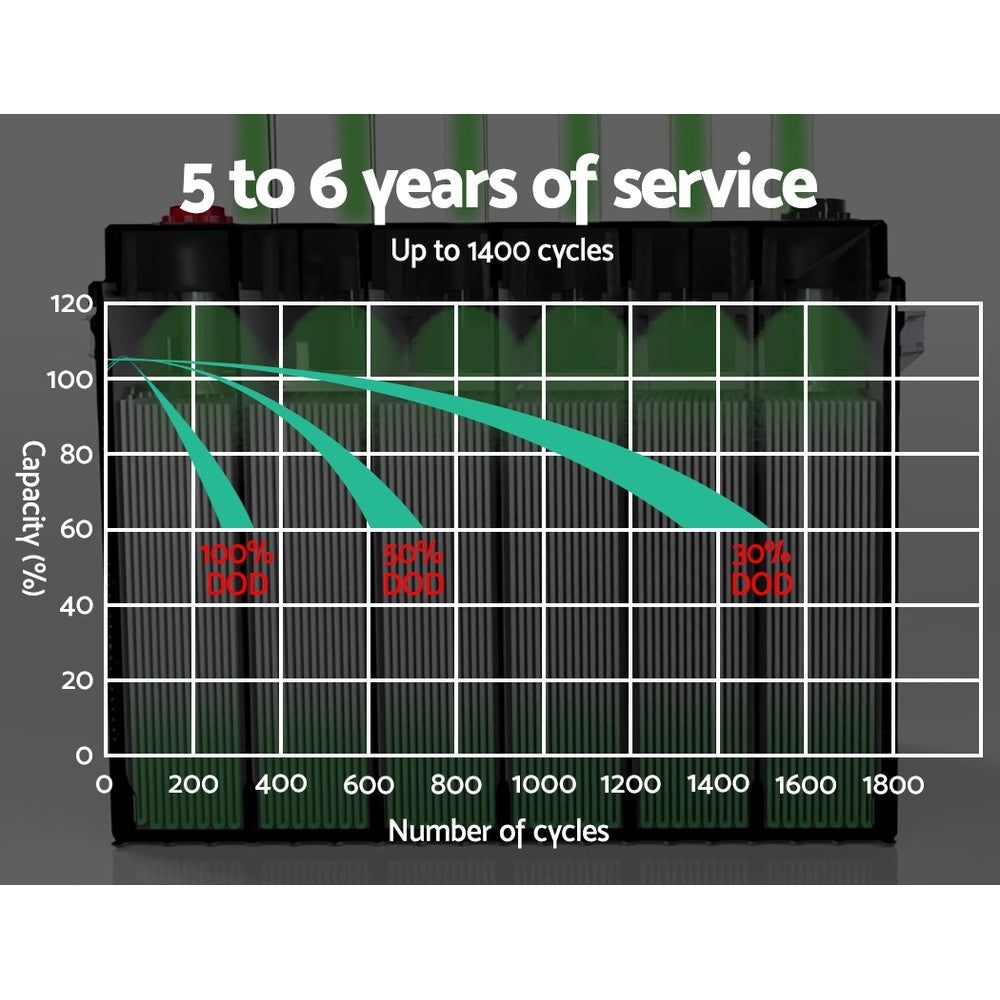

- Maximum cycle life 1400 cycles at 30% DOD
- Internal resistance approximately 7.6mΩ
- Maximum discharge current 660A for 5 seconds
- Maximum charge current 13.8A
- Operating temperature ranges
- Discharge from -15°C to 50°C
- Charge from -20°C to 50°C
- Storage from -20°C to 50°C
- Capacity by temperature: 40°C 102%, 25°C 100%, 0°C 85%, -15°C 65%
- Float charge 13.5 to 13.8V
- Equalise charge 13.8 to 14.1V
- Cycle charge 14.4 to 15.0V
- Self-discharge of 3% of capacity per month at 25℃
- Battery box specifications
- Overall size 43.5cm x 25.5cm x 30cm
- Inner size 36cm x 20.5cm x 24cm
- Package contents listed below
- 1 x deep cycle battery
- 1 x battery box
- 1 x user instructions
