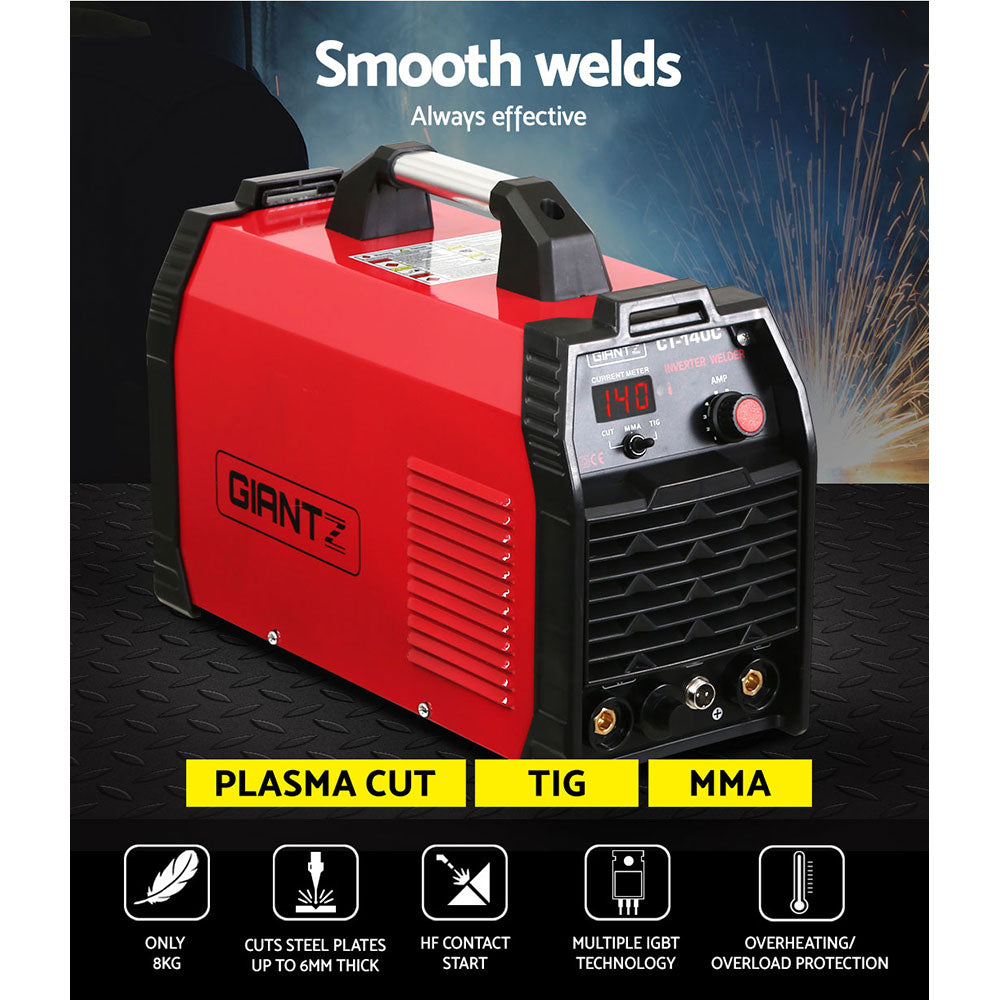

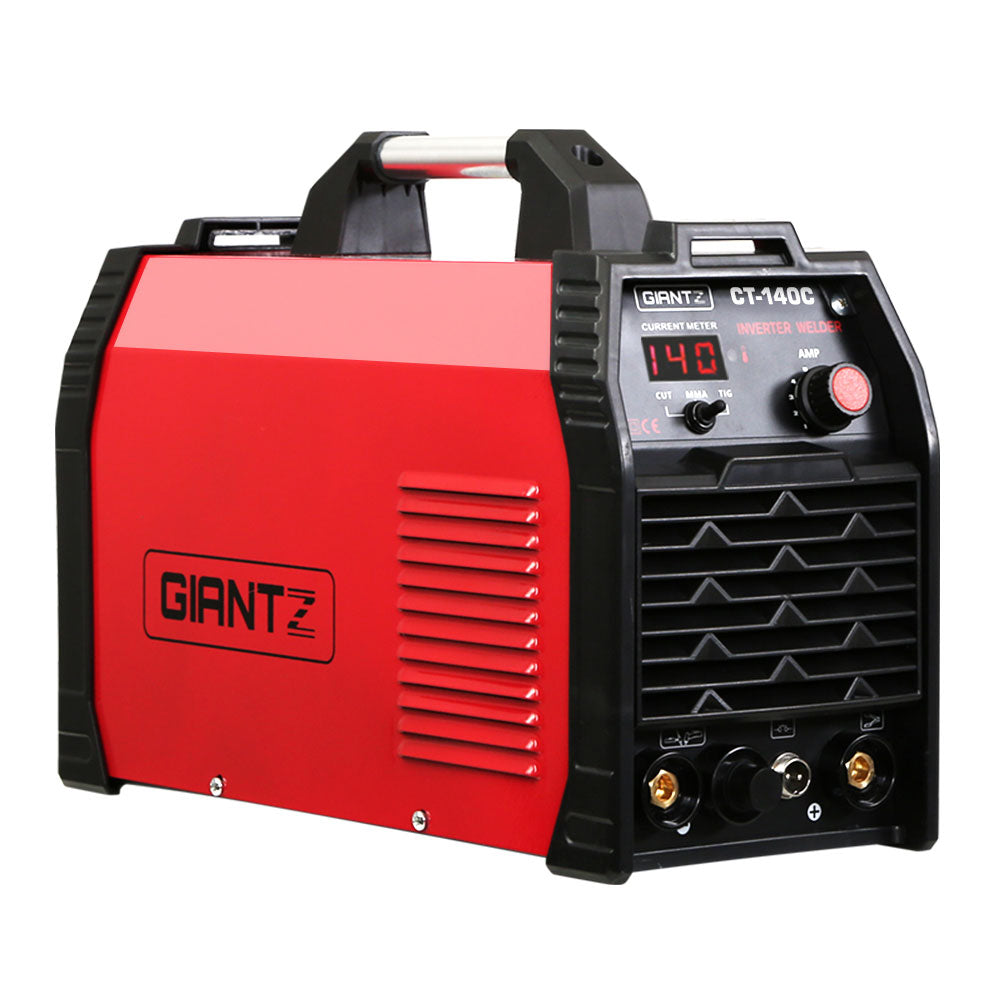

The Giantz Pro-series 3-in-1 Pro-series welder delivers professional quality TIG/MMA/CUT welds with outstanding results. The machine features IGBT DC Inverter Technology that provides a significant increase in work cycle, deep penetration, and smooth welded finishes. It can handle a variety of rod sizes and electrodes. You can adjust the output current between 30A to 140A to achieve flawless results with any type of metal, including mild steel, stainless, carbon, and sheet metal. Plasma cutting features allow for cutting up to 12mm plates and utilizes HF start. This allows for a faster starting cut and more precise cutting. A large radiator and fan combined with an advanced cooling system ensures that heat is easily dissipated for improved welding performance. The digital display and intuitive controls make it easier to operate the machine. Safety is not something to be taken lightly as the machine has protection against overloading current, overheating, dust and water damage. This compact machine is easy to handle and includes a variety of accessories that make it hassle-free to weld.
NOTE: This item includes a 15A plug. You will need a current converter adaptor to use it with 10A sockets.
Features
Multifunction CUT/TIG/MMA welder

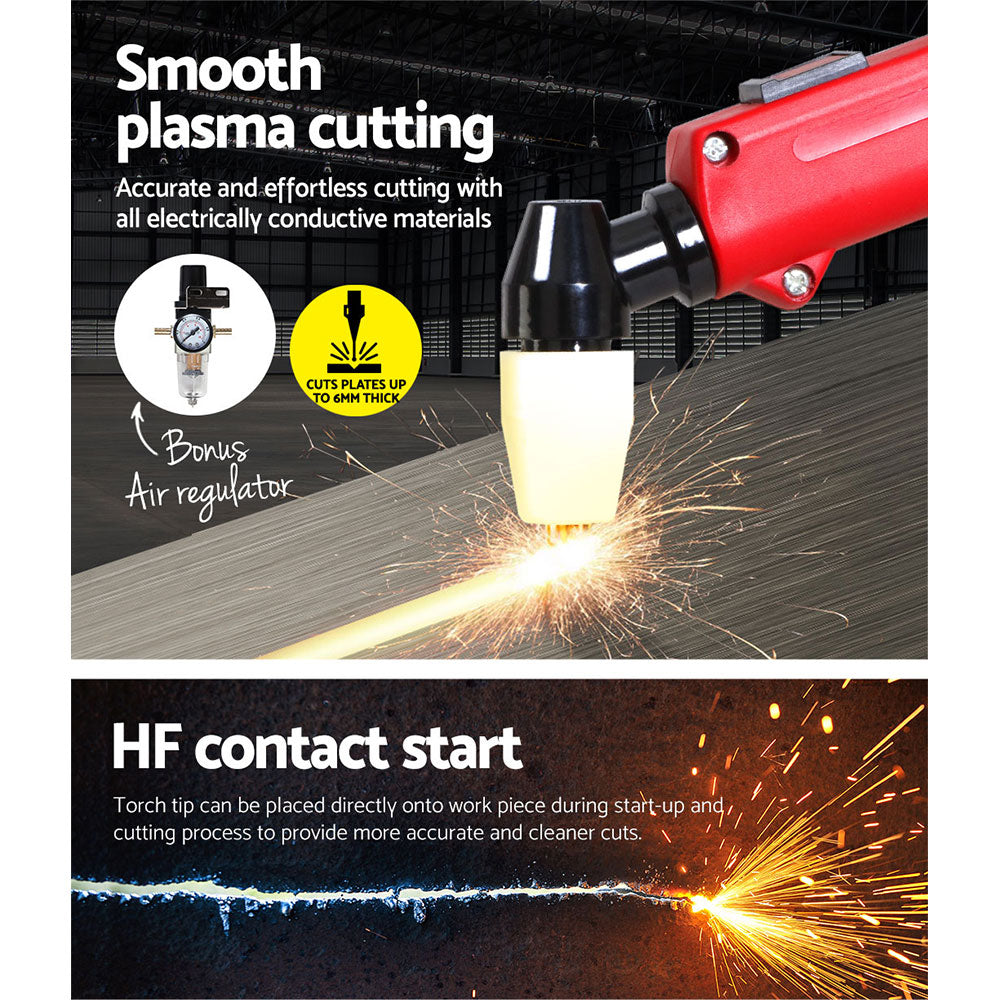

Contact start technology for HF
7kg Weight
Outstanding duty cycle
Super stable arc force
IGBT inverter technology
Technology for super stable DC inverter technology
Auto increase and current stablisation
Standard DIN sockets for industry
Variable output current range from 30A to 140A
Amazing 30,000 MTPF Hours of cooling
Protection against overheating, current overload, and voltage over/under
Uses a variety of rod sizes

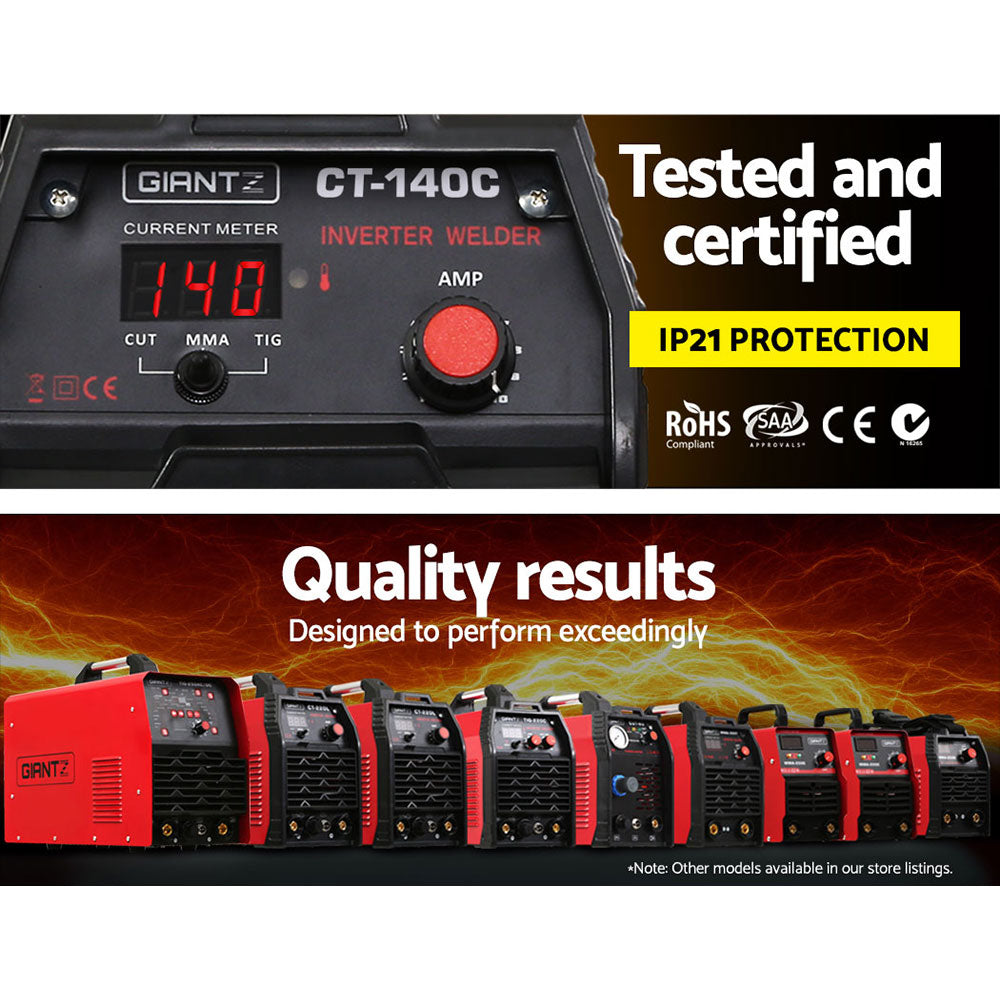

SAA, EMC CE, CE, and C-Tick certified
Specifications
Power Voltage: Single Phase 220-240V +-15% 50Hz
Power Plug: 15A AU Standard
TIG (Amps/Duty Cycle): 123A @ 100%, 139A @ 60%
MMA (Amps/Duty Cycle): 123A @ 100%,140A @60%
CUT: 20-40 Amps @ 60-Day Duty Cycle
Input Air Pressure: 0.44Mpa
No load power: 40W
Efficiency: 85%
Insulation Class: F
Cut Thickness: 1-12mm
Shell Protection Grade: IP21
Pilot Arc Mode:HF
Welding electrodes: Maximum 4.0mm
Plasma Torch Length: 4.m
MMA Electrode Cable Length - 1.8m
Earth Clamp Cable Length 1.2m
TIG torch Cable Length: 4.m
Power Cord Length: 1.8m
Generator recommended: 8kVA

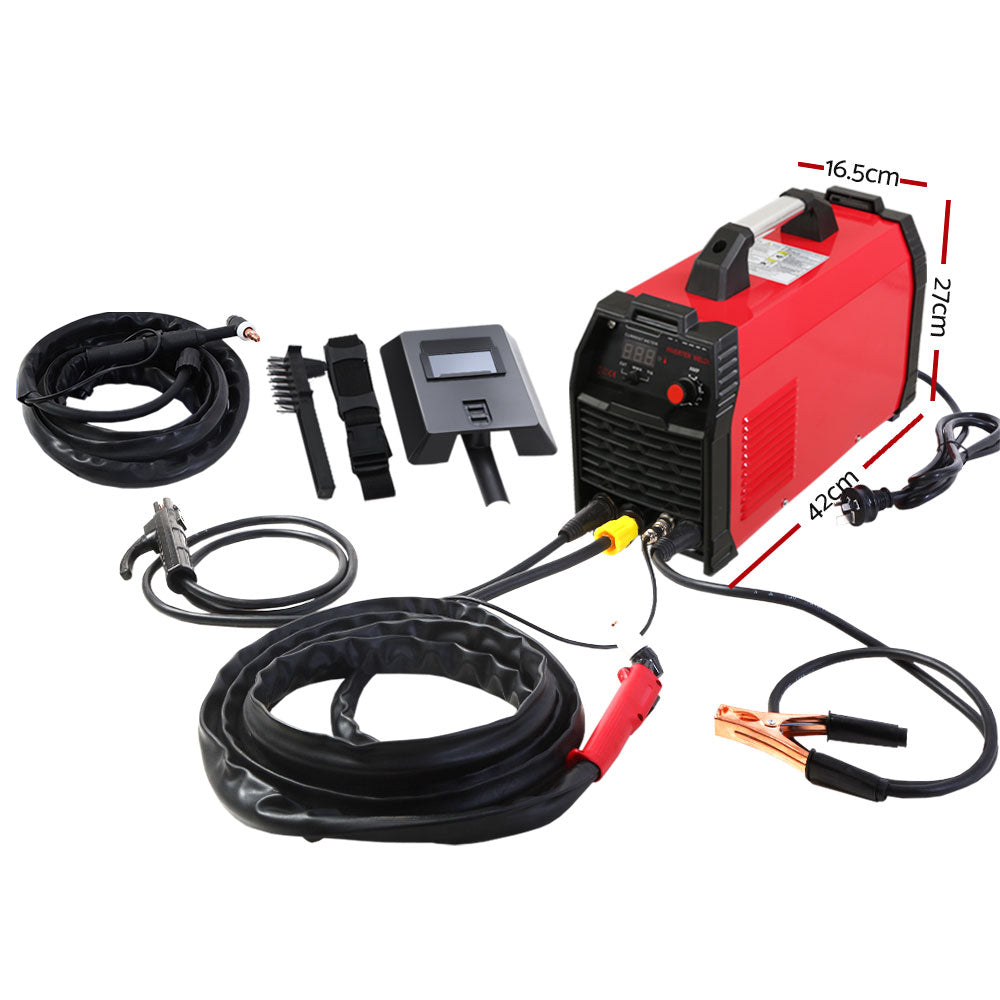

Dimensions: 42cm, 16.5cm, x 27cm
Product Weight: 7kg
Products:
GIANTZ Inverter Welderx 1
Plasma torch with accessories x 1.
TIG torch Lead x 1.
Lead Electrode Holder x 1
Earth Clamp Lead x 1.
Welding Mask x 1.
Packing bag for Touch Lead x 1.
Regulato Rx 1
Wire brush x 1
Manual x 1
