Giantz Inverter Welder delivers professional quality MMA welds with outstanding results. The IGBT DC Inverter Technology allows for a significant increase in duty cycle, deep penetration, and smooth welded finishes. It can handle a variety of rod sizes and electrodes. You can adjust the output current between 20A to 280A to achieve flawless results with any type of metal, including mild steel, stainless, carbon, and sheet metal. A large radiator and fan combined with an advanced cooling system ensures that heat is easily dissipated for improved welding performance. The LED display and easy-to-use controls make it easier to operate the machine. Safety is not something to be taken lightly as the machine is protected against overloading current, overheating, and under/overvoltage situations. It is easy to handle and has a wide range of accessories that make it hassle-free.
NOTE: This item includes a 15A plug. You will need a current converter adaptor to use it with 10A sockets.
Features
Lightweight and compact
Base bonus carry base
IGBT inverter technology
Technology for super stable DC inverters
Auto increase and current stablisation
LED display
Standard DIN sockets for industry
Variable output current range from 20A to 281A
Advanced cooling system
Protection against overheating, current overload, and voltage over/under
Stable arc
Uses a variety of rod sizes
SAA, EMC CE, CE, and C-Tick certified
Specifications
Power Voltage: Single Phase 220V +-15% 50Hz
Power Plug: 15A AU Standard
Output Range Current: 20A – 280A
Duty Cycle: 25% @ 220A, 100% @ 140A
Efficiency: 85%
Power Factor: COS 0.93
No-load Power: 62W
Rate Output Voltage: 20.8V - 30V
Shell Protection Grade: IP21
1.5m Power Cord Length
The length of an electrode cable is 1.8m
Earth Clamp Cable Length 1.2m
Thickness of Welding Metal: 1.5mm - 12.5mm
Welding electrodes: 1.6mm to 4.0mm
Generator recommended: 7.5kVA (real energy)
Dimension (L*W*H: 26.5cm, 11cm, and 14.5cm
Net Weight: 2.6KG

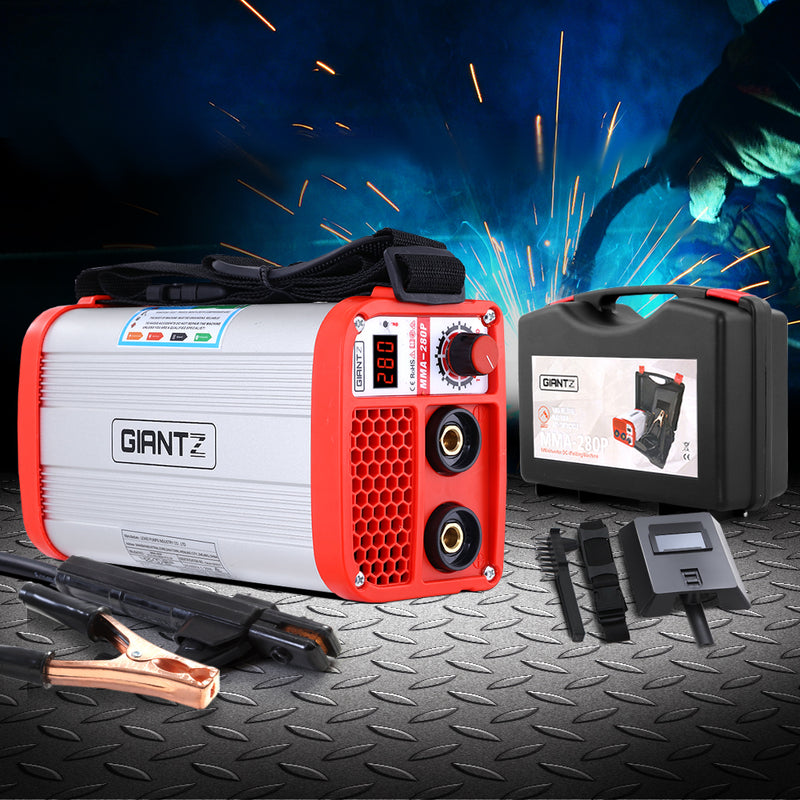

Products:
GIANTZ Inverter Welder 1
Lead Electrode Holder x 1
Earth Clamp Lead x 1.
Welding Mask x 1.
Shoulder Straps x 1.
Wire brush x 1
Bonus Carry Case x1
User Manual x1
