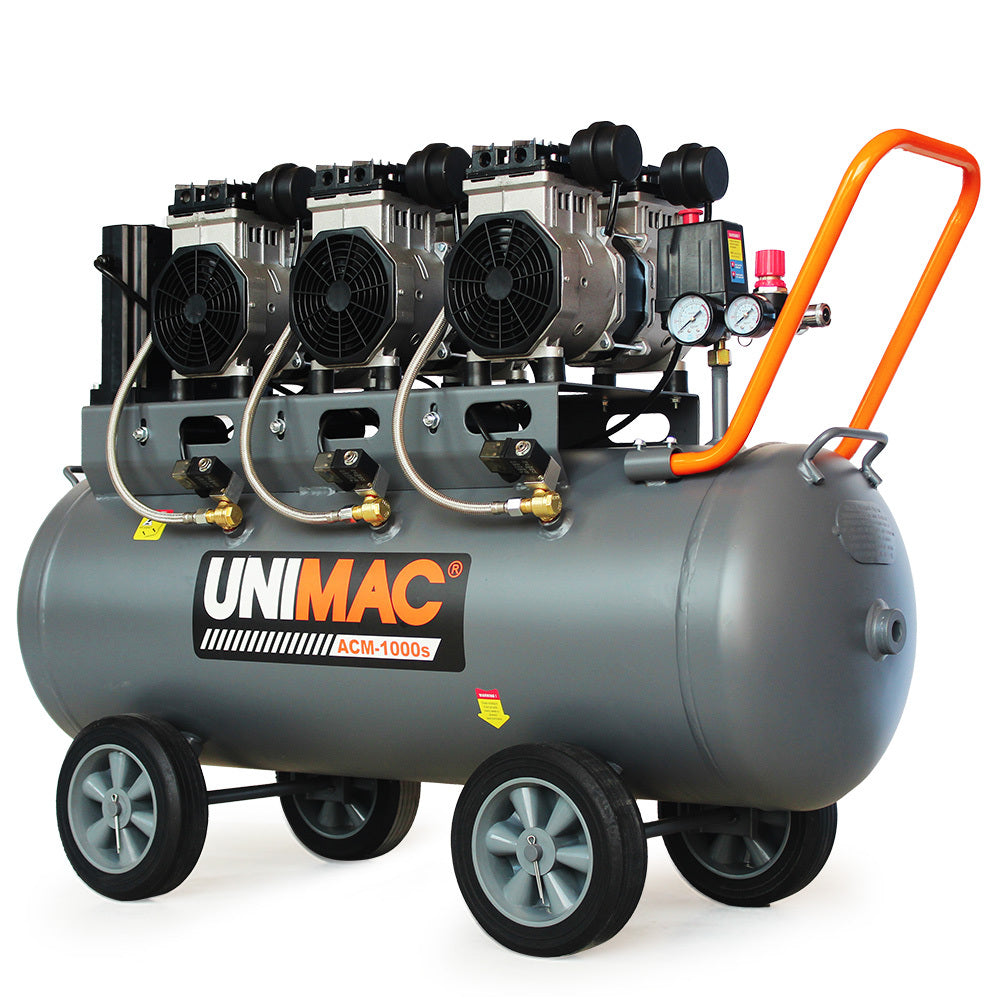

The Unimac ACM-1000s Quiet Air series compressor is an oil-free electric unit for workshops, garages and home users who want air without engine maintenance or belts. Its 100L tank delivers 300 L/min of free air at 7 bar, so it can keep up with a wide range of air tools.
Three twin-cylinder 1.1kW motors combine for 4.5HP and can be started one at a time, which helps avoid power surges. The quiet-running design is rated at an Lpa of 65 dBa, and the unit includes two quick-connect Nitto outlets, tank and line pressure gauges, and a 15A plug.

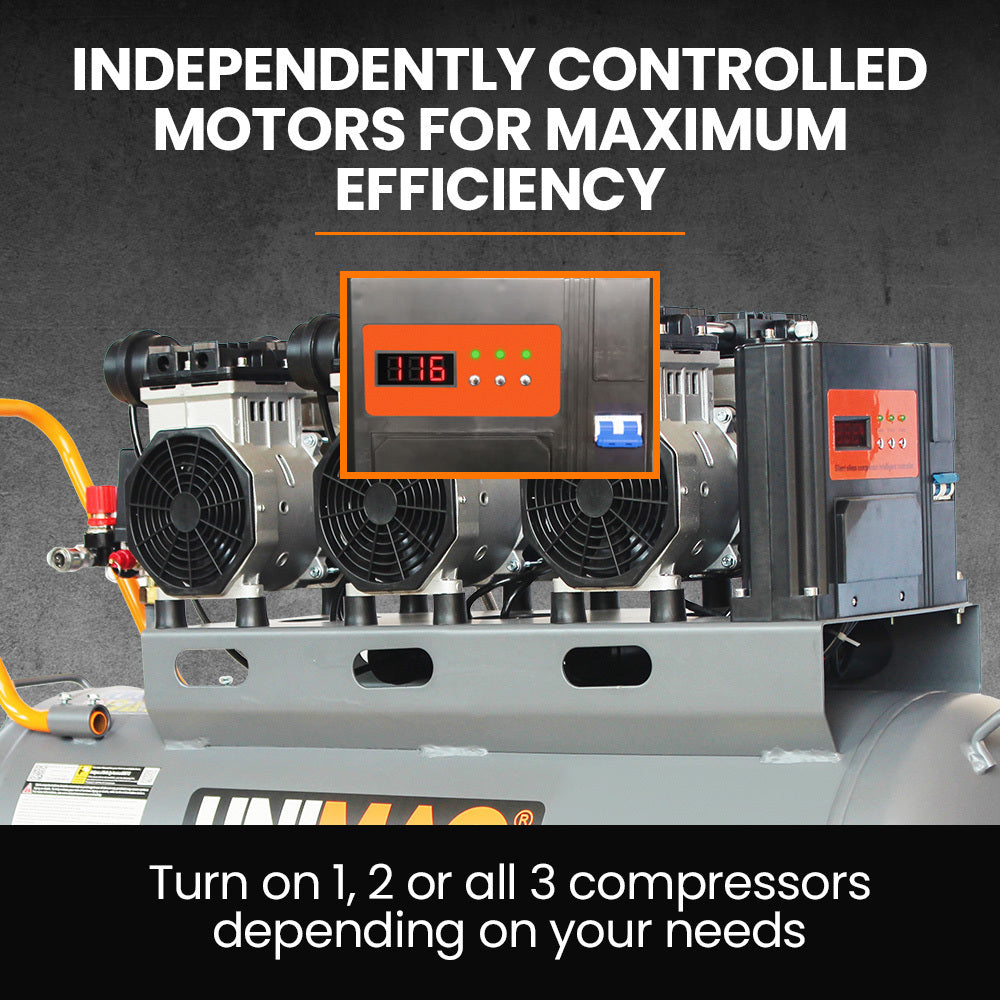

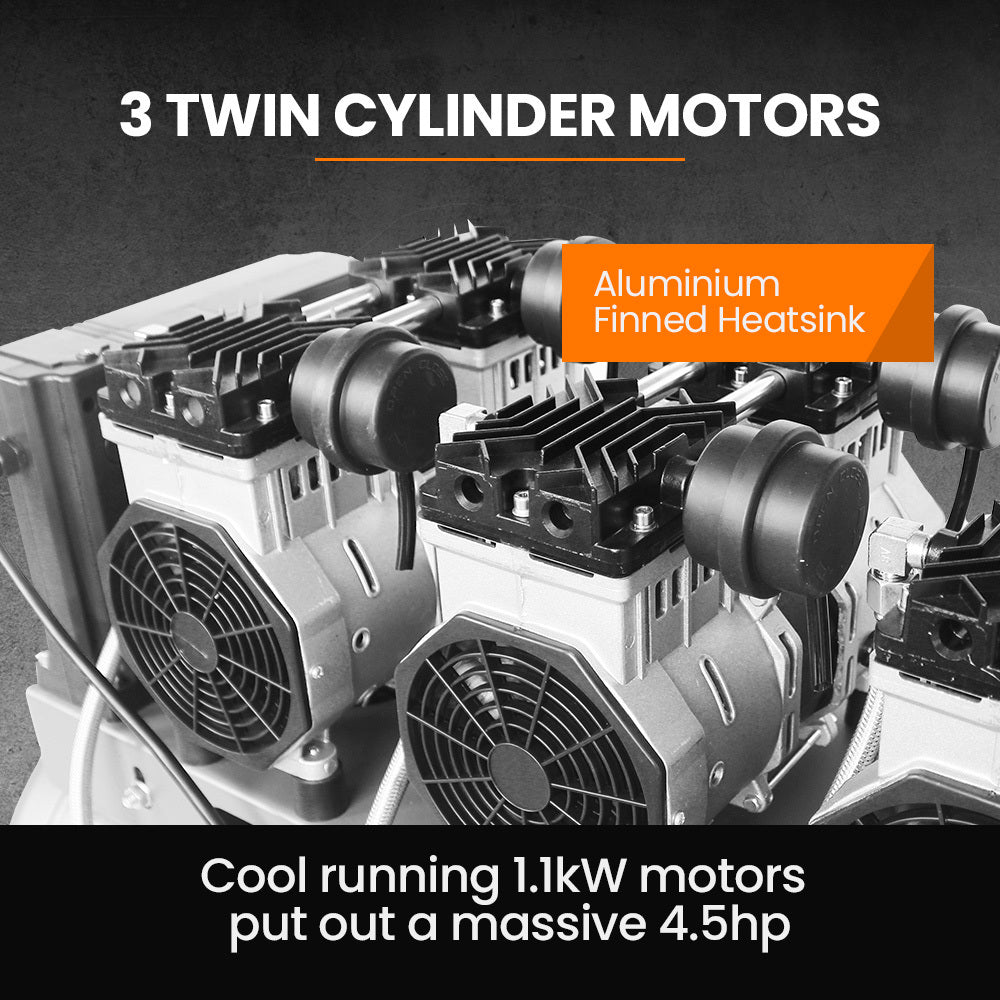

INDEPENDENT MOTOR CONTROL
The ACM-1000s has 3 twin-cylinder motors with Independent Motor Start. Avoid power surges and accidental overloads. IMC allows you to start one motor at a time for efficiency and safety.

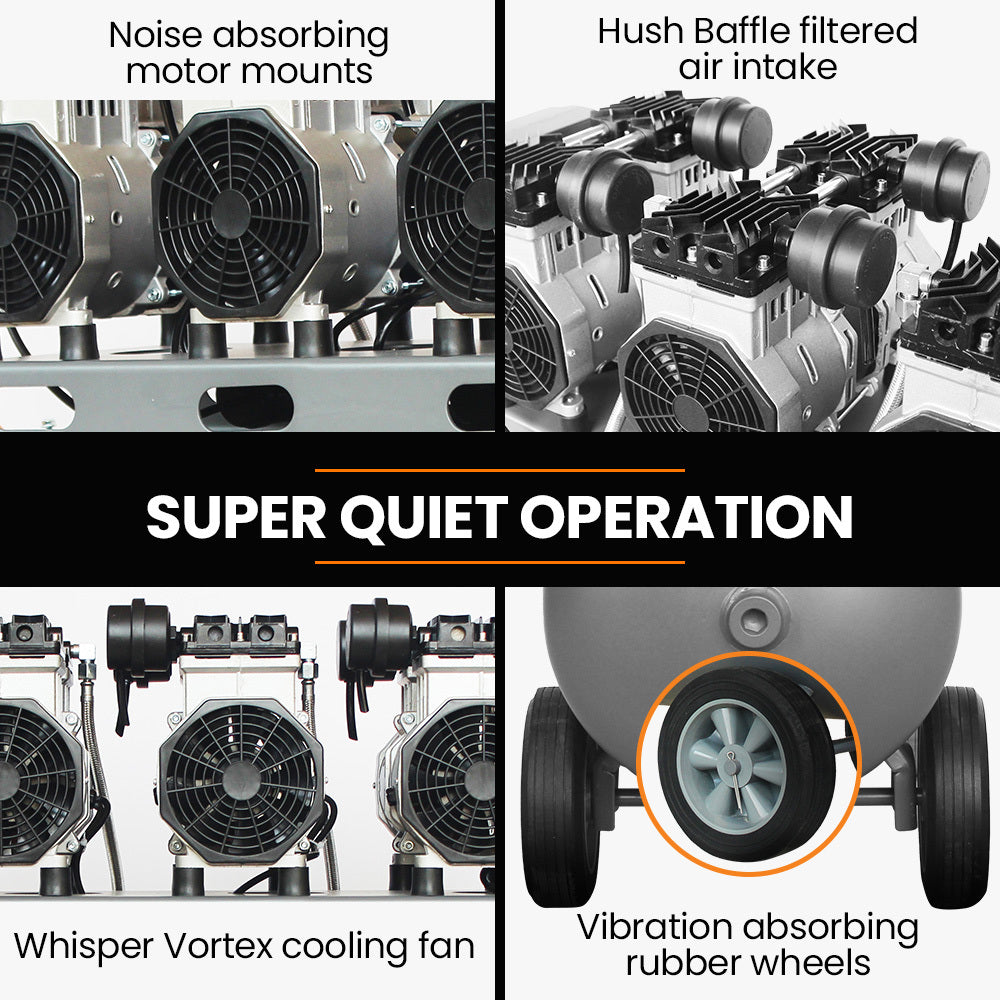

ULTRA-QUIET
This Unimac Quiet Air Series is engineered to be just that. Whisper Vortex cooling fans, Hush Baffle air intakes, and vulcanised rubber motor mounts and rubber tyres combine to give this an Lpa of only 65 dBa — that's nearly library quiet!
CLASS-LEADING POWER
This ACM-1000 Oil-Free Air Compressor is powered by 3 twin-cylinder 1.1kw motors which is equivalent to a total output of 4.5HP— up to 40% more than other models on the market! The cylinders can be operated independently to deliver the air you need, so you can run it as quietly as possible and optimise compressor life.

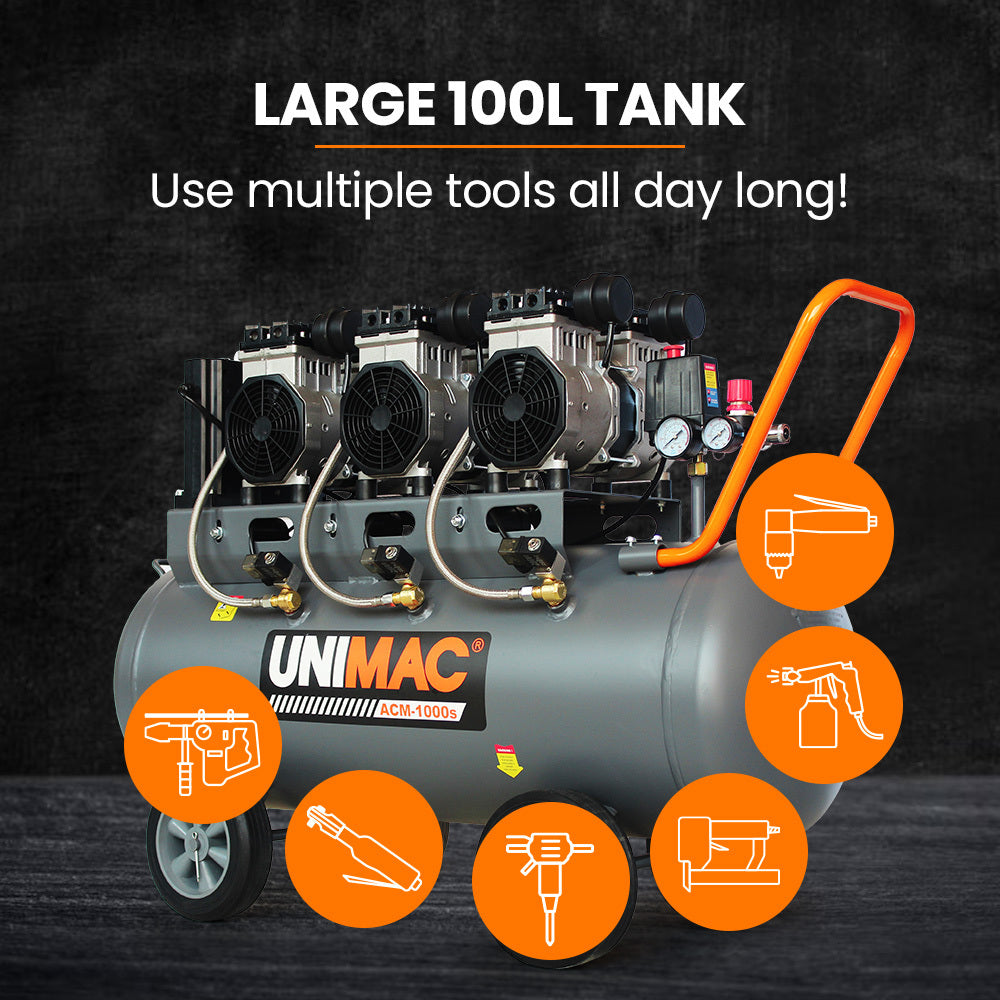

MASSIVE 100L TANK
With its 100L tank, it is capable of delivering a continuous 300 litres per minute air supply for a huge variety of applications.

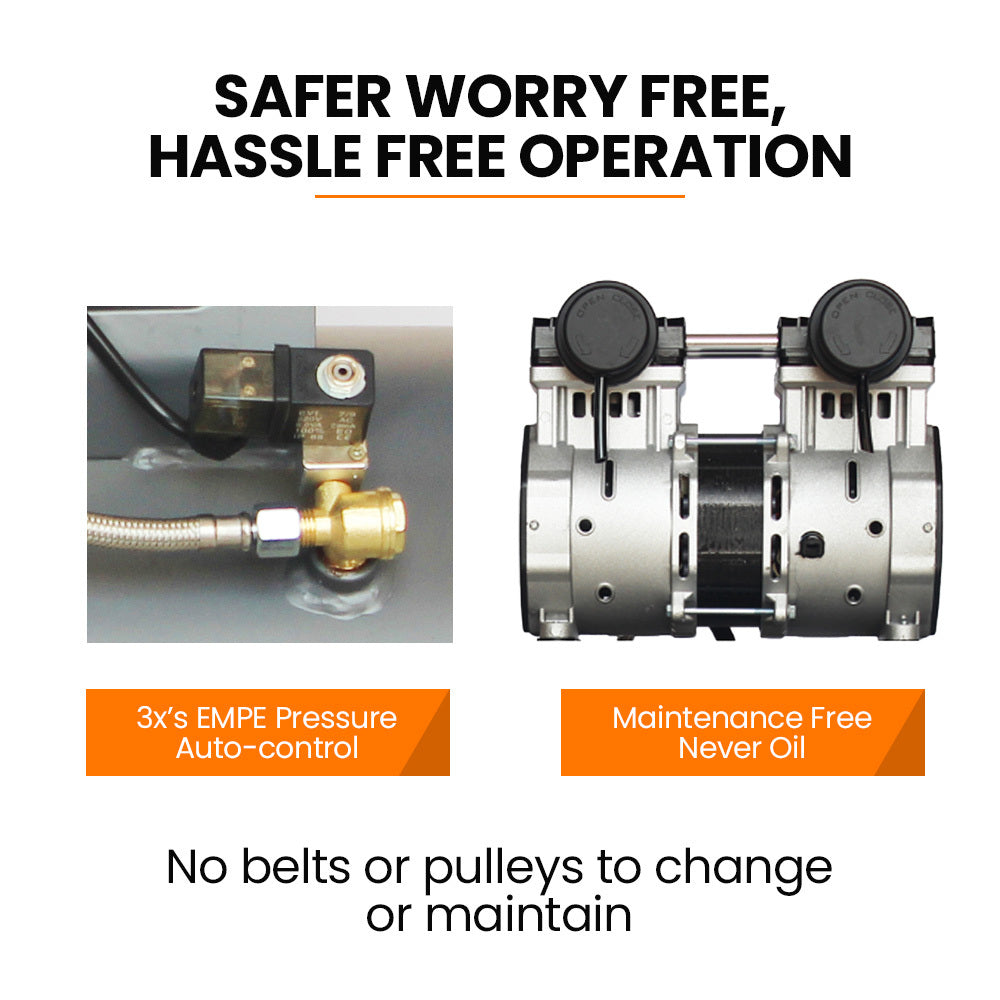

SERVICE-FREE DESIGN
Unlike petrol and other belt-driven models on the market, with this oil-free electric model you don't have to worry about engine maintenance or replacing belts or pulleys.
TWO NITTO OUTLETS

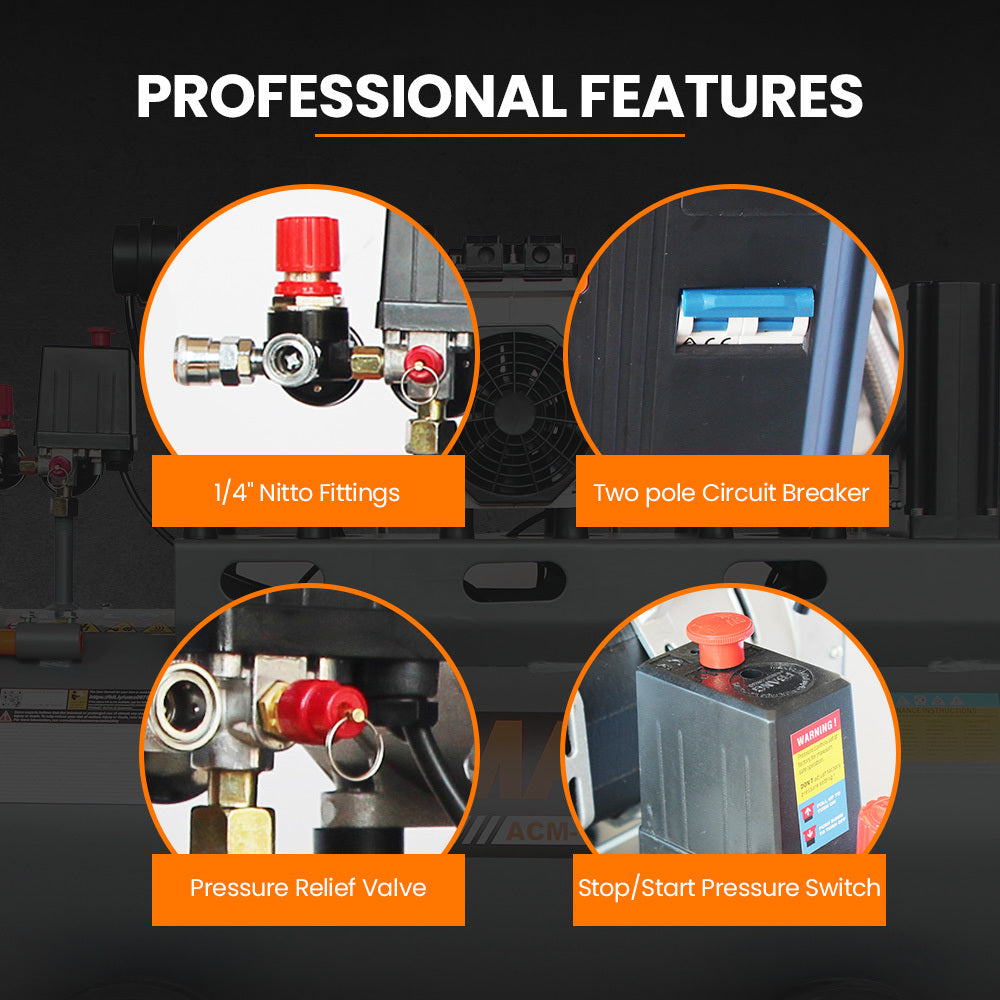

With two quick-connect outlets you can use a wide array of tools including grinders, impact wrenches, welders, nail guns, grease guns, chisels and more. It also has automatic on-off pressure control.

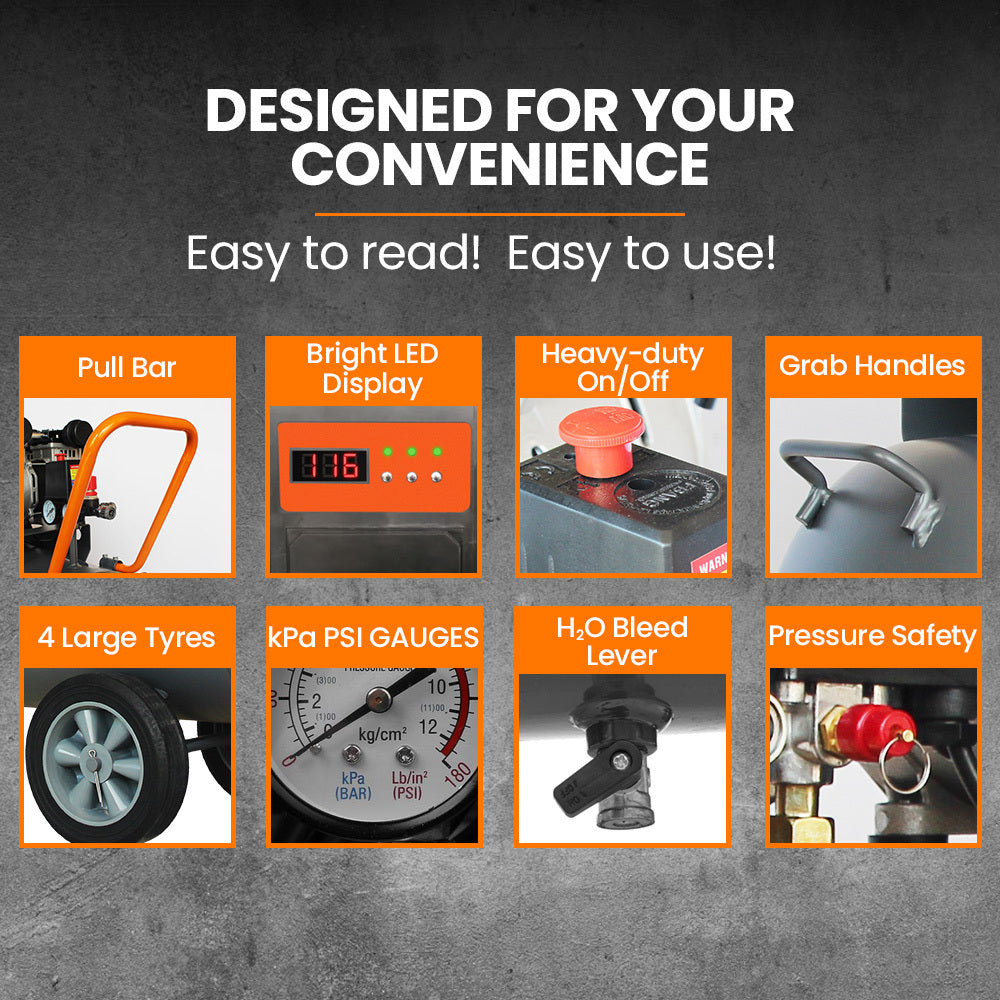

EASY TO USE

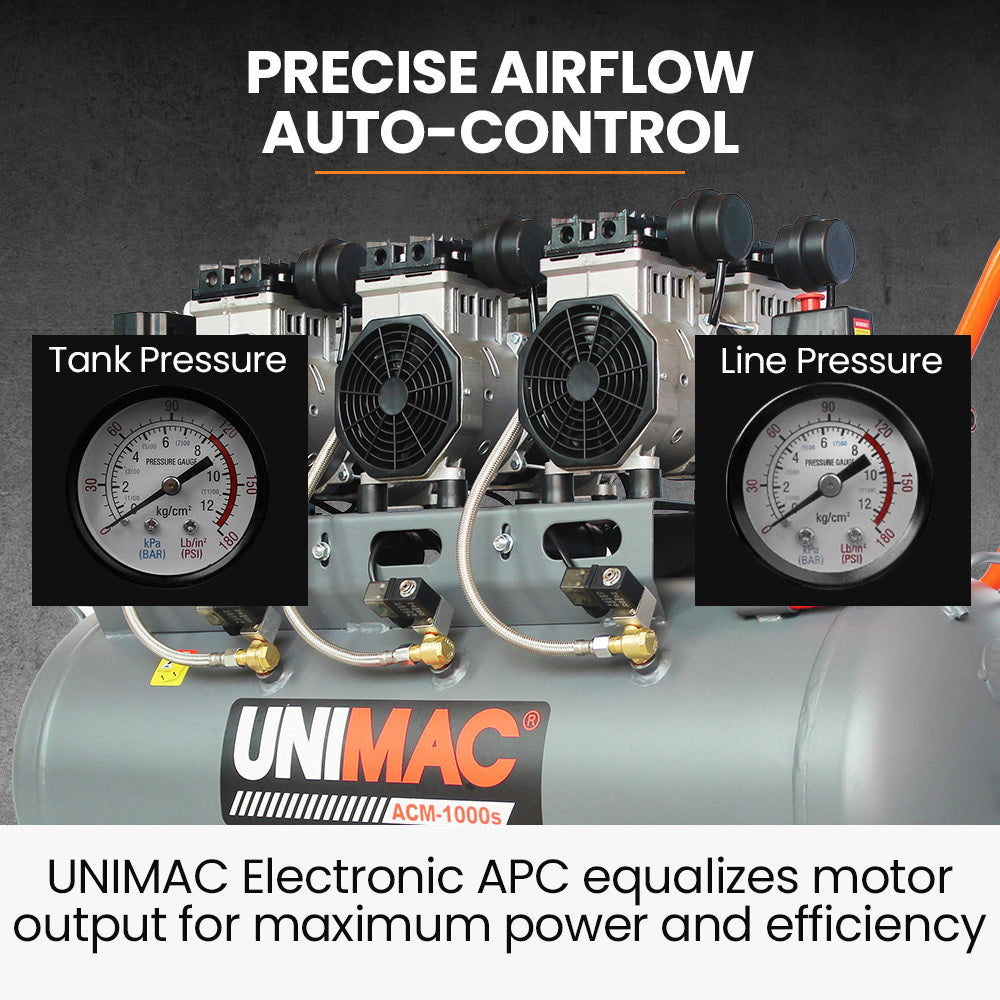

The precise easy-to-read tank pressure and line pressure gauges take the guesswork out of filling and using your air compressor.
PORTABLE DESIGN
The Unimac has 4 large 'easy-roll' wheels with rugged airless vulcanised tyres for shop use and its extended handle makes it a breeze to move. Along with 2 more grab handles for ease of manoeuvring in tighter spaces.
It's safe to say, the Unimac ACM-1000s silent air compressor blows the competition away!
- Impressive air displacement of 630l/min and free air delivery of 300l/min at 7bar.
- 100L air tank capacity - work uninterrupted for longer periods.
- Working pressure of 116psi(8bar) and restart pressure of 86psi(6bar) allows you to work with greater efficiency.
- Automatic pressure control switch with step start control box and independent pump control, making it easier for you to operate.
- 3 x 1.1kw motors provide 4.5 hp allowing for smooth and consistent performance.
- Oil free compressor motor is built to last and is safe to use.
- Easy-to-use design includes moisture bleed valve, large gauges, safety off button, air bleed safety, and more.
Specification
-
Brand: Unimac
-
Model: ACM-1000s Quiet Air series
-
Free Air Delivery: 300L/Min (10.6 CFM)
-
Receiver Capacity: 100L
-
Working Pressure: 116PSI
-
Restart Pressure: 86PSI
-
Starting Method: Automatic Pressure Control Switch + Step Start Control Box and Independent Pump Control
-
Power Rating: 3x 1.1kW
-
Motor Input: 230-240V 50Hz
-
IP Rating: IP20
-
Input voltage: 240V AC
-
Power Plug: 15A
- Note: Minimal Assembly Required
- Note:When installing and commissioning this air compressor, it is the buyers responsibility to check and adjust valves/fittings to prevent air leaks prior to use.
IN THE BOX
-
1 x Unimac ACM1000s Air compressor
-
4 x 8-inch wheels
-
6 x Air filters
-
1 x Handle
-
1x User's manual flyer
- Note: User Manual is accessible online

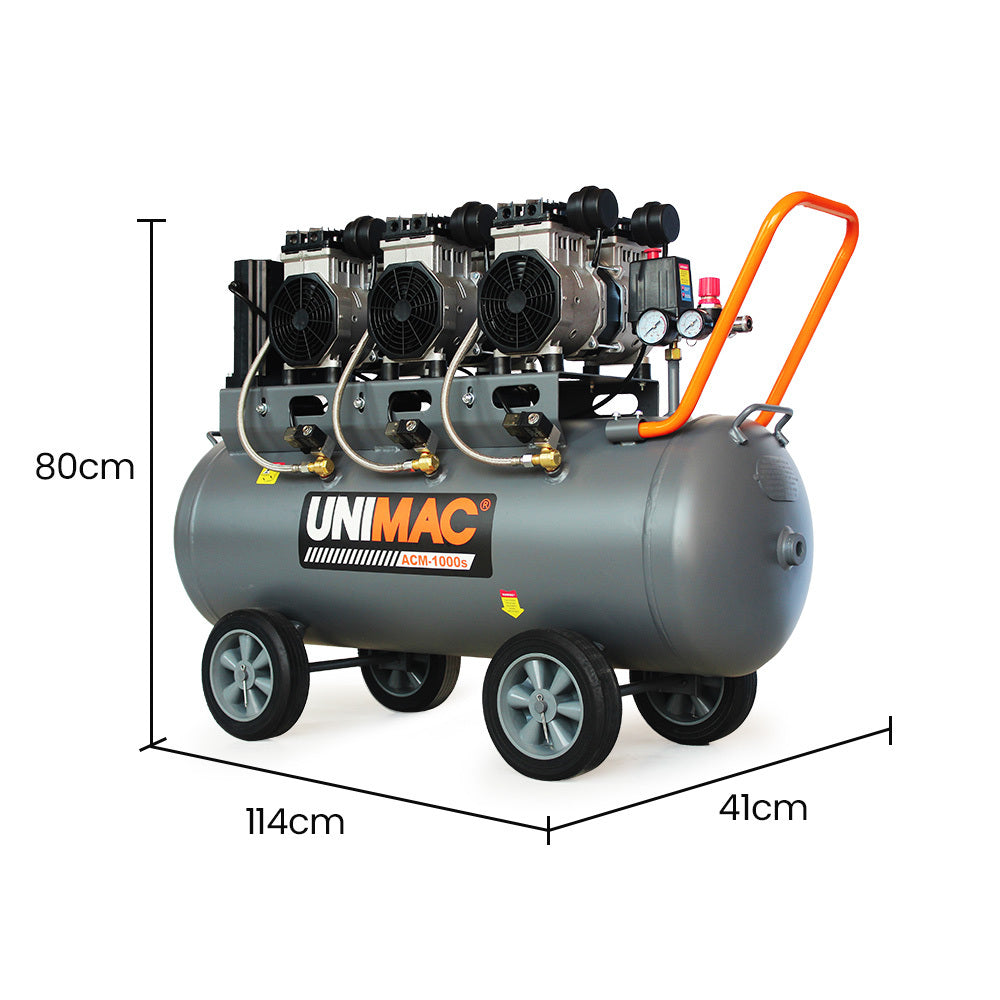

SIZE WEIGHT
-
Product Dimensions (W x L x H): 41 x 114 x 80cm
-
Product Weight: 72kg
-
Carton Dimensions (W x L x H): 42 x 111 x 85cm
-
Gross Weight: 87kg
SKU: TOLACMUM1M0FA
