The Rossi CUT-60 is a lightweight DC inverter plasma cutter. It produces 104 volts and up to 60 amps, and its Pilot Arc system lets you start cuts without touching the workpiece, so painted, rusted or greasy metal can be cut with no prep work.
It can cut through 15mm of steel and up to 25mm deep through a range of metals, including ferrous metals and conductive alloys. The control panel includes gas post-flow, amperage adjustment and a gas flow test, and an onboard pressure gauge and air flow adjustment help you set the external compressed air supply. Note that it requires an external compressed air tank.
- ROSSI Next Gen CUT-60 high-power plasma torch

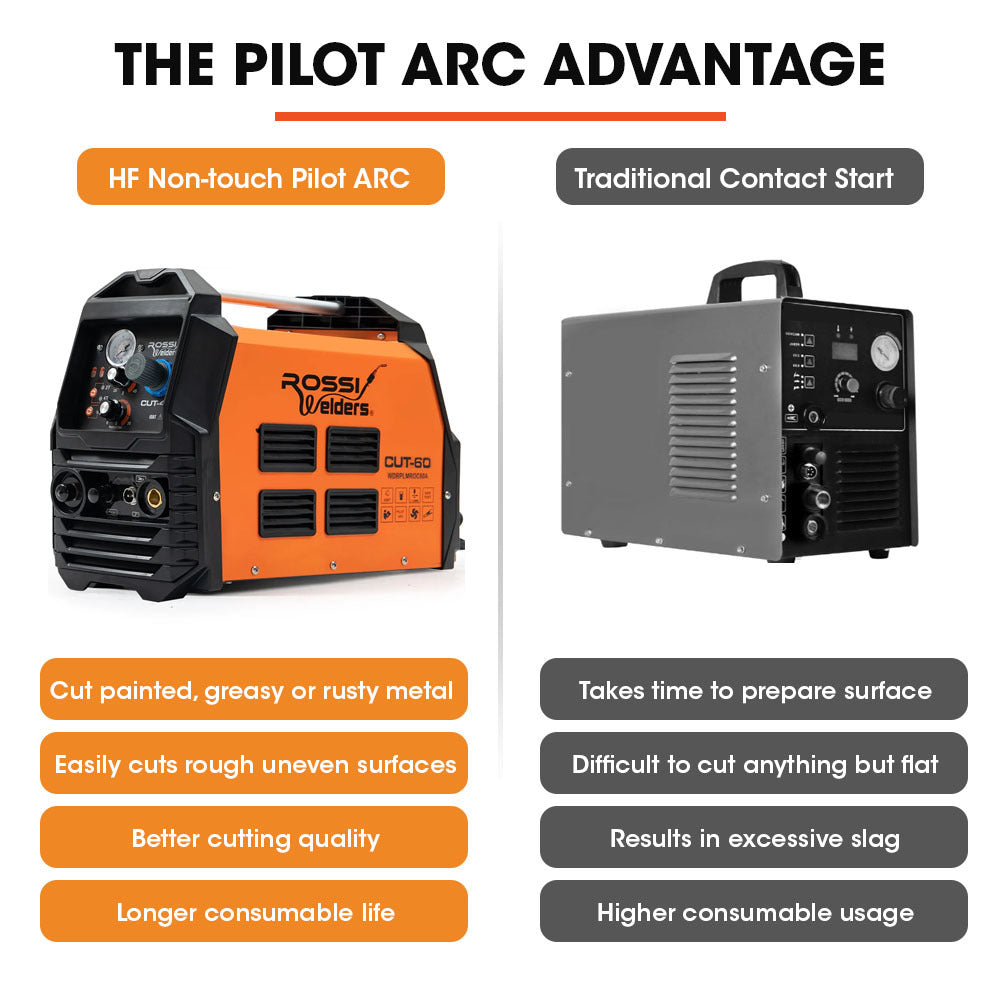

- Pilot Arc for convenient no touch cutting and minimal slag
- Cut rusty, greasy and painted and uneven metals with zero preparation
- Powerful inverter producing 104 volts up to 60 amps with fast switching IGBT technology offers improved efficiency and power conversion
- Versatile cutting smoothly penetrates painted/rusted surfaces and easily cuts through 15mm of steel, up to 25mm deep with a rougher finish

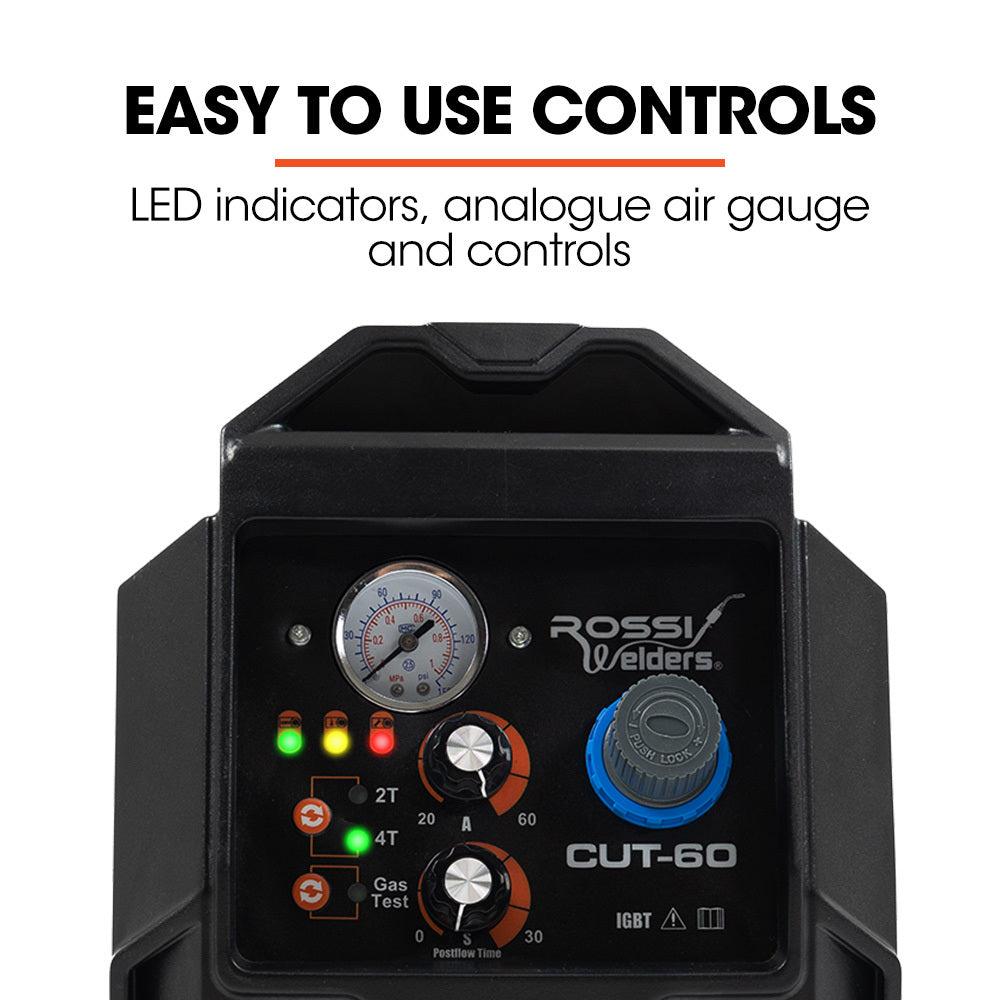

- Easy-to-use interface has gas post flow setting, onboard pressure gauge, amperage adjustment, gas flow test and 2T/4T trigger settings

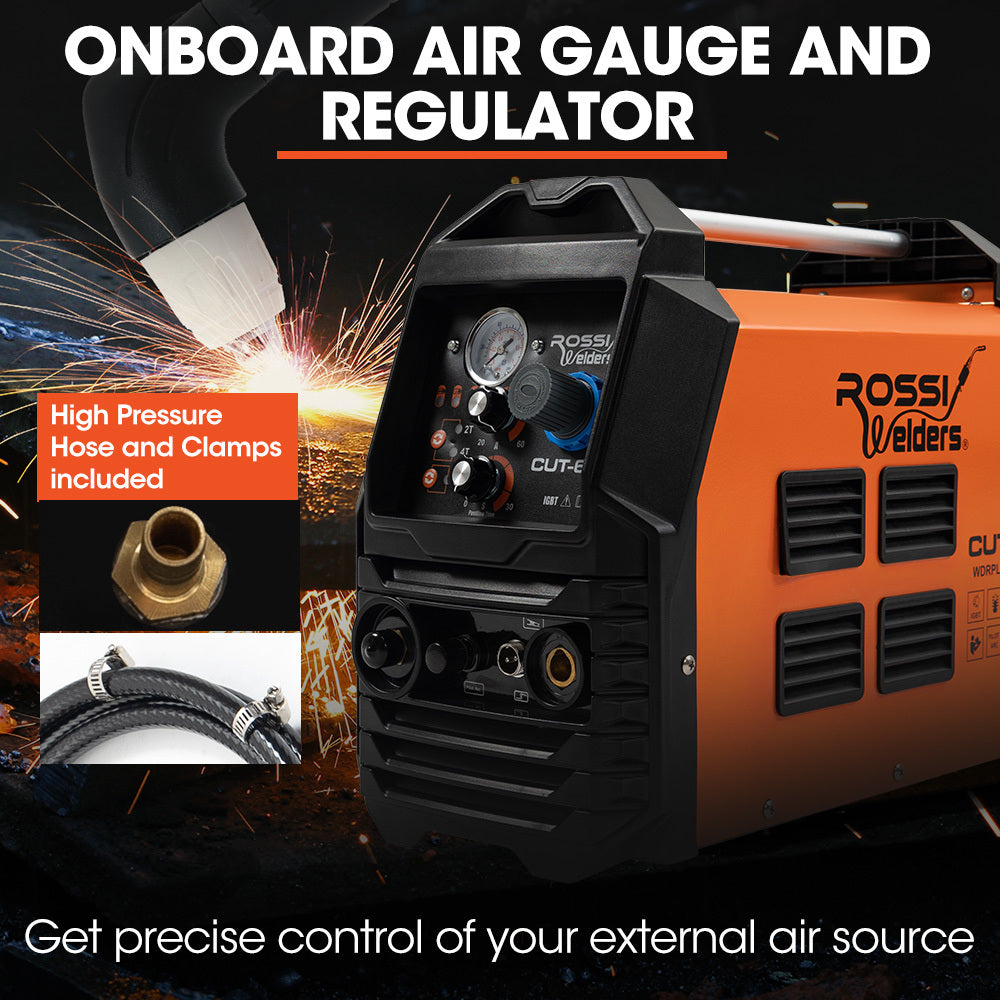

- High-pressure air hose and clamps easily attach to the requiredexternal compressed air source
- SYN-Weld Technology for automatic current compensation for more consistent welds
- High-speed precision cutting is ideal for ferrous metals and alloys

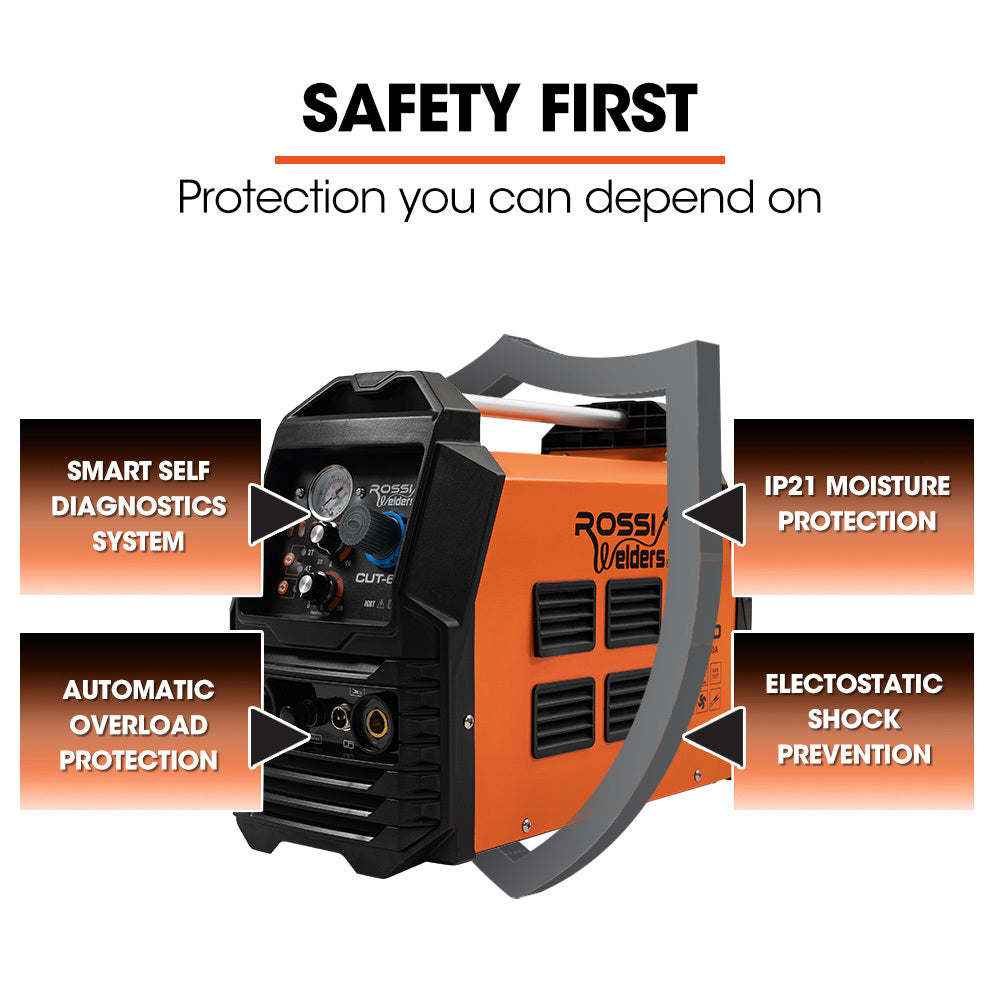

- Engineered for quality and safety the CUT-60 features gas testing, overheat and overload protection, shock; dust and debris resistance
Specification
-
Brand: Rossi
-
Model: CUT-60
-
Input Voltage: 240V
-
Power Cord: 1.8M
-
Efficiency: 85%
-
Output Voltage: 104V DC
-

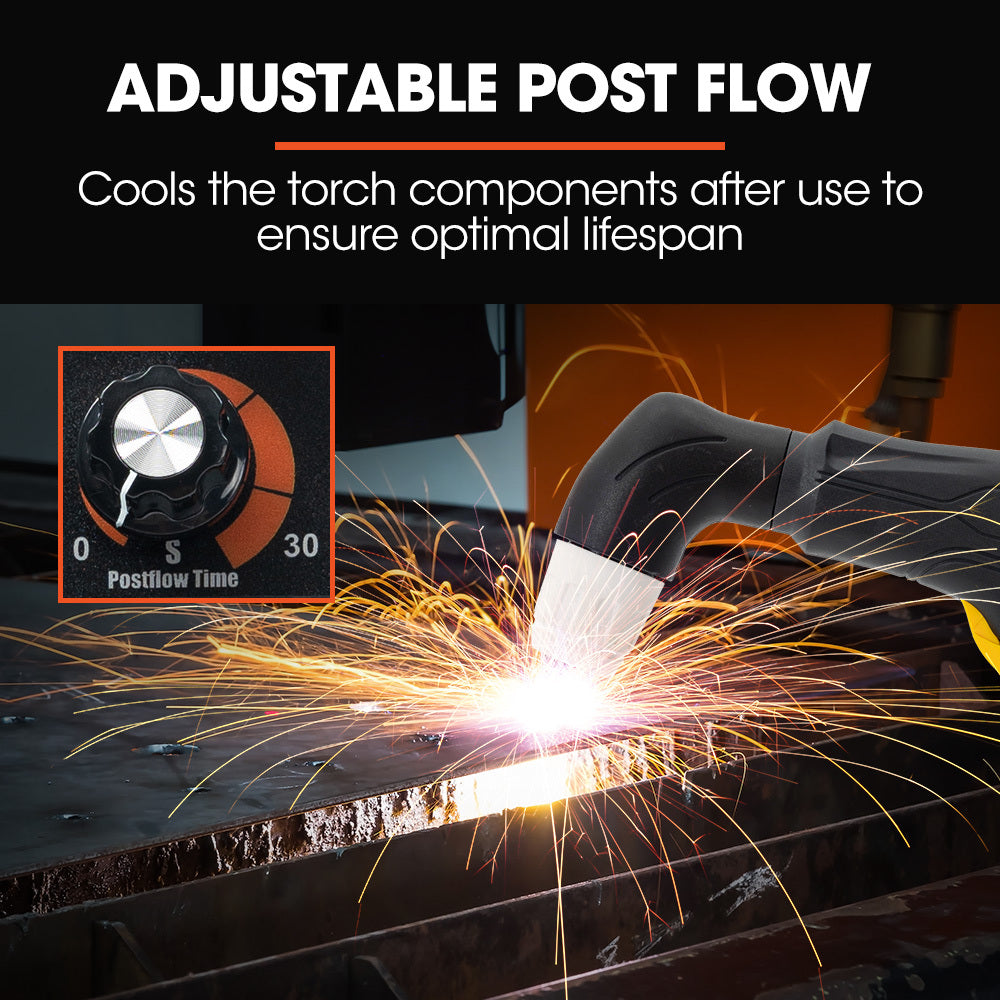

Post Flow Timer: 10-30 Seconds
-
Duty Cycle: 60A 60%, 30A 100%
-
Output Current Range: 15-60 ADC
-
Pilot Arc Mode: Non-Touch
-
Cutting Capacity: 1-25mm
-
Earth Clamp Cable: 5M
-
Plasma Torch Cable: 5M
-
Power Plug: 15A
- Note: Requires external compressed air tank for plasma cutting

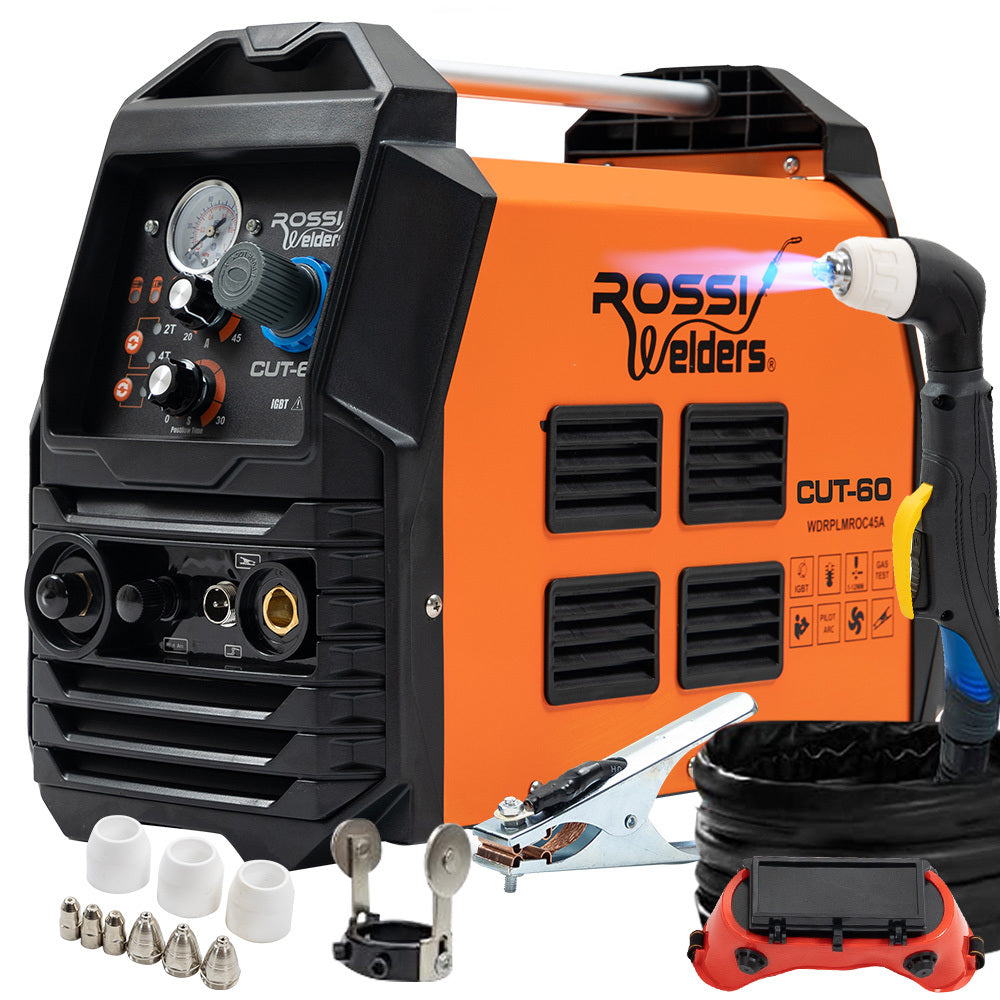

IN THE BOX
- 1 x Rossi CUT-60 Welder
- 1 x 5M Plasma Torch
- 4 x Electrodes
- 4 x Shield Cup
- 4 x P80 Nozzle
- 1 x 3M 16 300A Earth Clamp
- 1 x Steel Brush
- 1 x Welding Goggles
- 1 x Small Wrench
SIZE WEIGHT
-

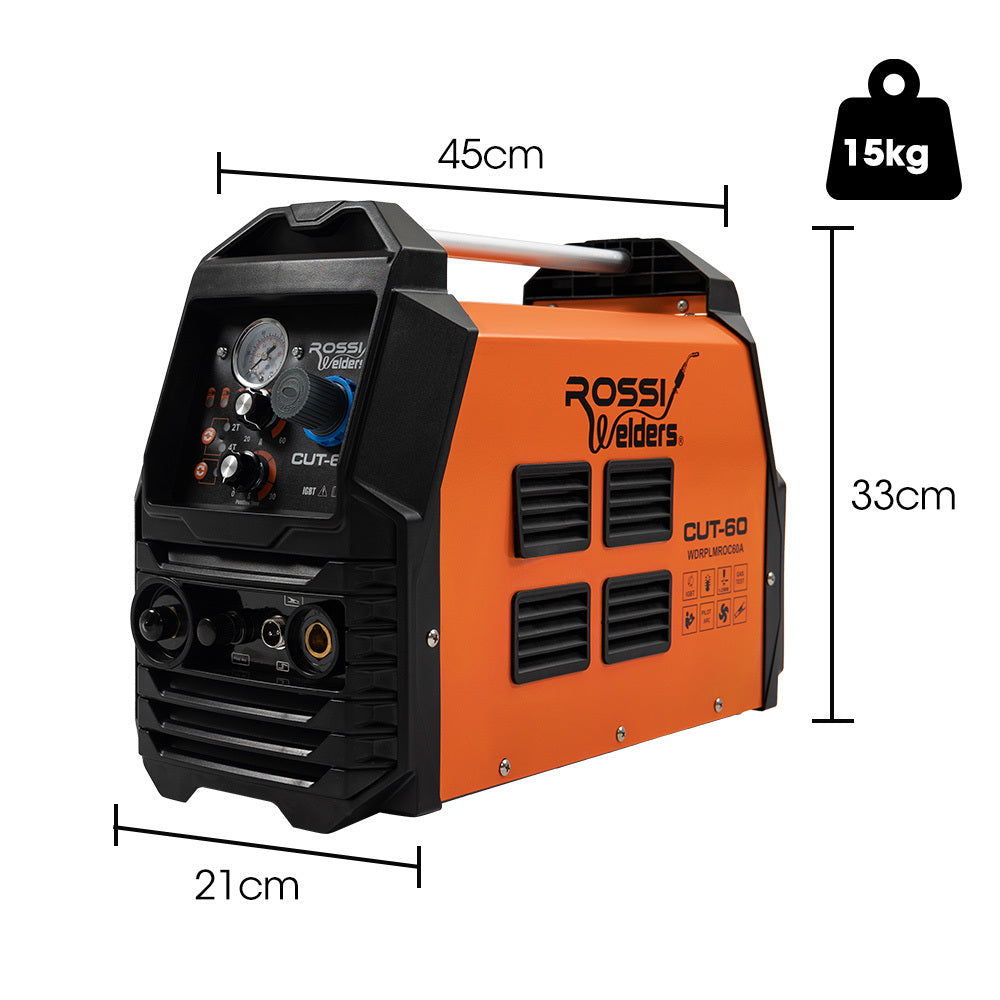

Product Dimensions (W x L x H): 21 x 45 x 33cm
-
Product Weight: 15kg
-
Carton Dimensions (W x L x H): 39 x 53 x 41cm
-
Carton Weight: 17kg
SKU: WDRPLMROC60A
