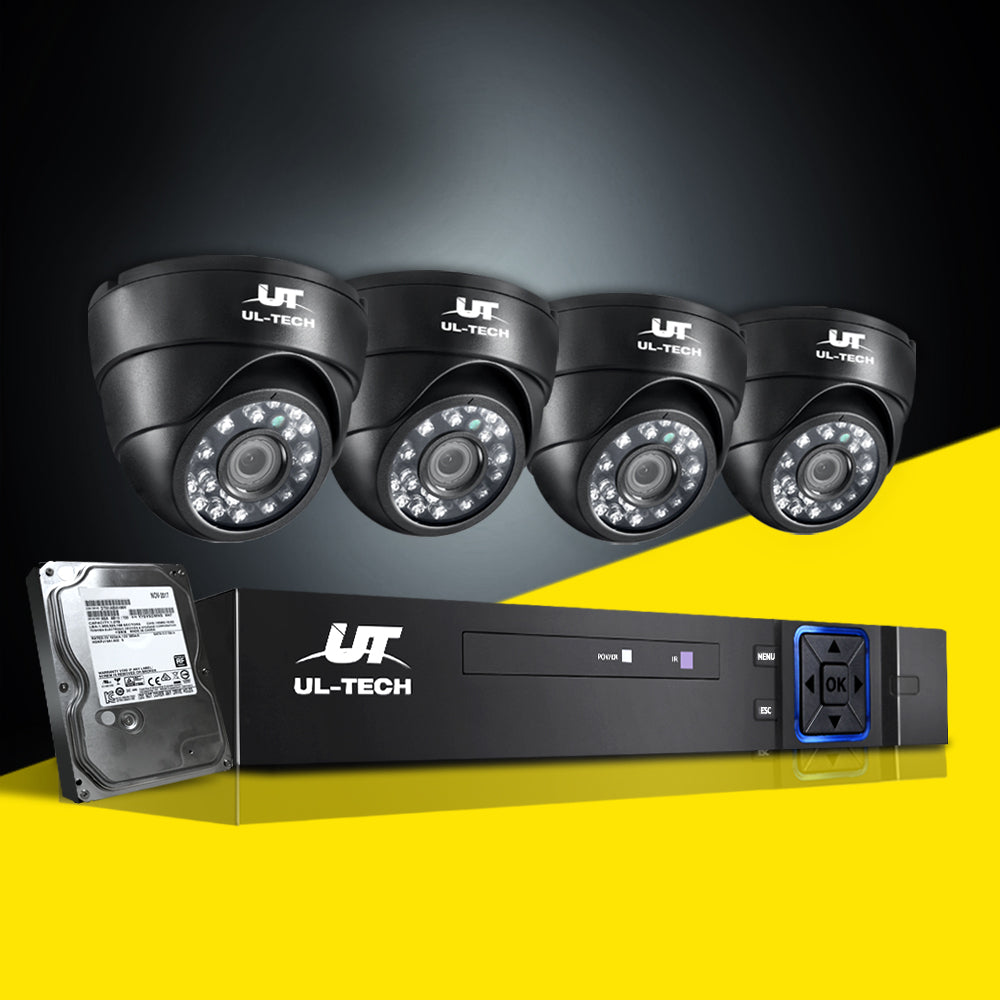

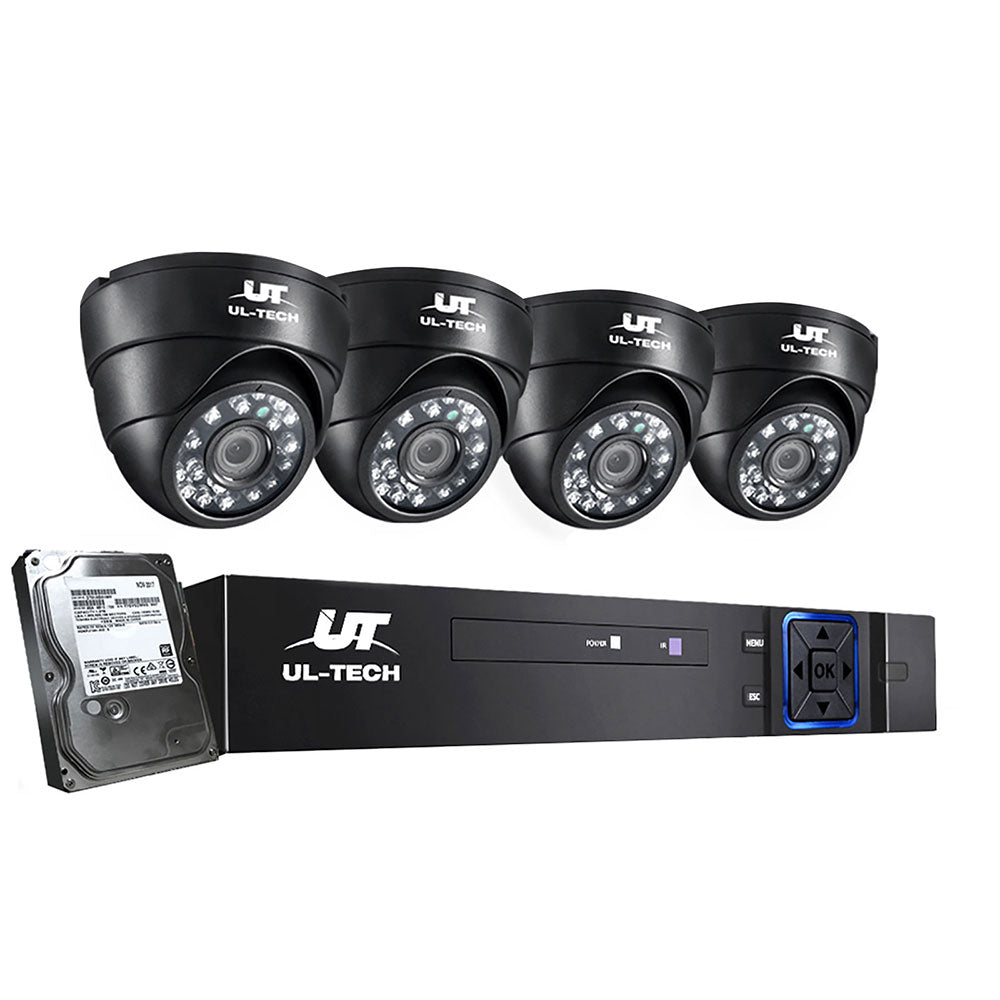

This 4-channel CCTV security system suits homes that need indoor monitoring. It includes four 1080P HD cameras, a DVR and a 1TB hard drive for recording. Infrared night vision reaches up to 20m, and motion detection can be set across 192 areas per screen.
The DVR offers record, playback and search modes, with search by time, calendar, event or channel. Remote viewing is possible over P2P on a smartphone or computer using the free app, and an email alert can be sent when unauthorised motion is detected. The cameras are for indoor use only, and their angle is adjusted by hand. Assembly is required.
Note: Camera angle only can be adjusted by hand manually.
Note: This Camera is not for outdoor use.
Features
- 1080P HD cameras
- 4-channel 1080N 5-in-1 DVR
- Supports AHD, TVI, CVI, CVBS and IP cameras
- P2P technology for easy internet connection
- High resolution cameras with built-in IR-cut
- Remote access from phone or computer via free app
- Customisable motion detection settings
- Instant email alarm on detected motion
- HDMI and VGA outputs
- Indoor use only
- USB backup and storage support
- Data protection during power outages
- Four-channel simultaneous live viewing on smartphone
- Capture and record on smartphone
- Cloud system support for remote access
- Easy installation
- Bonus RRP $195 1TB hard drive and USB mouse
Specifications:

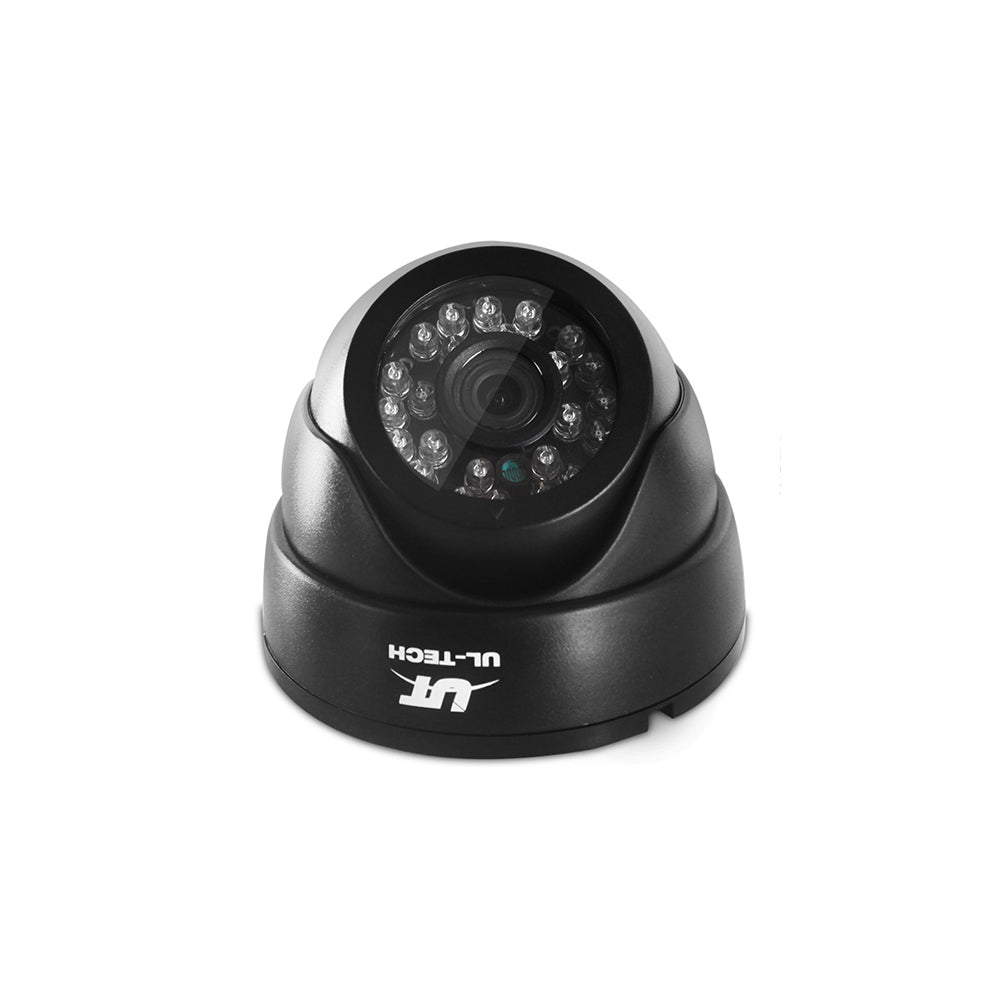

Camera:
Image sensor: 1/2.8 inch V20+ SC135 sensor
Video resolution: 1080P (1920*1080)
Signal system: PAL/NTSC
Minimum illumination: Olux (When IR ON)
Video output: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDs: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/20m
Noise-signal ration: ≤41db
Operating power: DC12V±10%
Consumption: ＜5W
Video:
Codec: H.264
Monitor quality: VGA, HDMI: HD
Preview ability: 4*1080N
Encode ability: 4*1080N@12fps
Decode ability: 4*1080N@12fps
Multi-mode input: analog: 4*1080N
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 4*720P; 4*1080P; 8*720P;8*1080P;1*1080P
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record and playback:
Record mode: Manual > Alarm > Motion detection > Timing
Local playback: 4ch (local input mode)
Seatrch mode: Search by time, calender, event, channel

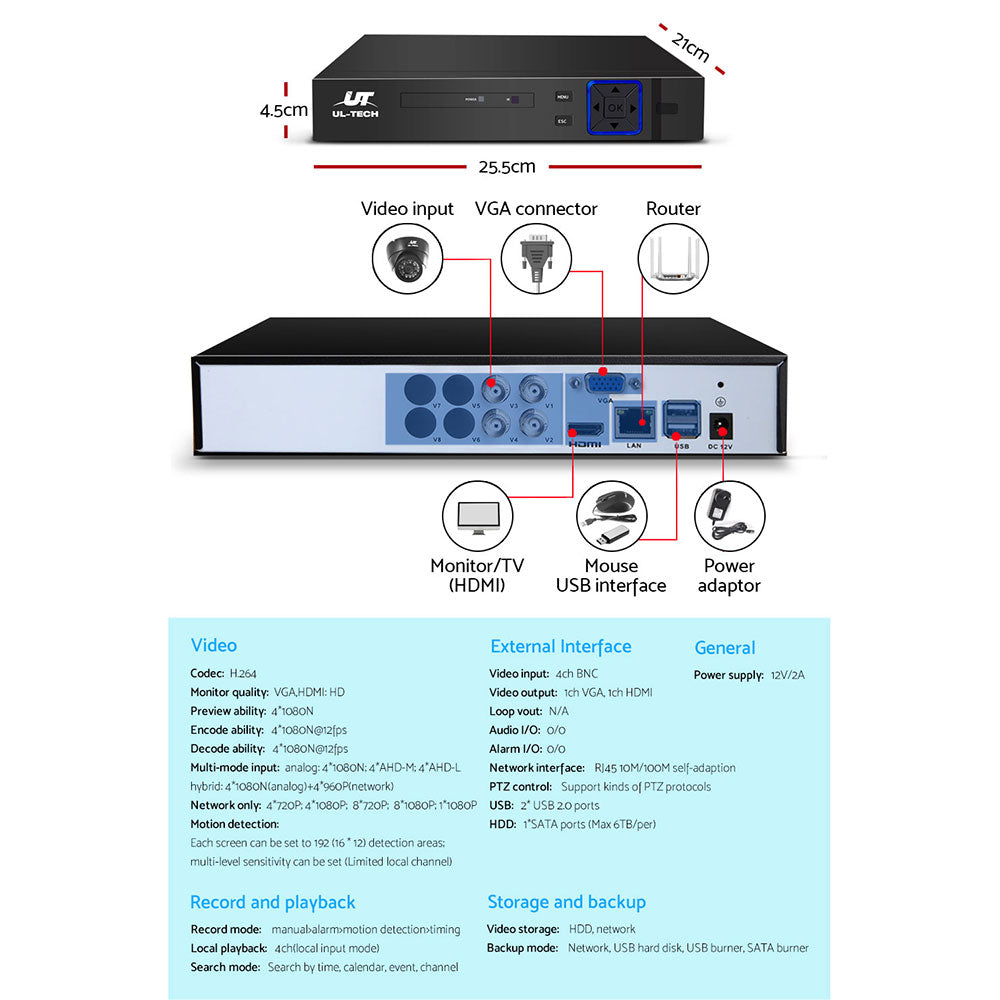

External inferface:
Video input: 4ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: O/O
Alarm I/O: O/O
Network interface: RJ45 10M/100M self-adaptation
PTZ control: Support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)
Storage and backup:
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
Power supply: 12V/2A
Assembly Required: Yes
Number of Packages: 2
Package Content
4 x UL-tech 1080P Camera
1 x 1080P 4CH DVR

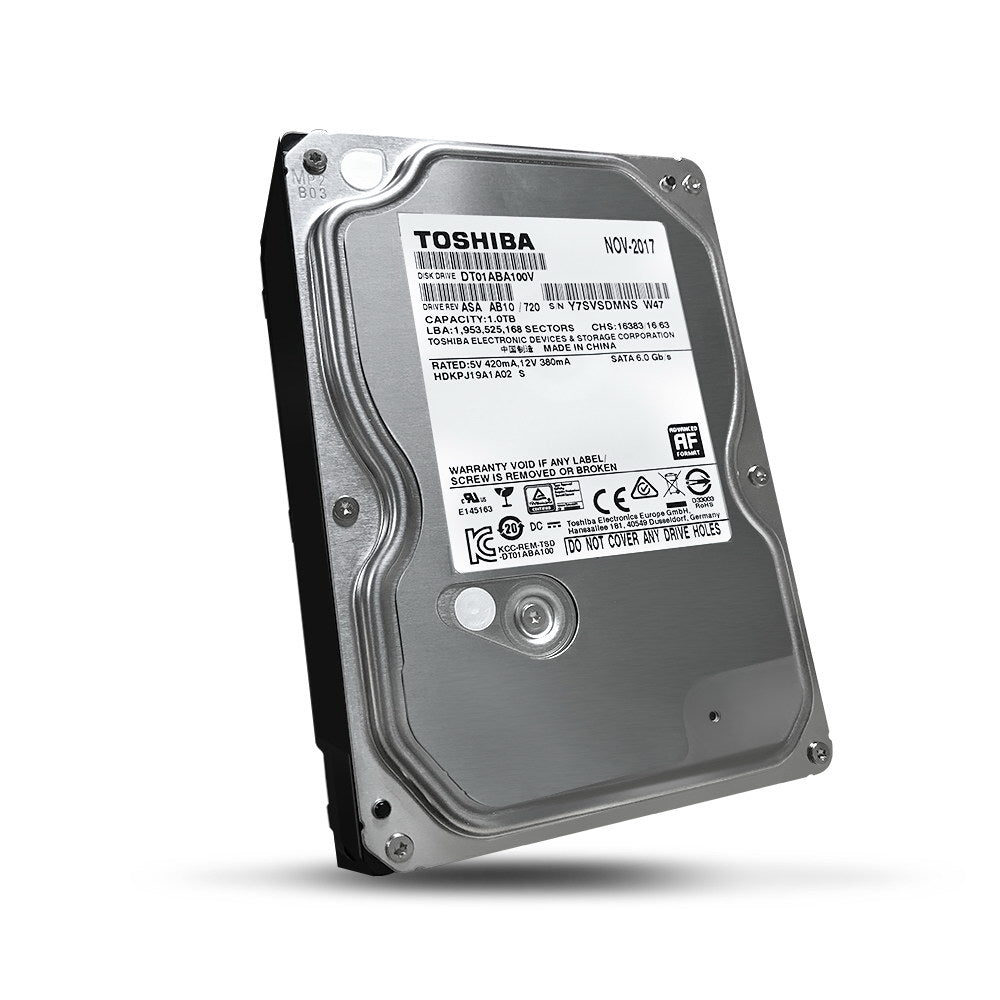

1 x 1TB Hard Drive
4 x 18.3m (60ft) 2-in-1 BNC & Power Cable
1 x 1-4 Splitter Cable
2 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
