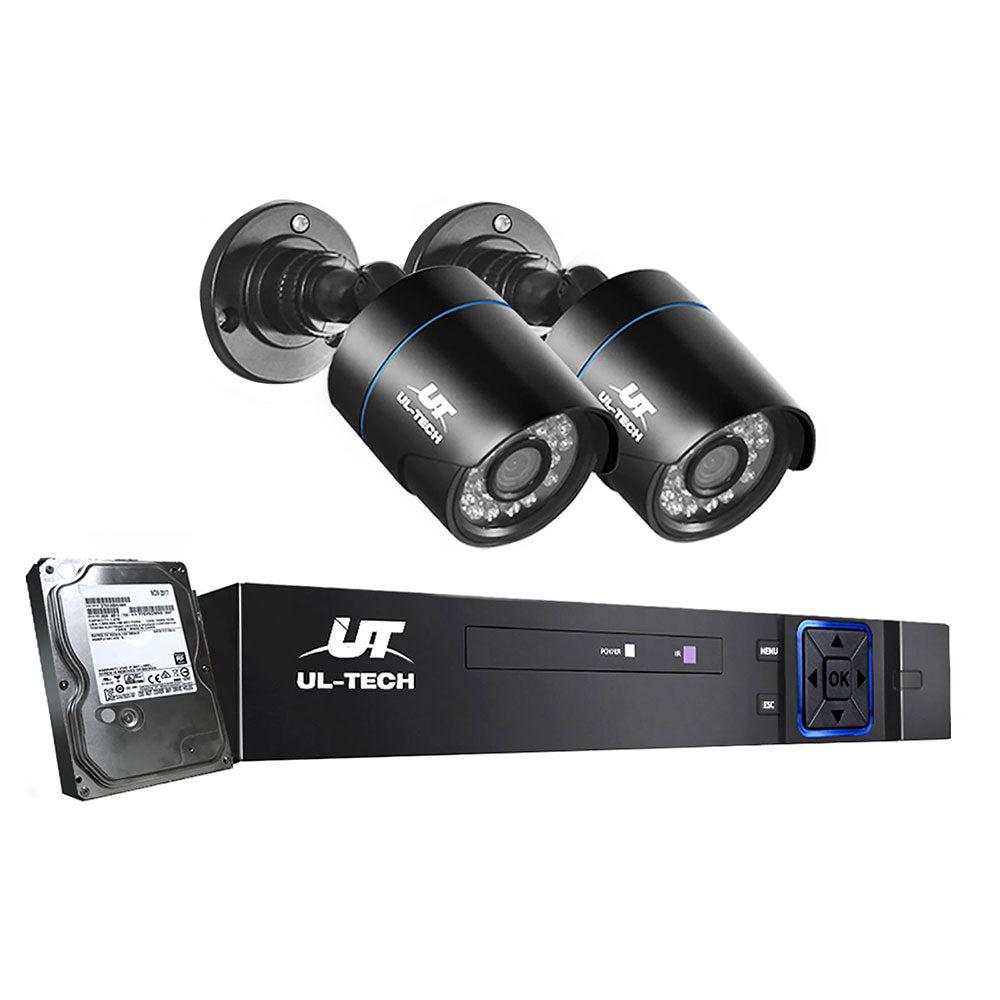

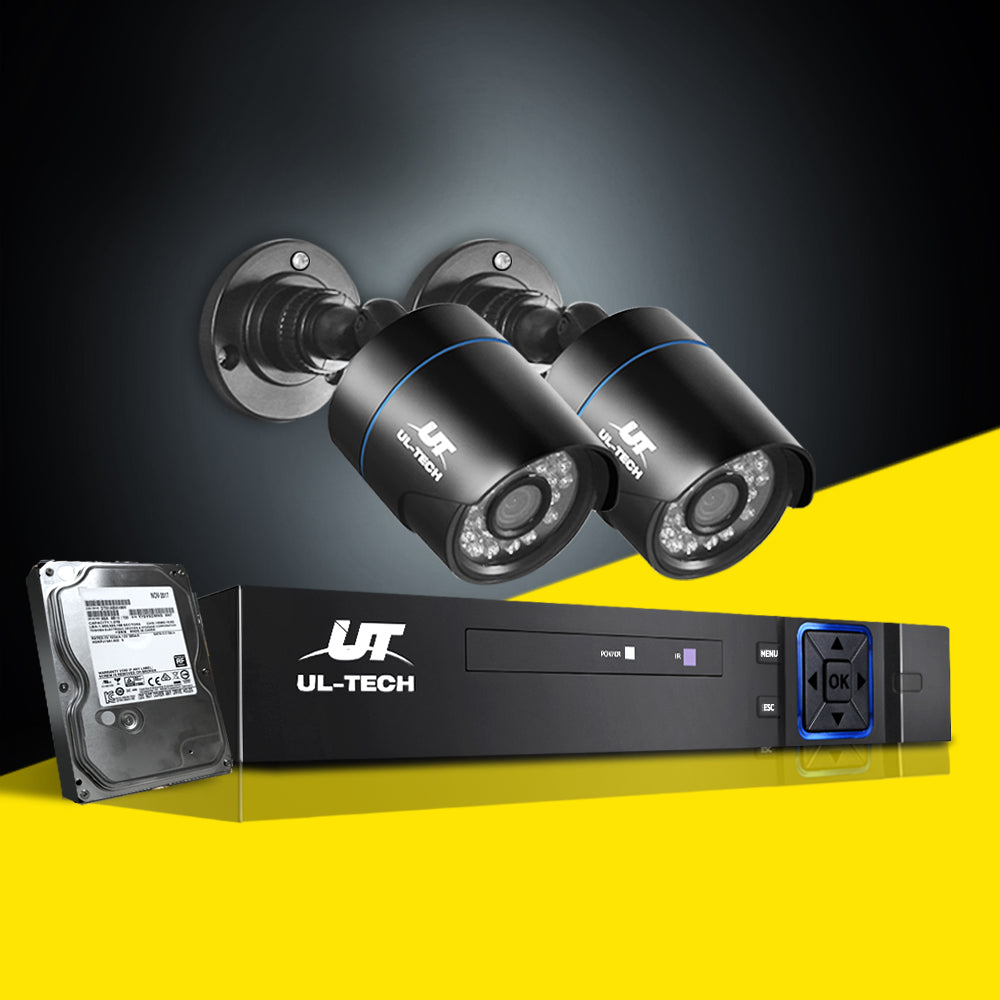

This 4-channel CCTV security system pairs a 1080P DVR with 2 cameras for indoor and outdoor use. It includes a 1TB hard drive for recordings and a 5-in-1 DVR that supports several camera types, so it suits homeowners who want to monitor their property day and night.
Night vision reaches up to 20m, and each screen can be set to 192 detection areas with adjustable sensitivity. You can view live and recorded footage remotely through a free app on your smartphone, and receive an instant email alert when motion is detected. Playback and search by time, calendar, event or channel help you find recordings quickly.
Features
- 1080P HD video resolution
- 4 channel 1080N 5-in-1 DVR
- Supports AHD, TVI, CVI, CVBS and IP cameras
- P2P technology for easy internet connection
- High resolution cameras with built-in IR-cut
- Internal hard disk for video storage
- Remote access via free app on phone or computer
- Customisable motion detection
- Instant email alarm
- HDMI and VGA outputs
- IP66 all-weather design
- Indoor and outdoor use
- USB backup and storage support
- Data protection during power outages
- 4 channel simultaneous live viewing on smartphone
- Capture and record on your smartphone
- Cloud system support for remote access
- Easy to install
- Bonus 1TB hard drive and USB mouse (RRP $199)
Specifications:

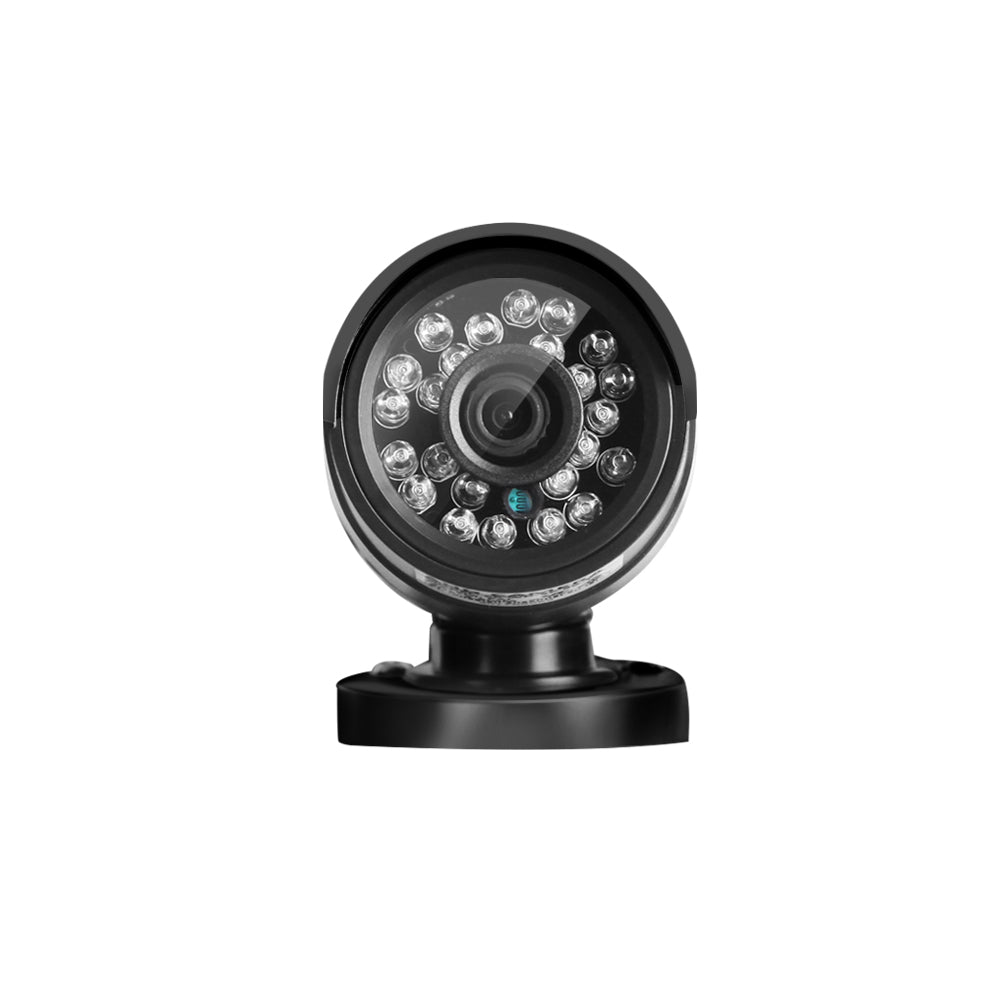

Camera:
Image sensor: 1/2.8 inch V20+ SC135 sensor
Video resolution: 1080P (1920*1080)
Signal system: PAL/NTSC
Minimum illumination: Olux (When IR ON)
Video output: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDs: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/20m
Noise-signal ration: ≤41db
Operating power: DC12V±10%
Consumption: ＜5W
Video:
Codec: H.264
Monitor quality: VGA, HDMI: HD
Preview ability: 4*1080N
Encode ability: 4*1080N@12fps
Decode ability: 4*1080N@12fps
Multi-mode input: analog: 4*1080N
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 4*720P; 4*1080P; 8*720P;8*1080P;1*1080P
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record and playback:
Record mode: Manual > Alarm > Motion detection > Timing
Local playback: 4ch (local input mode)
Seatrch mode: Search by time, calender, event, channel

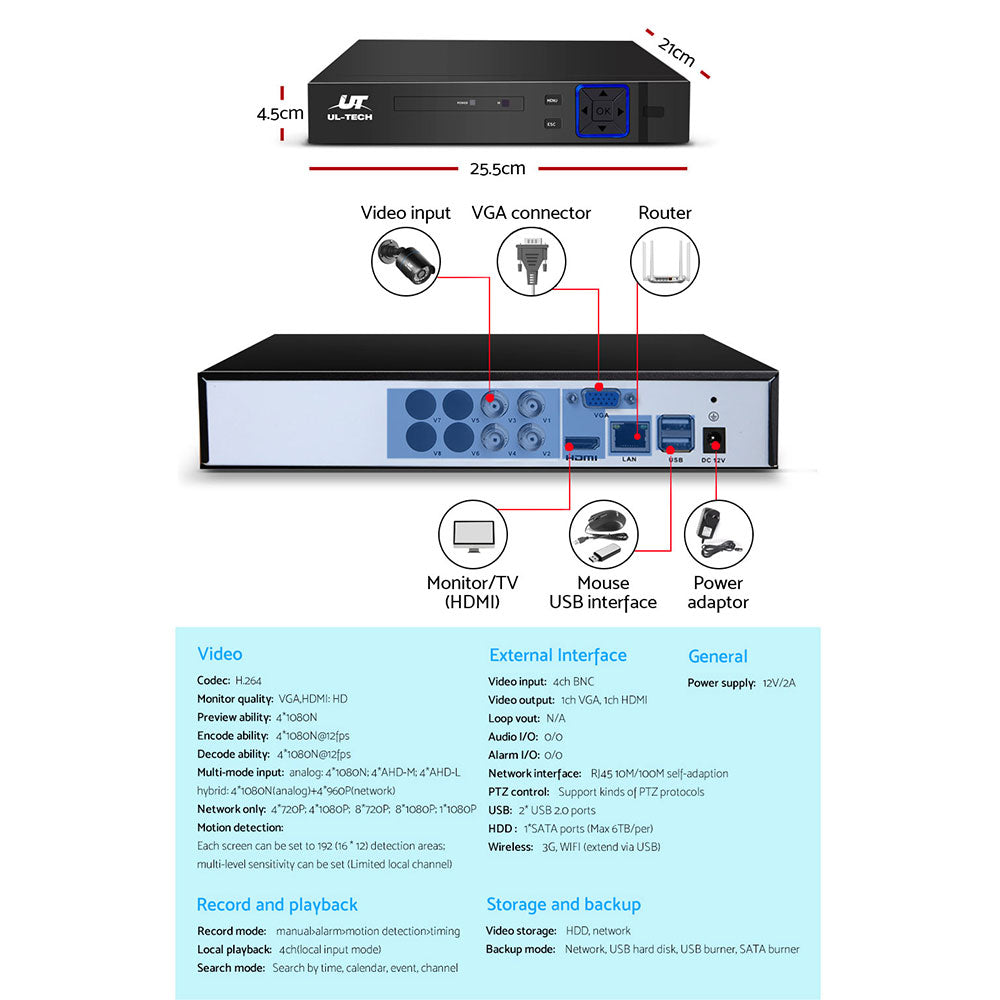

External inferface:
Video input: 4ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: O/O
Alarm I/O: O/O
Network interface: RJ45 10M/100M self-adaptation
PTZ control: Support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)
Storage and backup:
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
Power supply: 12V/2A
Assembly Required: Yes
Number of Packages: 2
Package Content
2 x UL-tech 1080P Camera
1 x 1080P 4CH DVR

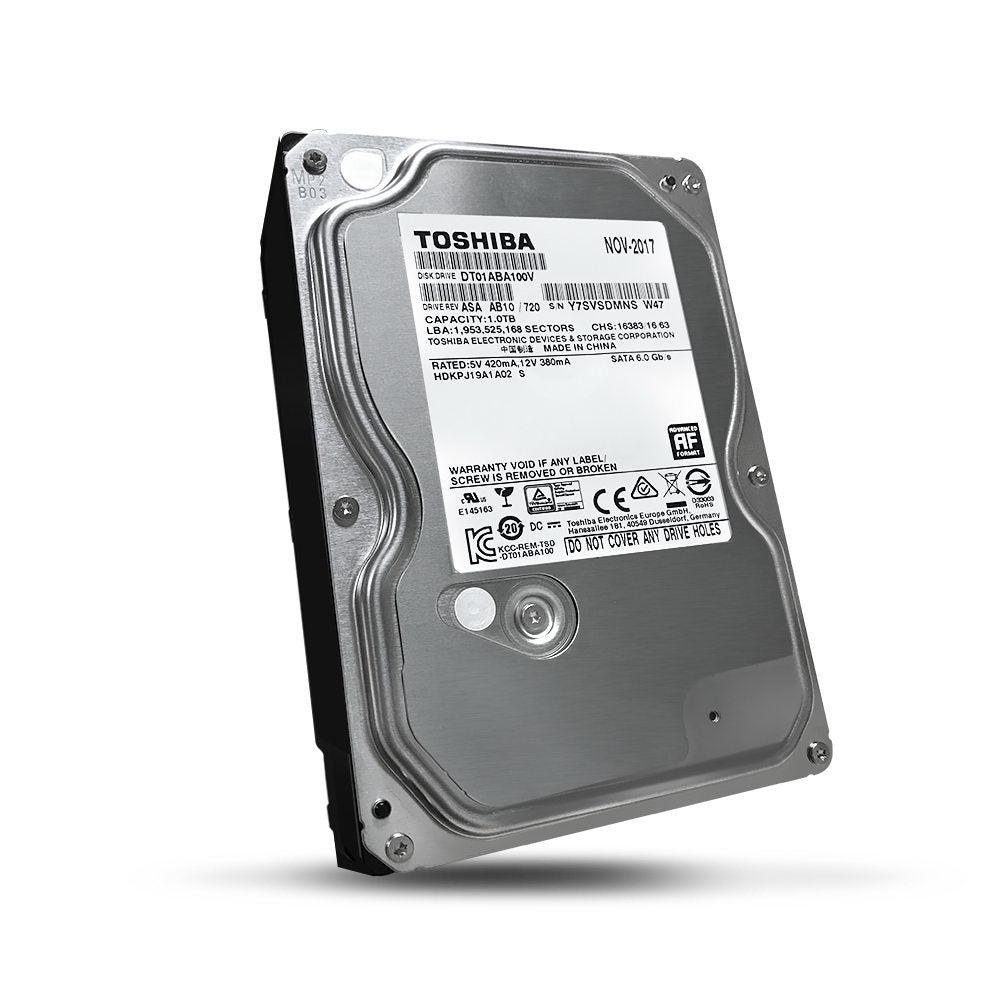

1 x 1TB Hard Drive
2 x 18.3m (60ft) 2-in-1 BNC & Power Cable
1 x 1-4 Splitter Cable
2 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
