This UL-tech CCTV security system is designed for homeowners who want to keep an eye on their property, indoors or out. It comes with a 4-channel DVR, 4 1080P cameras and a 4TB hard drive for long recording periods. Motion detection covers up to 192 areas per screen, and infrared night vision reaches up to 20m.
The weatherproof cameras let you record, play back and search footage by time, event or channel, and recordings stay protected during a power outage. Live or recorded video can be viewed remotely through the free app on your smartphone or computer, and an email alert is sent if unwanted motion is detected.
*Note: This product comes with 1 year warranty
Features
- 1080P HD camera resolution
- 4-channel 1080N 5-in-1 DVR
- Supports AHD, TVI, CVI, CVBS and IP cameras
- P2P technology for simple internet connection
- High resolution cameras with built-in IR-cut
- Remote access via free smartphone app
- View live footage on phone or computer
- Customisable motion detection settings
- Instant email alarm
- HDMI and VGA outputs
- IP66 all-weather design
- Suitable for indoor and outdoor use
- USB backup and storage support
- Data protection during power outages
- 4-channel simultaneous live viewing on smartphone
- Capture and record on your smartphone
- Cloud system for remote access
- Easy to install
- Includes 4TB hard drive and USB mouse
Specifications:

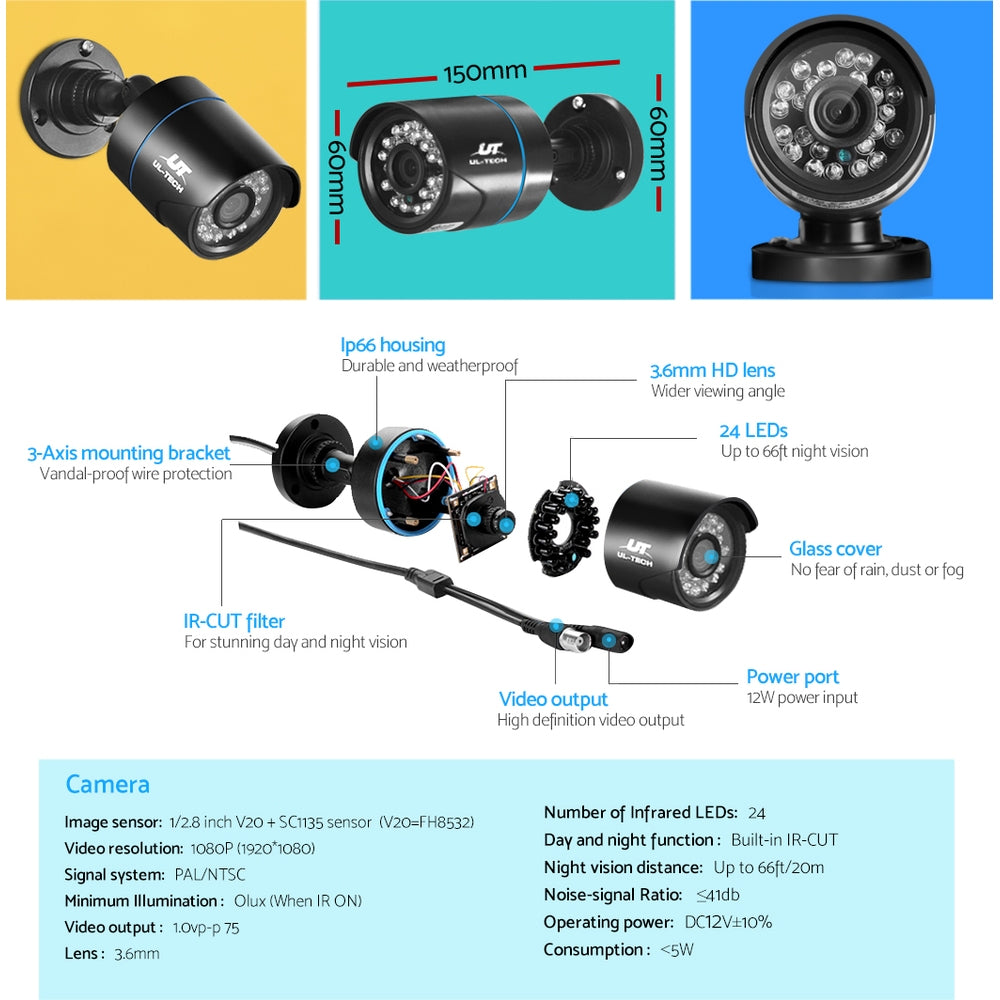

Camera:
Image sensor: 1/2.8 inch V20+ SC135 sensor
Video resolution: 1080P (1920*1080)1920*1080
Signal system: PAL/NTSC
Minimum illumination: Olux (When IR ON)
Video output: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDs: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/20m
Noise-signal ration: ≤41db
Operating power: DC12V±10%
Consumption: ＜5W
Video:
Codec: H.264
Monitor quality: VGA, HDMI: HD
Preview ability: 4*1080N
Encode ability: 4*1080N@12fps
Decode ability: 4*1080N@12fps
Multi-mode input: analog: 4*1080N
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 4*720P; 4*1080P; 8*720P;8*1080P;1*1080P
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record and playback:
Record mode: Manual > Alarm > Motion detection > Timing
Local playback: 4ch (local input mode)
Seatrch mode: Search by time, calender, event, channel

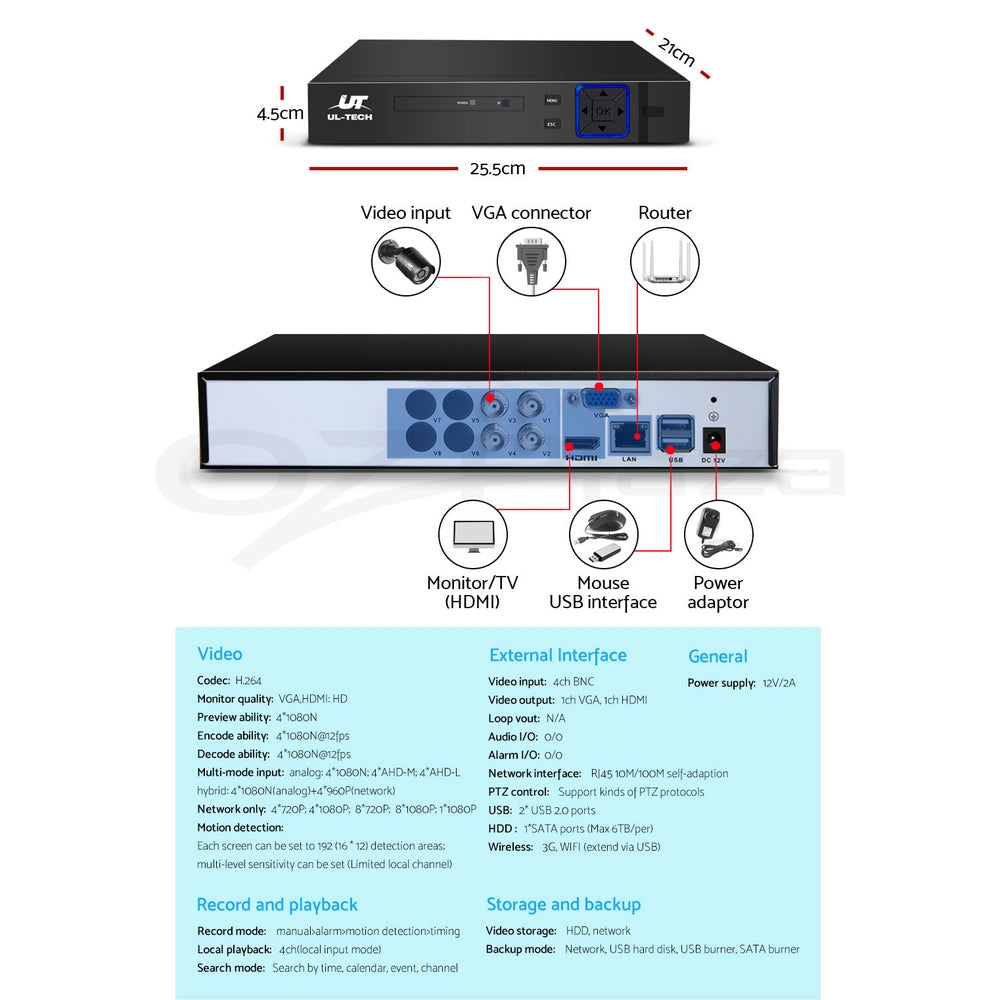

External inferface:
Video input: 4ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: O/O
Alarm I/O: O/O
Network interface: RJ45 10M/100M self-adaptation
PTZ control: support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)
Storage and backup:
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
Power supply: 12V/2A
Assembly Required: Yes
Number of Packages: 2

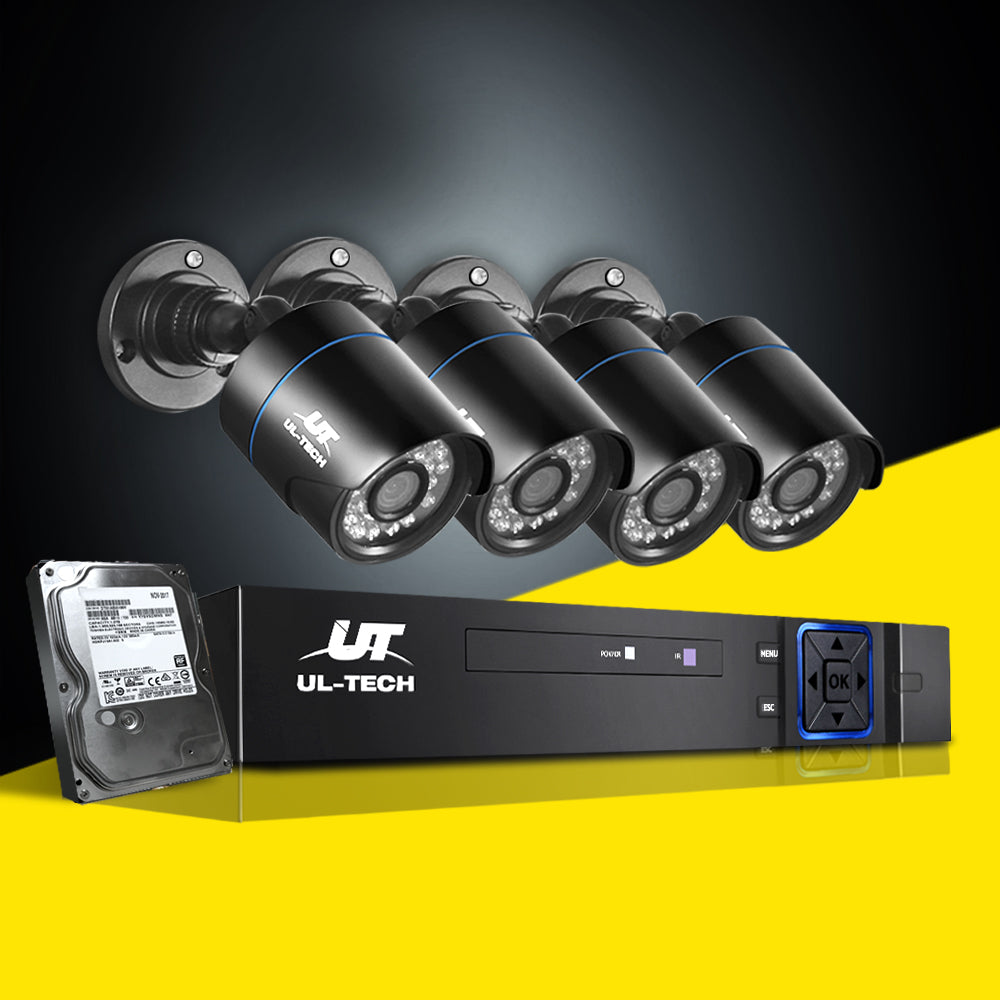

Package Content
4 x UL-tech 1080P Camera
1 x 1080P 4CH DVR

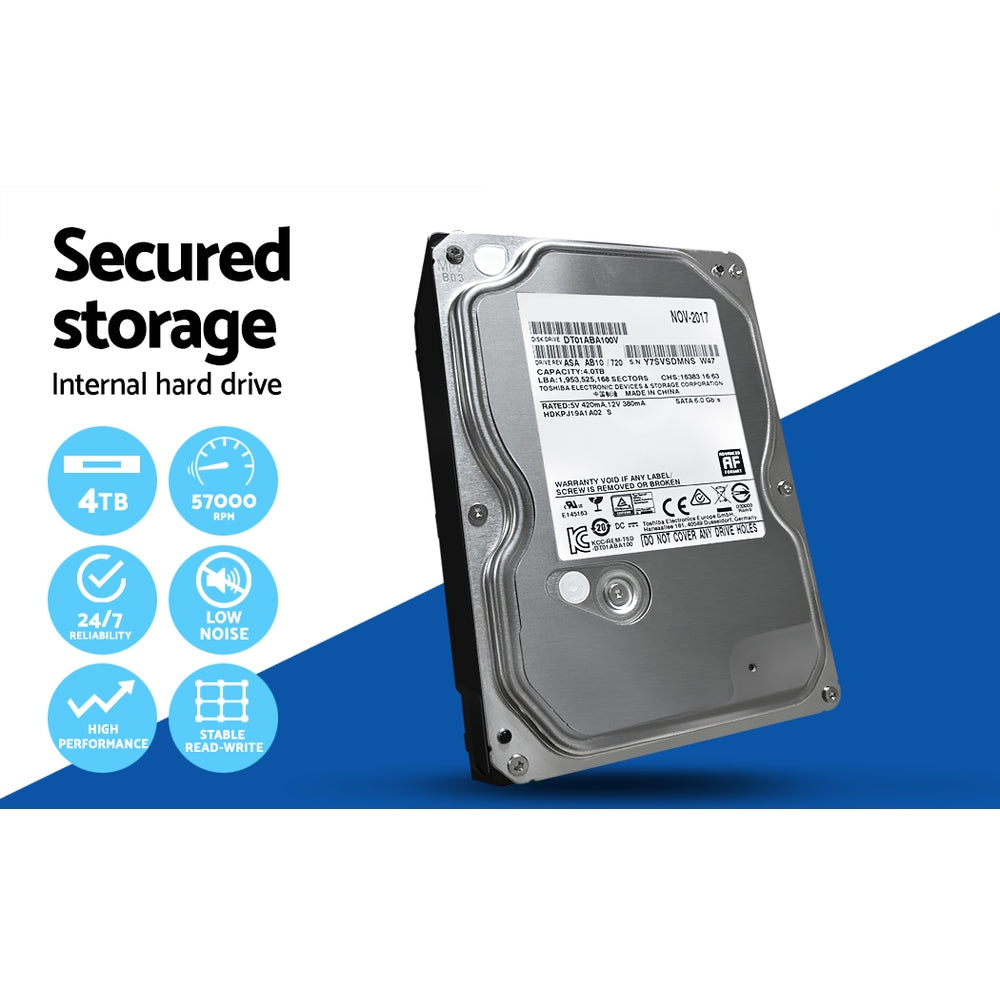

1 x 4TB Hard Drive
4 x 18.3m (60ft) 2-in-1 BNC & Power Cable
1 x 1-4 Splitter Cable
2 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
