This UL-tech 8 channel CCTV security system suits homes wanting to monitor both indoors and outdoors. It records from 8 cameras at 1080P HD onto a 1TB hard drive, with motion detection across 192 areas and infrared night vision up to 20m.
Record, playback and search modes let you review older recordings by time, date, event or channel. High resolution makes faces, number plates and clothing easier to identify. The 5-in-1 DVR connects through P2P technology and has HDMI and VGA outputs, while the free app lets you view and capture footage from a smartphone or computer. An instant email alert is sent if unauthorised motion is detected.
Features
- 1080P HD resolution
- 8 channel 5-in-1 DVR
- Supports AHD, TVI, CVI, CVBS and IP cameras
- P2P technology for internet connection
- High resolution cameras with built-in IR-cut
- Remote access via free phone or computer app
- Customisable motion detection
- Instant email alarm
- HDMI and VGA outputs
- IP66 all-weather design
- Indoor and outdoor use
- USB backup and storage support
- Data protected during power outage
- 8 channel simultaneous live viewing on smartphone
- Capture and record on smartphone
- Cloud system for remote access
- Easy to install
- Includes 1TB hard drive and USB mouse
Specifications:
Video:
Codec: H.264
Monitor quality: VGA, HDMI:HD
Preview ability: 8*1080N
Encode ability: 8*1080N@12fps
Decode ability: 8*1080N@12fps
Multi-mode input: analog: 8*1080N
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 16*1080P; 9*1080P; 16*960P;4*5M
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record and playback:
Record mode: Manual > Alarm > Motion detection > Timing
Local playback: 8ch (local input mode)
Seatrch mode: Search by time, calender, event, channel

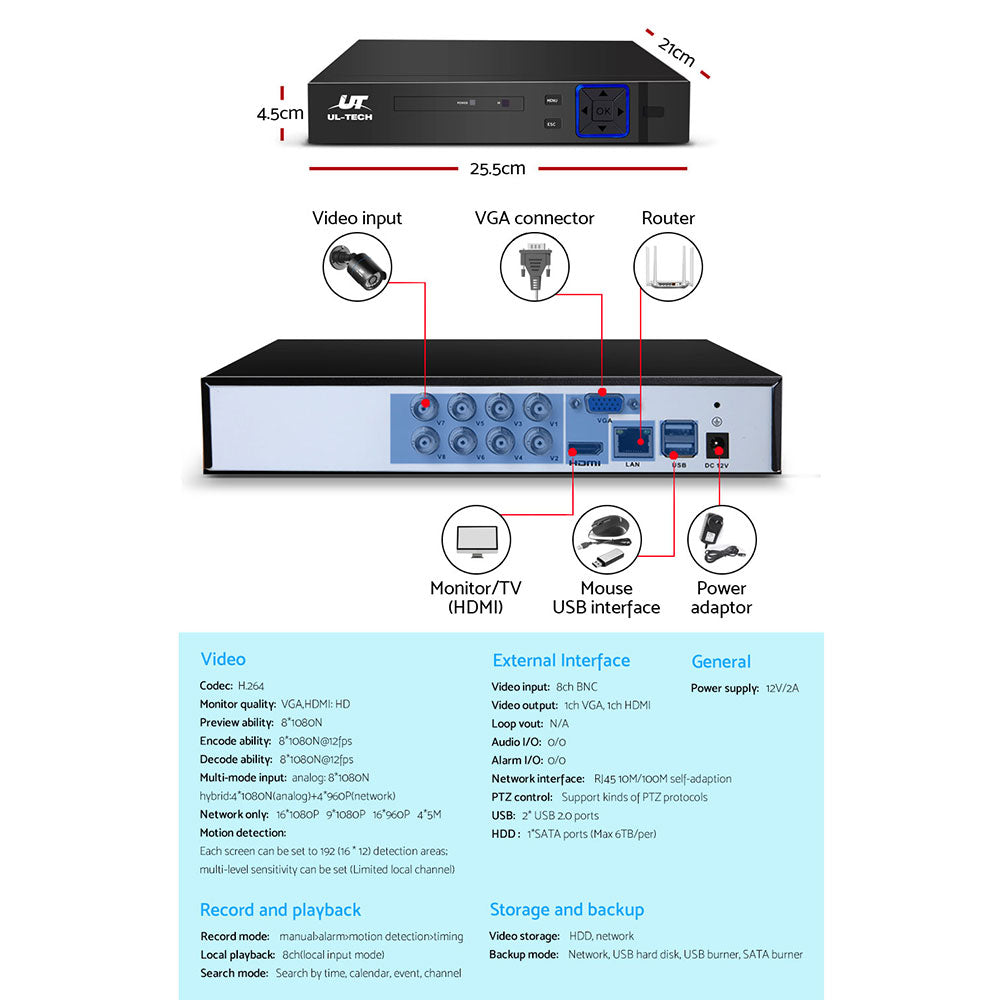

External inferface:
Video input: 8ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: 0/0
Alarm I/O: 0/0
Network interface: RJ45 10M/100M self-adaptation
PTZ control: 1*RS485, support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)
Storage and backup
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
Power supply: 12V/2A

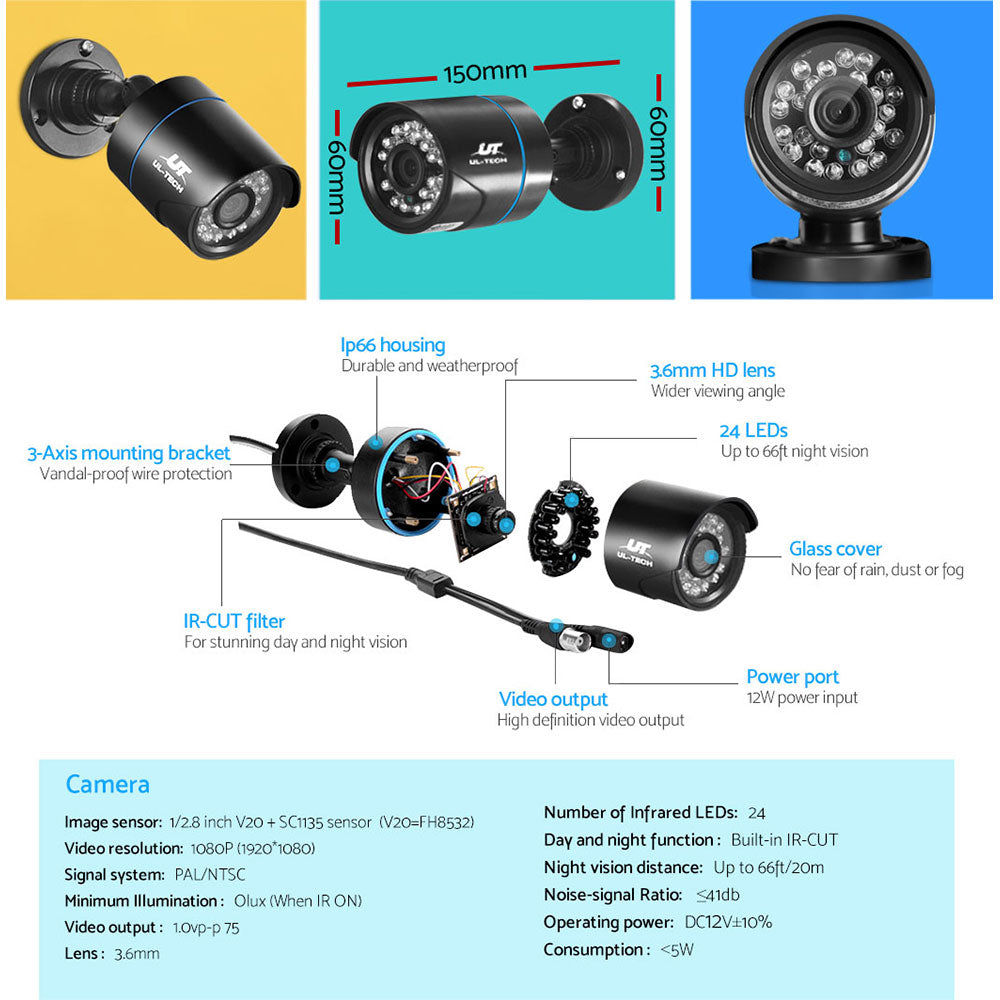

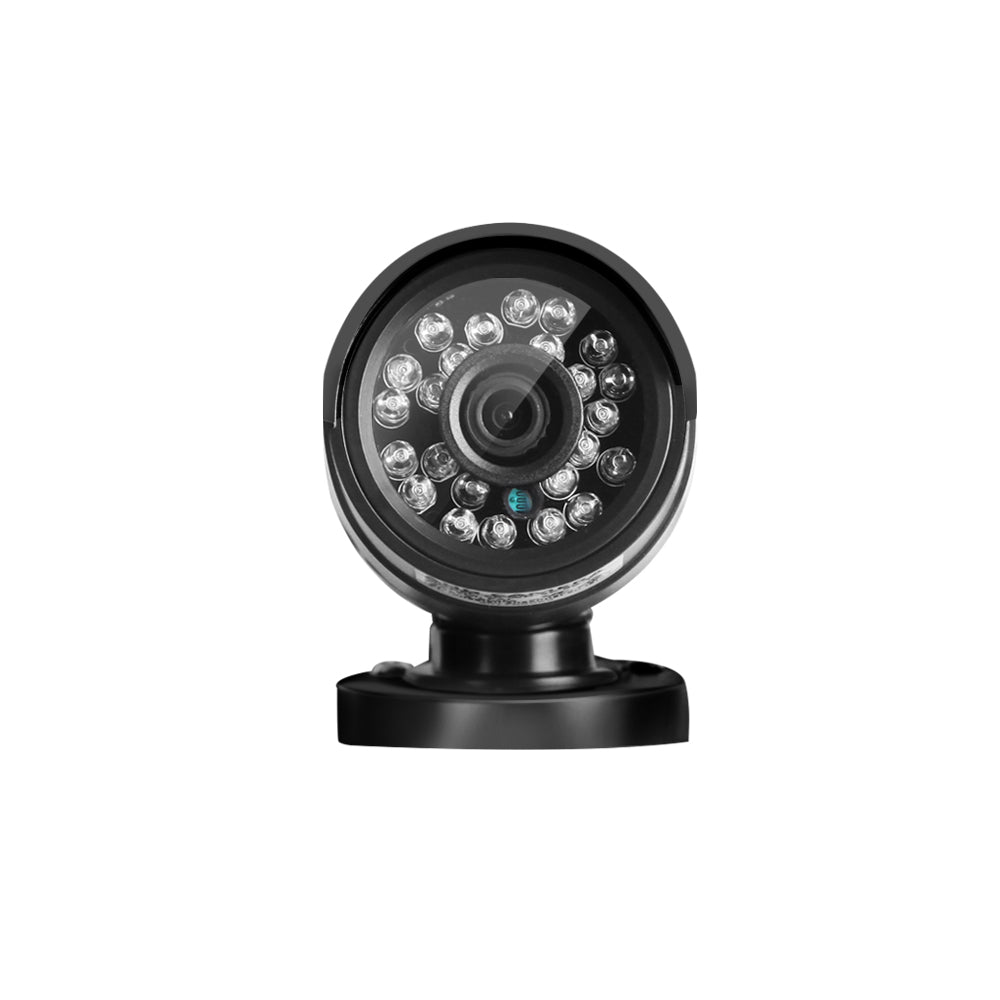

Camera:
Image sensor: 1/2.8inch V20 +SC1135 sensor (V20+FH8532)
Video resolution: 1080P (1920*1080)
Signal system: PAL/NTSC
Minimum illumination: Olux (When IR is on)
Video ouput: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDS: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/ 20m
Noise-signal ratio: 41db
Operating power: DC12V 10%
Consumption: <5W

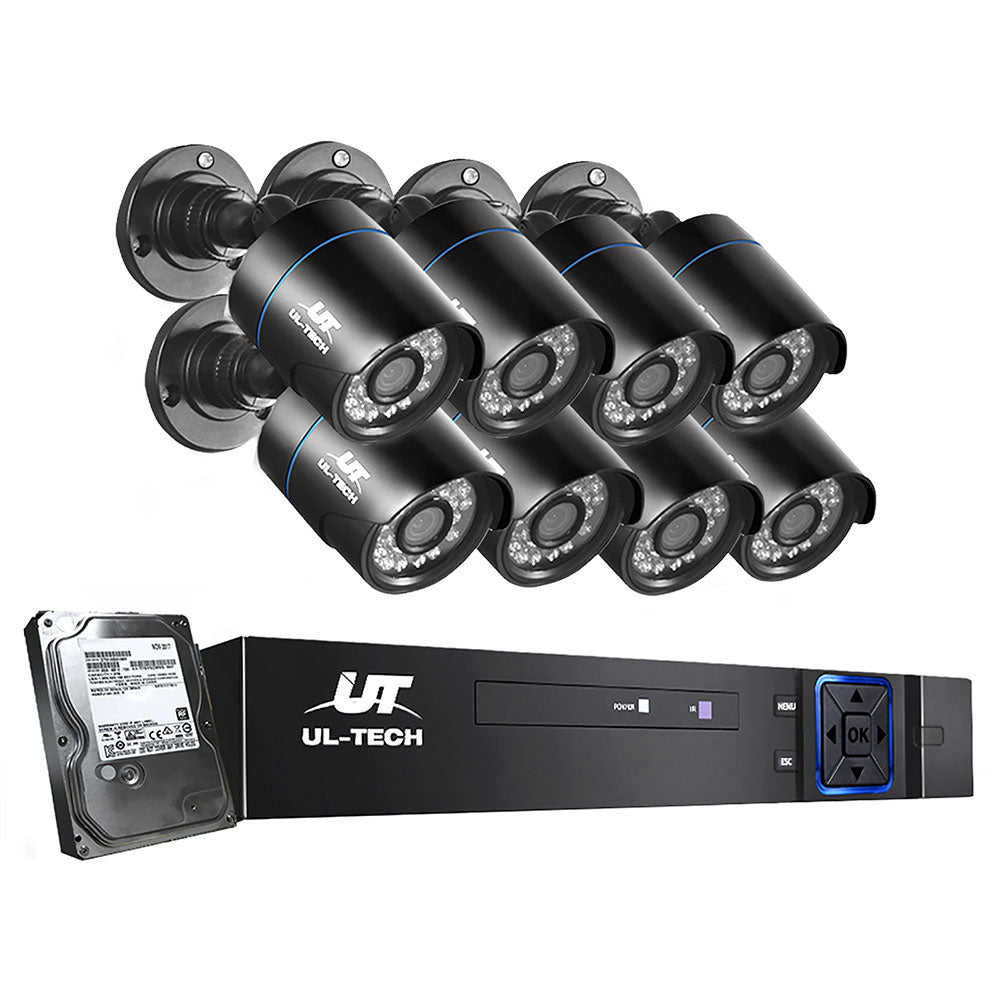

Package Content
8 x UL-tech AHD Camera
1 x 1080 8CH DVR

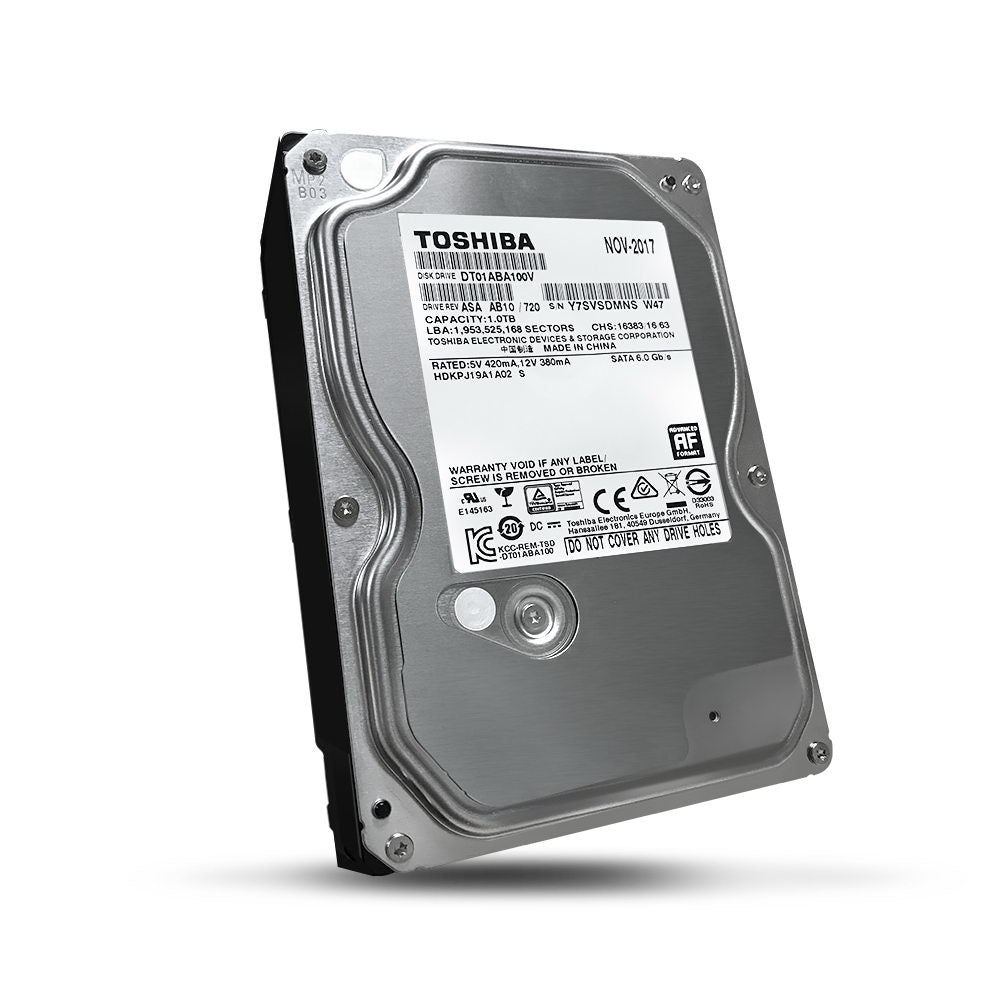

1 x 1TB Hard Drive
8 x 18.3m (60ft) 2-in-1 BNC & Power Cable
2 x 1-4 Splitter Cable
3 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
