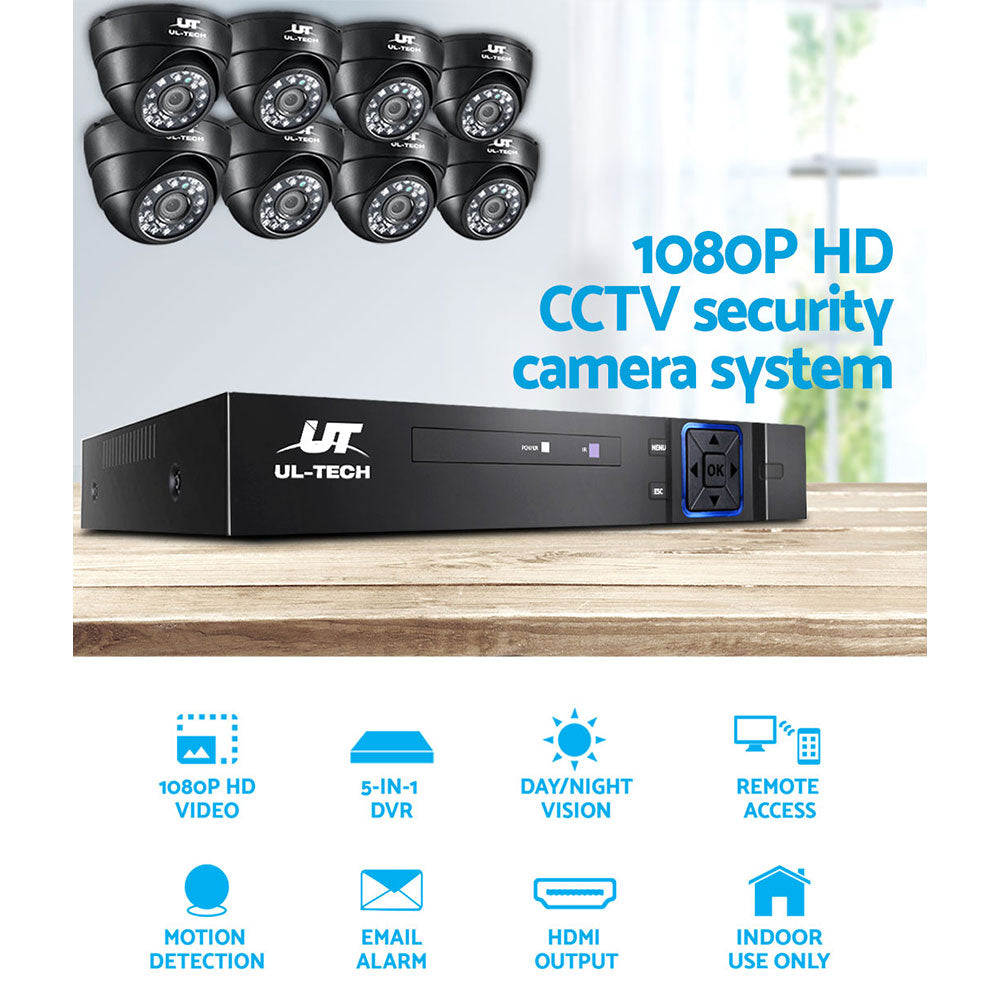

This 8-channel CCTV security system from UL-tech is designed for home surveillance and comes with 8 cameras and a 1TB hard drive for recording. It offers 1080P HD video, infrared night vision up to 20m, and motion detection across up to 192 areas. The hard drive can store up to two years of recordings.
Recordings can be reviewed by time, calendar, event or channel, and the DVR connects to the internet over Wi-Fi with P2P support. Remote viewing is available through the XMEye app on a phone or computer, and an instant email alert can be sent when motion is detected. The cameras are for indoor use only.
Note: This Camera is not for outdoor use
1080P HD
8 Channel 1080N 5-in-1 DVR
Supports AHD, TVI, CVI, CVBS and IP camera
Support P2P technology
High resolution cameras with Built-in IR-cut
Remote access
View on phone or computer by logging in XMEye app
Customizable motion detection
Instant E-mail alarm
HDMI and VGA outputs
Indoor use
Support USB backup and storage
Data protection when power outage
Support 8 channel simultaneous live viewing via smart phone
Support Capture and Record in your smart phone
Support Cloud System for Remote Access/Support HDMI Output
Easy to install
Bonus RRP$195 1TB hard drive and USB mouse
Specifications:
Video:
Codec: H.264
Monitor quality: VGA, HDMI:HD
Preview ability: 8*1080N
Encode ability: 8*1080N@12fps
Decode ability: 8*1080N@12fps
Multi-mode input: analog: 8*1080N
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 4*720P; 4*1080P; 8*720P;8*1080P;1*1080P
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record and playback:
Record mode: Manual > Alarm > Motion detection > Timing
Local playback: 8ch (local input mode)
Seatrch mode: Search by time, calender, event, channel

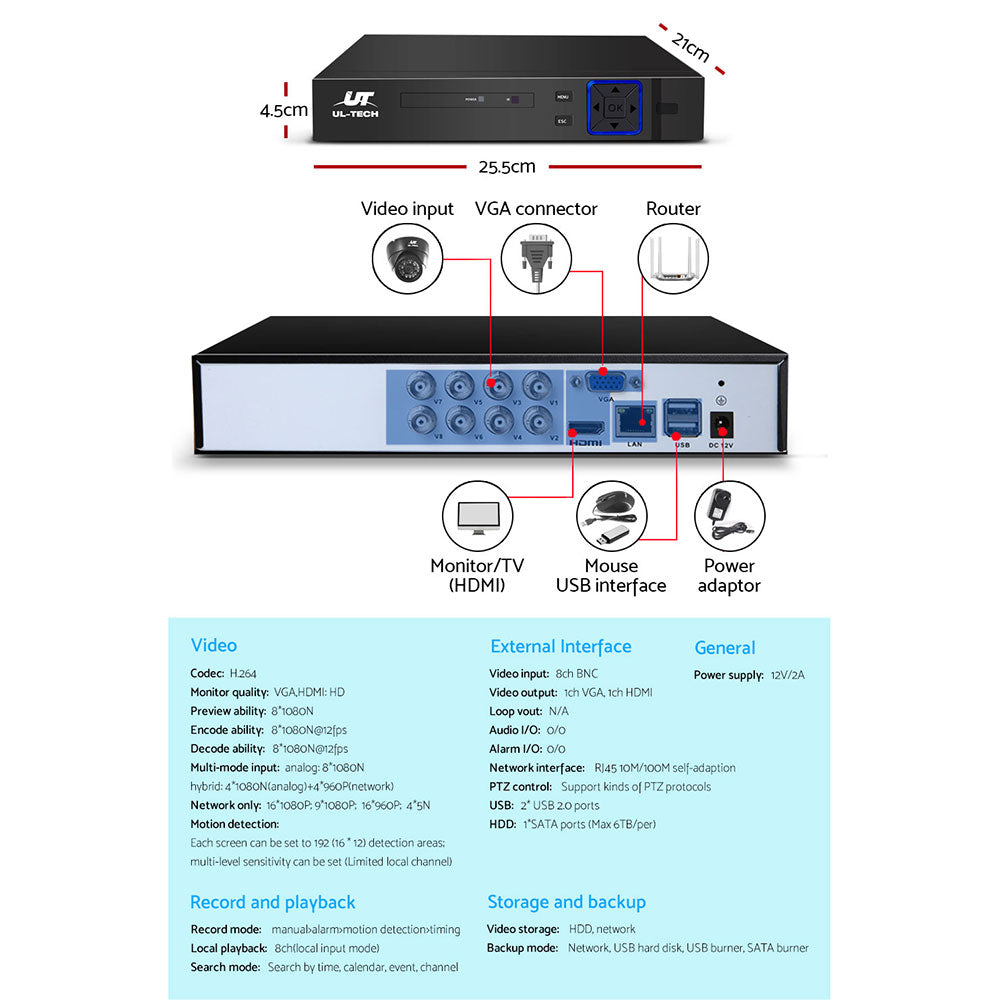

External inferface:
Video input: 8ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: 0/0
Alarm I/O: 0/0
Network interface: RJ45 10M/100M self-adaptation
PTZ control: 1*RS485, support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)
Storage and backup
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
Power supply: 12V/2A

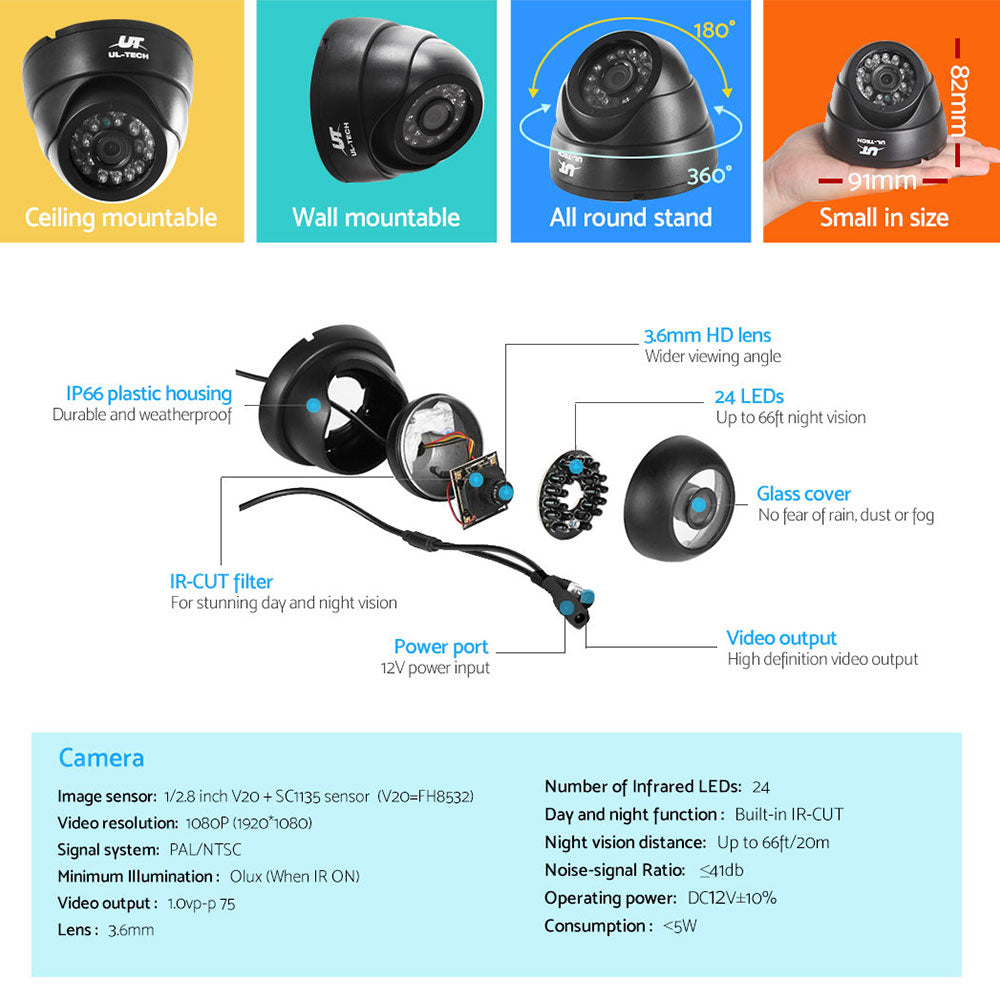

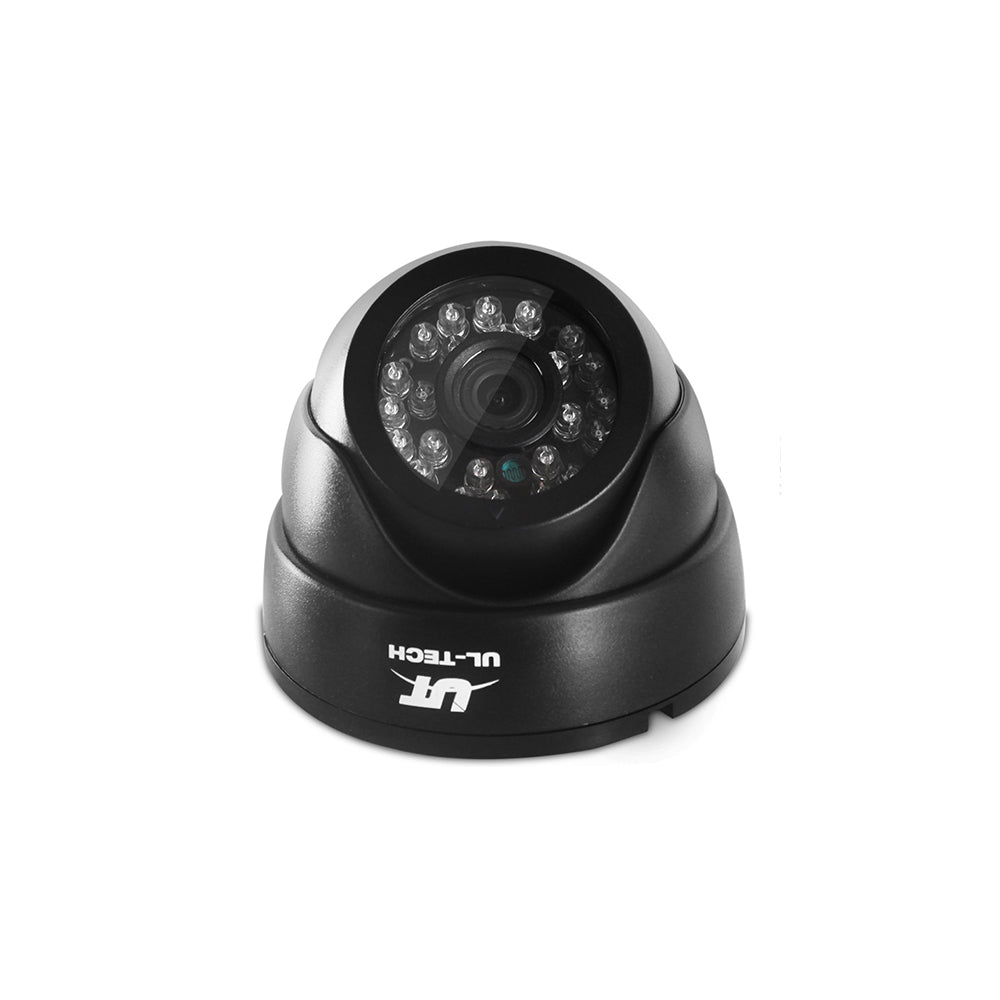

Camera:
Image sensor: 1/2.8inch V20 +SC1135 sensor (V20+FH8532)
Video resolution: 1080P (1920*1080)
Signal system: PAL/NTSC
Minimum illumination: Olux (When IR is on)
Video ouput: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDS: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/ 20m
Noise-signal ratio: 41db
Operating power: DC12V 10%
Consumption: <5W

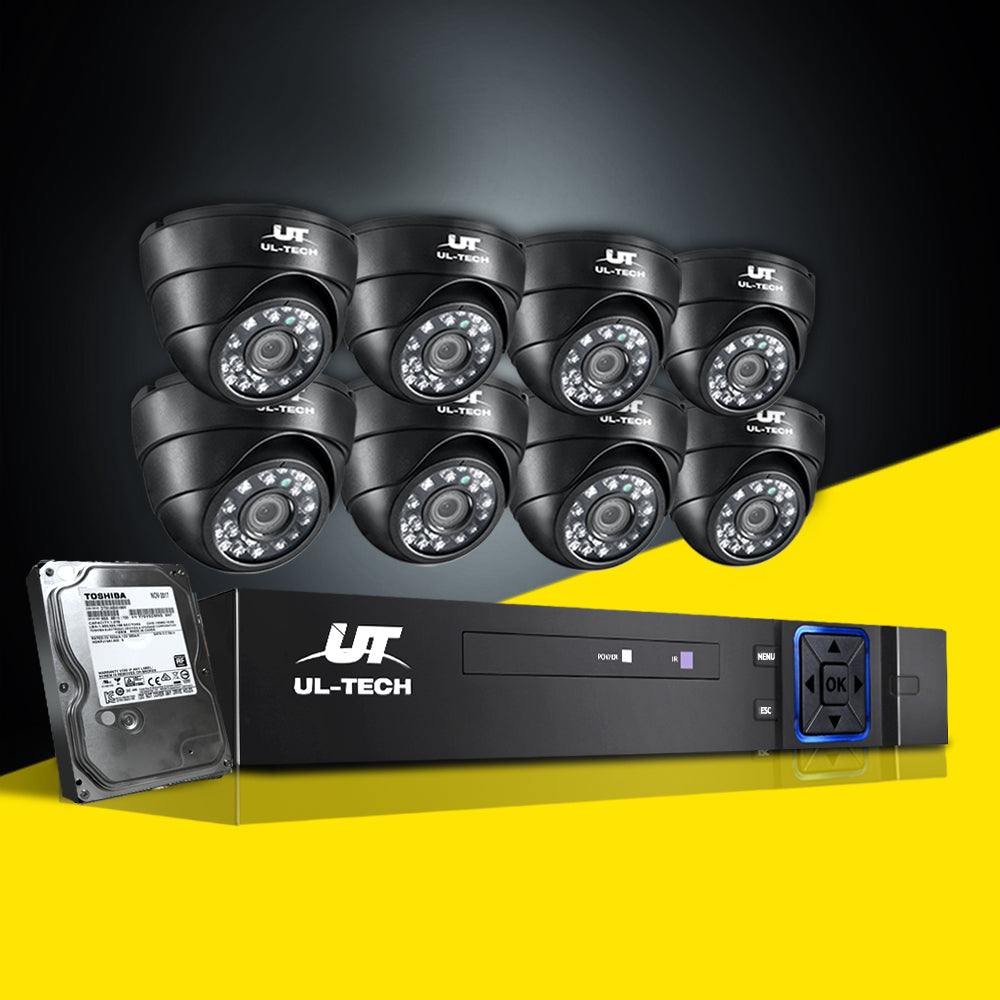

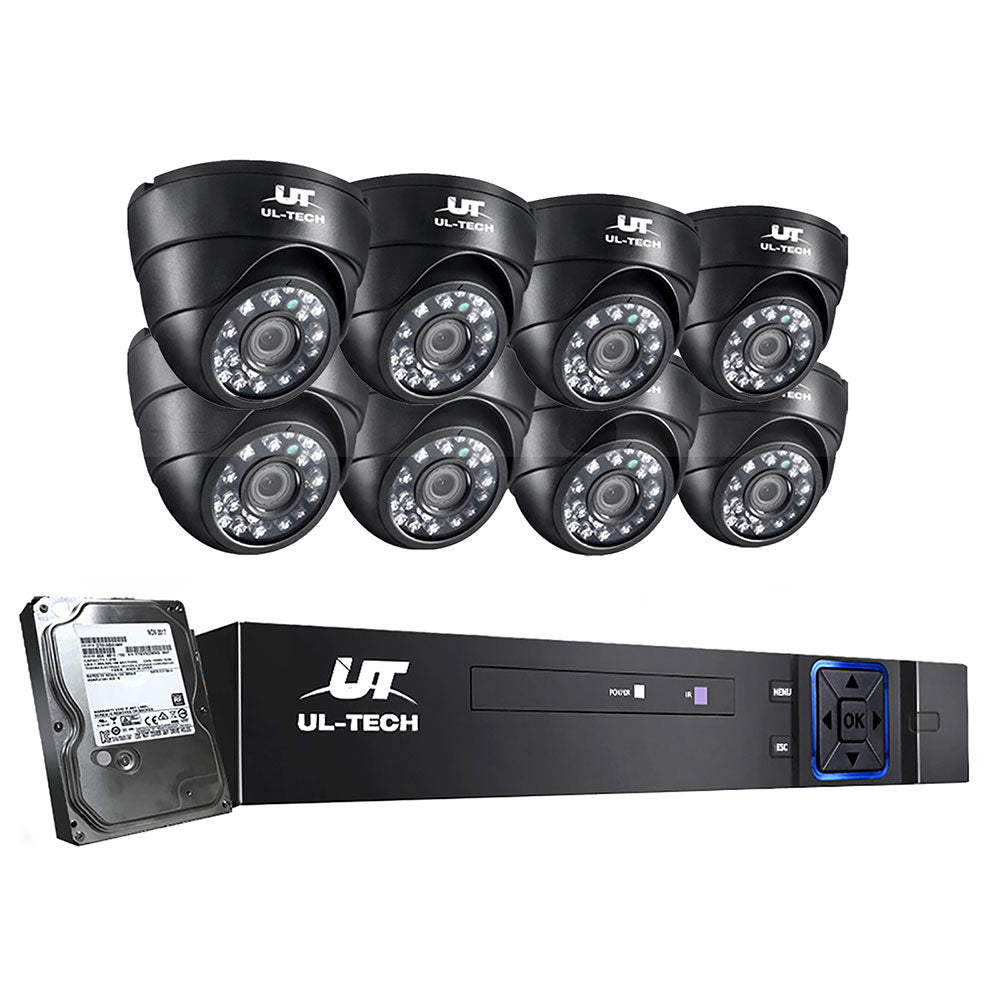

Product Contents:
8 x AHD Camera
1 x 1080 8CH DVR
1 x 1TB Hard Drive
8 x 18.3m (60ft) 2-in-1 BNC & Power Cable
2 x 1-4 Splitter Cable
3 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
