The UL-tech 8CH CCTV security system pairs 8 1080P HD cameras with an 8-channel DVR and a 4TB hard drive for home surveillance. The cameras are weatherproof, suit both indoor and outdoor use, and have infrared night vision up to 20m. The high resolution helps you identify facial features, license plates and clothing.
Motion detection covers up to 192 areas, and you can set the system to email you when unauthorised motion is detected. Recordings can be searched by time, calendar, event or channel, and the 4TB drive holds footage for a long time. A free app lets you view and record from your smartphone, and the DVR has HDMI and VGA outputs and supports USB backup.
Features
- 1080P HD video from each camera
- 8 channel 1080N 5-in-1 DVR
- Compatible with AHD, TVI, CVI, CVBS and IP cameras
- P2P technology for simple internet connection
- High resolution cameras with built-in IR-cut
- Remote access through a free app
- View live or recorded footage on phone or computer
- Customisable motion detection
- Instant email alarm when motion is detected
- HDMI and VGA outputs
- IP66 all-weather design
- Suitable for indoor and outdoor use
- USB backup and storage support
- Data protected during power outages
- Simultaneous live viewing of 8 channels on smartphone
- Capture and record from your smartphone
- Cloud system for remote access
- Easy to install
Specifications:

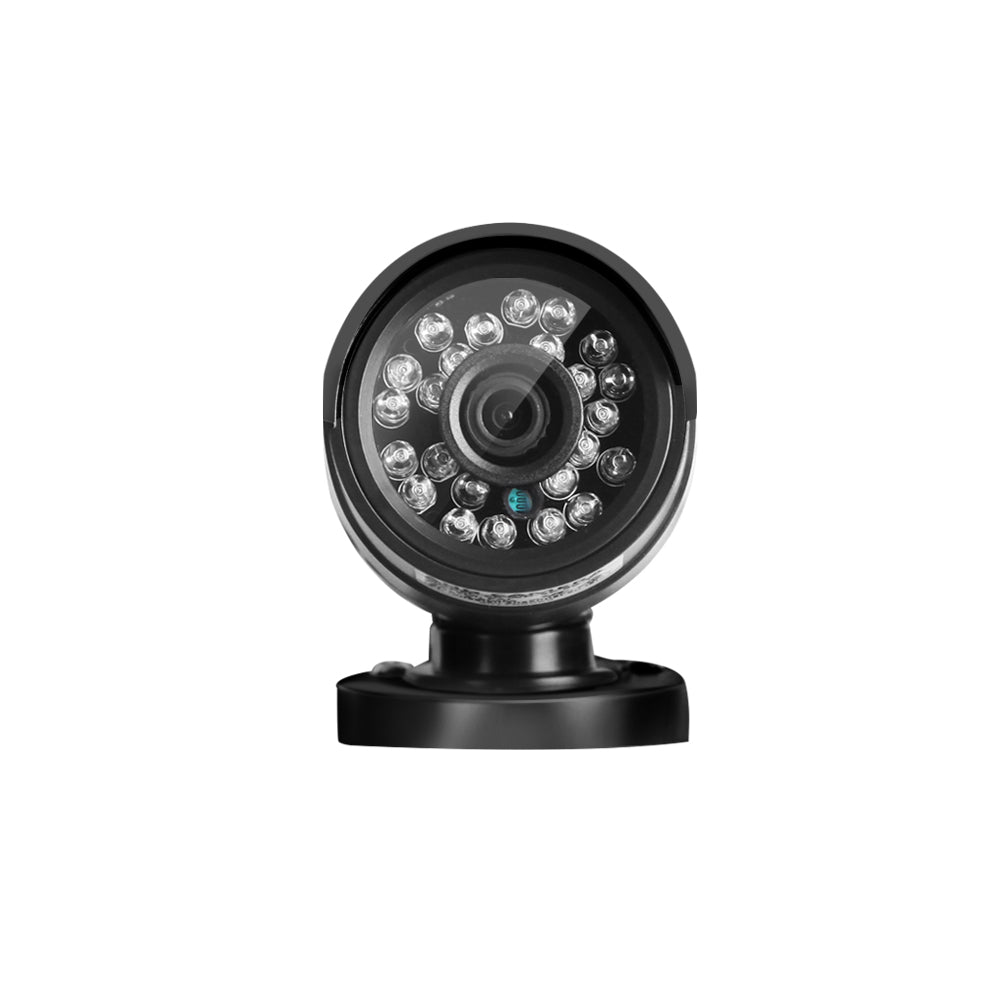

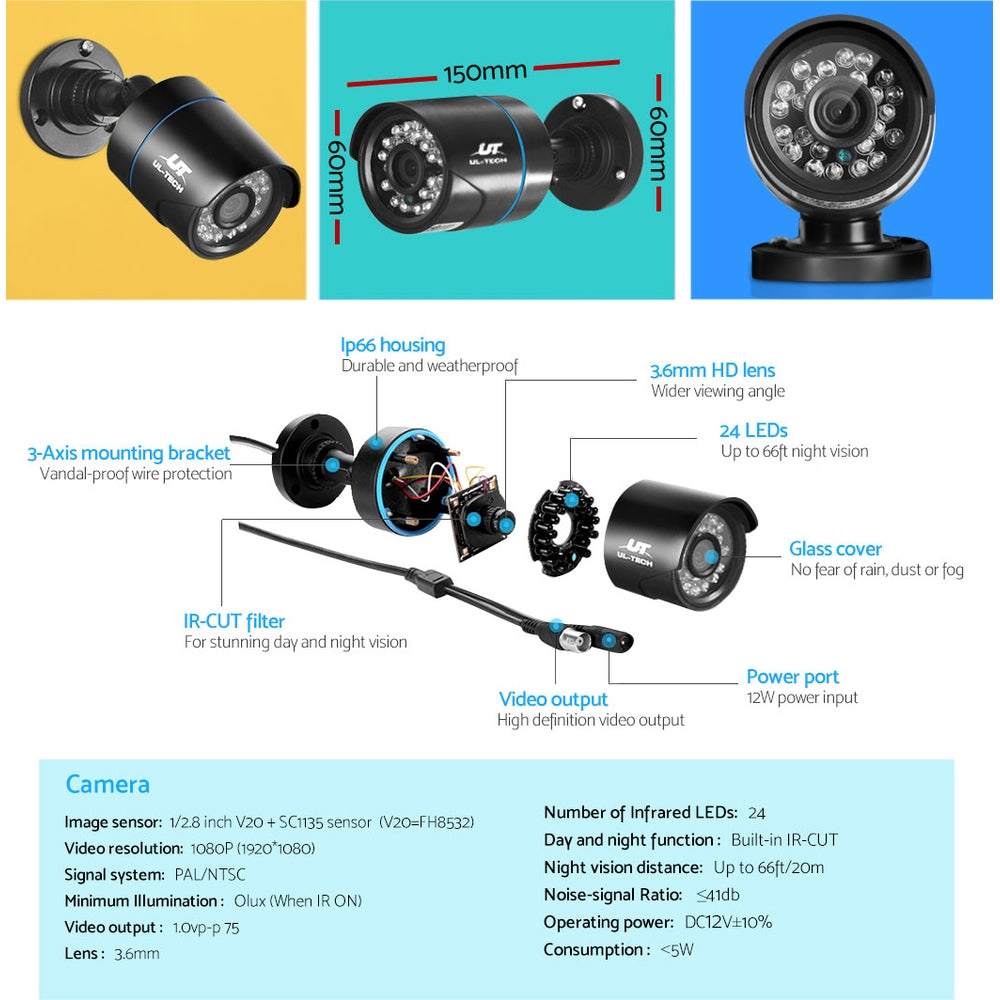

Camera:
Image sensor: 1/2.8 inch V20+ SC135 sensor
Video resolution: 1080P (1920*1080)
Signal system: PAL/NTSC
Minimum illumination: Olux (When IR ON)
Video output: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDs: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/20m
Noise-signal ration: ≤41db
Operating power: DC12V±10%
Consumption: ?5W
Video:
Codec: H.264
Monitor quality: VGA, HDMI: HD
Preview ability: 8*1080N
Encode ability: 8*1080N@12fps
Decode ability: 8*1080N@12fps
Multi-mode input: analog: 8*1080N
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 16*720P; 9*1080P;16*960P;4*5M
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record mode: Manual > Alarm > Motion detection > Timing
Local playback: 8ch (local input mode)
Seatrch mode: Search by time, calender, event, channel

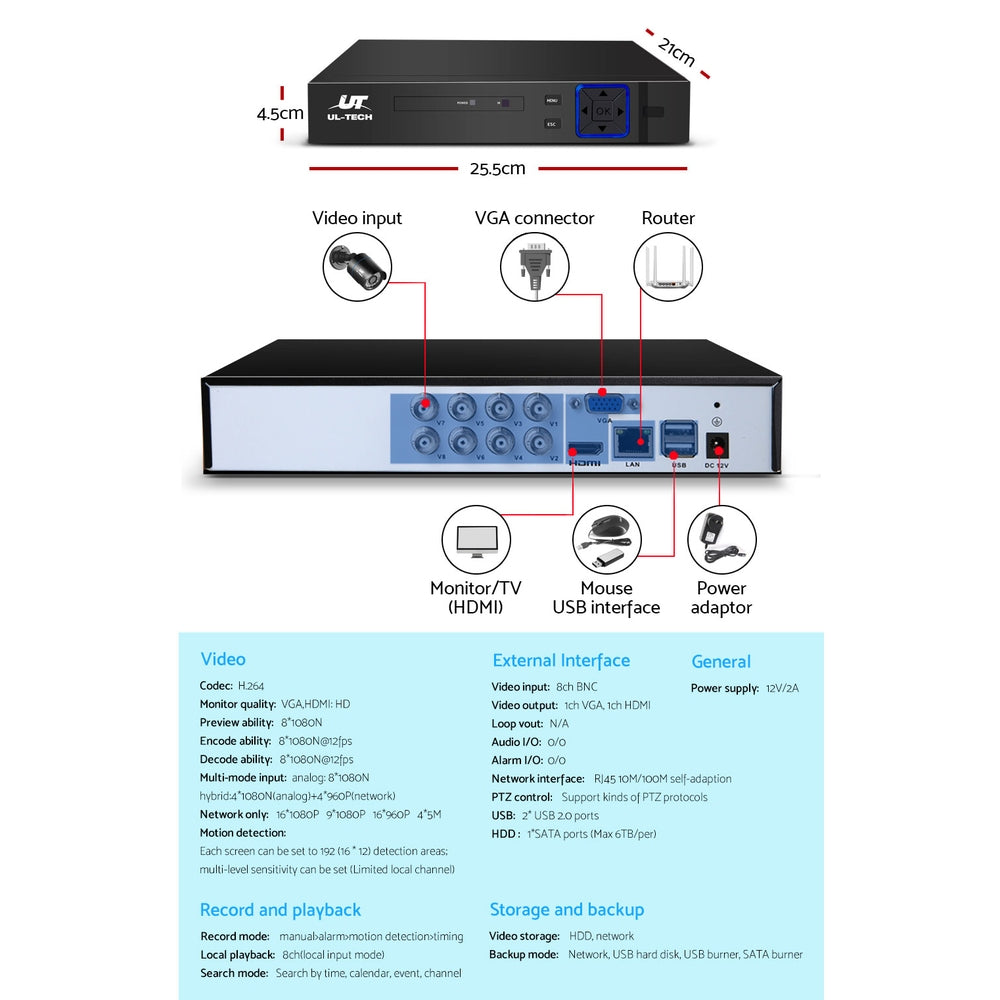

External inferface:
Video input: 8ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: O/O
Alarm I/O: O/O
Network interface: RJ45 10M/100M self-adaptation
PTZ control: support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)
Storage and backup:
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
Power supply: 12V/2A
Assembly Required: Yes
Number of Packages: 2
Package Content
UL-tech 1080P Camera x8
1080P 8CH DVR X1

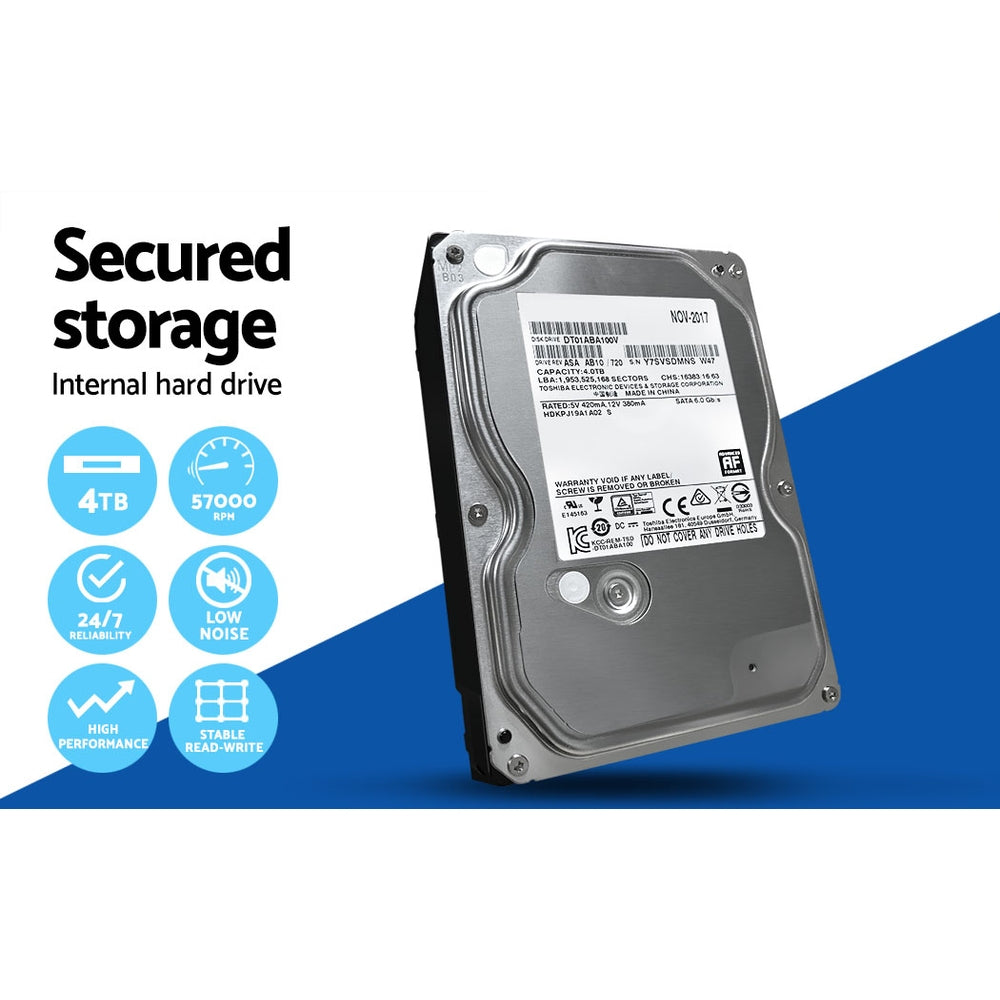

4TB Hard Drive X1
18.3m (60ft) 2-in-1 BNC Power Cable x8
1-4 Splitter Cable X2
12V/ 2A Power X3
USB Mouse X1
User Manual X1
This product comes with 1 year warranty
