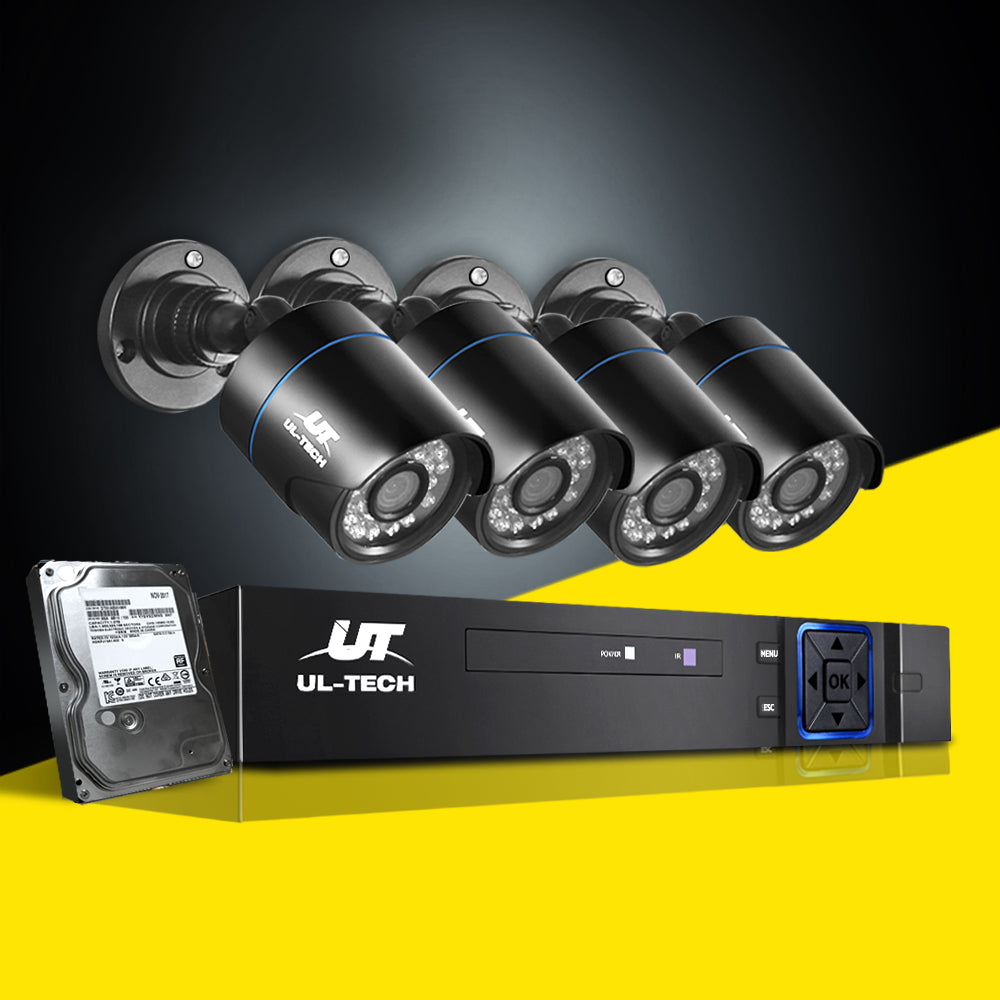

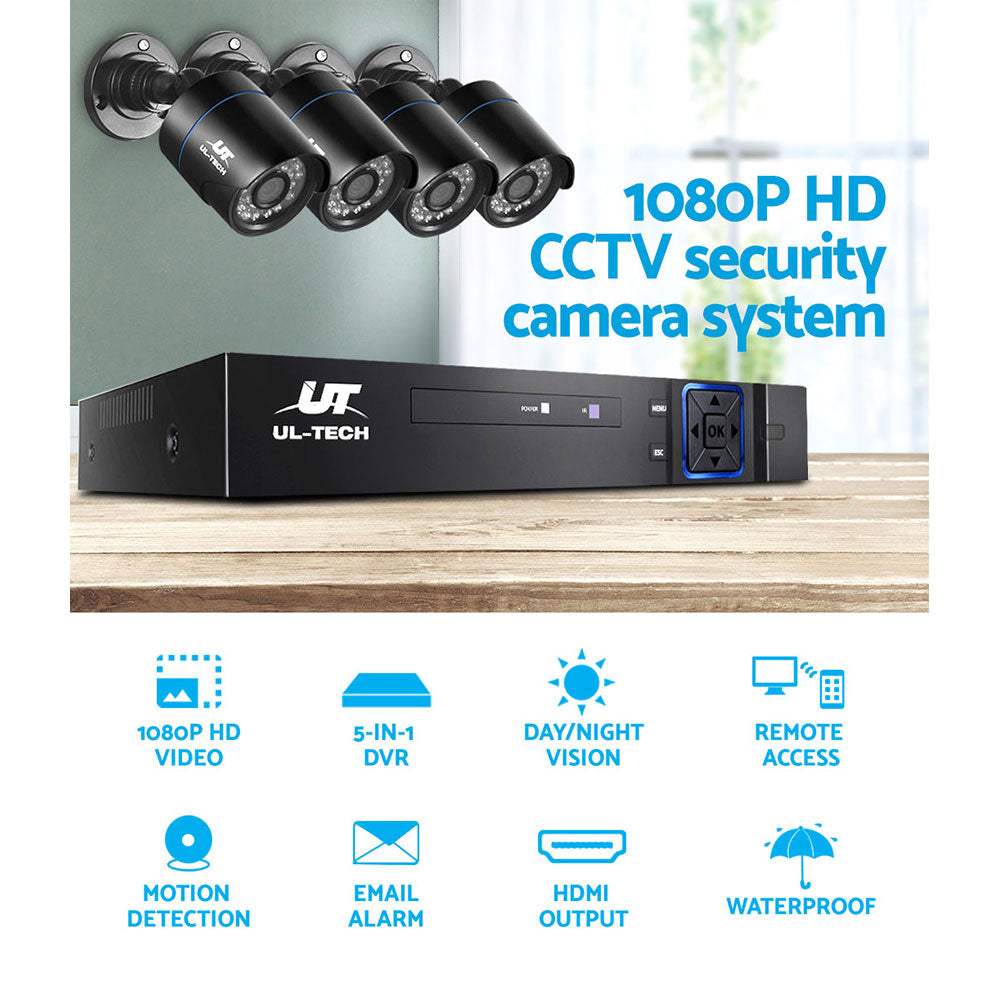

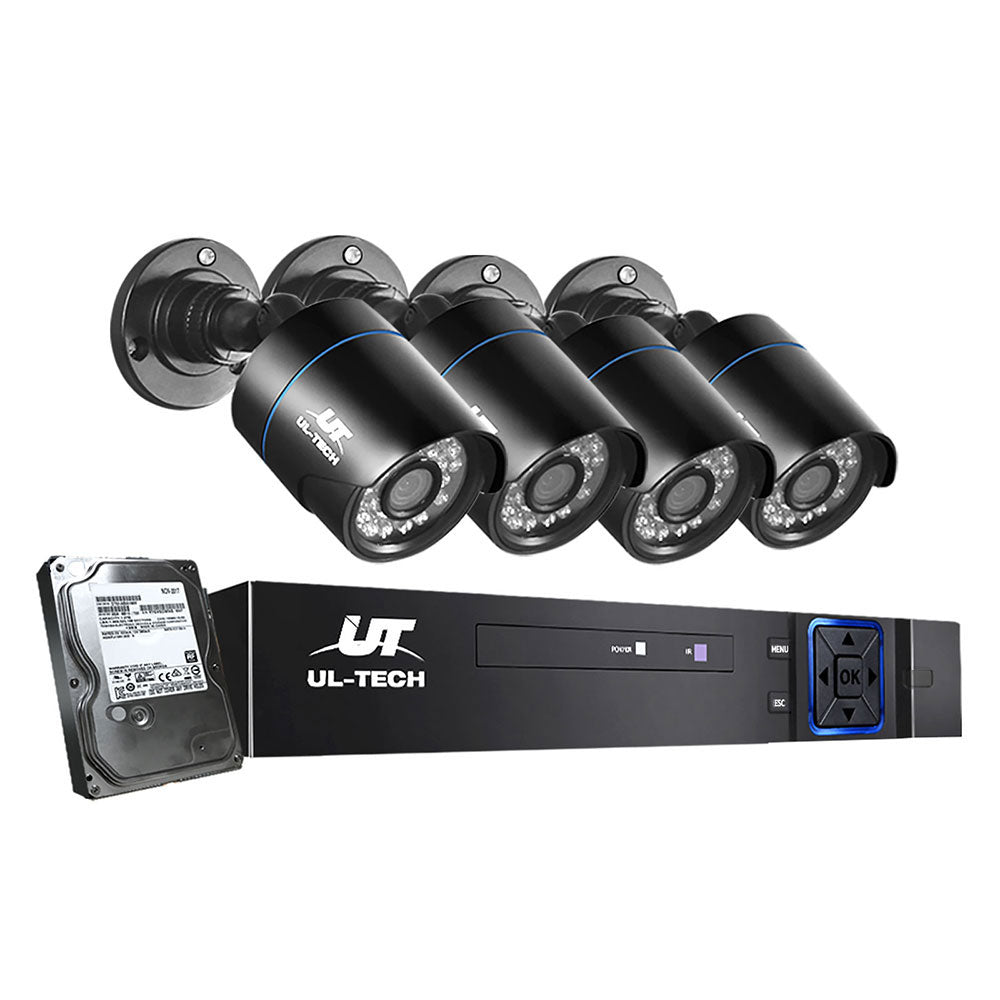

This UL-Tech 4 channel CCTV security kit gives homeowners a complete setup for watching indoor and outdoor areas. It includes four cameras, a 4 channel DVR and a 1TB hard drive for storing recordings. The cameras record in 1080P HD, and their infrared night vision reaches 20m.
Motion detection covers up to 192 areas on each screen, and you can adjust the sensitivity so alerts trigger when you need them. The system connects over Wi-Fi with P2P support, and you can view live or recorded footage on a smartphone through the XMEye app. An email alert is sent if unauthorised motion is detected.
Features
- 1080P HD video resolution
- 4 channel 1080N 5-in-1 DVR
- Supports AHD, TVI, CVI, CVBS and IP cameras
- P2P technology for easy internet connection
- High resolution cameras with built-in IR-cut
- Remote access from phone or computer via XMEye app
- Customisable motion detection
- Instant email alarm
- HDMI and VGA outputs
- IP66 all-weather design
- Indoor and outdoor use
- USB backup and storage support
- Data protection during power outages
- Simultaneous live viewing of 4 channels on smartphone
- Capture and record to smartphone
- Cloud system for remote access
- Easy installation
- Bonus 1TB hard drive and USB mouse
Specifications: Video:
Codec: H.264
Monitor quality: VGA, HDMI:HD
Preview ability: 4*1080N
Encode ability: 4*1080N@12fps
Decode ability: 4*1080N@12fps
Multi-mode input: analog: 4*1080N; 4*AHD-M; 4*AHD-L
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 4*720P; 4*1080P; 8*720P;8*1080P;1*1080P
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record and playback:
Record mode: Manual > Alarm > Motion detection > Timing Local playback: 8ch (local input mode) Seatrch mode: Search by time, calender, event, channel
External inferface:
Video input: 8ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: 0/0
Alarm I/O: 0/0
Network interface: RJ45 10M/100M self-adaptation
PTZ control: 1*RS485, support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)
Storage and backup
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
Power supply: 12V/2A

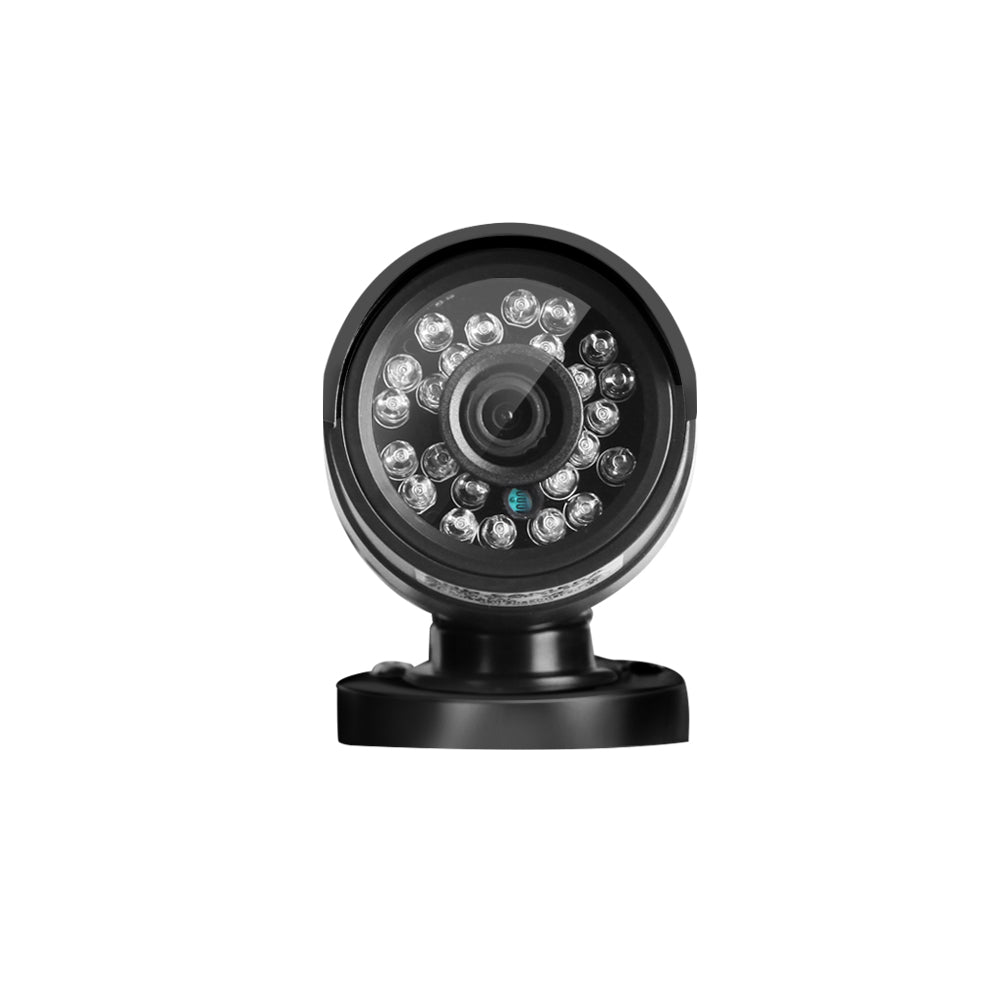

Camera: Image sensor: 1/2.8inch V20 +SC1135 sensor (V20+FH8532)
Video resolution: 1080P (1920*1080)
Signal system PAL/NTSC
Minimum illumination: Olux (When IR is on)
Video ouput: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDS: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/ 20m
Noise-signal ratio: 41db
Operating power: DC12V 10%
Consumption: <5W
Product Contents:
4 x AHD Camera
4 x 1080 4CH DVR

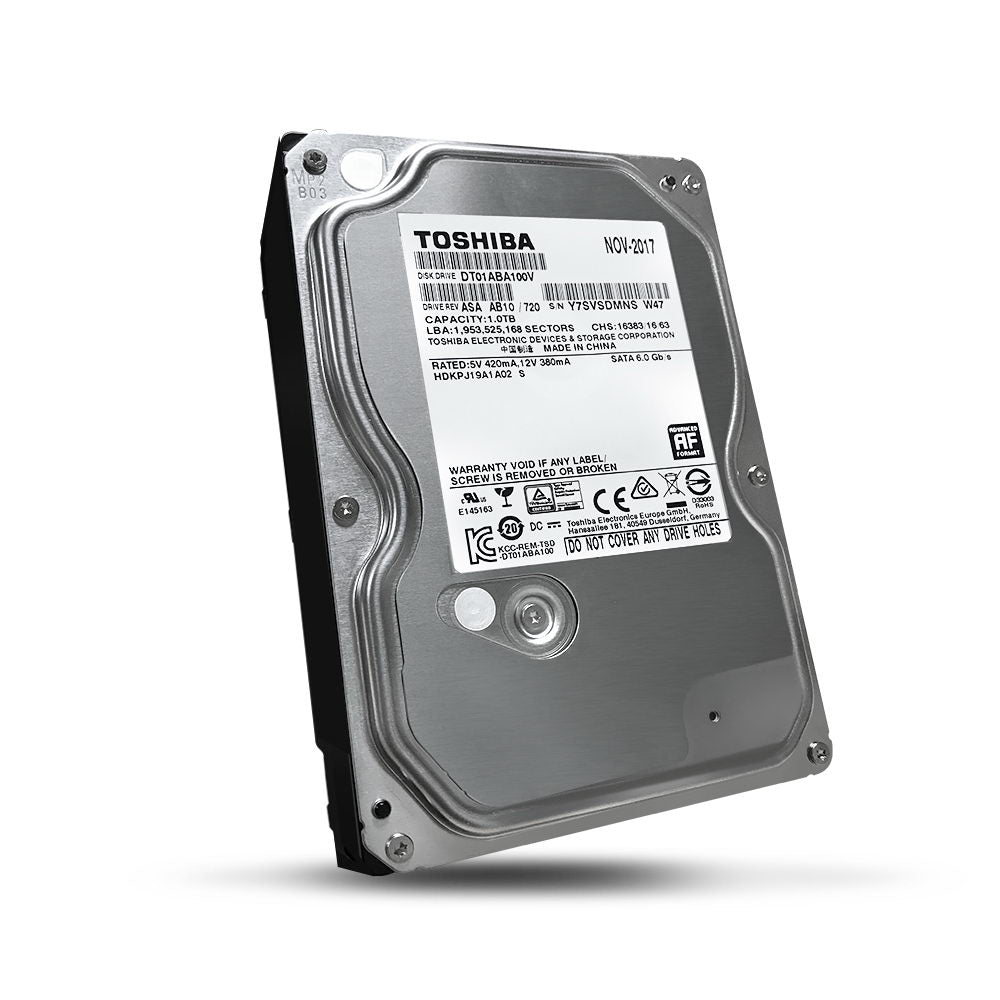

1 x 1TB Hard Drive
4 x 18.3m (60ft) 2-in-1 BNC & Power Cable
1 x 1-4 Splitter Cable
2 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
