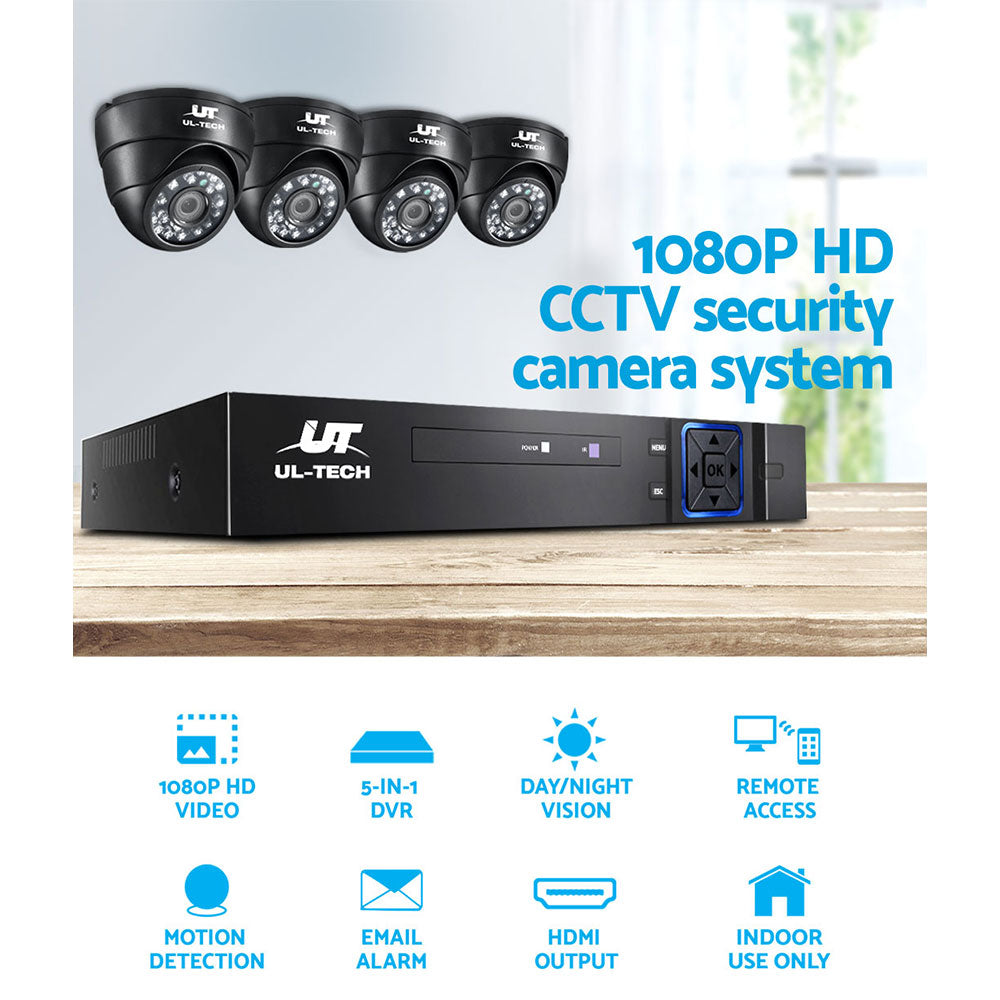

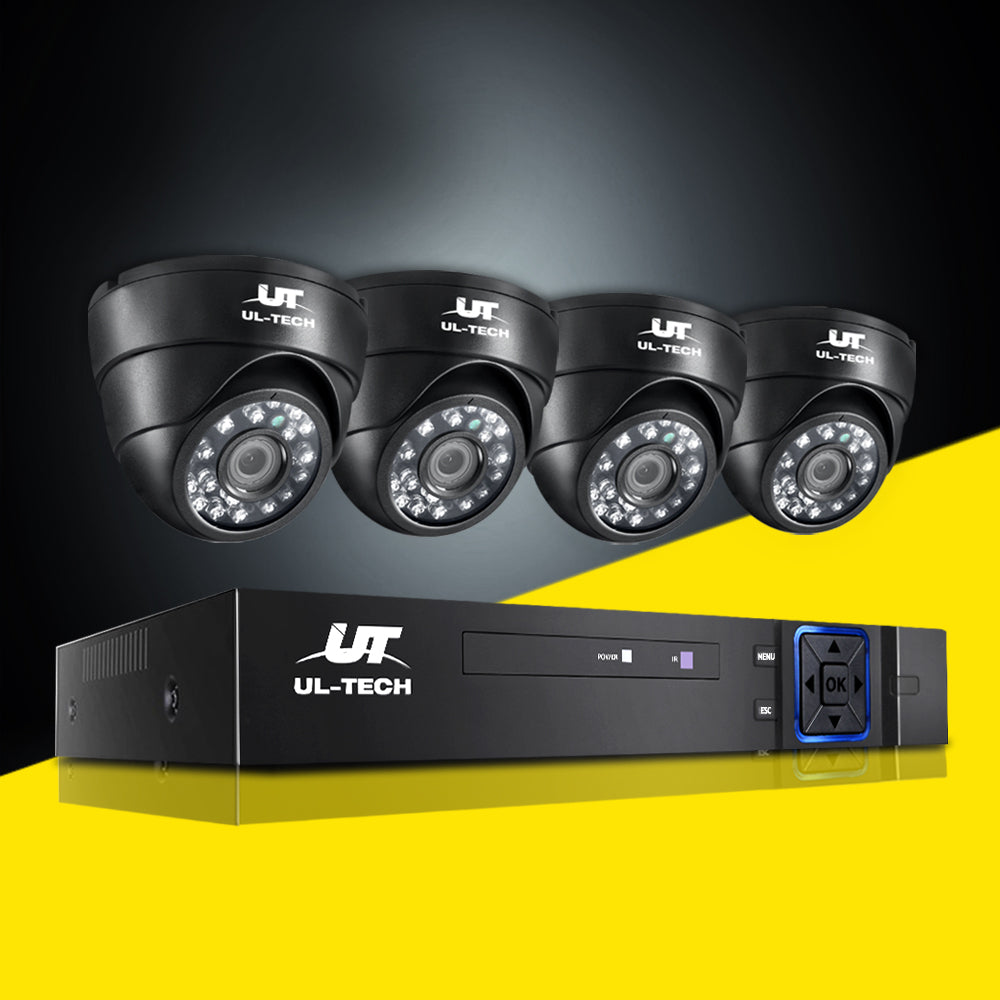

This UL-Tech 8-channel CCTV security system suits homeowners who want to keep an eye on their home. It comes with four AHD cameras and an 8CH 5-in-1 DVR, and the cameras offer 1080P HD live and recorded video with infrared night vision within a 20m radius. The cameras are not for outdoor use.
Motion detection covers up to 192 areas, and you can set it so cameras only activate when motion is detected. Remote viewing is possible through the app on a smartphone or mobile device, and an email alert is sent if unauthorised motion is detected. An external hard drive, not included, is needed to record video.
Note: This product require a Hard Drive (not included) to record the video
Note: Camera angle only can be adjusted by hand manually
Note: This Camera is not for outdoor use
Features
- 1080P HD video
- 8 channel 1080N 5-in-1 DVR
- Supports AHD, TVI, CVI, CVBS and IP cameras
- Supports P2P technology and cloud remote access

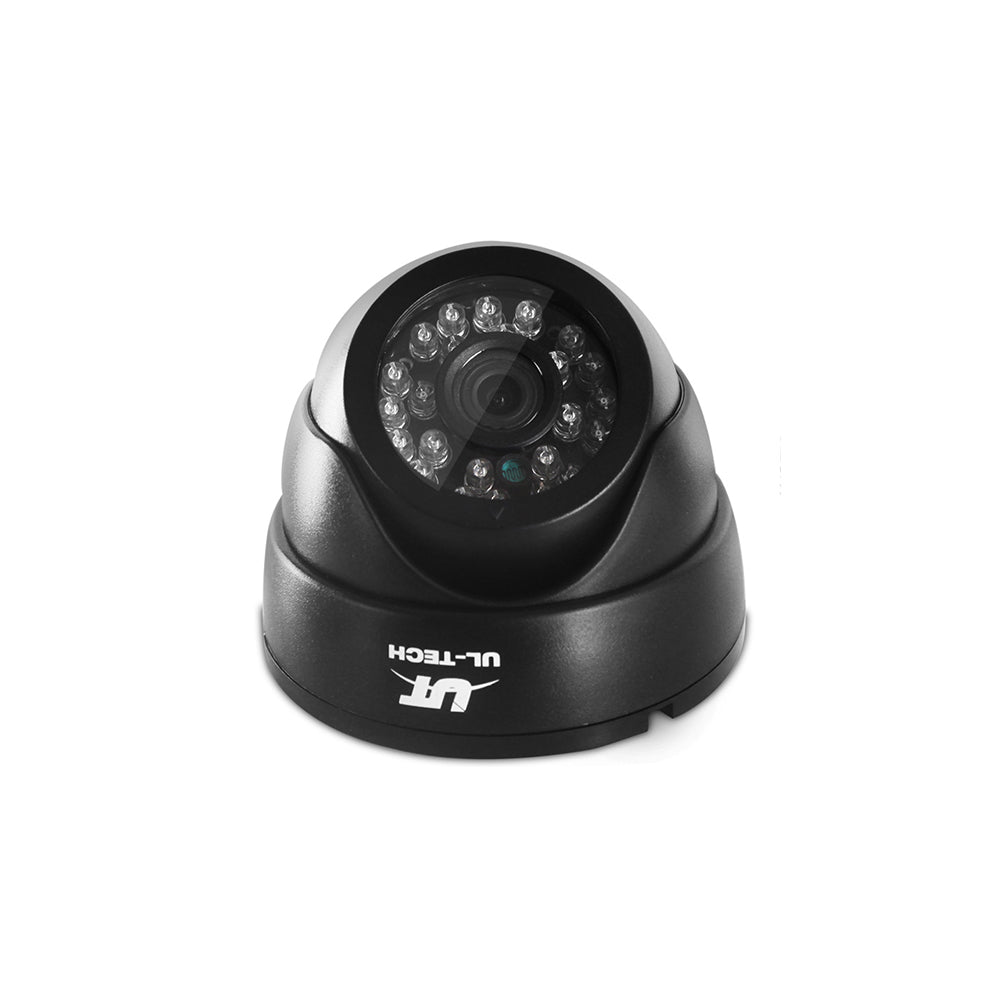

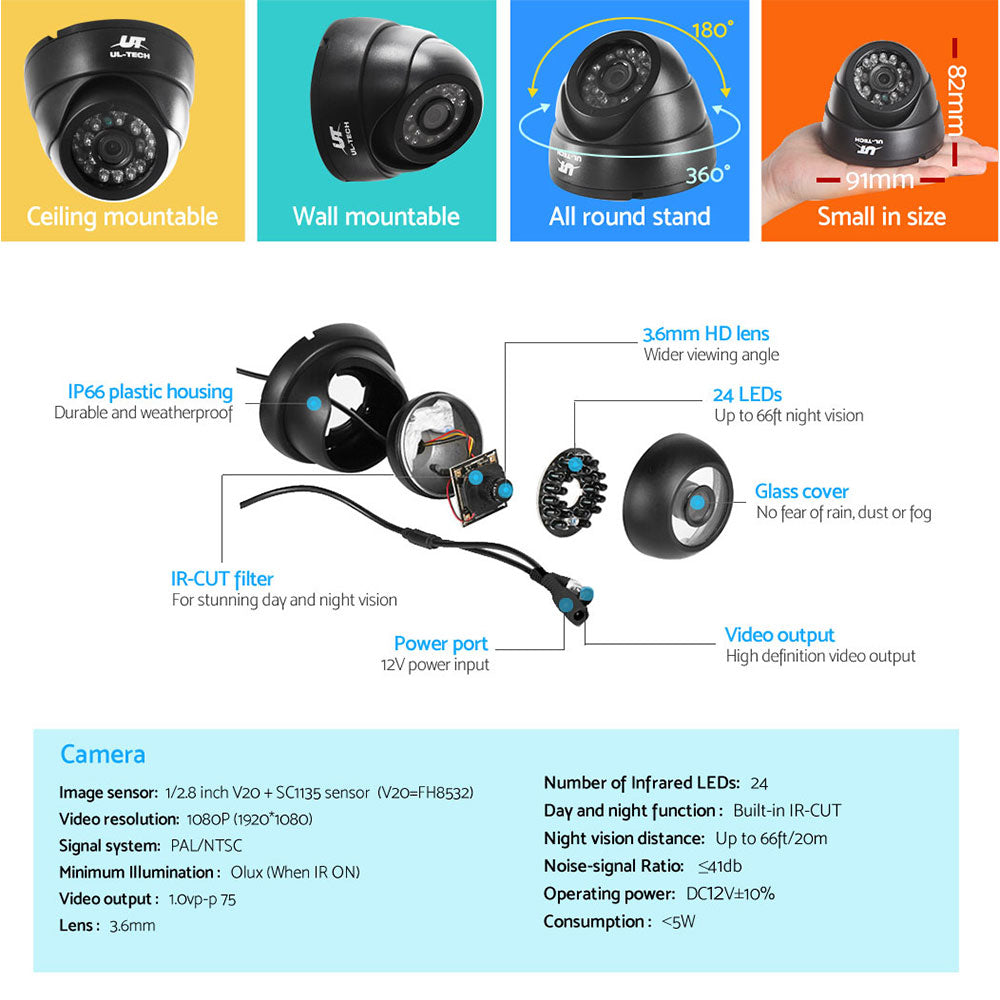

- High resolution cameras with built-in IR-cut
- Internal hard disk for storage, not included
- Remote viewing via free app on phone or computer
- Customisable motion detection
- Instant email alarm
- HDMI and VGA outputs
- USB backup and storage support
- Data protection during power outages
- Simultaneous live viewing of 8 channels on smartphone
- Capture and record on smartphone
- Easy to install
- Includes USB mouse
Specifications
Video
Codec: H.264
Monitor quality: VGA,HDMI: HD
Preview ability: 8*1080N
Encode ability: 8*1080N@12fps
Decode ability: 8*1080N@12fps
Multi-mode input: analog: 8*1080N
hybrid: 4*1080N(analog)+4*960P(network)
Network only: 16*1080P; 9*1080P; 16*960P; 4*5N
Motion detection:
Each screen can be set to 192 (16 * 12) detection areas;
multi-level sensitivity can be set (Limited local channel)

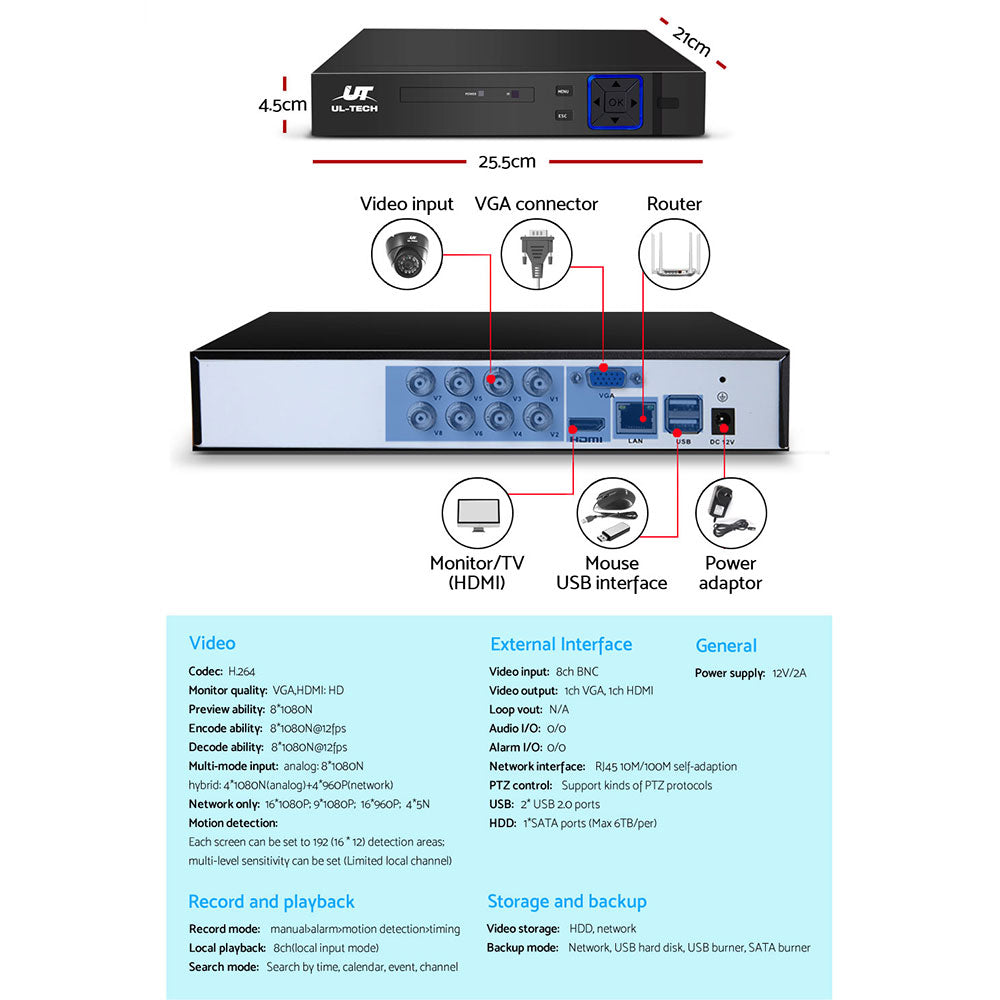

External Interface
Video input: 8ch BNC
Video output: 1ch VGA, 1ch HDMI
Loop vout: N/A
Audio I/O: 0/0
Alarm I/O: 0/0
Network interface: RJ45 10M/100M self-adaption
PTZ control: 1*RS485, Support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD : 1*SATA ports (Max 6TB/per)
General
Power supply: 12V/2A
Record and playback
Record mode: manual>alarm>motion detection>timing
Local playback: 8ch(local input mode)
Search mode: Search by time, calendar, event, channel
Storage and backup
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner.

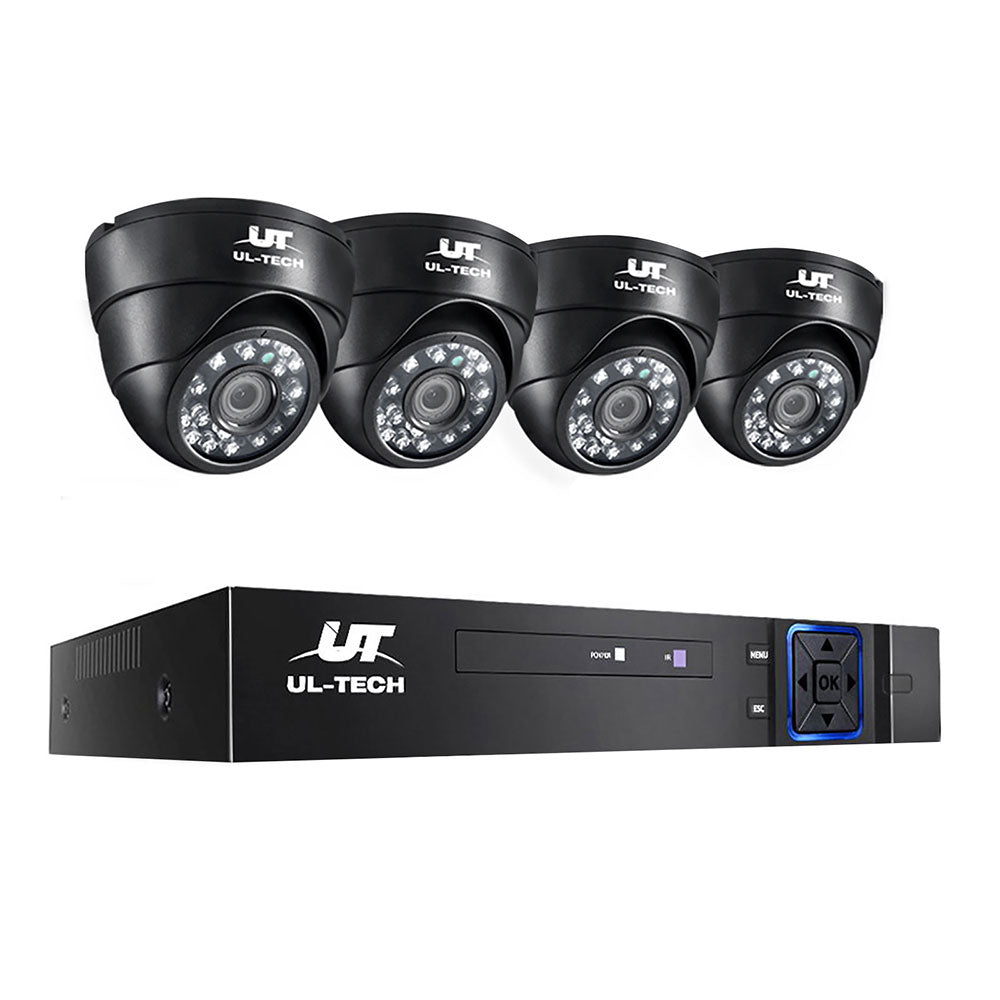

Package Content
4 x AHD Camera
1 x 1080 8CH DVR
4 x 18.3m (60ft) 2-in-1 BNC & Power Cable
1 x 1-4 Splitter Cable
2 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
