The BSR5000 Tracked Skid Steer is built tough, built smart, and built for Australia. Ideal for landscapers, builders, tradies and rural property owners needing a high-performance skid steer that won't chew up space or budget. The BSR5000 delivers compact muscle with pro-grade hydraulics and serious lift power.
COMPACT POWERHOUSE
The Baumr-AG BSR5000 delivers serious grunt in a tight footprint. With an electric start 10hp 306c engine, this unit blends reliable power and easy starting. The 830mm width is ideal for navigating confined worksites, and its zero-turn radius makes pivoting in tight spots effortless.
HEAVY LIFTER

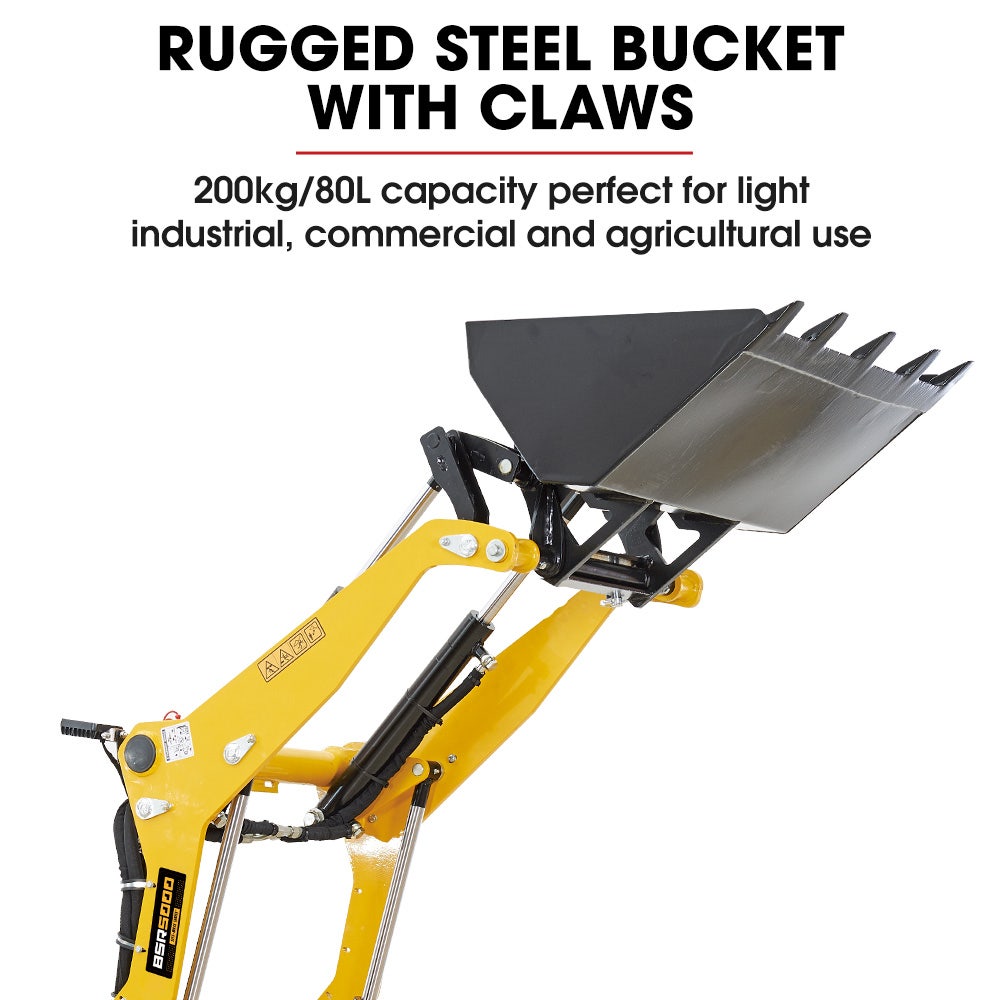

Despite its compact form, the BSR5000 handles up to 200kg lift and 80L operating capacity with the included bucket. Load, lift and dump with confidence. Its high-reach arms are capable of a 2 metre max dump height and 750mm reach, perfect for trailers, skips and landscaping work.
HYDRAULIC PRECISION

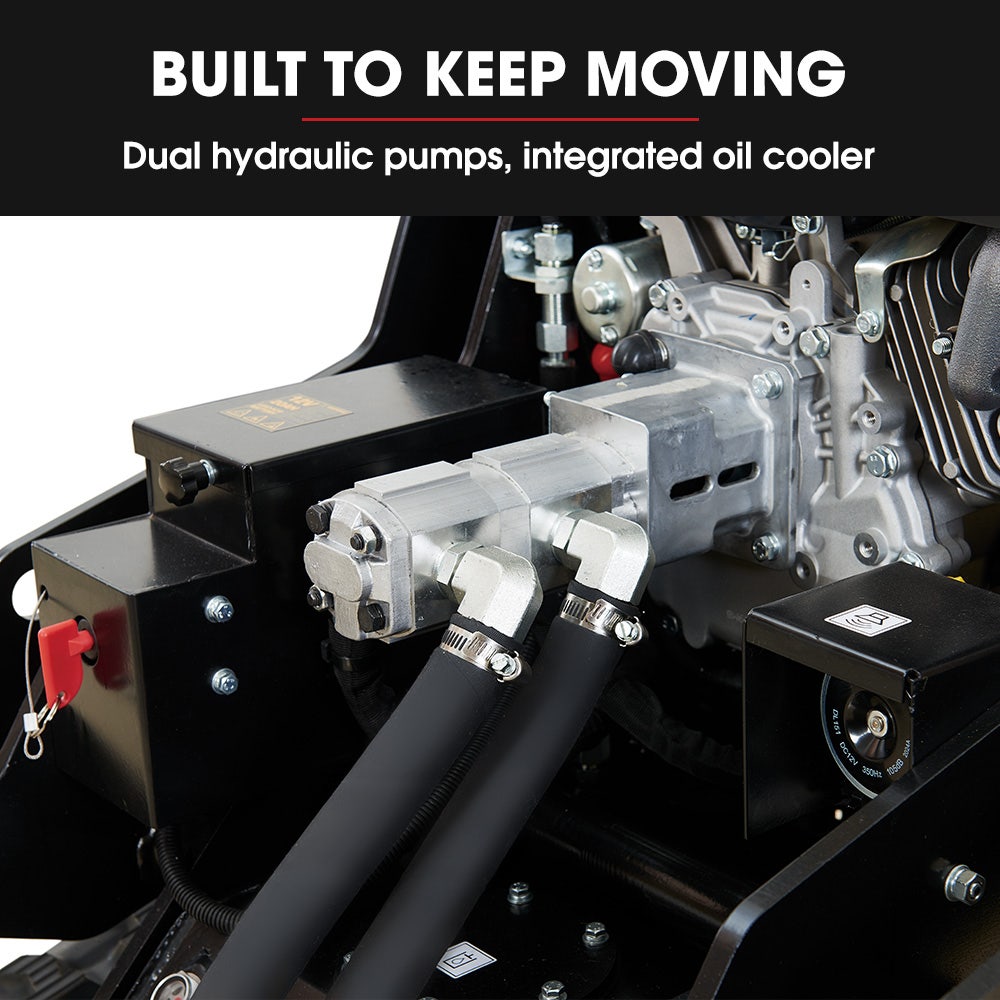

Twin hydraulic pumps power responsive lift and drive functions, routed through high-performance hoses and cooled with a dedicated hydraulic oil radiator for peak performance in hot Aussie conditions. The dual pumps ensure consistent flow and pressure when it matters.
TOUGH WHERE IT COUNTS
Reinforced rubber tracks with steel wire cores grip well over dirt, gravel or slopes up to 25. A steel frame with industrial powder coating resists rust, while premium HRB bearings and HRB drivetrain components enhance durability across the board.
SMART SETUP
With intuitive lever controls and a responsive throttle, make it easy for operators to control. A high-performance air filter helps keep the engine breathing clean even in dusty environments.
EFFICIENT OPERATION
Fast lifting cycles mean more efficiency and more work done. A generous 29L hydraulic oil tank, you'll spend less time topping up and more time getting jobs done.
SPECIFICATIONS
-
Brand: Baumr-AG
-
Model: BSR5000
-
Engine: 306cc, single cylinder, 4-stroke, OHV
-
Fuel Type: Petrol
-
Fuel Tank: 6L
-
Starter: Electric Start
-
Battery: 12V 20Ah, Lead-Acid
-
Power Type: Hydraulic Drive
-
Hydraulic Oil Tank: 29L
-
Drive Type: Track
-
Track Width: 180mm
-
Travel Speed: 2.3 km/h
-
Service Brake: Hydraulic Motor Self-Locking Brake
-
Max Operating Grade: 25
-
Ground Clearance: 114mm (Center), 62mm (Side)
- BUCKET
-
Operating Capacity: 200kg
-
Bucket Capacity: 80L
-
Bucket Working Width: 74cm
-
Bucket Height: 39cm
-
Bucket Weight: 38kg
-
Max. Dump Height: 2000mm
-
Max. Dump Distance: 750mm
-
Operating Height (with Bucket): 2413mm
-
Lifting Time: 6 sec
-
Falling Time: 5 sec
-
Certificates: CE, EMC
-
Note: Requires assembly
IN THE BOX
-
1 x Baumr-AG BSR5000 Tracked Skid Steer
-
1 x Bucket
- Note: User Manual is accessible online
SIZE WEIGHT
-
Product Dimensions (W x L x H): 75 x 139 x 120cm
-
Product Weight: 753kg (with bucket)
-
Carton Dimensions (W x L x H): 80 x 145 x 133cm
-
Carton Weight: 800kg
