Brand: Legrand
Features:
- Digital timer with 7-day program (weekly timer) for DIN rail, 1-module
- The timer has 1 button with 28 switching programs, program display directly on the device
- Time-saving programming by selecting daily blocks, selection can be adjusted or preset blocks Mon-Fri and Mon-So
- Continuous switching on/off, circuit anticipation, automatic summer/winter time changeover
- 3 years power reserve, gear accuracy +/- 0.1 sec/day, shortest switching time: 1 minute, switching output: 1 contact
Details:

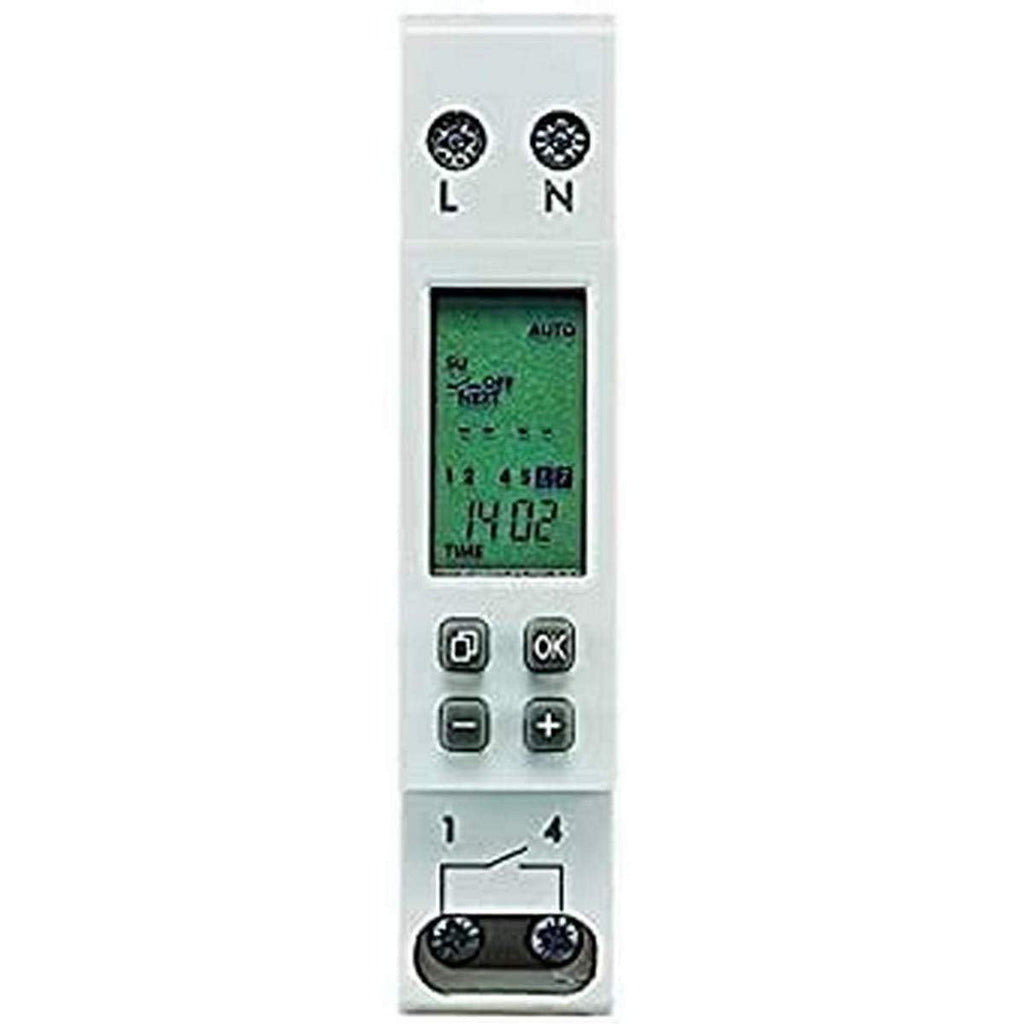

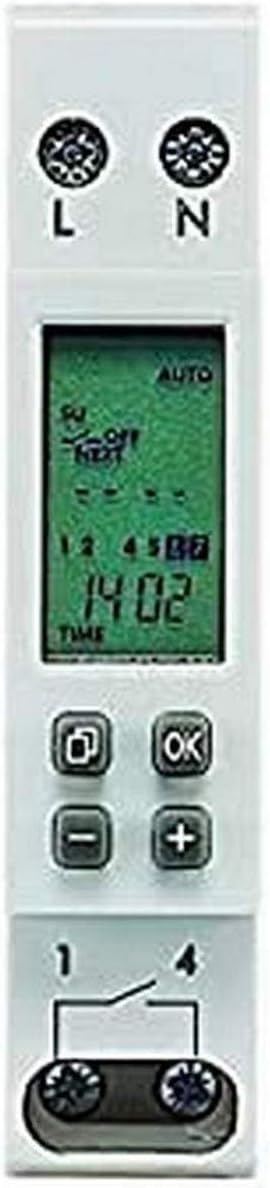

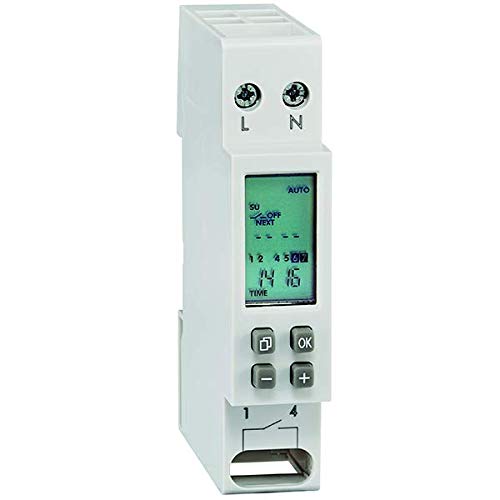

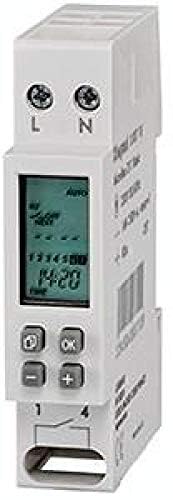

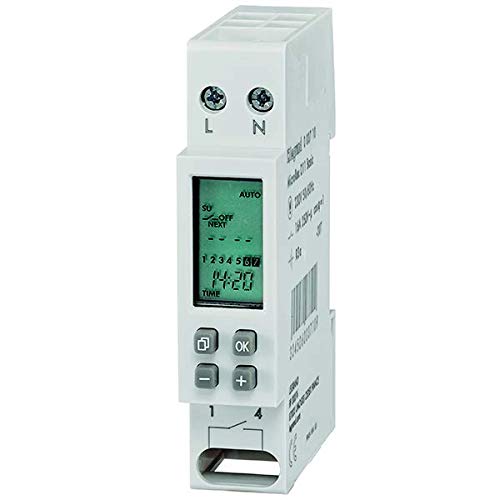

Legrand MicroRex D11 Basic, single-module digital weekly timer according to VDE 0631 part 1 and part 2-7, EN 60730-1 and EN 60730-2-7. - 1 channel - 28 switching programs - Operating voltage 230 V 50/60 Hz - Program creation directly on the device - Time-saving programming by selecting daily blocks - Daily blocks individually adjustable or selection from preset blocks Mon-Fri and Mon-So - Continuous switching ON/OFF, circuit anticipation - Automatic summer/winter time adjustment - 3 years Gangreserve - Gangreserve Accuracy +/- 1 sec/day - shortest switching time: 1 min. - Switching output: 1 N/O contact - Switching capacity: 16 A~ - Operating temperature: -10°C to +55°C - Protection class: IP20
Item Condition: New
