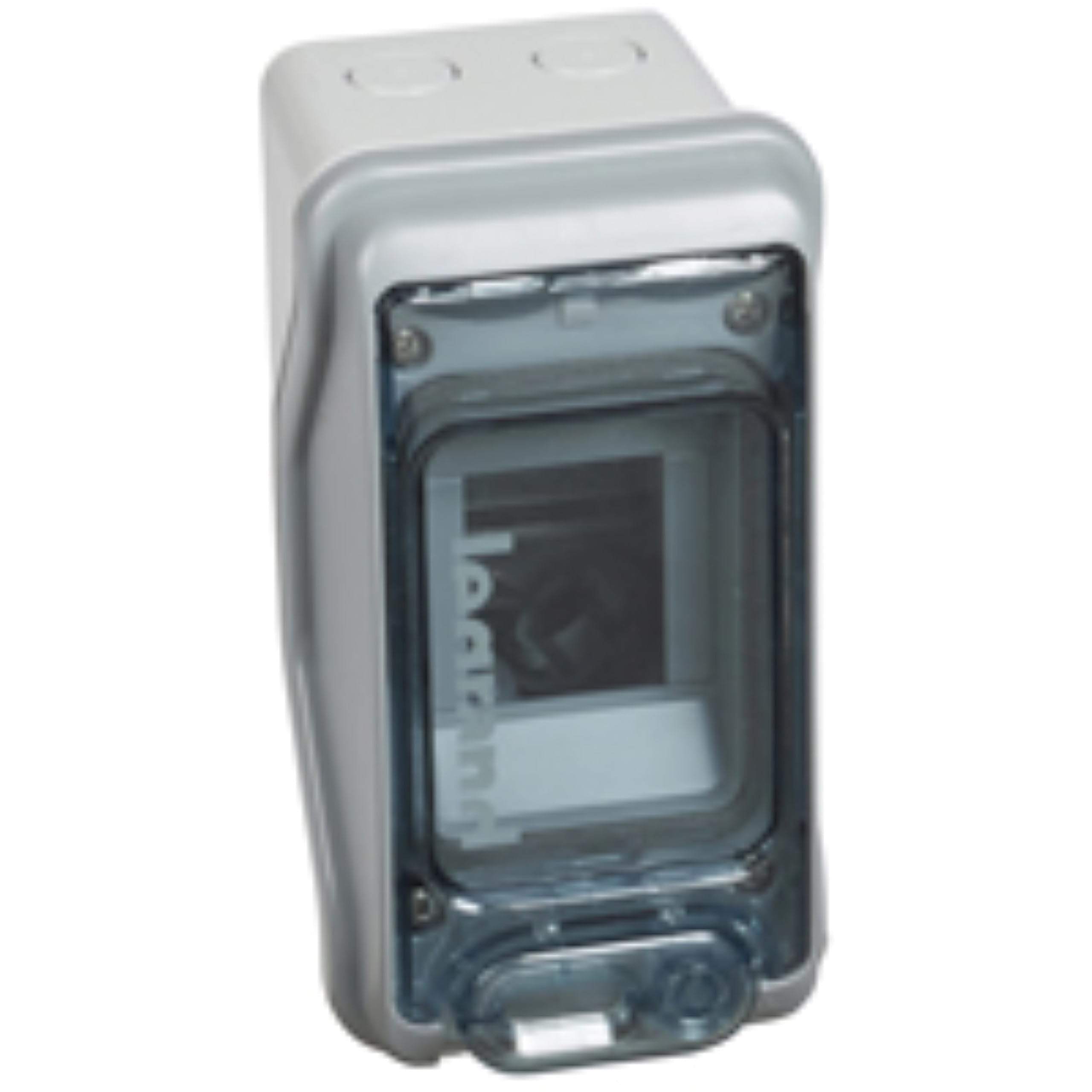

Legrand, Plexo 601932 Wet Room Distributor, Fuse Box, Surface-Mounted, IP65 - IK09, 1 Row, 2+1 Modules, Indoor and Outdoor Use, Retrofittable, Protection Class II, -20 to +70 °C, 174 x 93 x 109 mm

Brand: Legrand

Color: ‎gray

Features:

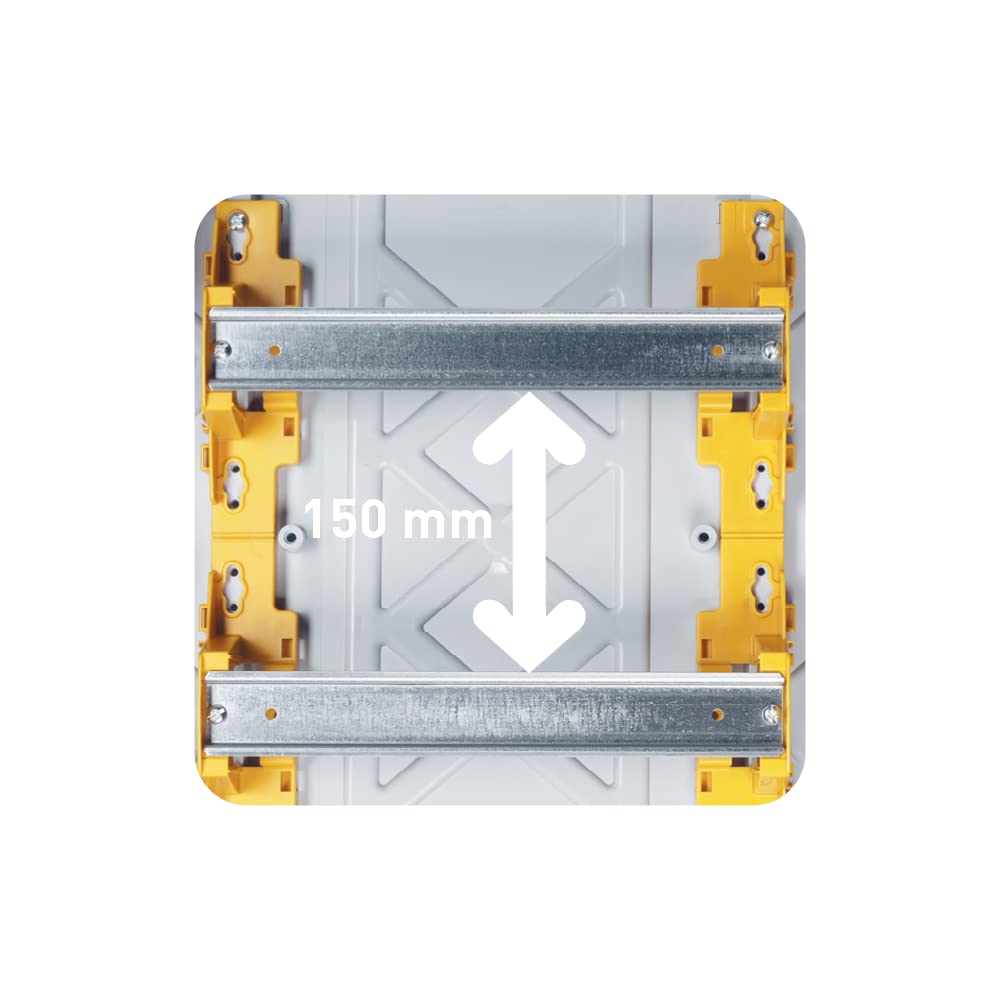

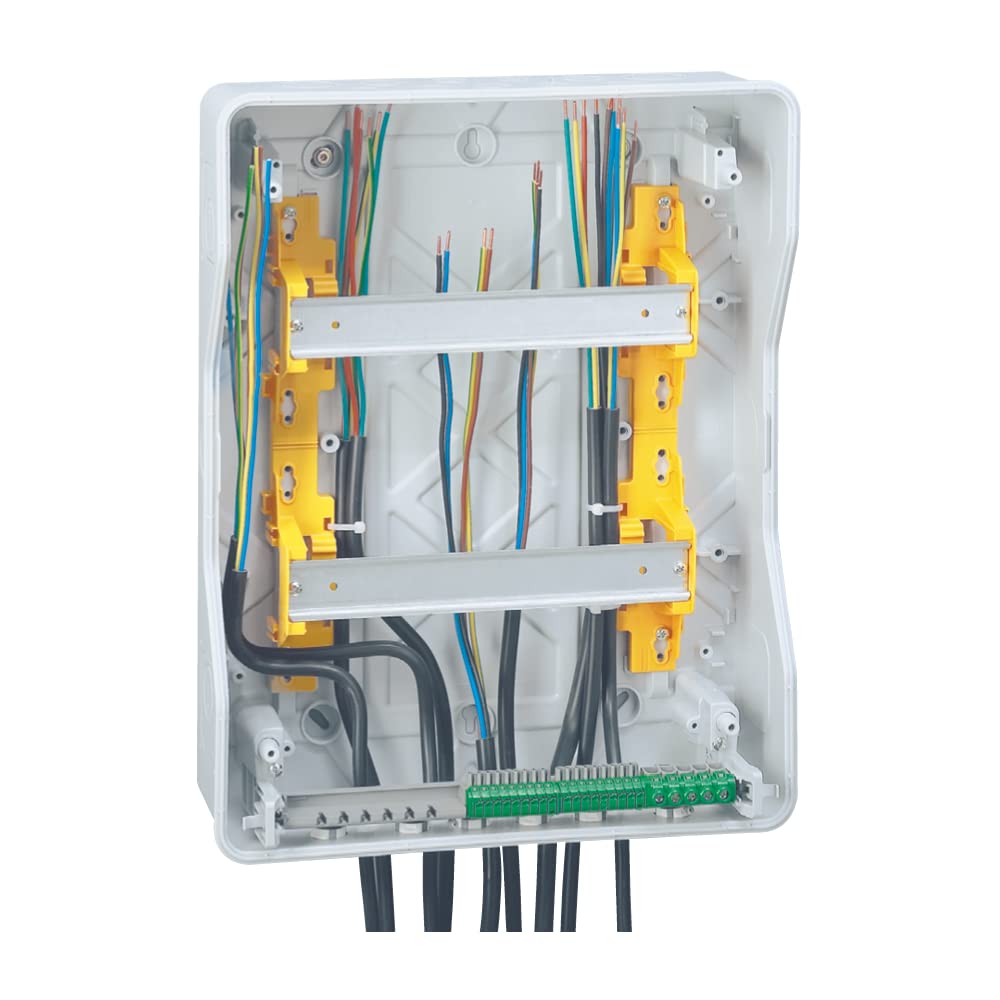

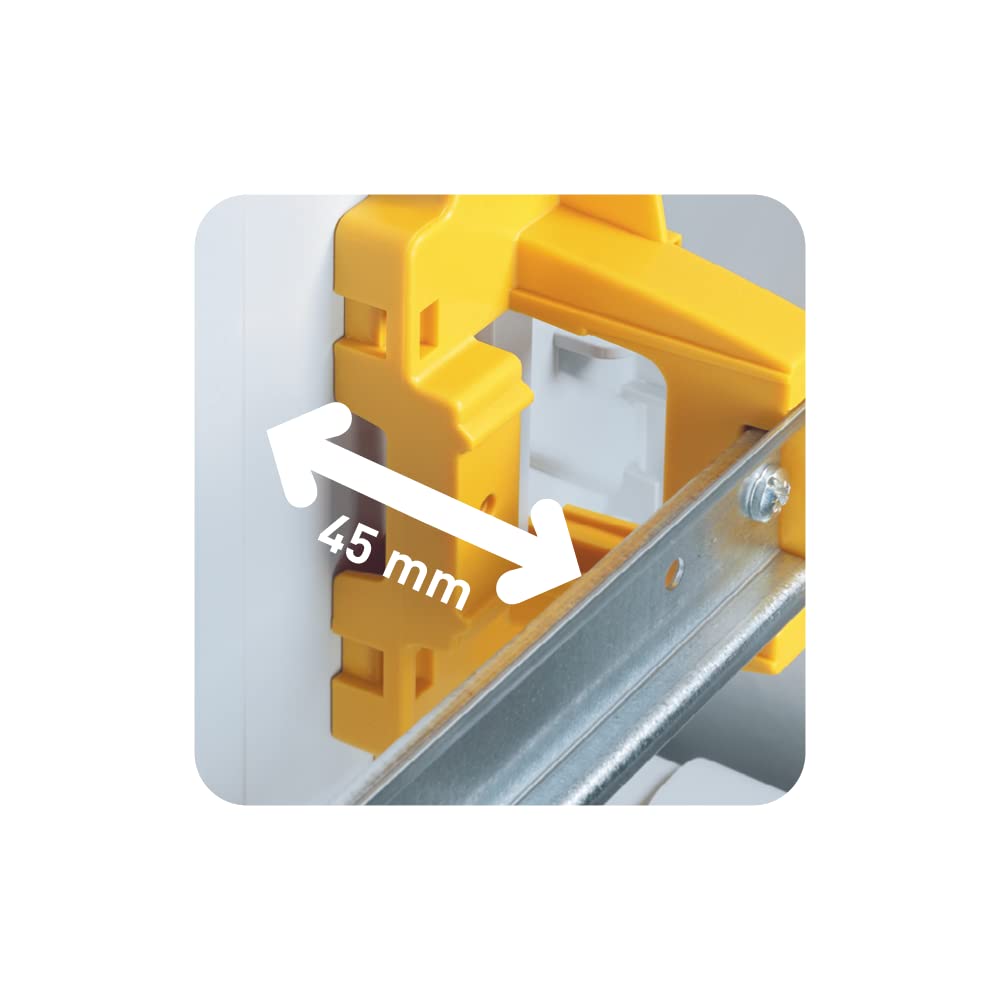

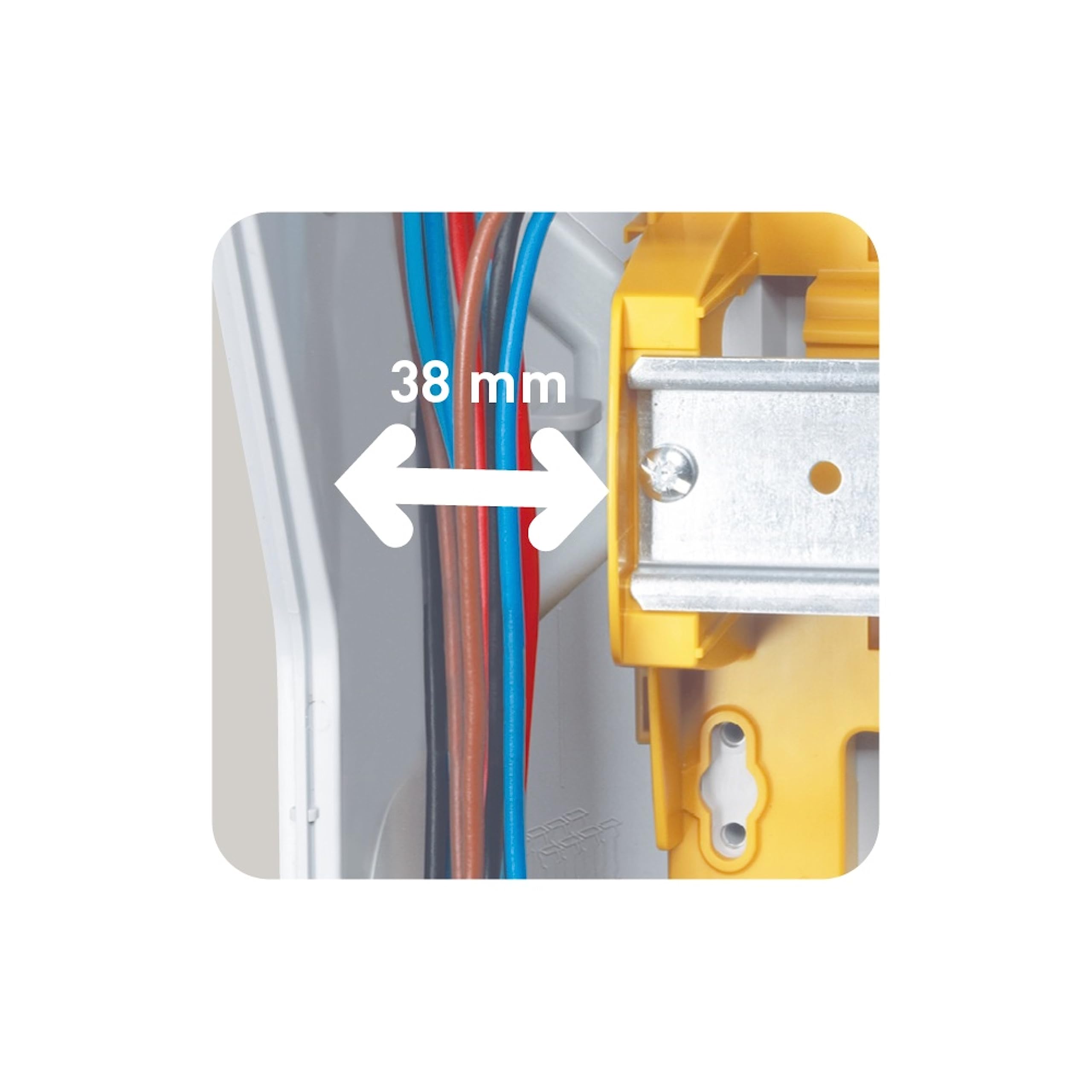

• Optimised cable routing: the generous rail spacing and the height-adjustable support rails (individually dismountable) offer you plenty of space for wiring. The distribution box is 1 row and can be equipped with 12 modules.
• Quick and efficient installation: the removable device carrier allows wiring outside the distributor (e.g. for pre-wiring in the workshop). The individually removable front covers guarantee convenient access during maintenance work.

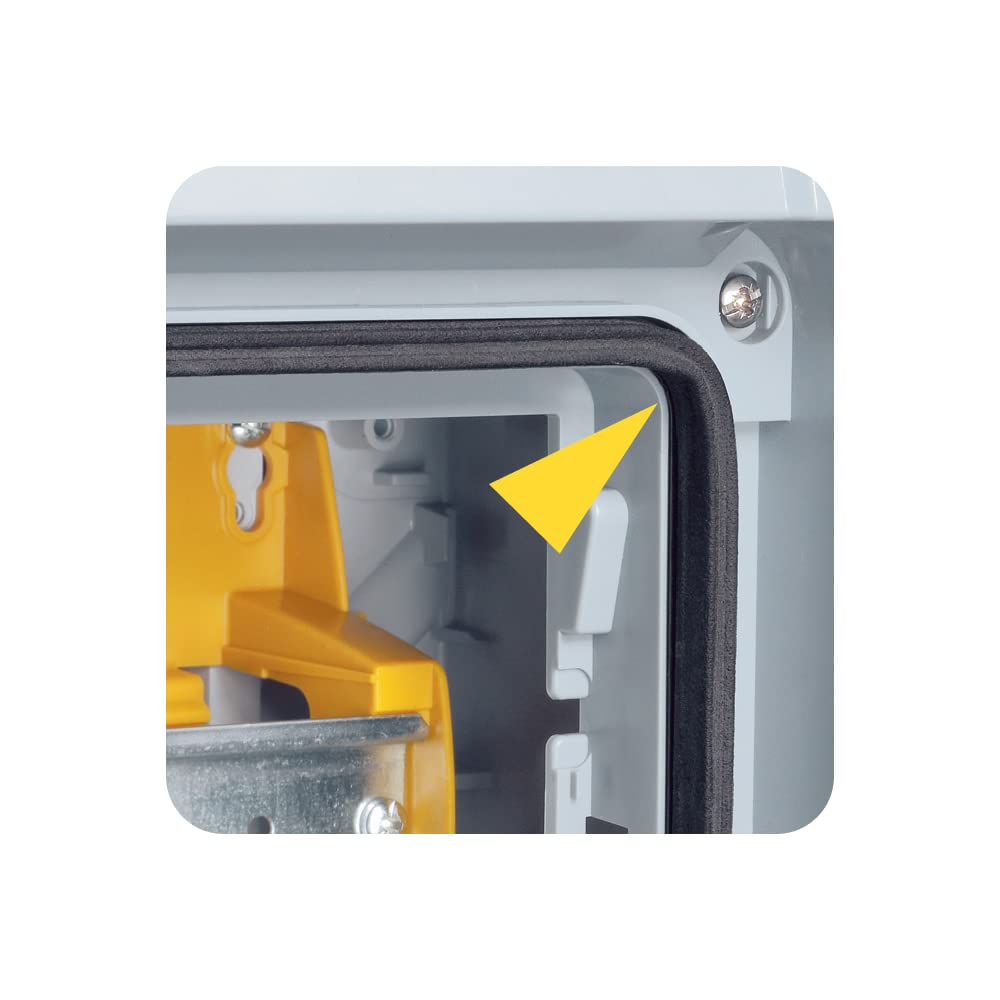

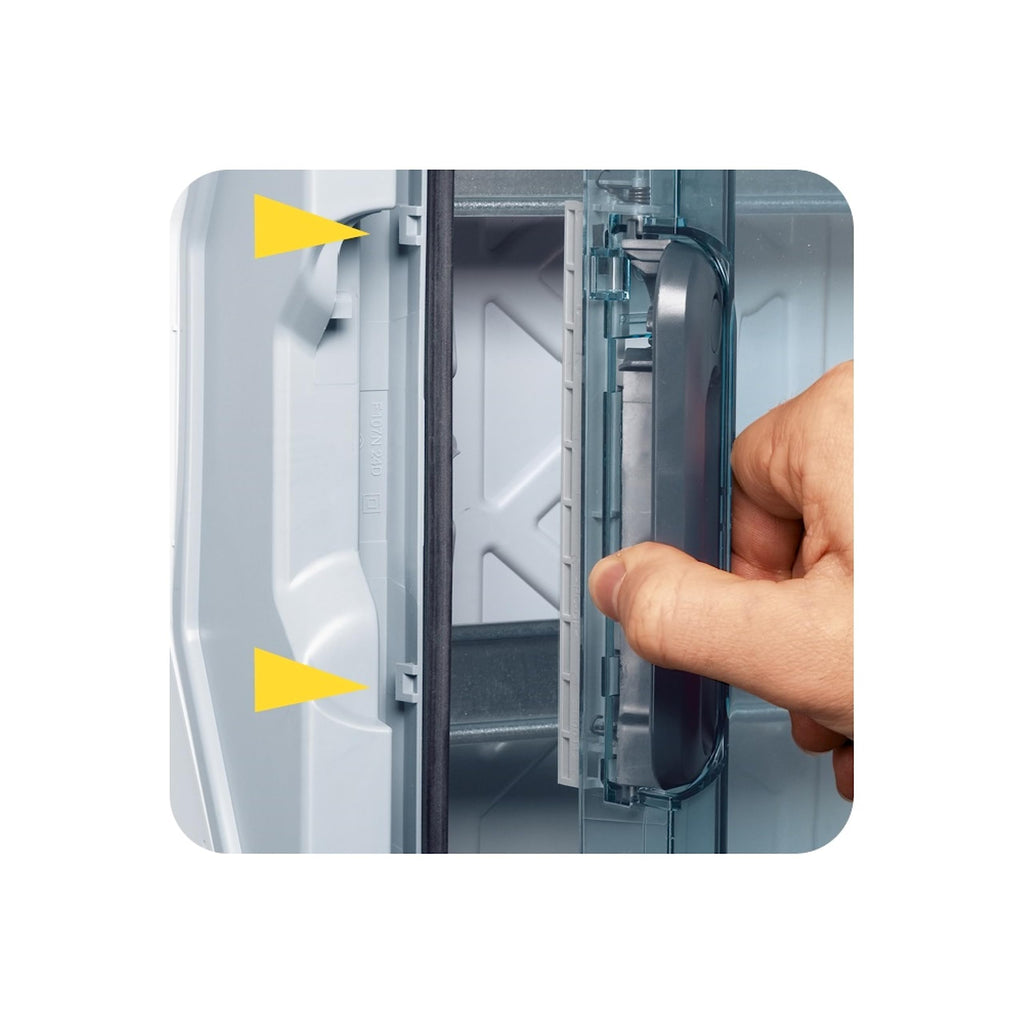

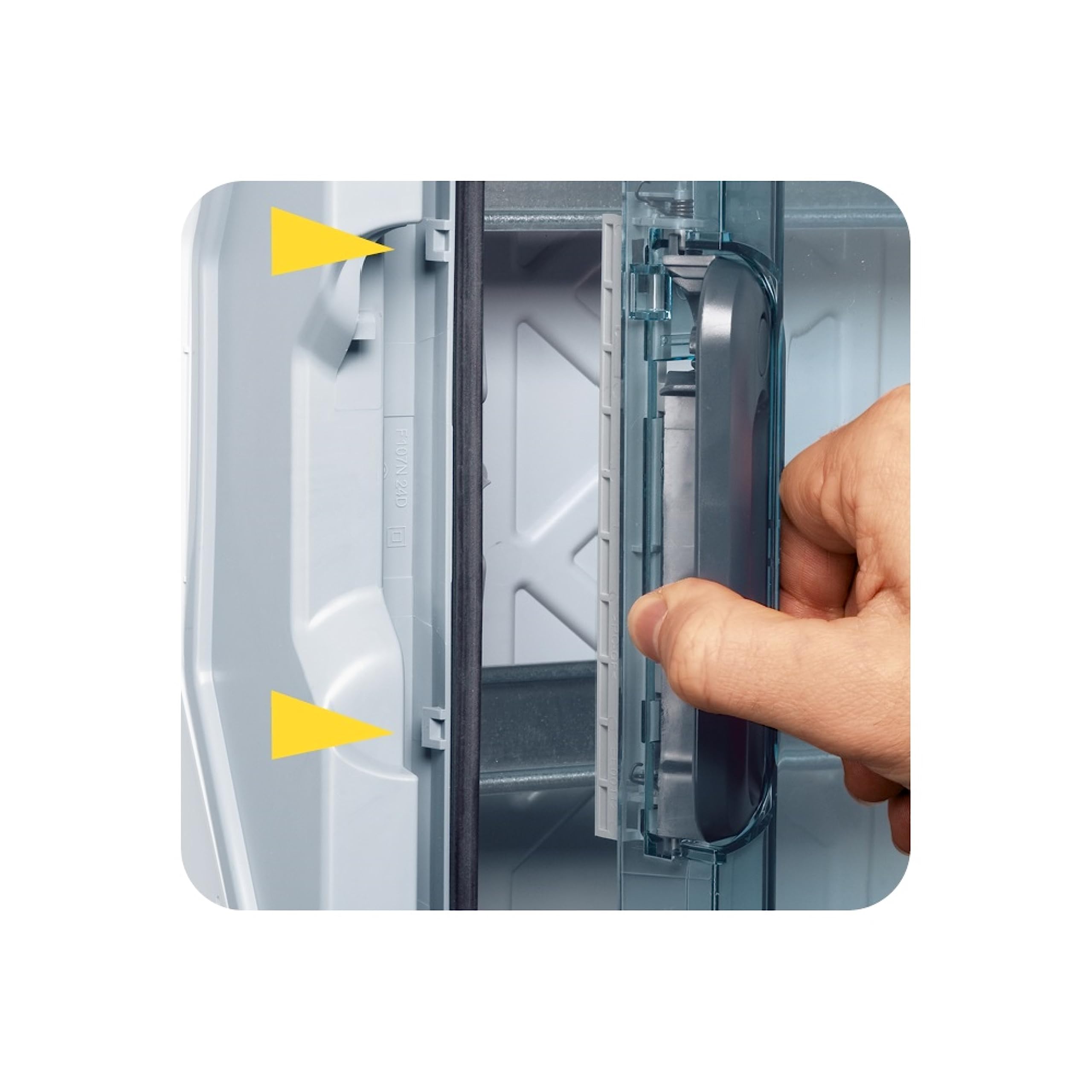

• Durability: thanks to the protection class IP65-IK09, the wet room distribution box is protected against jet water from all directions. The handle guarantees an optimal seal thanks to its two-point closure. Protects in the temperature range -20 to +70 °C.

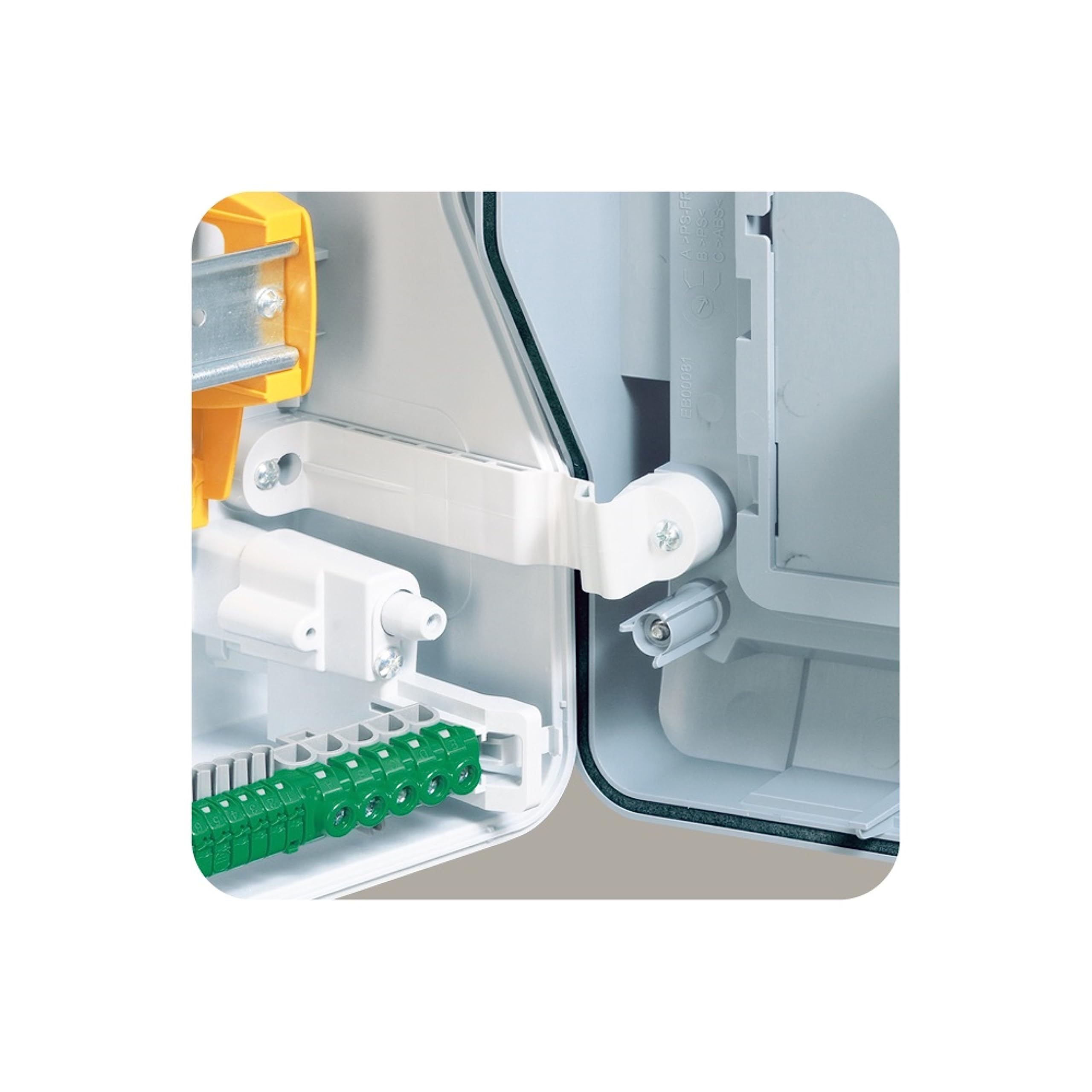

• Versatile: thanks to the high protection class (IP65), the wet room distributor can be used in many ways indoors and outdoors of your home. The transparent door is sealable and you have the opportunity to retrofit it with a lock.

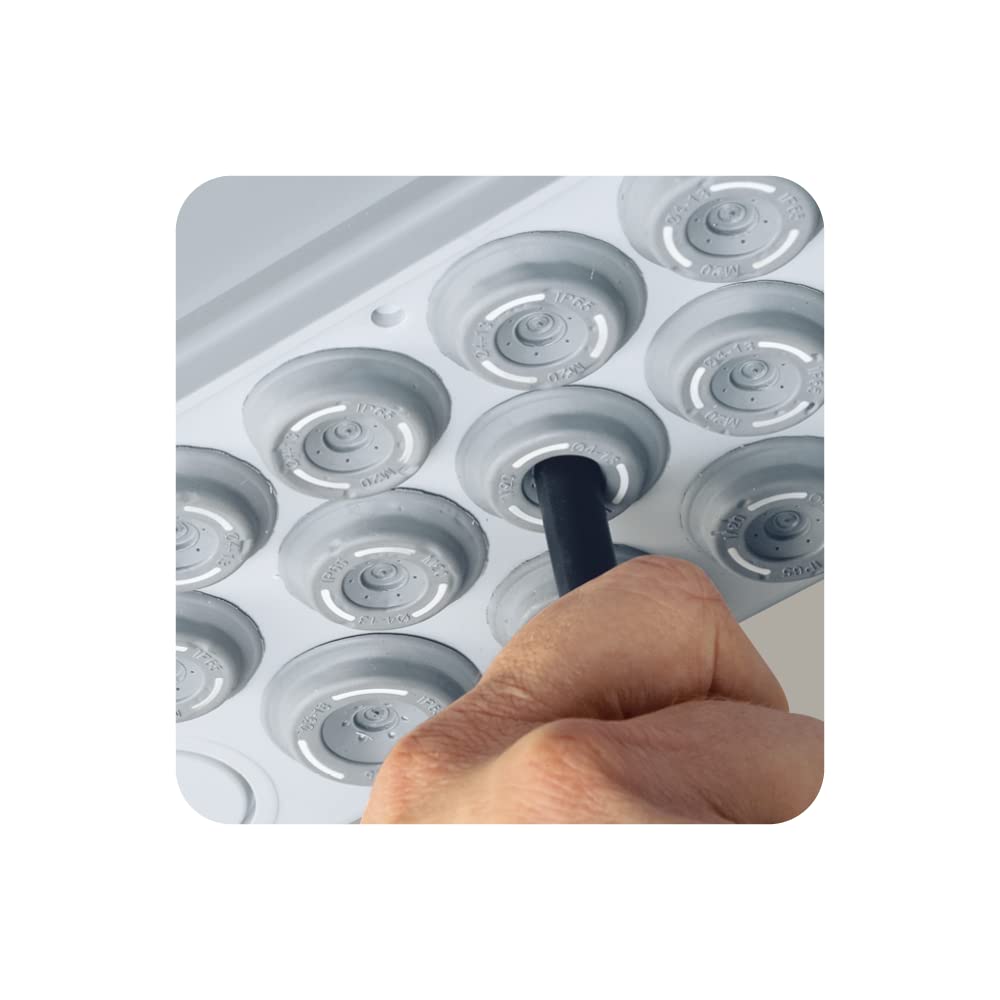

• Cable entries: The supplied cable entries (membrane) guarantee tool-free cable entry. The UV-resistant seal ensures safe long-term water and dust protection.

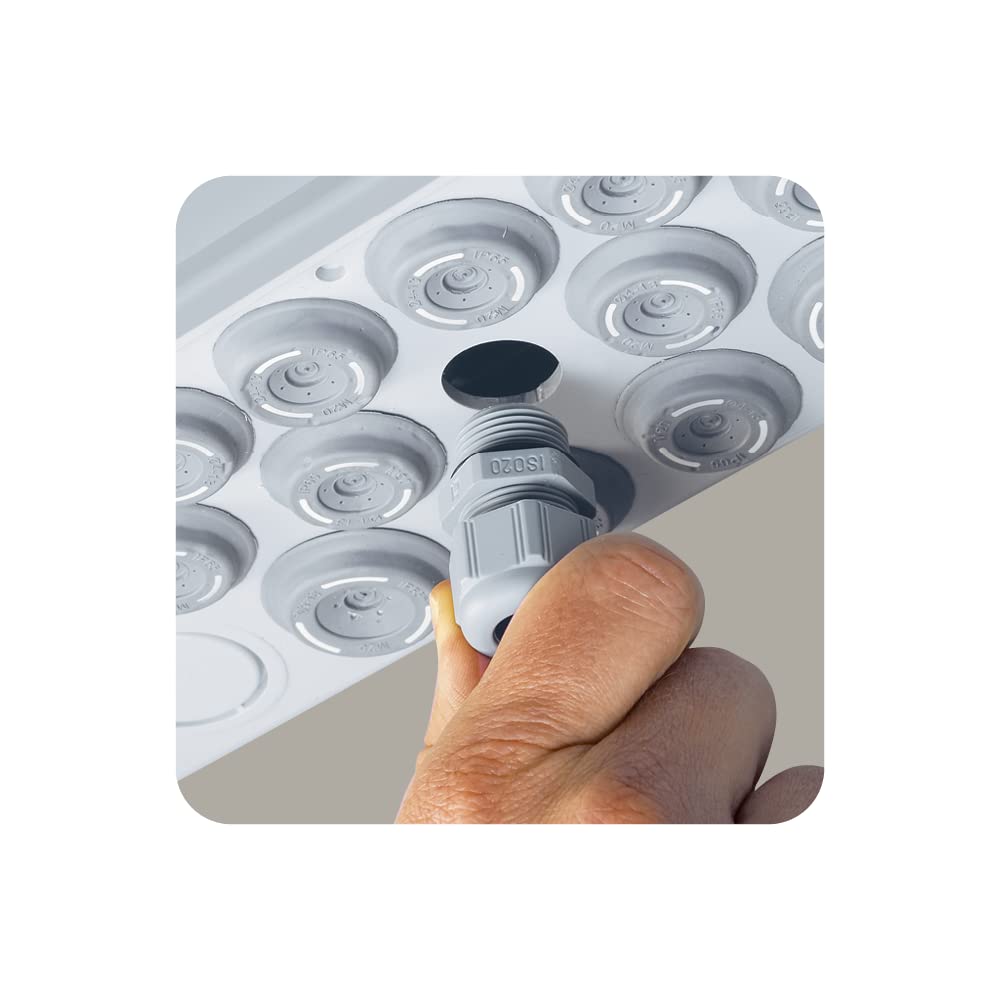

• CABLE INSERTS (membrane): 7x ø 20 mm, 2x ø 25 mm, 1x ø 32 mm are included. If necessary, cable glands can also be used.
• Cable entry projections: top: 7x diameter 20 mm, 2x diameter 25 mm, 2x diameter 32 mm, bottom: 7x diameter 20 mm, 2x diameter 25 mm, 2x diameter 32 mm, left: 2x diameter 32 mm, right: 2x diameter 32 mm, right: 2x diameter 32 mm breakout cable entries available. .
• Technical details: surface-mounted wet room distributor, IP65-IK09, telegrey/silver grey, metric cable entry, incl. membrane entry, 1-row, 12 modules, -20 - +70 °C, 282 x 340 x 141 mm, 601981

PartNumber: ‎601932

Details:

Surface-mounted distributor IP65 IK09 1-row 12TE H x W x D 282 x 340 x 341 mm

Model: ‎601932
