Brand: Schneider Electric
Color:
White
Features:
- Multistranded low voltage miniature circuit breaker
- With double tunnel terminals
- Protects circuits against short circuit and overload current
- Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit
- Its fast closing mechanism independent of manual operation improves its service life
PartNumber: A9F54120
Details:

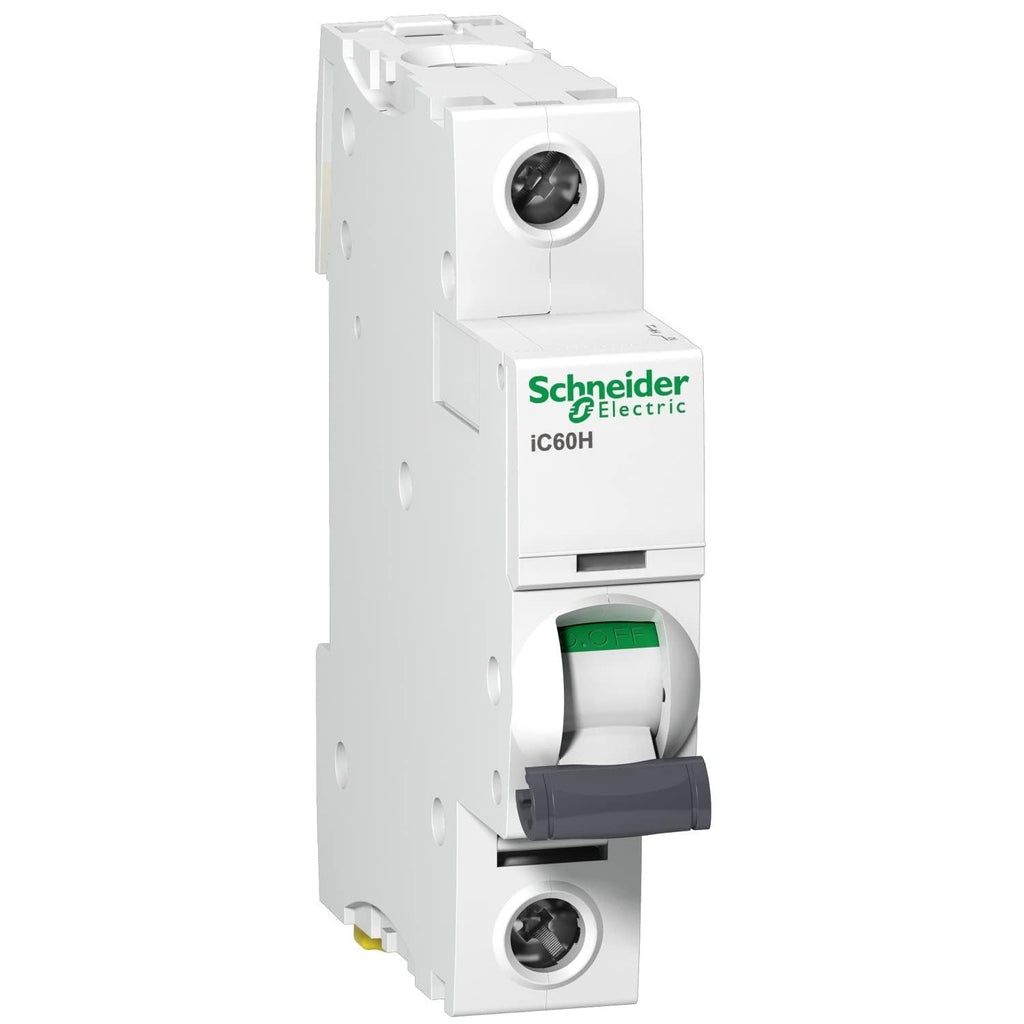

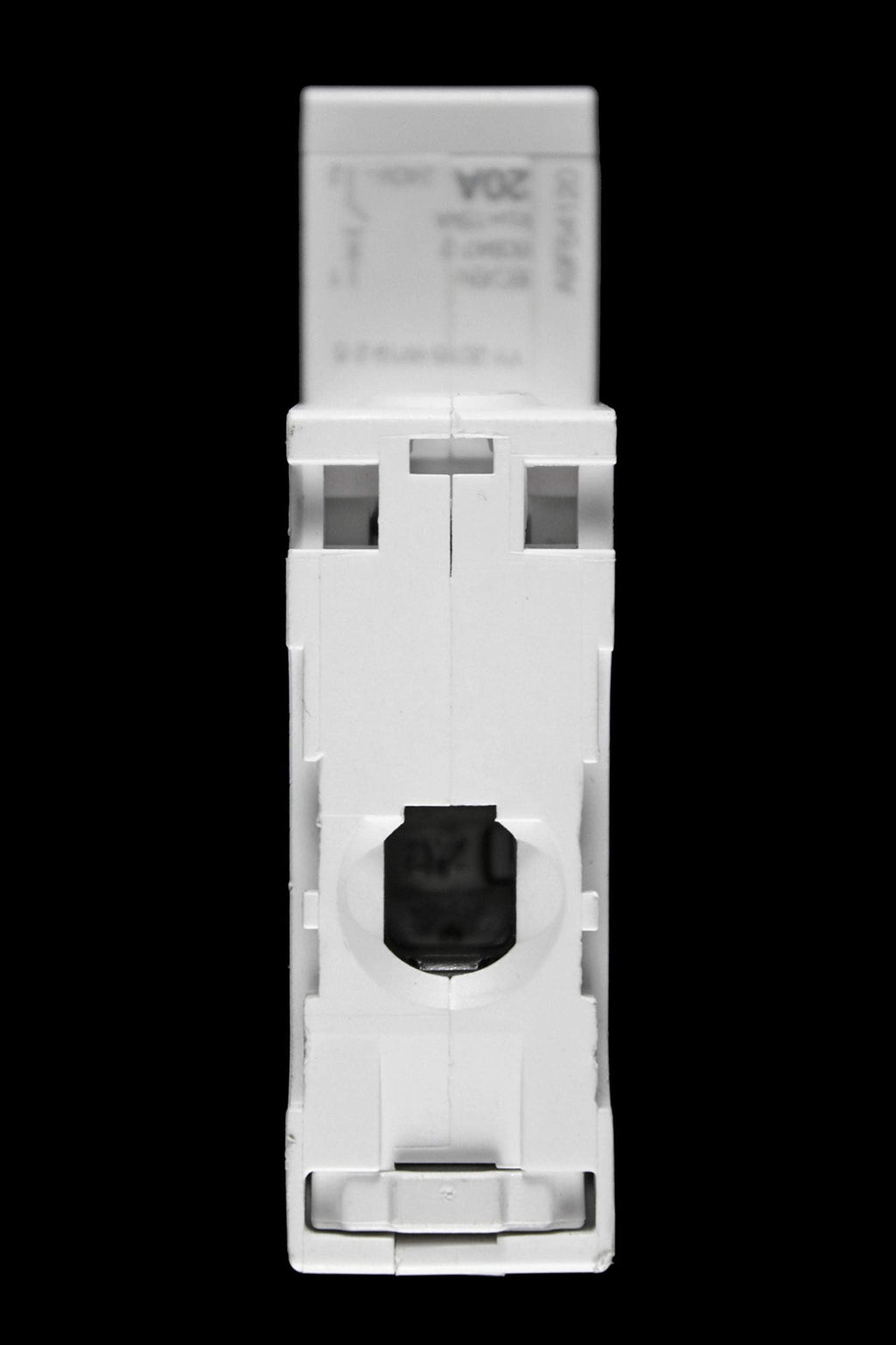

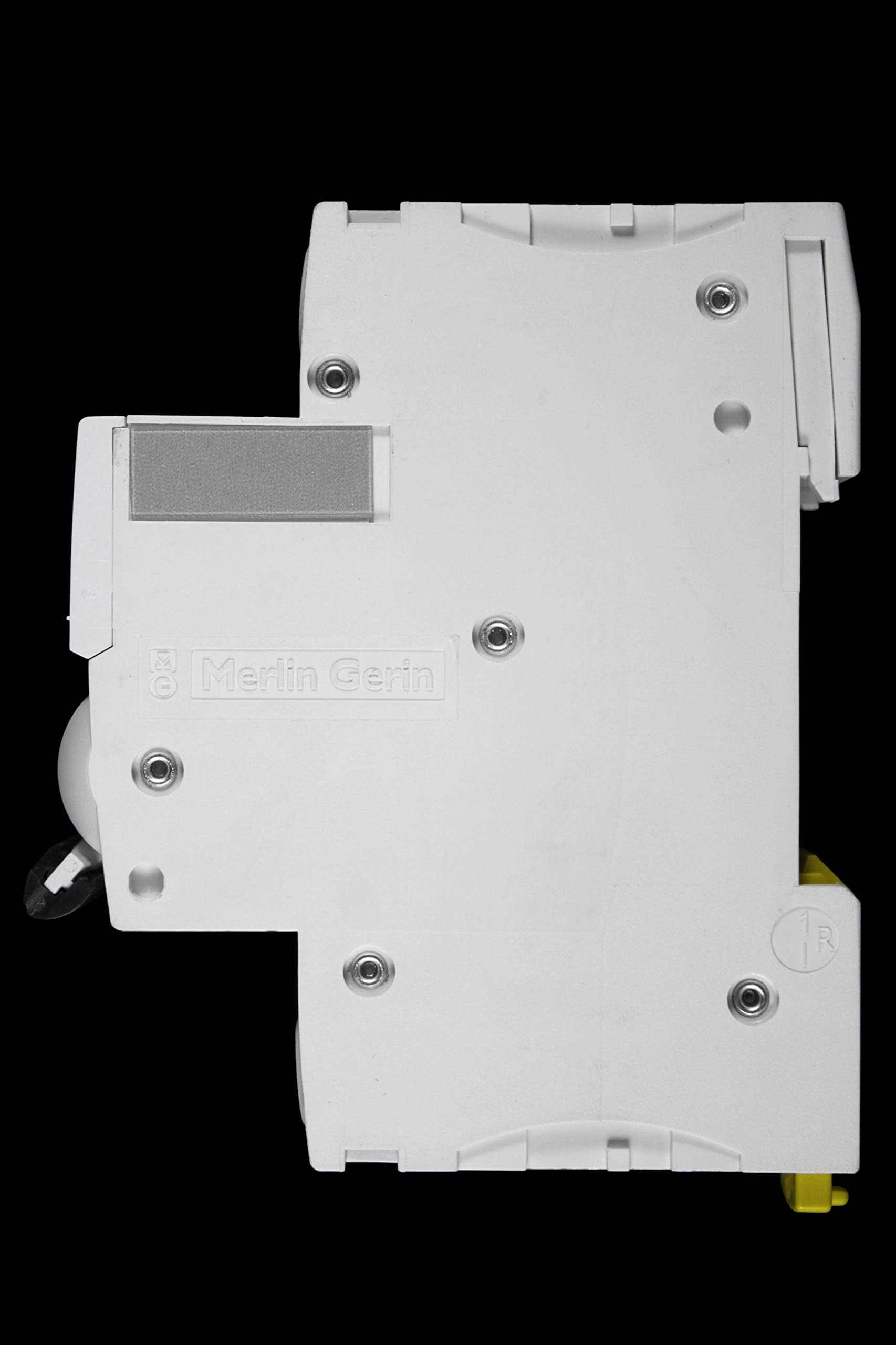

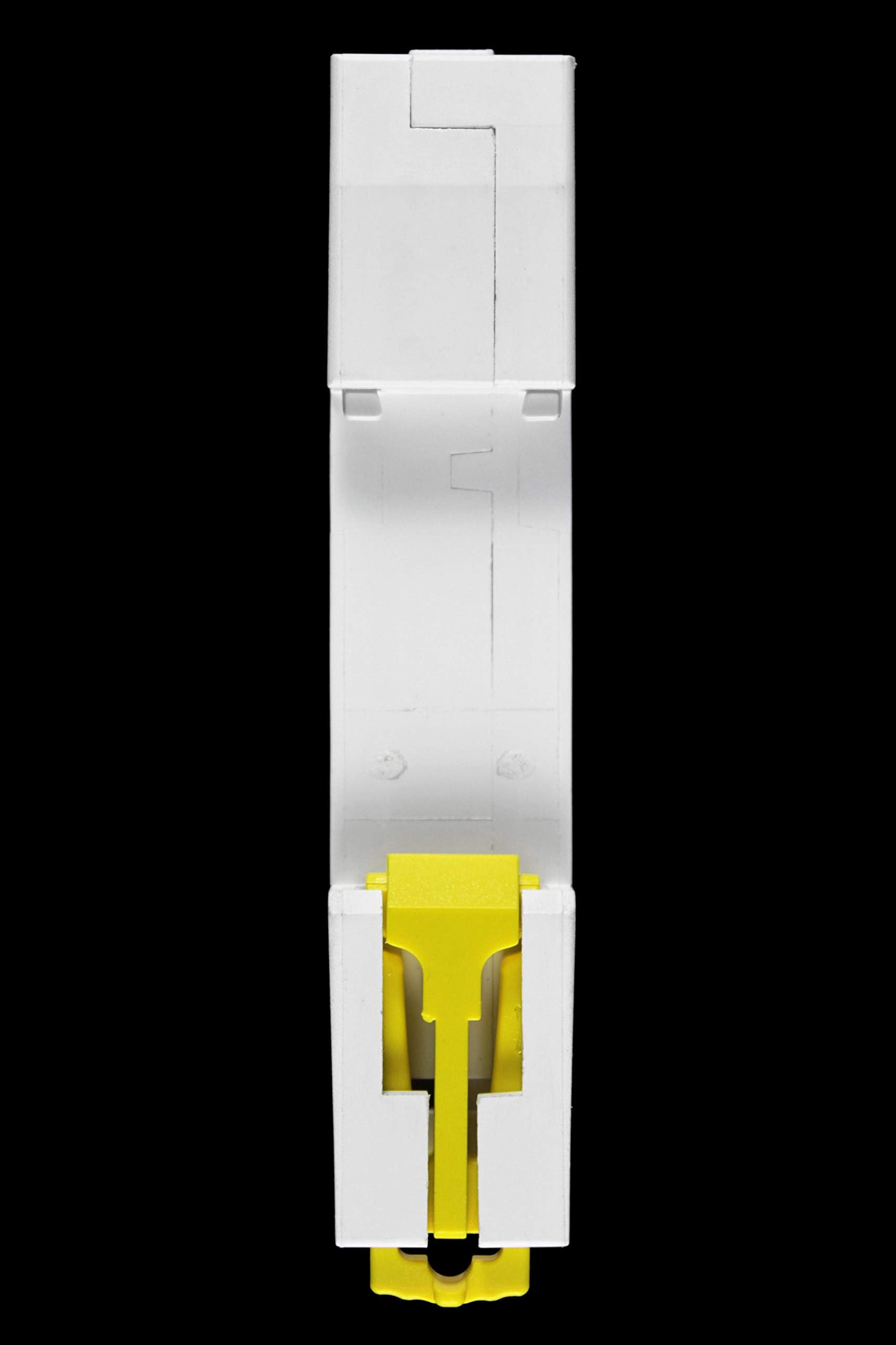

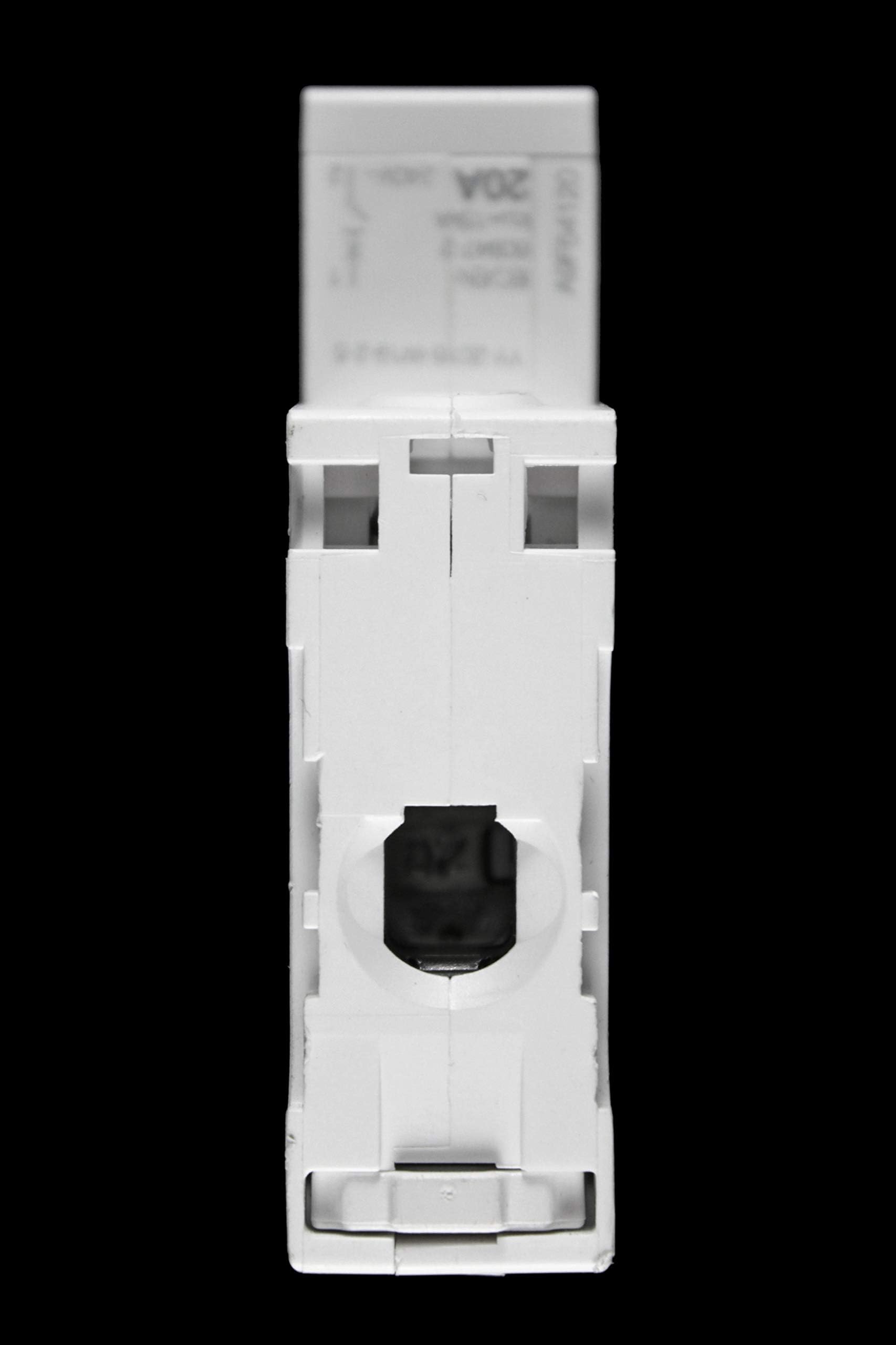

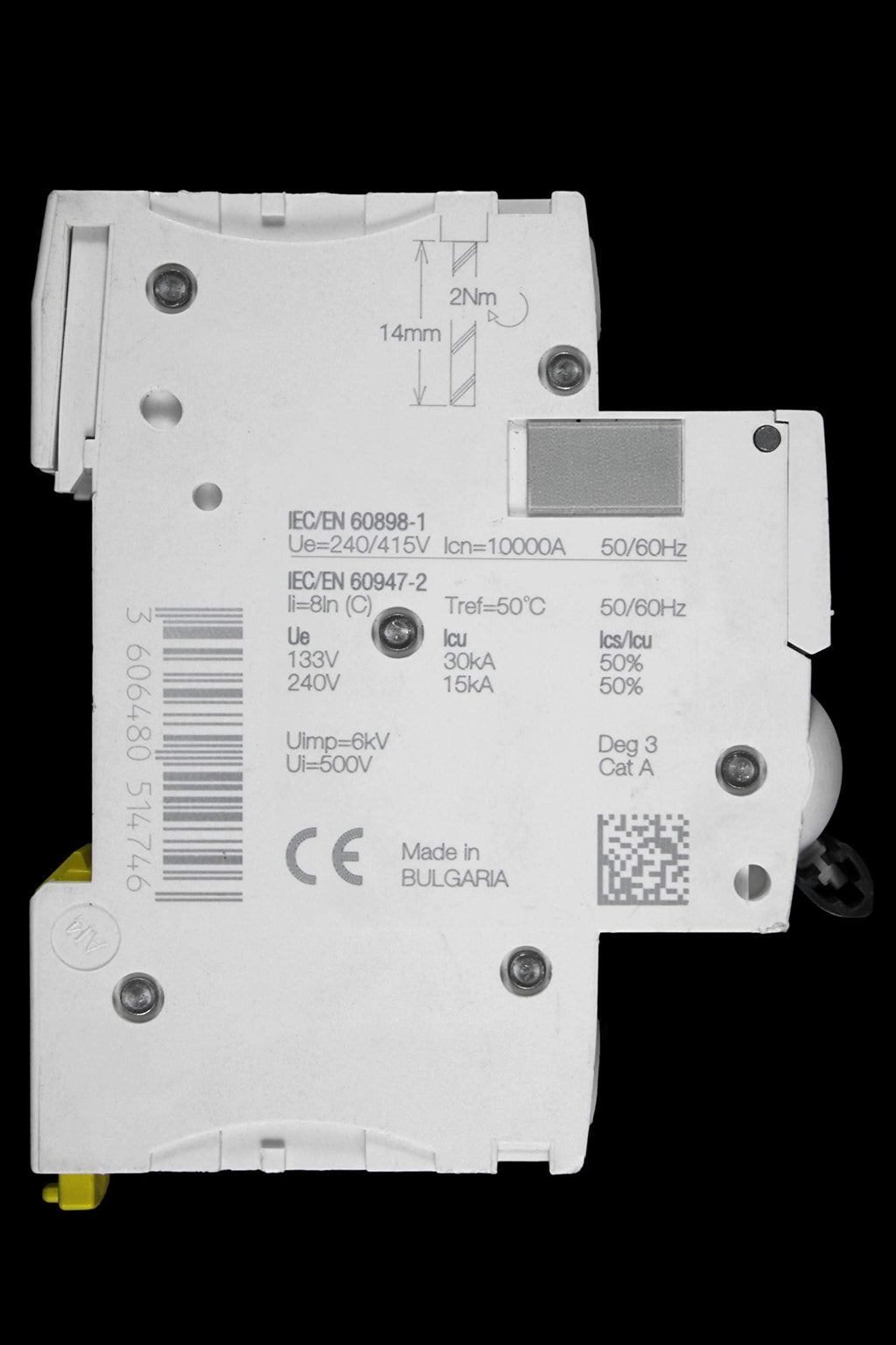

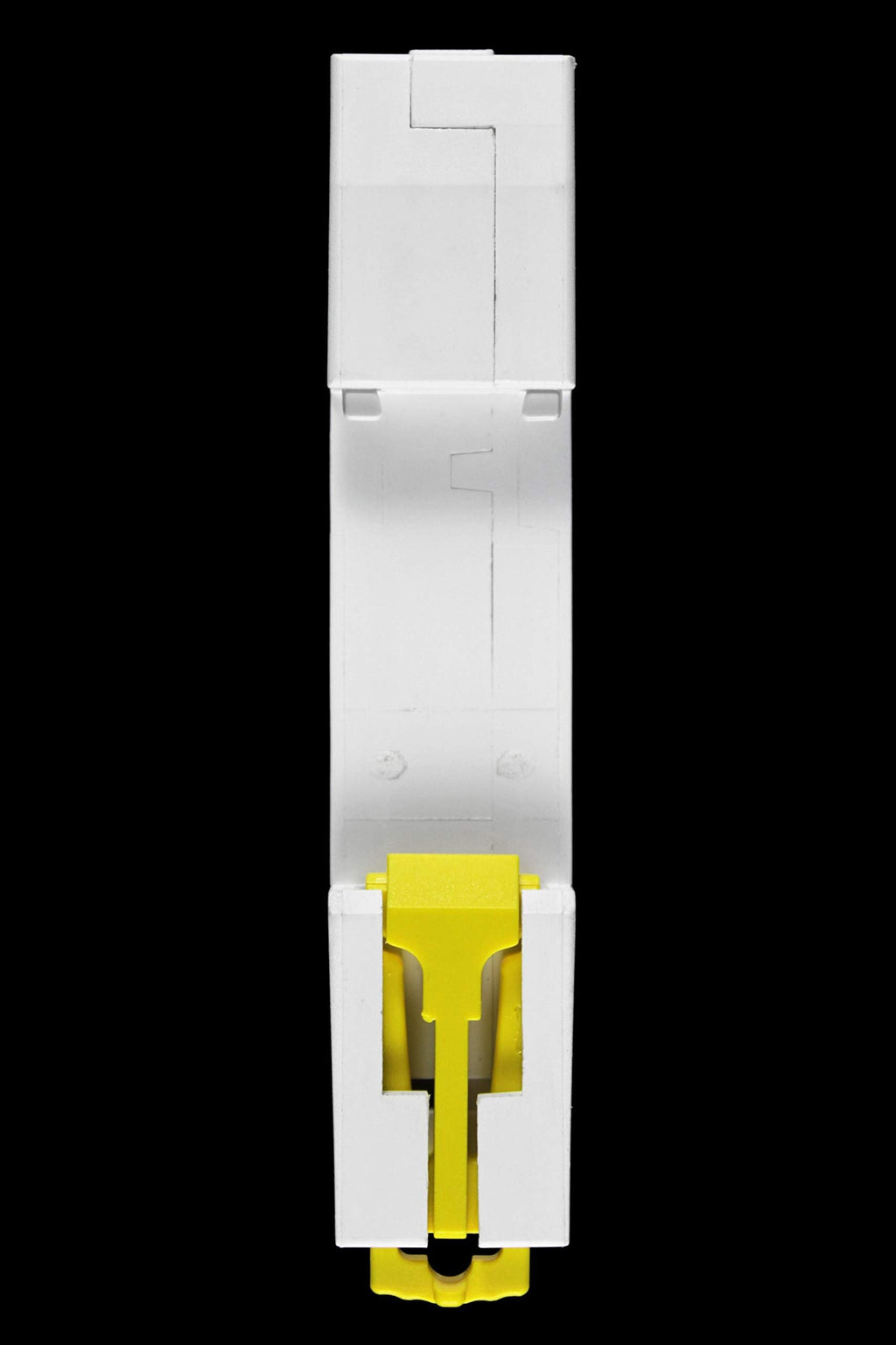

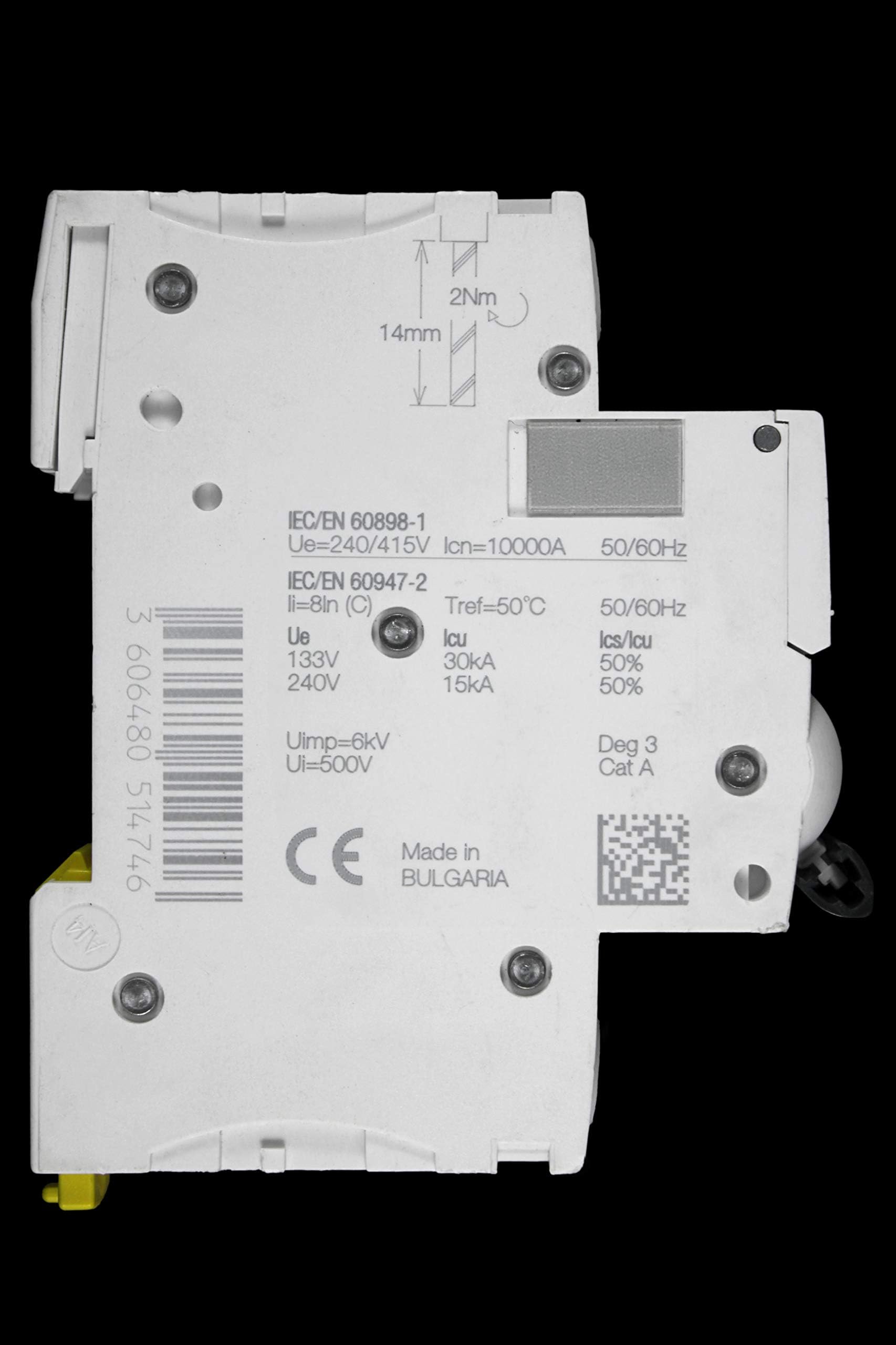

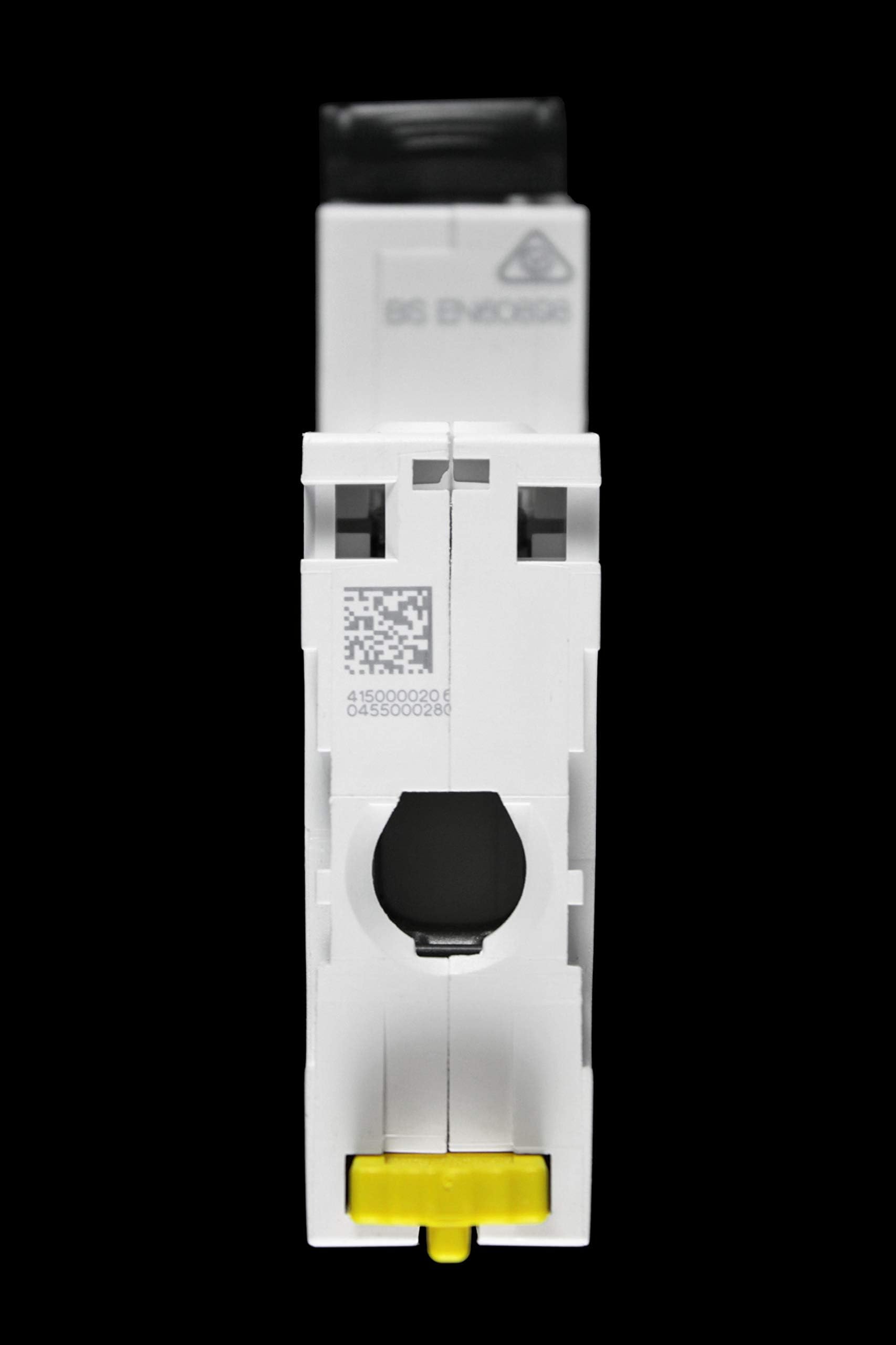

Schneider Electric Acti9 iC60H 1 Pole 20A C Curve Miniature Circuit Breaker is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. Class-2 insulation : continuous safety for operators and unqualified personnel for DIN Rail Full coordination with Acti 9 range RCDs and Compact NSX MCCBs VisiSafe : for safe operation and maintenance work on circuits VisiTrip : detects faulty Miniature Circuit-Breaker outgoers quickly and reduces intervention time Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
Model: A9F54120
Item Condition: New
