Brand: Schneider Electric
Color:
White
Features:
- A multistandard low voltage miniature circuit breaker with double tunnel terminals
- A 3P circuit breaker with 3 protected poles
- Unique VisiTrip indicator reduces intervention time by showing the faulty circuit
- Fast closing mechanism independent of manual operation improves its service life
- An electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles
PartNumber: A9F54320
Details:

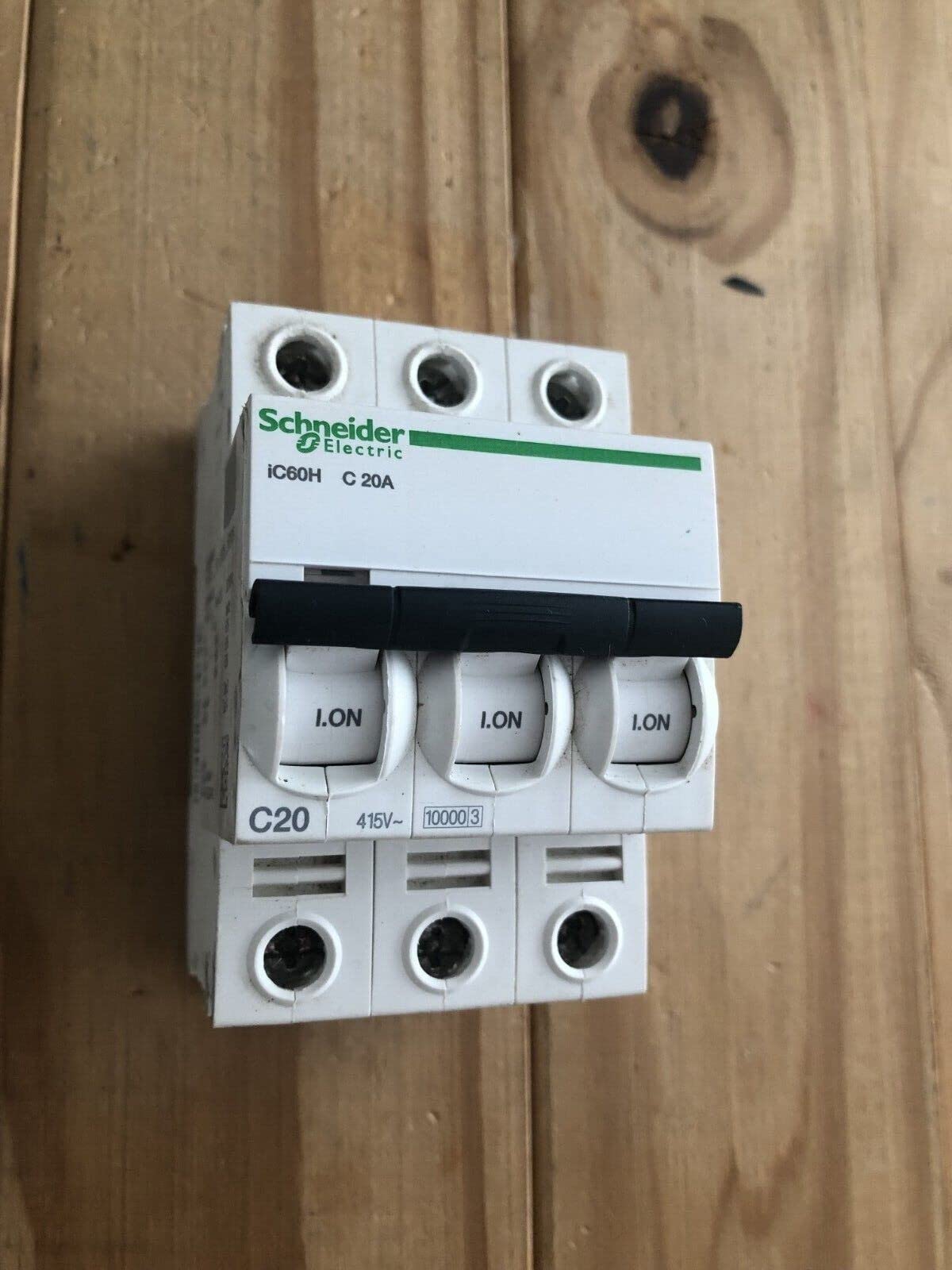

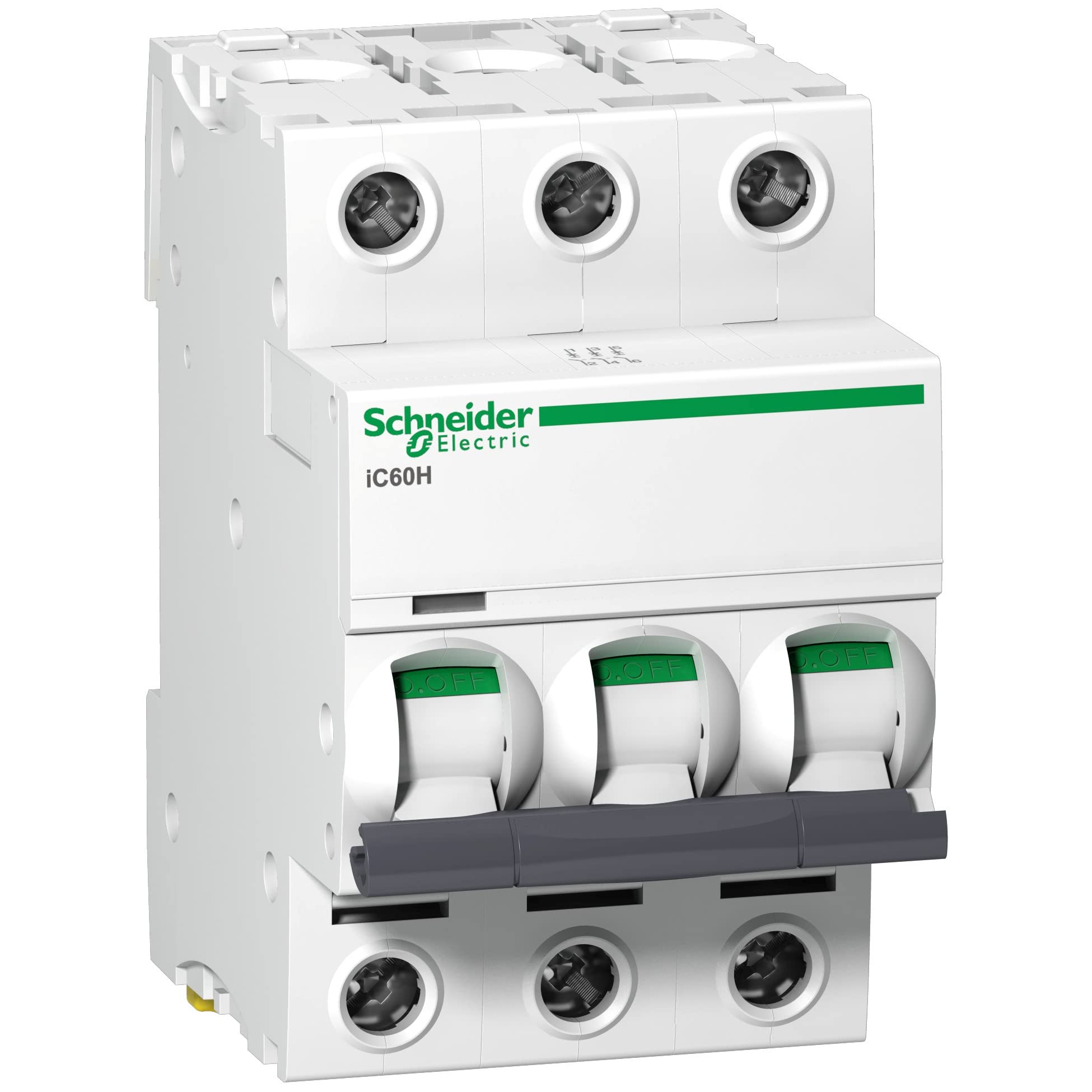

Schneider Acti9 iC60H 3P 20A C Miniature Circuit Breaker is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 3P circuit breaker with 3 protected poles. VisiSafe for safe operation and maintenance work on circuits. VisiTrip detects faulty Miniature Circuit-Breaker outgoers quickly and reduces intervention time. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9 mm. Pollution degree is 3. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35 degree Celsius to 70 degree Celsius. The storage temperature is -40 degree Celsius to 85 degree Celsius.
Model: A9F54320
Item Condition: New
