Brand:
Schneider Electric
Features:
- High reliability with long mechanical and electrical life

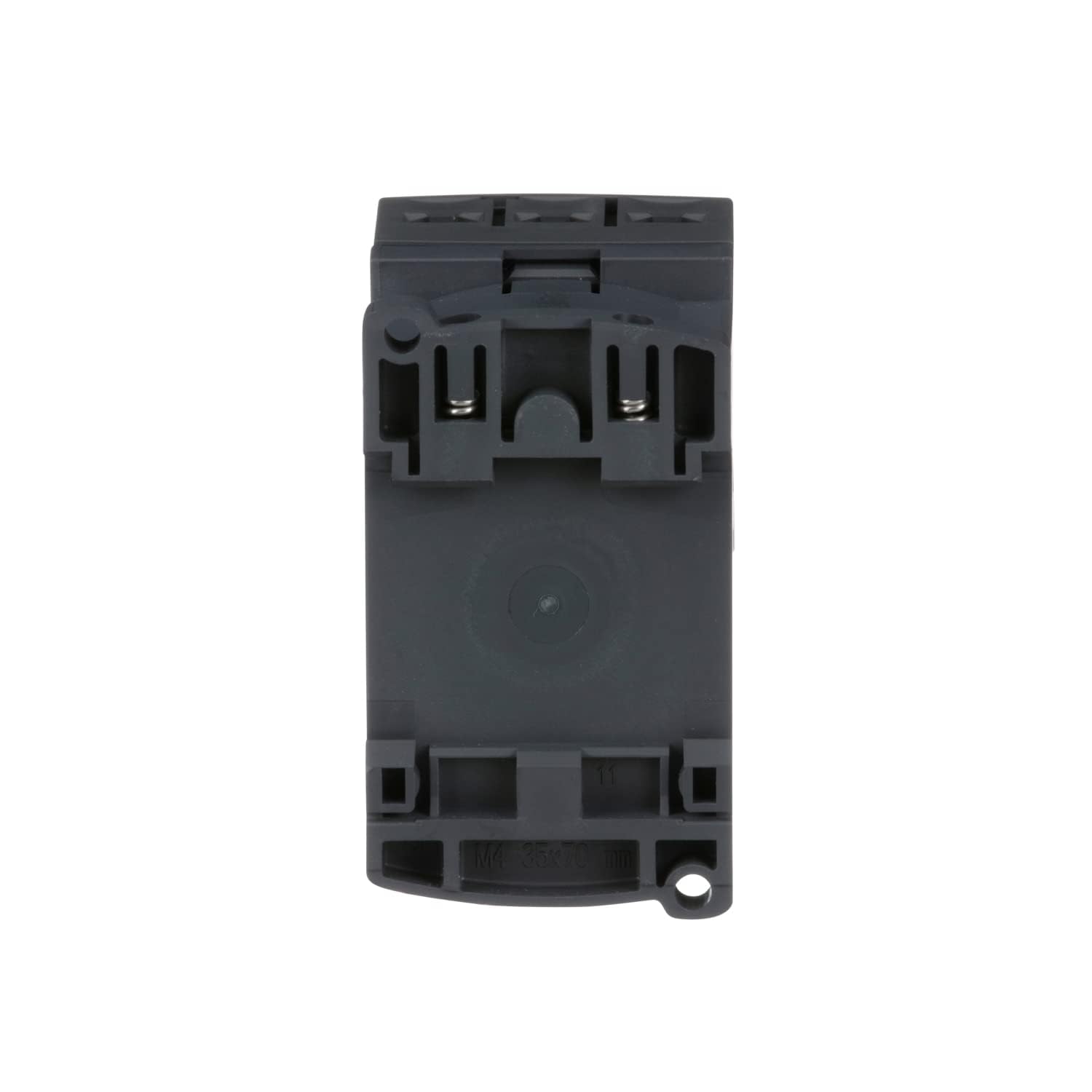

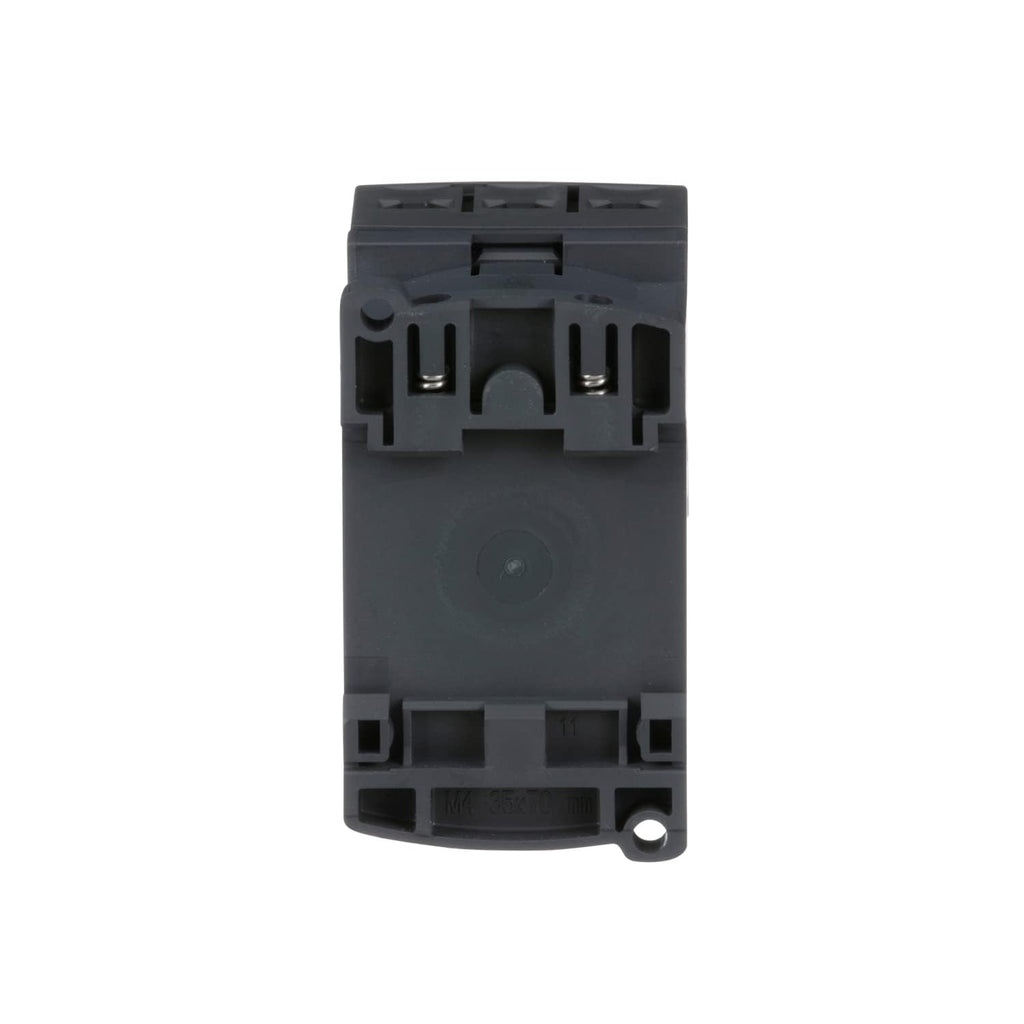

- DIN-rail mounting or screw fixing
- Used for frequent switching of circuits
- Designed for perfect integration into control systems
- autopart;replacementparts;engineparts;contactorsandprotectionrelays;lowvoltageproductsandsystems
PartNumber: LC1D09BD
Details:

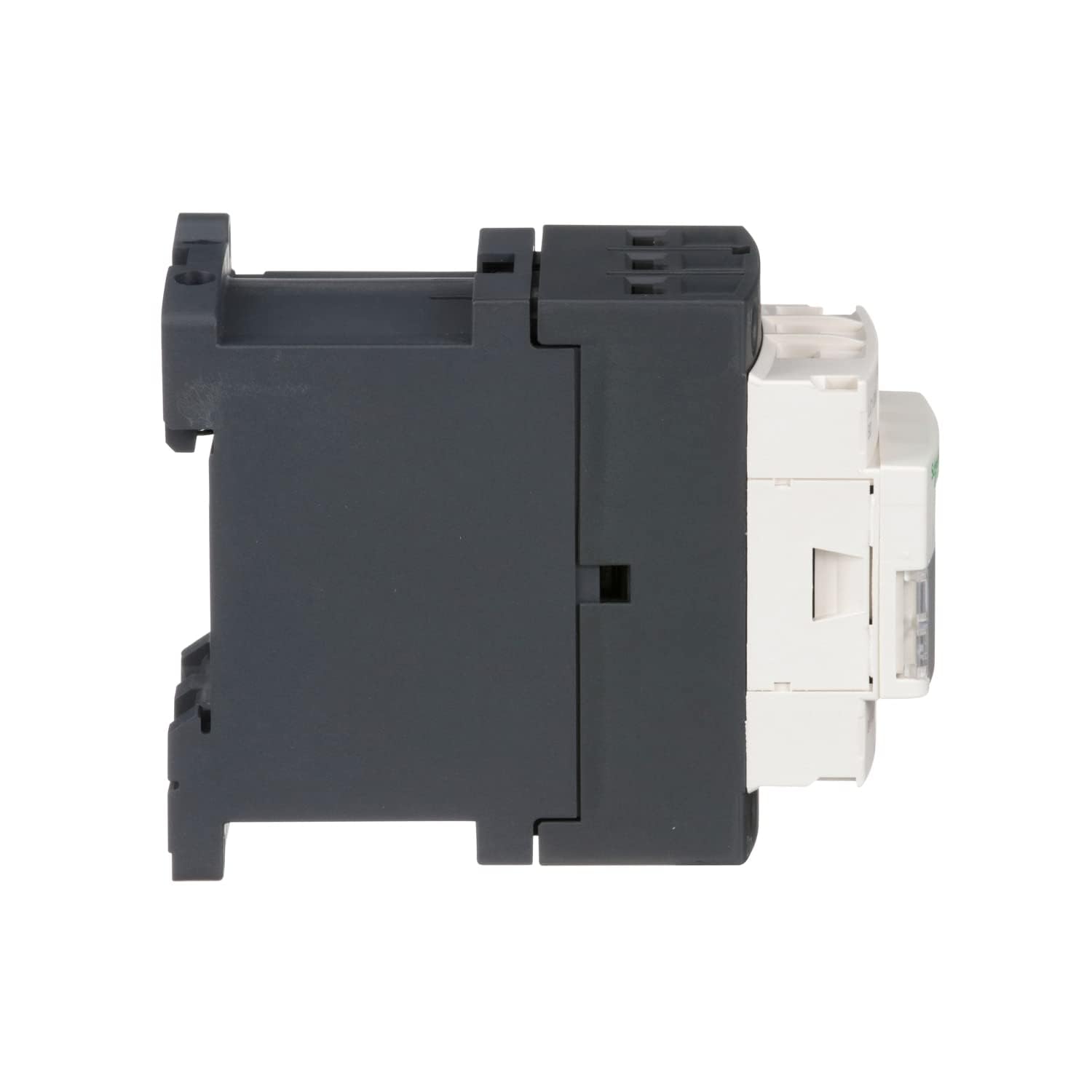

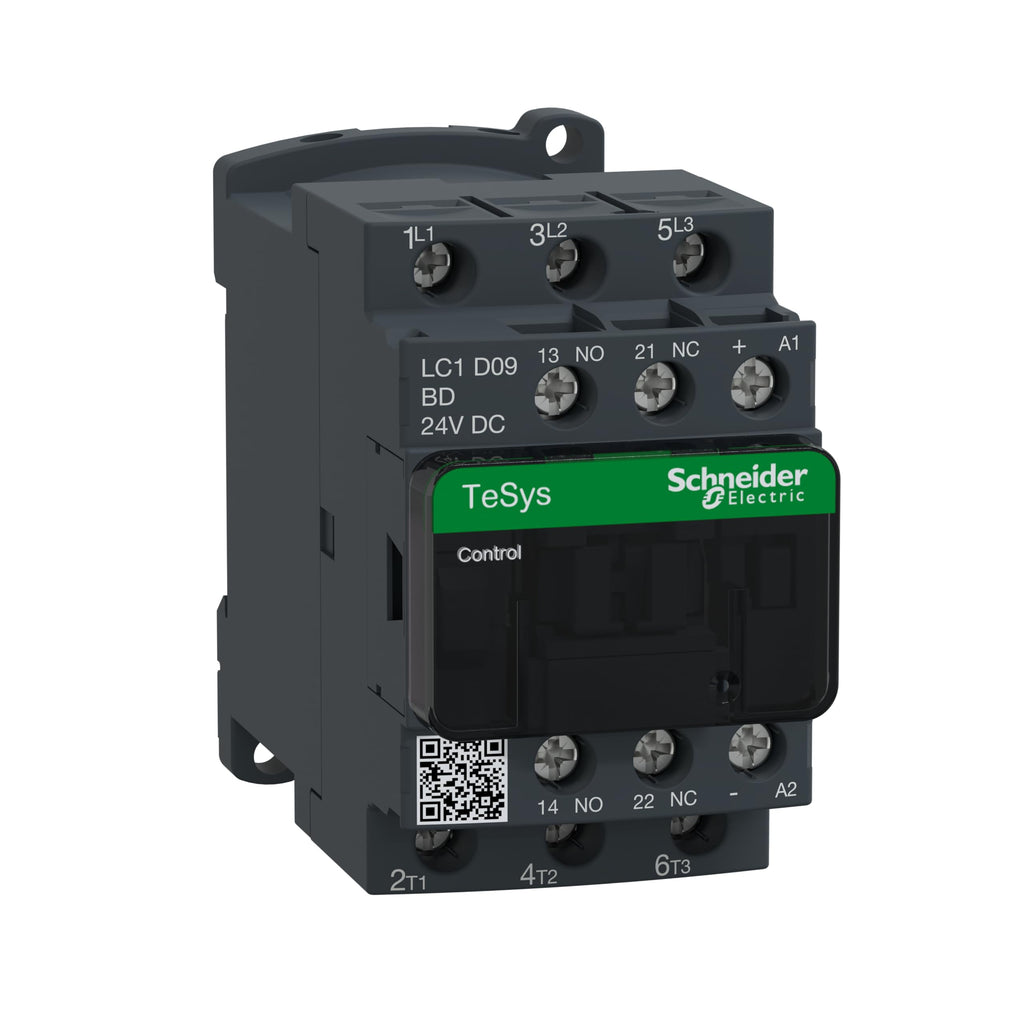

Schneider Electric LC1D09BD Tesys 3P 9A AC3 4KW 1NO 1NC 24VDC Coil Contactor have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. Tesys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 9A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both horsepower and Kw motor rating for international acceptance. Contactor is rated for 20HP at 200-208VAC, 25HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase. When used with a 480VAC up to 35A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 25A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.15 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.71 lbs.
Model: LC1D09BD
Item Condition: New
