Brand: Schneider Electric
Color:
Black
Features:
- A differential device with phase failure and load unbalance detection
- It provides a thermal adjustment dial, a manual-automatic reset selector
- Connection by screw clamp terminals
- It connects directly to the bottom terminals of 3-pole contactors LC1D09-D38
PartNumber: LRD04
Details:

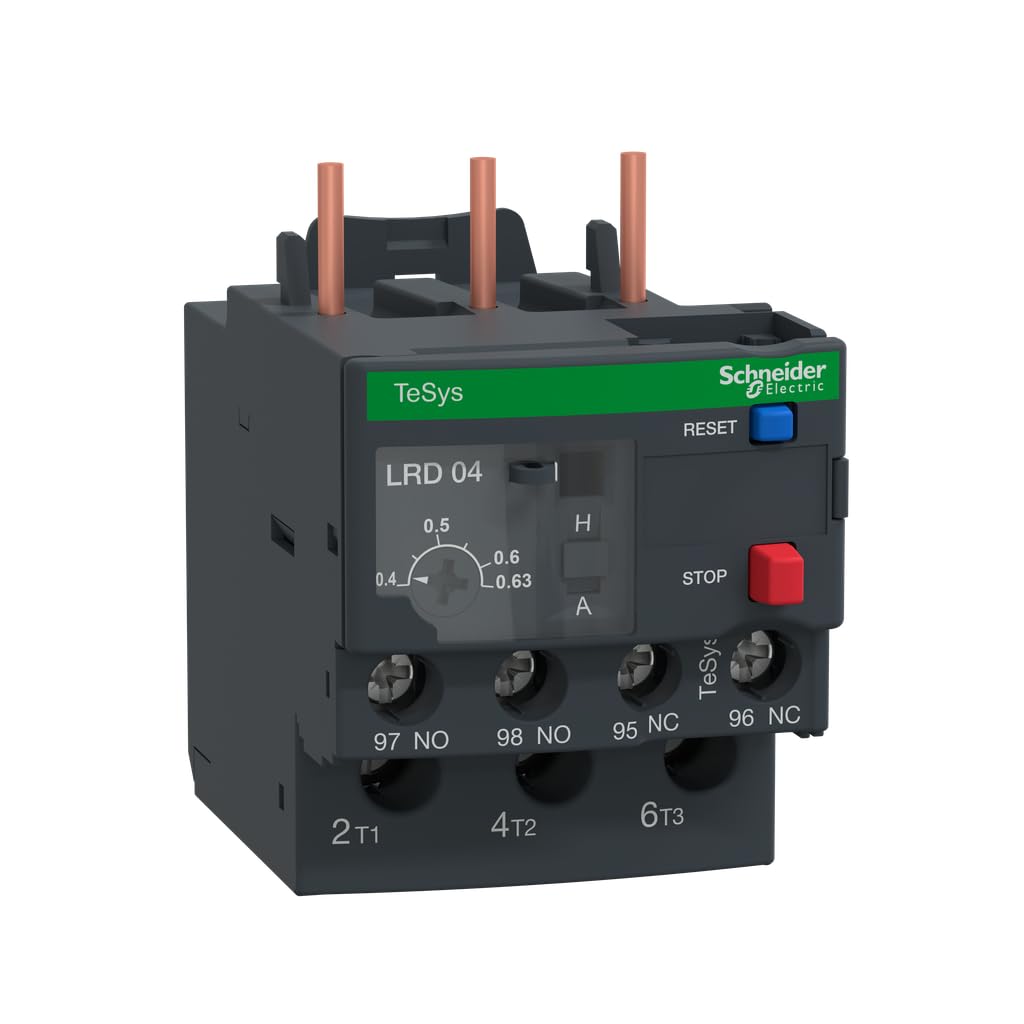

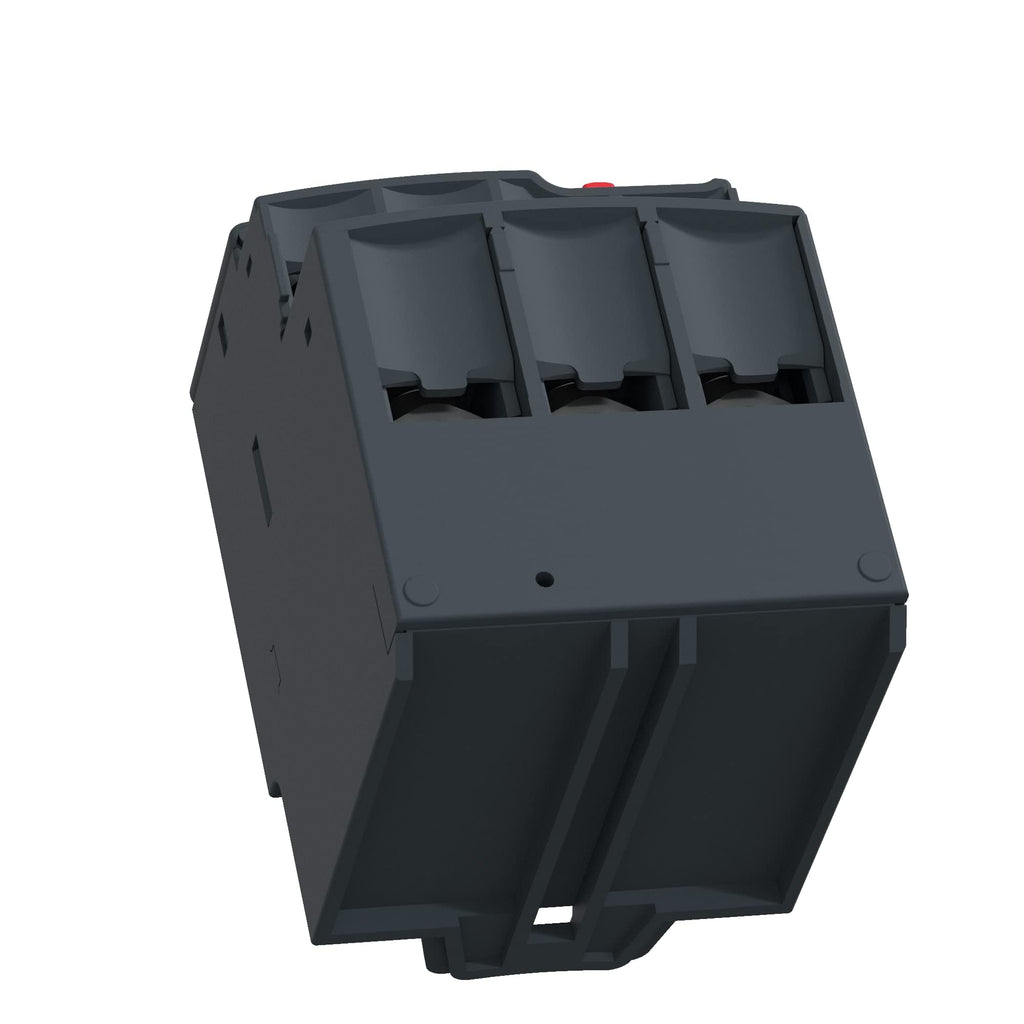

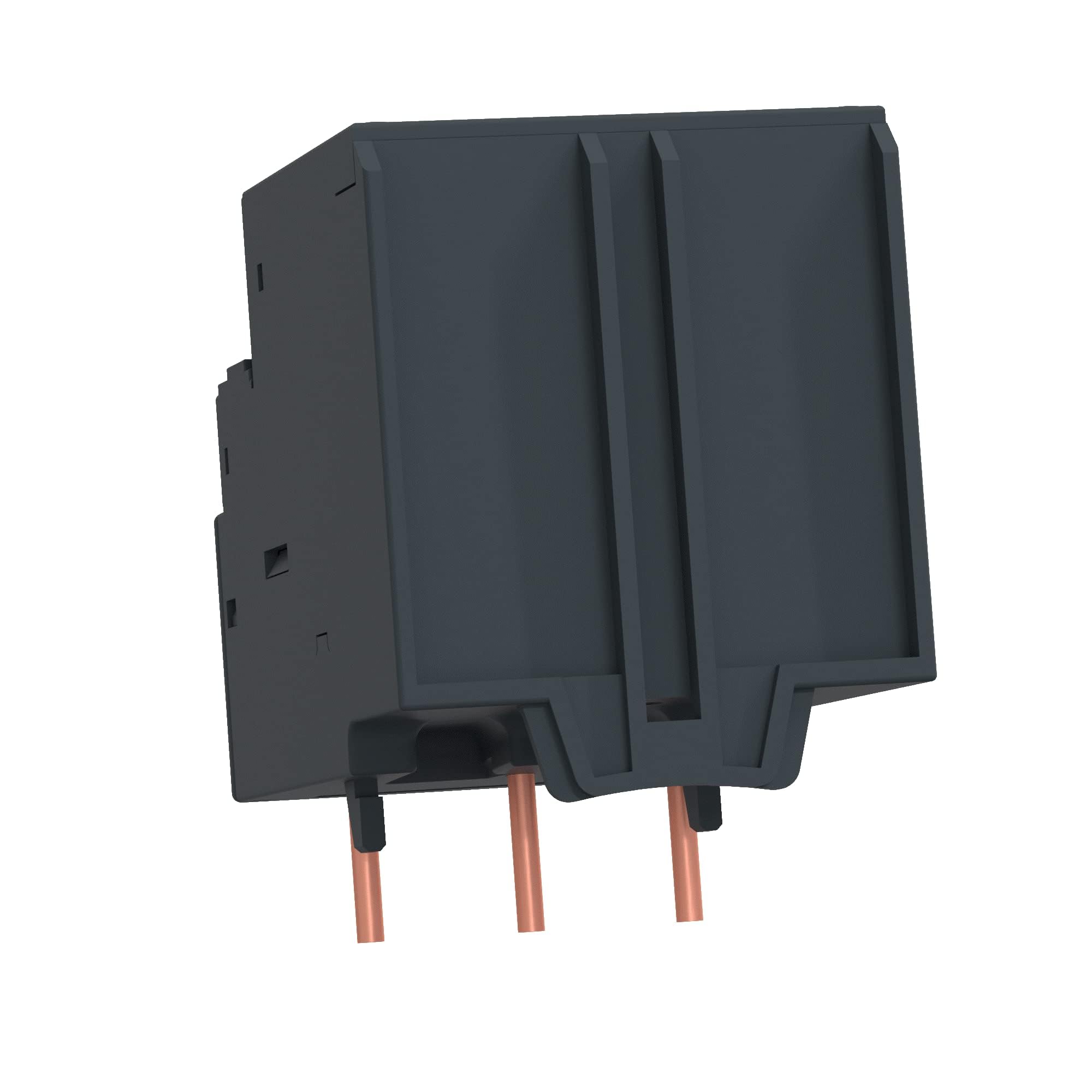

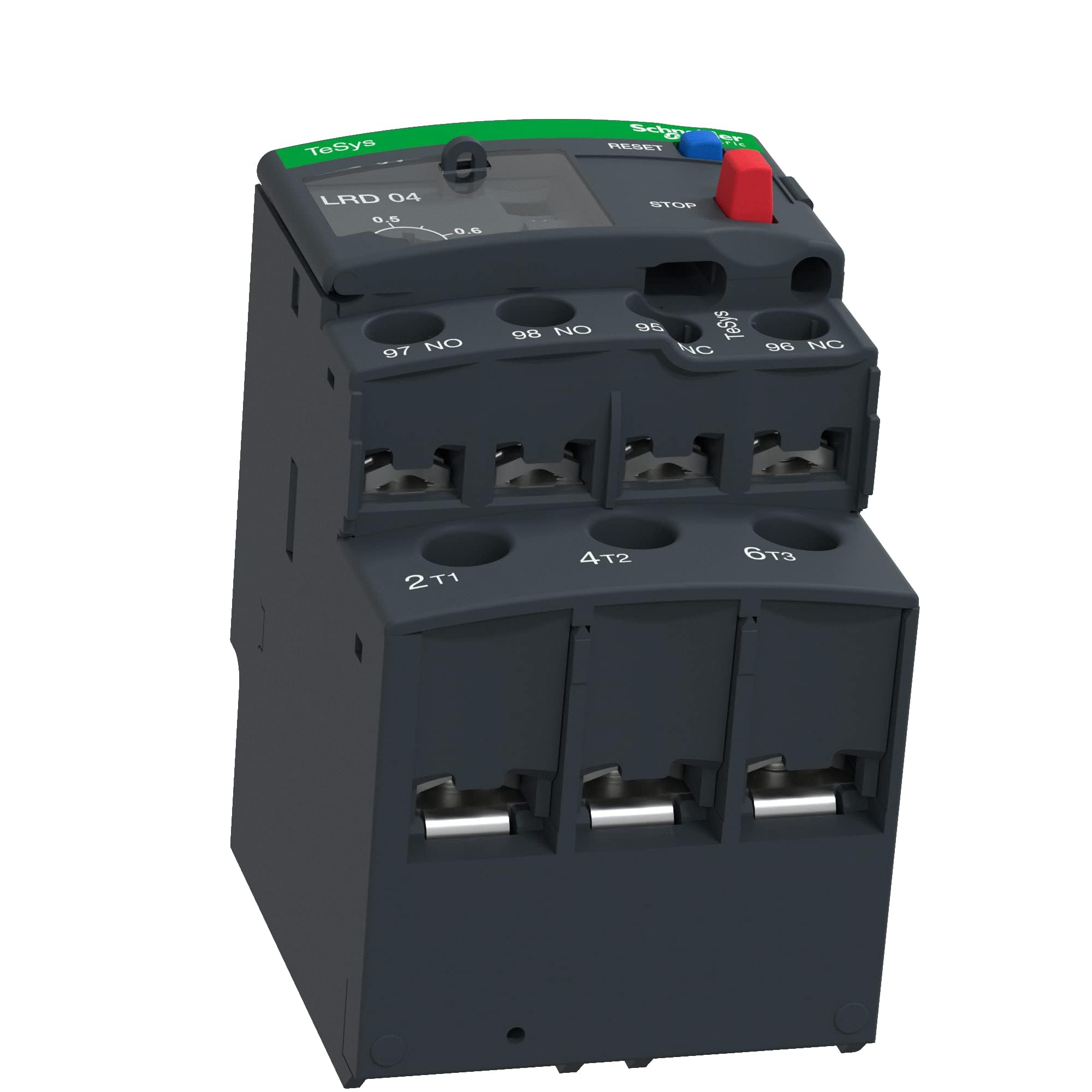

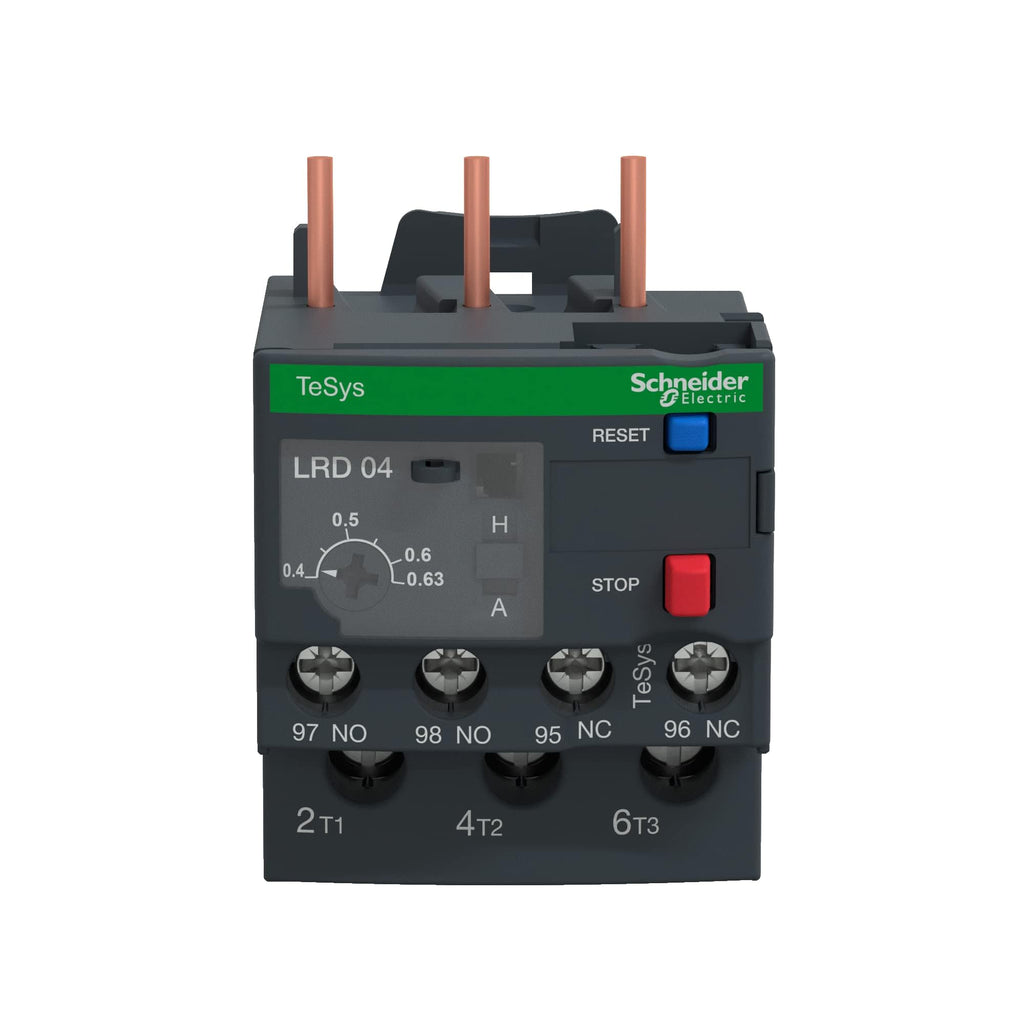

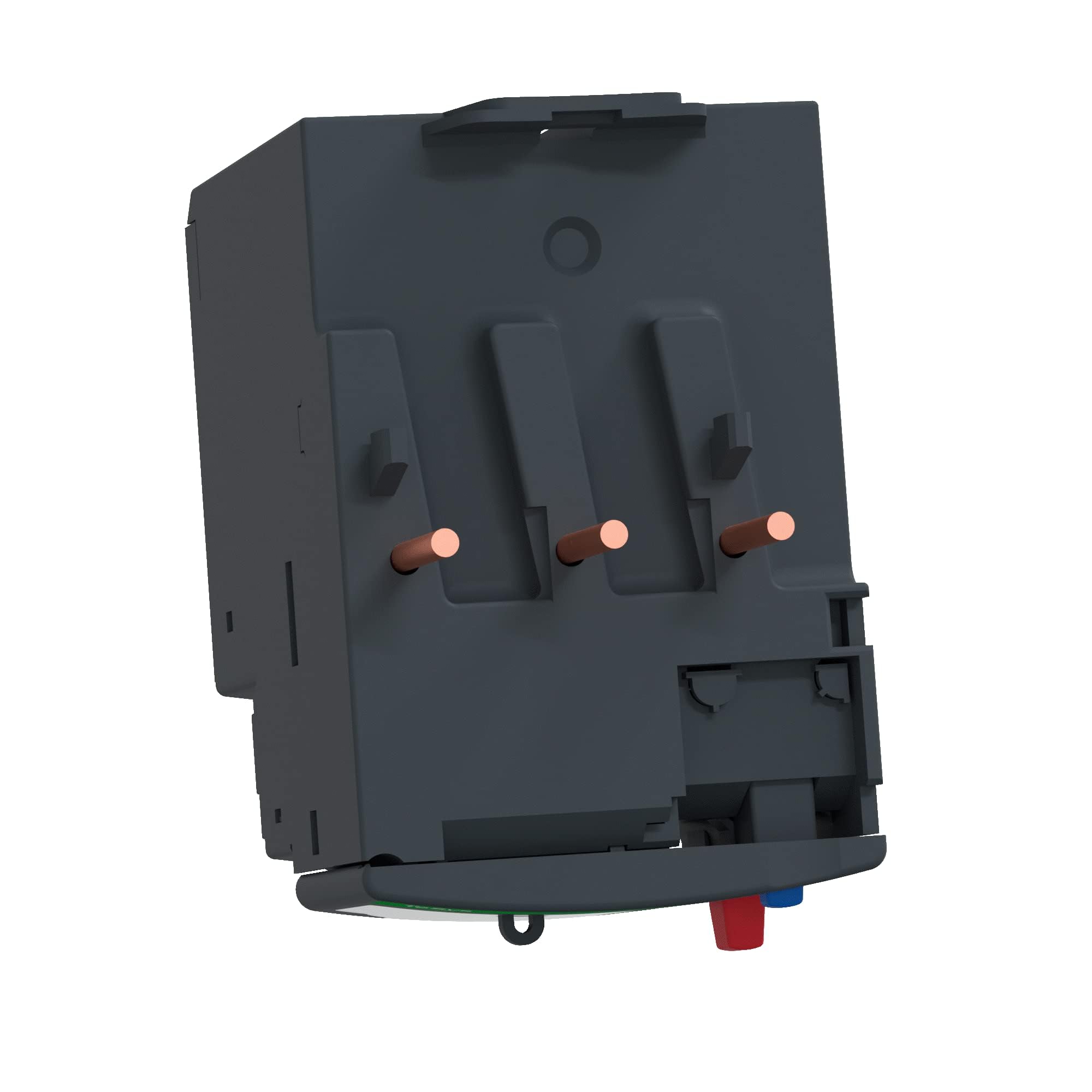

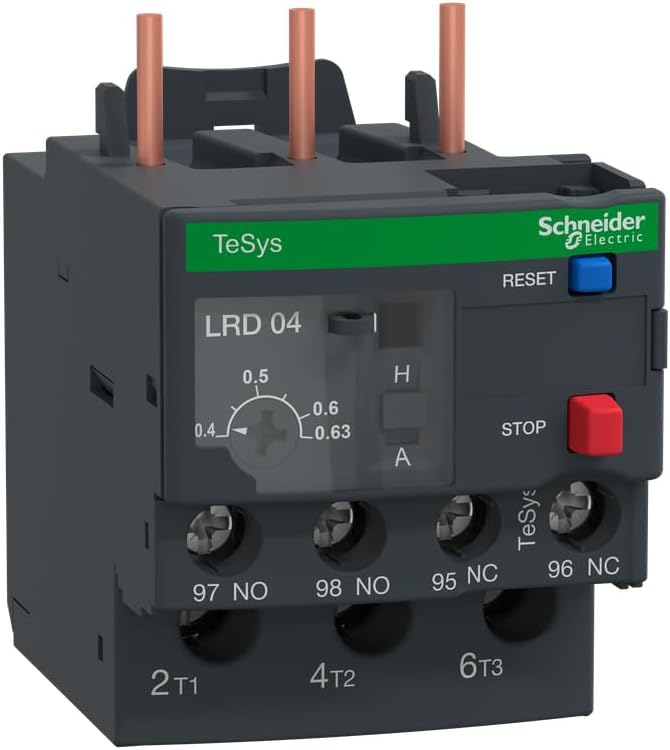

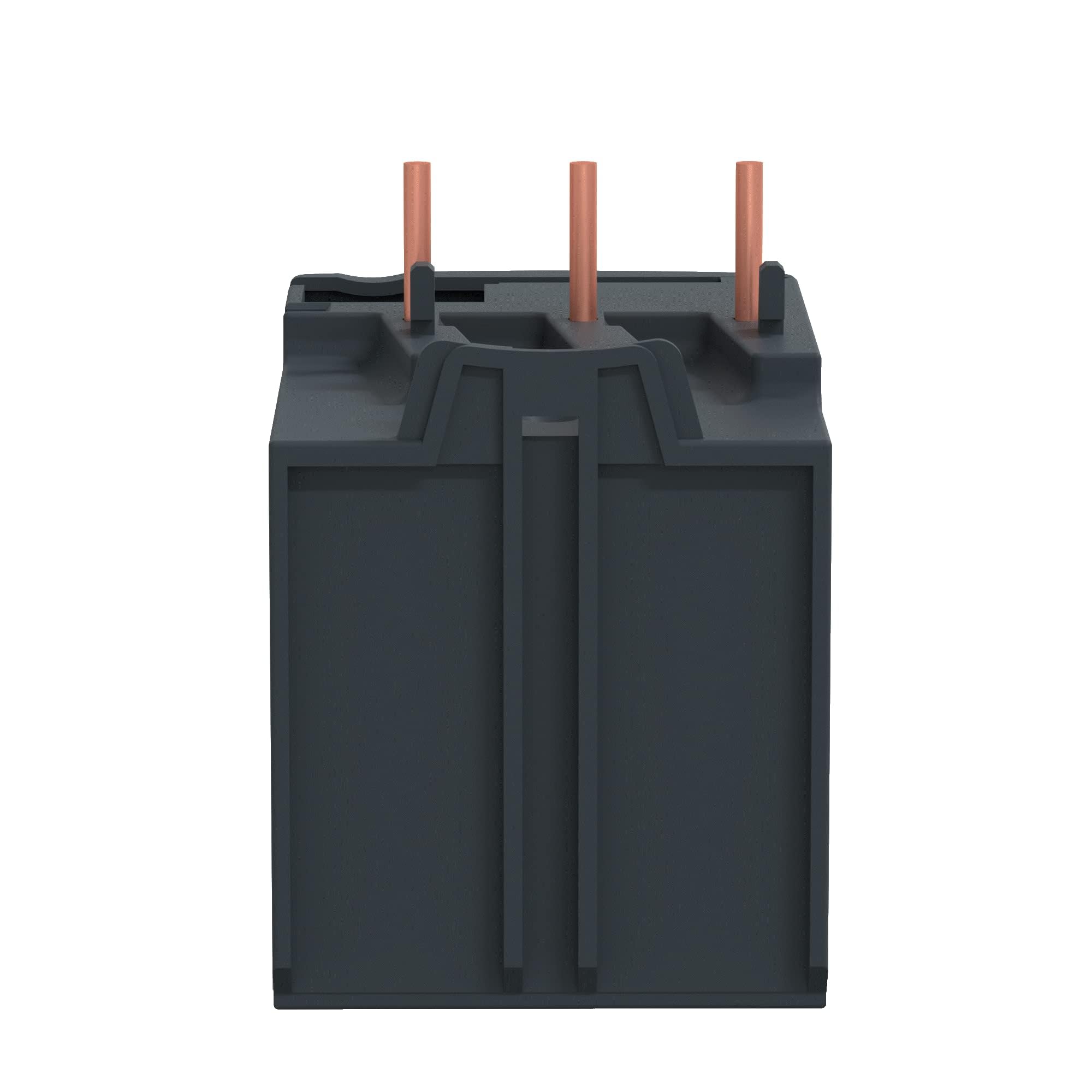

Schneider Electric TeSys LRD 0.4-0.63A Class 10A Thermal Overload Relays for protection of 3-phase motors 0.12-0.18kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38.
Model: LRD04
Item Condition: New
