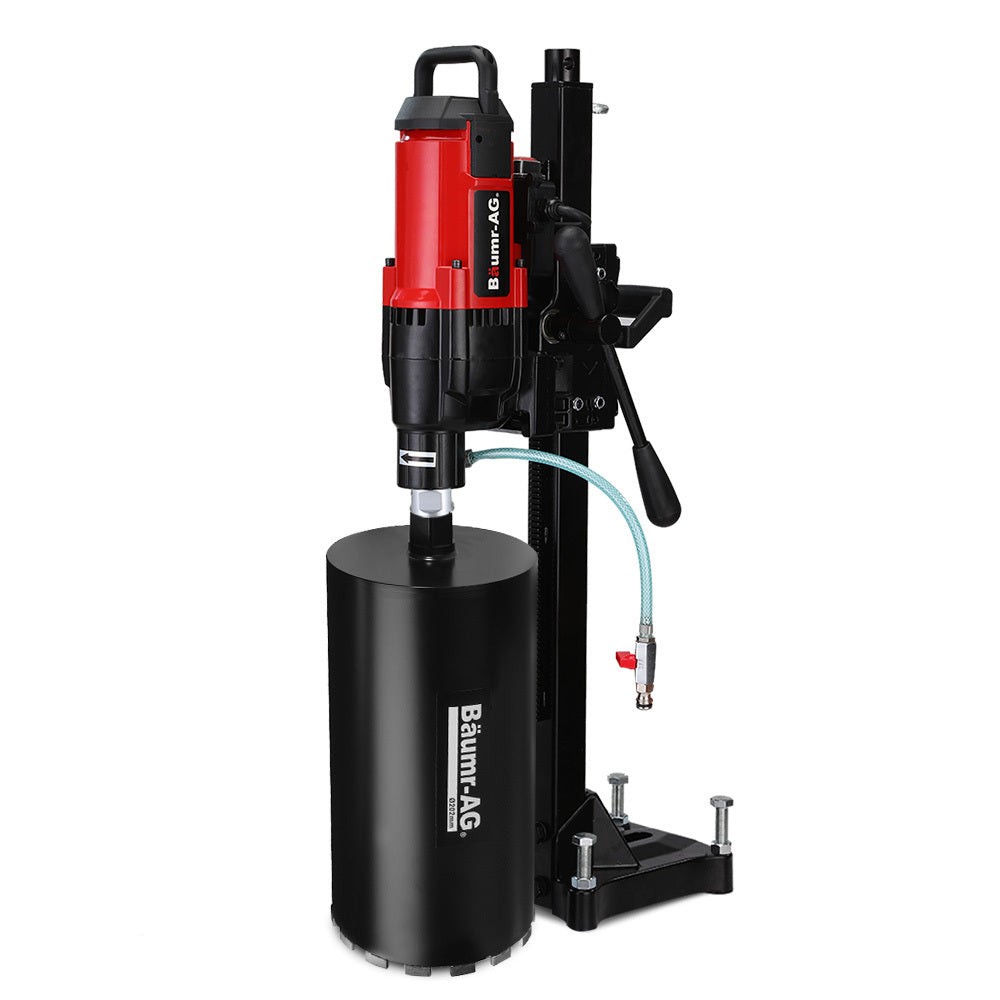

VC-280 280mm Vertical Core Drill 3200W Wet/Dry with 202mm Bit

SPECIFICATIONS

• 280mm Vertical Stand Core Drill
• Input Power: 240V 50Hz AC
• Rated Output Power: 3200W

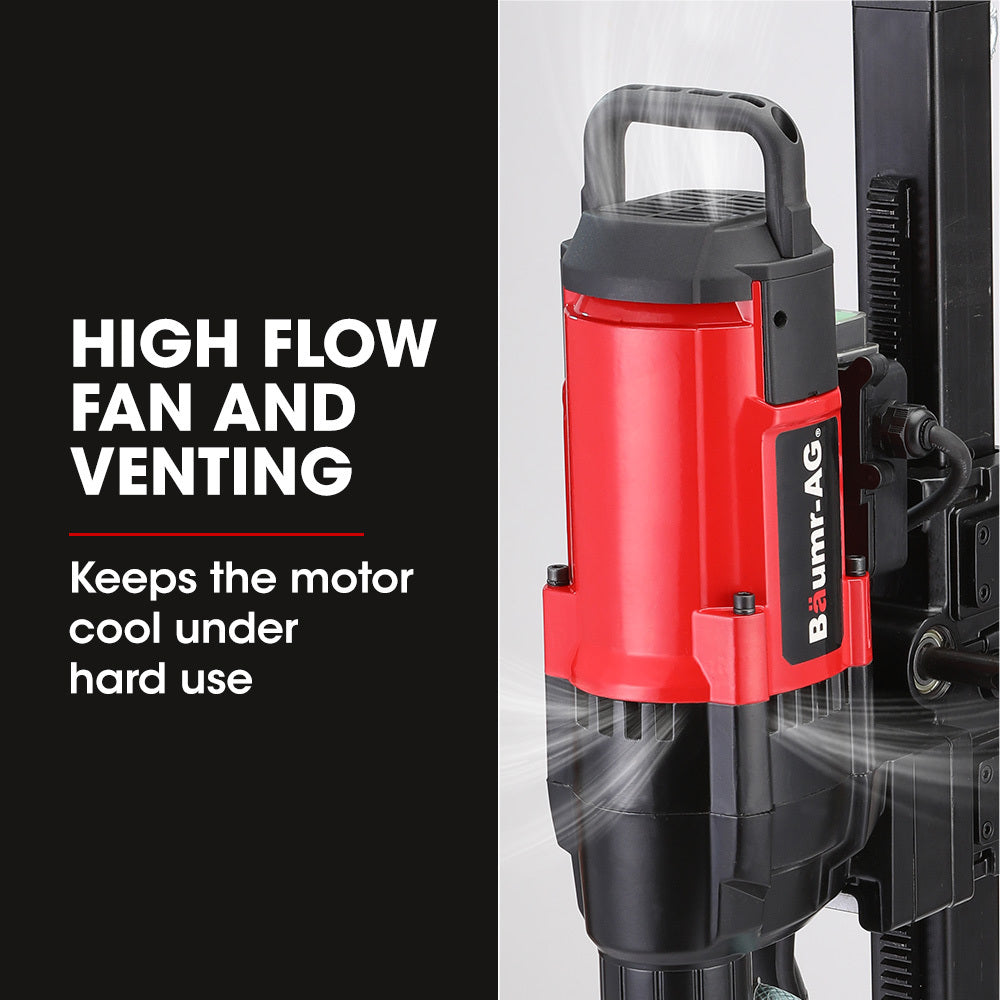

• Cooling: Air cooled
• No load speed: 550r/min
• Speeds: 1 speed
• Drilling Size Range: 20-280mm

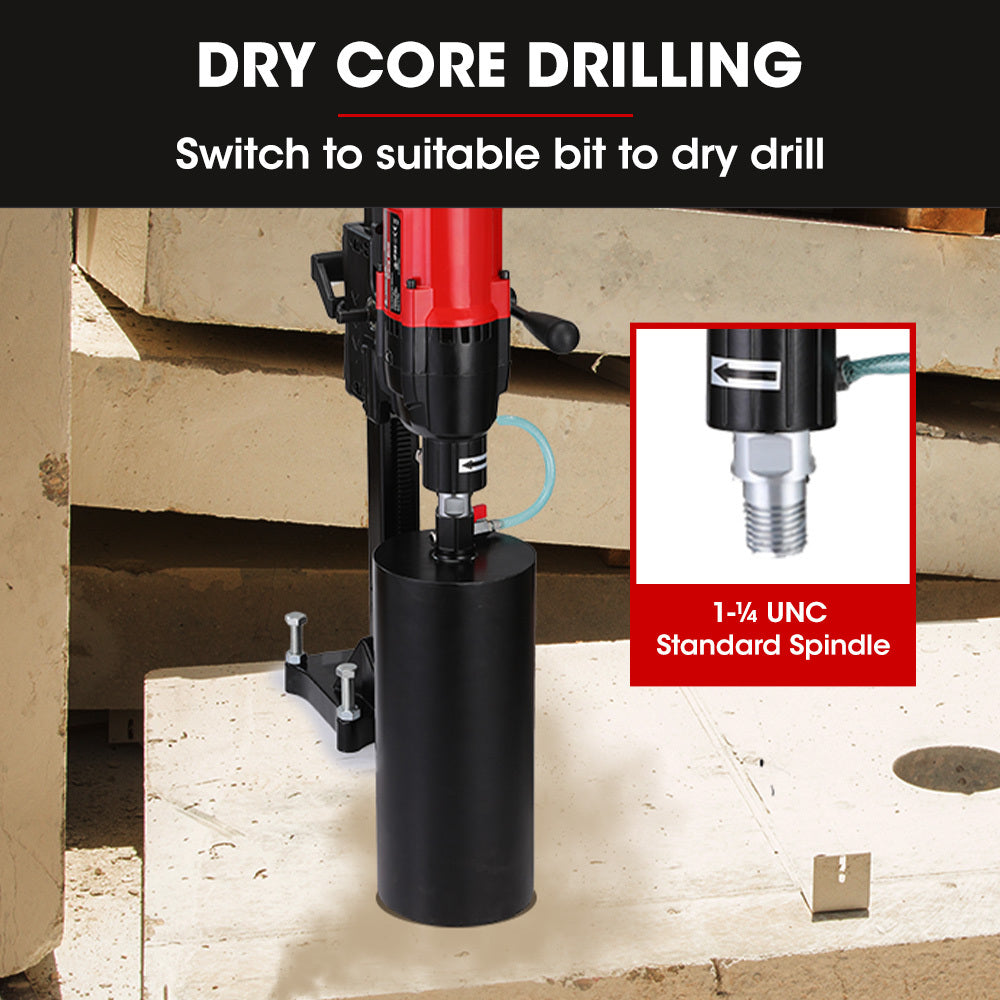

• Spindle Thread: 1-1/4"" UNC

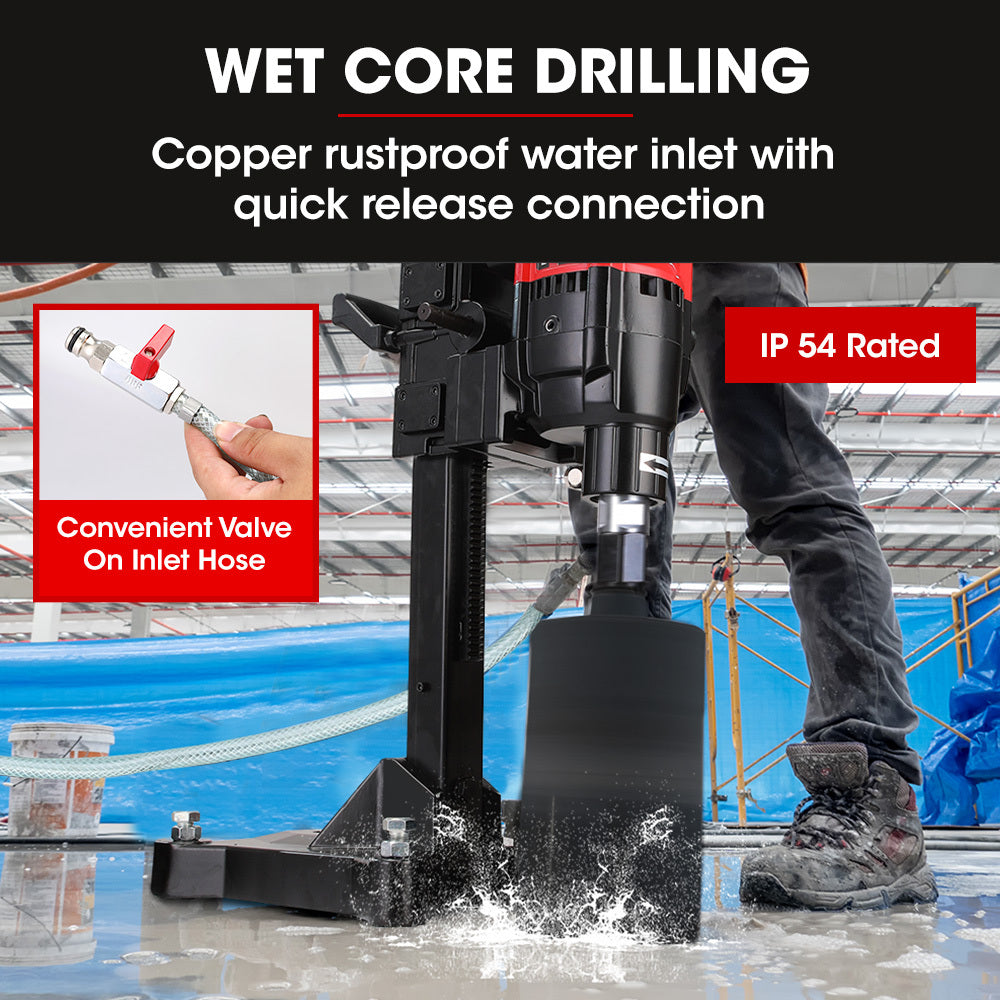

• Coring Type: Wet/Dry Coring
• Construction Material:

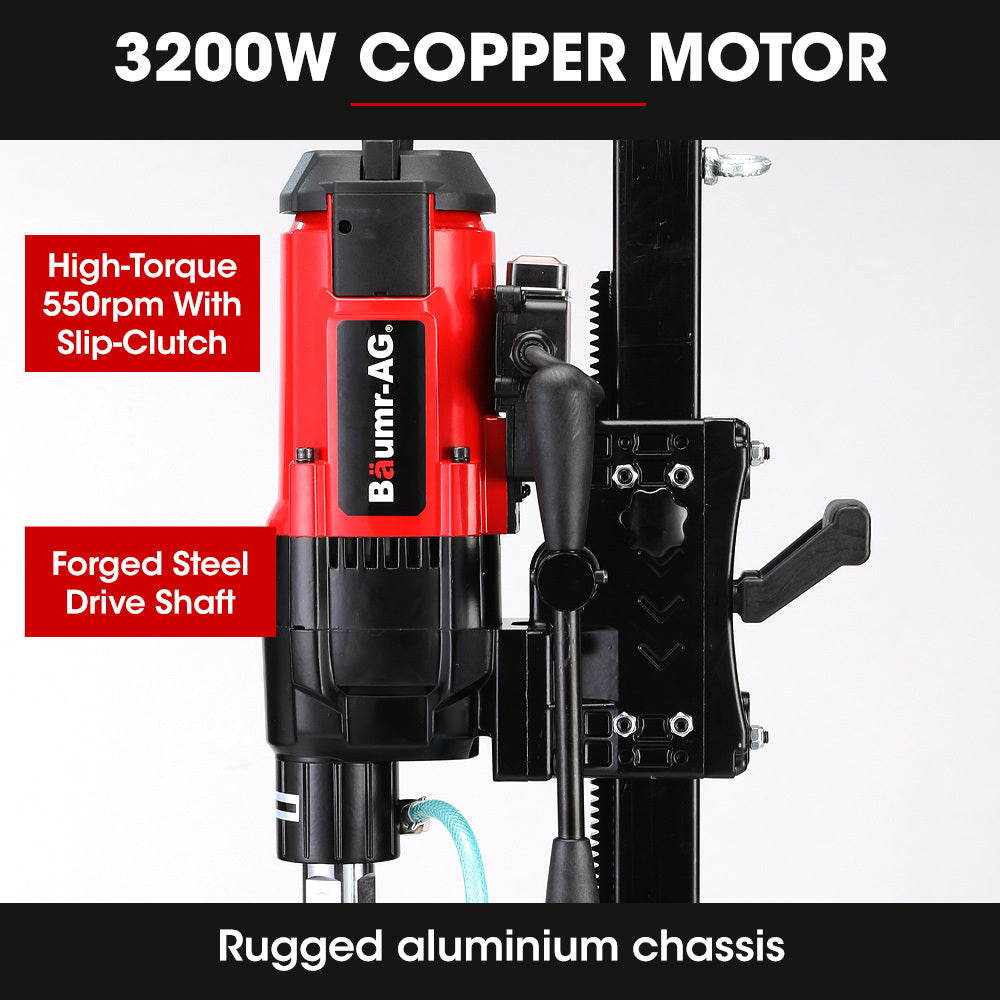

  • Drill: Aluminium Chassis, Steel Forged Output Shaft, Copper Water Inlet, Copper Motor

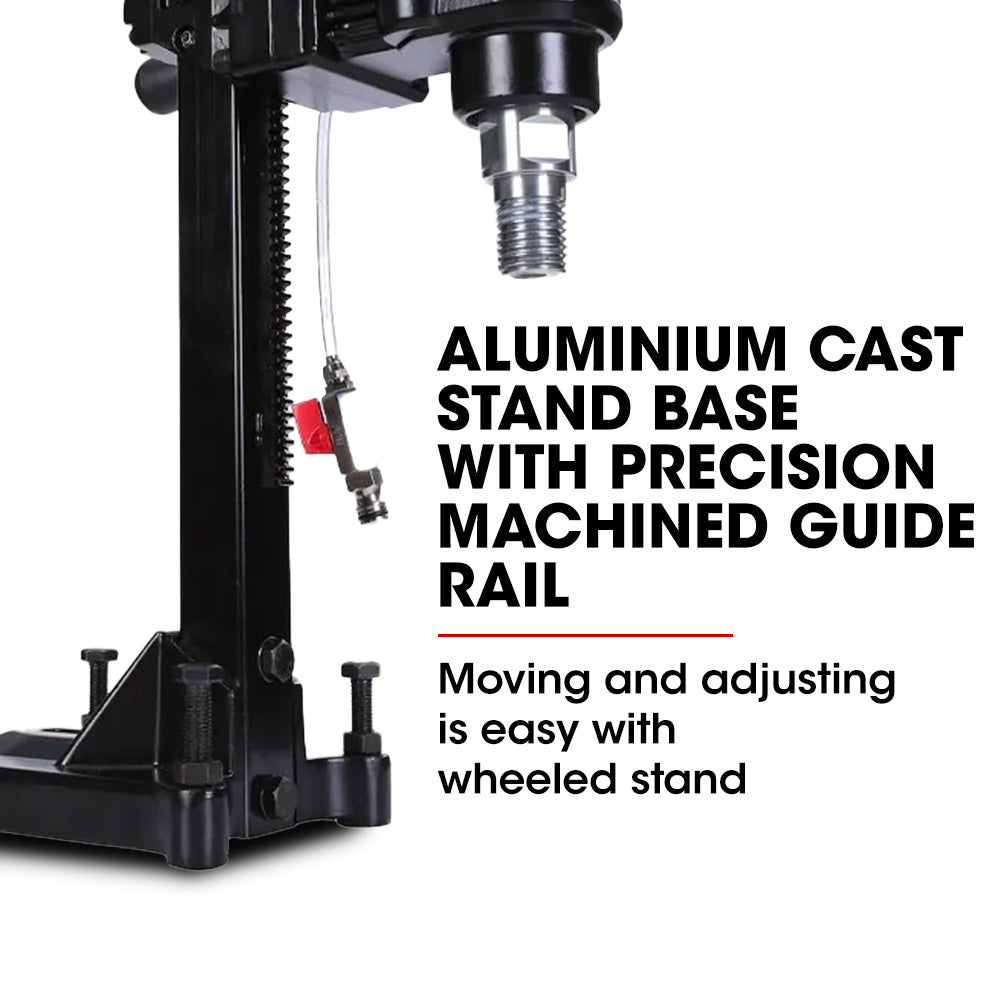

  • Stand: Aluminium Guide Rail, Steel Base
• IP Rating: IP54

• Diamond Core Drill Bit - 202mm
• Cutting Diameter: 202mm
• Working Length: 400mm
• Total Length: 460mm
• Type: Coring Cutter
• Shaft Material: High-Carbon Industrial Grade Steel

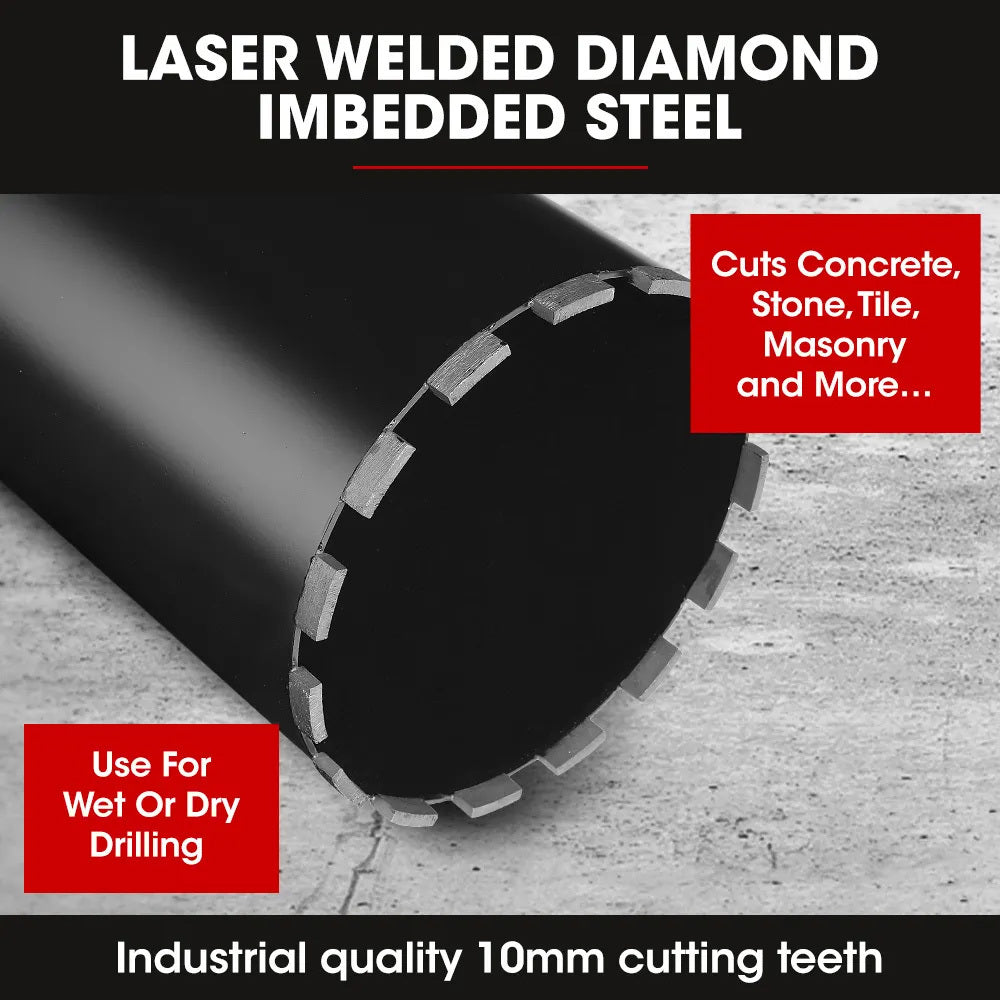

• Cutting Teeth Material: Laser Welded Diamond Imbedded Steel
• Shank Size/Type: 1 1/4 UNC

IN THE BOX

• 1 x Baumr-AG Core Drill
• 1 x Drill Rig (Assembly Required)
• 1 x 202mm Baumr-AG Diamond Core Drill Bit
• User Manual Accessible Online

SIZE WEIGHT

• 280mm Vertical Stand Core Drill

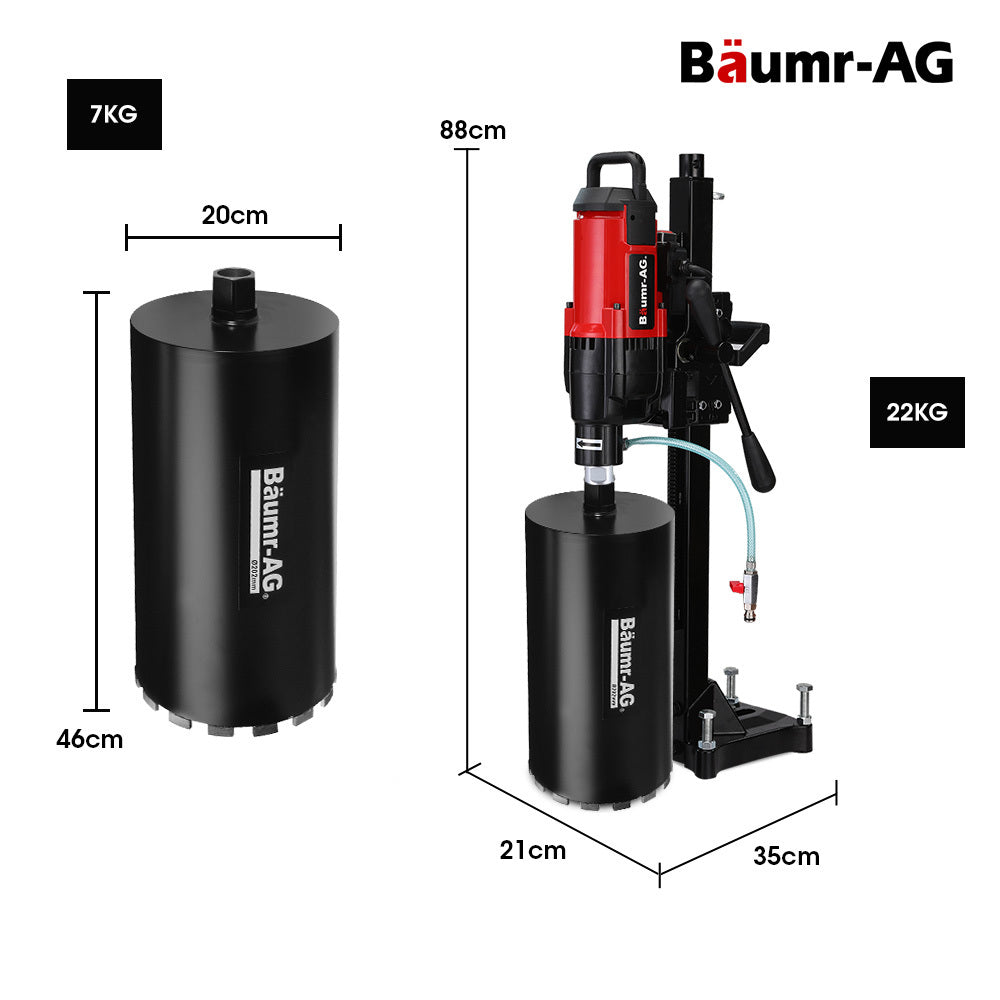

• Product Dimensions (W x D x H): 210 x 350 x 880mm
• Product Weight: 22kg
• Carton Dimensions (W x L x H): 36 x 94 x 21cm
• Carton Weight: 27kg

• Diamond Core Drill Bit - 202mm
• Product Dimensions: 200mm x L460mm
• Product Weight: 7kg
• Carton Dimensions (W x L x H): 44 x 49 x 23cm
• Carton Weight: 15kg
